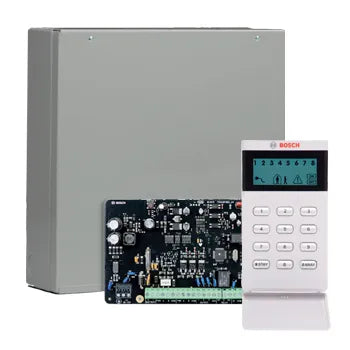

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-ND-ICON) is a premium-grade security package tailored for small to medium-sized commercial and residential applications. Featuring the high-capacity ICP-SOL4-P control panel, the intuitive IUI-SOL-ICON LCD keypad, and housed within a durable MW400 metal cabinet, this solution offers robust protection with sleek, user-friendly operation. A siren kit is included for effective audible intrusion alerts.

With up to 32 programmable zones, dual-area partitioning, and compatibility with wired or wireless devices, the K4000-ND-ICON ensures scalable and flexible protection. The system also supports remote management via the RSC+ mobile app, making it ideal for users requiring accessibility, performance, and expandability.

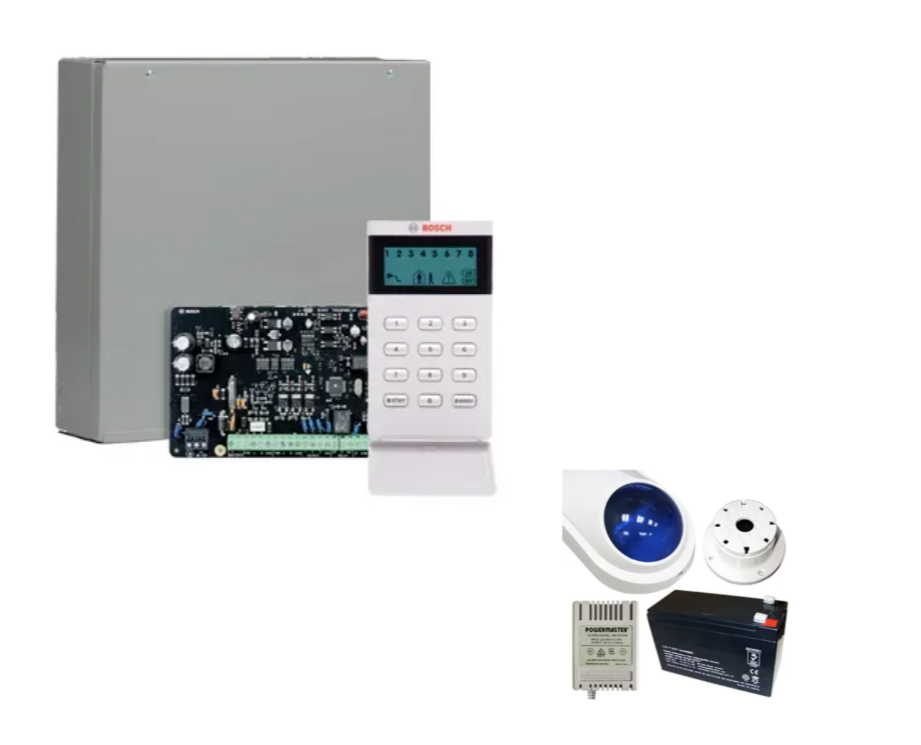

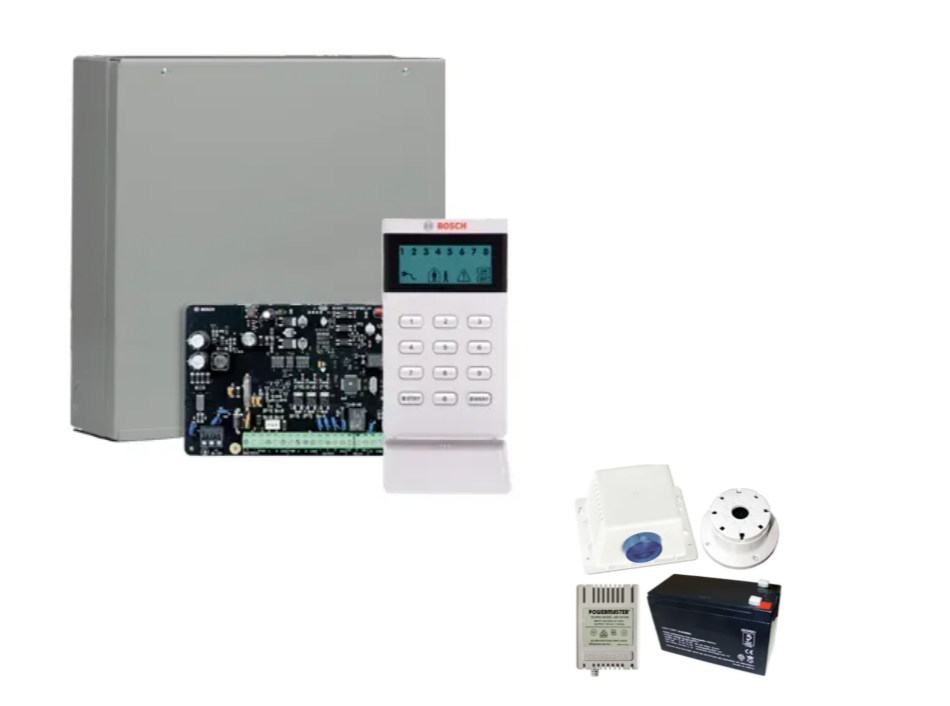

What's Included in the Box

• 1x ICP-SOL4-P Intrusion Control Panel

• 1x IUI-SOL-ICON LCD Icon Keypad

• 1x MW400 Metal Enclosure Cabinet

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick Start User Guide

Main Features

• 32 Intrusion Zones (16 onboard, expandable to 32 via B228 or wireless modules)

• 64 User Capacity (32 key fobs and 32 PIN users)

• Supports 2 Separate Areas (Partitions)

• Compatible with Wireless & Hardwired Devices

• 4 Door Integration Points (via B901 Door Controller)

• Up to 4 Keypads Supported

• RSC+ App for Remote Control

• Supports IP & Mobile Communication (via B426-M and B450-M)

• MW400 Cabinet: Provides secure housing and protection for the control panel

Detailed Specifications

ICP-SOL4-P Control Panel

• Zones: Up to 32 (16 onboard)

• Users: 64 (1 installer, 63 users)

• Outputs: 4 onboard, expandable to 28 via B308

• Communication Protocols: CID, SIA, CSV-IP, Push (module dependent)

• Dimensions: 103mm x 183mm x 28mm

• Power Supply: TF008 Plug Pack & 12V backup battery

IUI-SOL-ICON LCD Keypad

• Display: LCD with zone icons

• Zones Shown: Up to 8 simultaneously

• Design: Compact, includes protective door

• Interface: Intuitive for users and installers

MW400 Metal Cabinet

• Secure metal housing for control board

• Tamper-resistant with ample room for expansion modules

• Professionally styled for neat installations

Warranty Information

All components in the K4000-ND-ICON kit are backed by Bosch's 3-year manufacturer warranty, covering product performance and workmanship under standard usage conditions.

Brand Description

Bosch Security Systems is a globally trusted provider of reliable and scalable security solutions. Known for precision German engineering, Bosch's alarm and access control systems are widely deployed in homes and businesses across Australia and New Zealand for their dependability, compatibility, and long service life.

SKU

K4000-ND-ICON

Practical Use Scenarios

• Home Security Installations: Easy-to-use LCD keypad is ideal for family members

• Retail & Small Business: MW400 cabinet securely houses system components in back-office areas

• Warehouses: Compatible with motion sensors and sirens for full-coverage security

• Multi-Tenant Spaces: Partitioning allows individual area control within the same system

Datasheets / Downloadable Resources

• ICP-SOL4-P Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Standards Certified: RCM (Australia) and Telepermit (New Zealand) approved

• NBN-Ready: Supports CSV-IP for reliable IP alarm monitoring

• Climatic Suitability: Designed for operation in AU/NZ temperature ranges

• Officially Distributed: Sourced from authorized Bosch security resellers

• Warranty Backed Locally: Repairs and support handled directly through Bosch ANZ

 FAQs

Q1: What does the Bosch Solution 4000 Kit (K4000-ND-ICON) include?
A1: The K4000-ND-ICON includes an ICP-SOL4-P panel, IUI-SOL-ICON LCD keypad, MW400 metal cabinet, siren kit, and installation accessories.

Q2: Is the Bosch K4000-ND-ICON alarm kit suitable for wireless device integration?
A2: Yes, it supports wireless sensors and fobs via the B810 Radion receiver or WE800EV2 module.

Q3: How many zones and users can the Bosch K4000-ND-ICON support?
A3: This kit supports up to 32 zones and 64 users (32 PIN codes + 32 key fobs).

Q4: Can I control the Bosch K4000-ND-ICON system from my phone?
A4: Yes, the system integrates with Bosch's RSC+ mobile app via IP or mobile modules for remote arming, disarming, and notifications.

Q5: Is the Bosch K4000-ND-ICON compliant with Australian standards?
A5: Absolutely. It holds RCM and Telepermit certifications and is optimized for installation across Australia and New Zealand.
