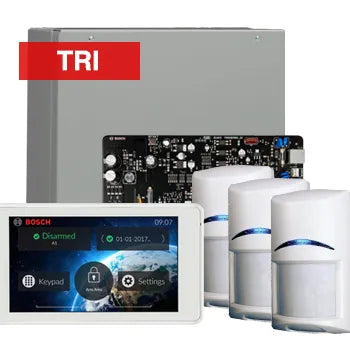

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3TRI-TS5) is a professional-grade intrusion detection solution engineered for medium-sized residential and commercial sites. Featuring the powerful ICP-SOL4-P 32-zone control panel, a sleek and user-friendly IUI-SOL-TS5 5" touchscreen keypad, and three ISC-BDL2-WP12G Tri-Tech detectors, this kit offers comprehensive protection with enhanced false alarm immunity. A siren kit is also included to provide an immediate, loud deterrent in case of intrusion.

This system is designed to be expandable, smart, and user-centric, supporting mobile integration through the Bosch RSC+ app, wireless device compatibility, and multi-area configuration for flexible use in shared or partitioned spaces.

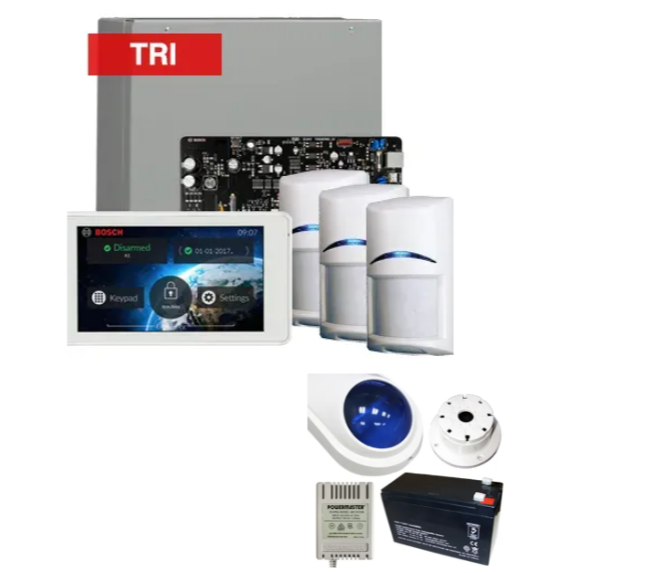

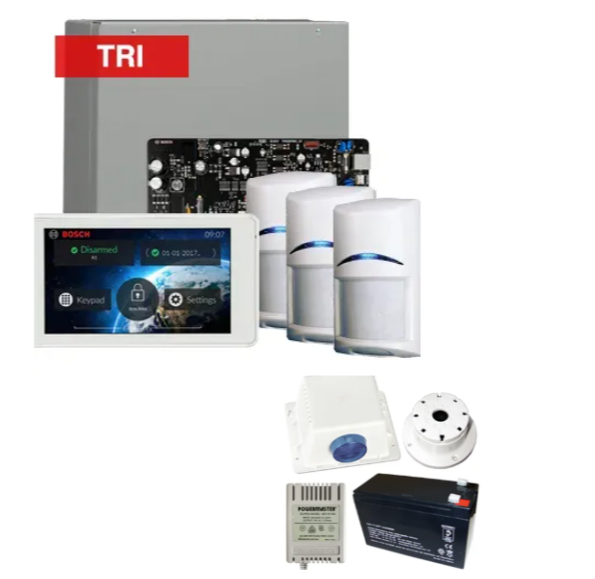

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS5 5" Touchscreen Keypad

• 3x ISC-BDL2-WP12G Tri-Tech PIR Motion Detectors

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick Start Guide

Main Features

• Zones: 16 onboard zones, expandable to 32

• Partitions: 2 fully programmable areas

• Users: Supports up to 64 users (32 key fobs and 32 PINs)

• Touchscreen Interface: 5" intuitive display with full system control

• Motion Detection: Tri-Tech detectors combining PIR + microwave sensing for high reliability

• Wireless Ready: Compatible with B810 (RADION) and WE800EV2 (key fobs only)

• Remote Control: Use the Bosch RSC+ app for arming, disarming, and status alerts

• Outputs: 4 onboard, expandable to 28 with B308 expansion

• Door Control: Integrate with B901 door module for up to 4 doors

Detailed Specifications

ICP-SOL4-P Control Panel:

• Zones: 32 total (16 onboard, 16 via B228 or RADION expansion)

• Outputs: 4 onboard (expandable to 28)

• User Codes: 64 user codes + 1 installer code

• Communication: CID, SIA, Email, CSV-IP, Push (B426-M/B450-M required)

• Power: TF008 Plug Pack + 12VDC SLA backup battery

• Operating Temp: 0 °C to 45 °C

• Humidity: 10% – 95%, non-condensing

• Size: 103 mm x 183 mm x 28 mm

IUI-SOL-TS5 Touchscreen Keypad:

• Display: 5" full-color capacitive touchscreen

• User Experience: Graphical, icon-based interface for easy system navigation

• System Control: Full arming/disarming, event history, status, and zone control

ISC-BDL2-WP12G Tri-Tech Detectors:

• Technology: Passive Infrared (PIR) + Microwave

• Detection Range: Up to 12 meters

• Pet Immunity: Yes, for animals up to 45 kg

• Applications: Ideal for variable-temperature areas and high-traffic environments

Warranty Information

All components in the K4000-3TRI-TS5 kit are covered by a 3-year Bosch manufacturer warranty, ensuring reliable performance and long-term peace of mind.

Brand Description

Bosch Security Systems is a global industry leader in professional-grade security products, offering advanced and reliable alarm technologies. Known for engineering precision and robust functionality, Bosch’s intrusion systems are trusted across Australia and New Zealand for homes, offices, and critical facilities.

SKU

K4000-3TRI-TS5

Practical Use Scenarios

• Family Homes: Pet-tolerant detectors help prevent false alarms in active households

• Retail or Medical Clinics: Elegant touchscreen control with customizable arming options

• Commercial Spaces: Supports multi-area security for offices and storage zones

• Warehouses or Garages: Tri-Tech sensors perform well in temperature-fluctuating environments

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Regulatory Certified: RCM (Australia) and Telepermit (New Zealand) approved

• International Compliance: Conforms to EN50130-4:2011 and EN61000-3 standards

• NBN-Ready: Fully compatible with IP-based monitoring via B426-M or B450-M

• Authorized AU/NZ Distribution: Supplied through Bosch-certified channels

• Local Warranty & Support: Bosch provides regional service and warranty handling

SEO-Optimized FAQs

Q1: What keypad is included in the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS5)?
A1: The K4000-3TRI-TS5 includes the IUI-SOL-TS5, a 5" touchscreen keypad with intuitive graphical control and quick access to system functions.

Q2: Are the motion detectors in the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS5) pet-friendly?
A2: Yes, the included ISC-BDL2-WP12G Tri-Tech detectors are pet-tolerant for animals up to 45 kg, minimizing false alarms in pet-occupied areas.

Q3: Can the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS5) be controlled remotely?
A3: Yes, with the Bosch RSC+ mobile app and the optional B426-M or B450-M communication module, users can manage the system remotely from smartphones or tablets.

Q4: How many zones and users does the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS5) support?
A4: The K4000-3TRI-TS5 supports up to 32 zones and 64 users, allowing flexible deployment in medium to large properties.

Q5: Is the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS5) compliant with Australian and New Zealand standards?
A5: Yes, it meets all necessary AU/NZ standards including RCM and Telepermit certification, and is fully NBN/fiber-compatible.
