The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3TRI-TS7) delivers high-performance intrusion protection, seamless user control, and a modern interface for both residential and commercial security needs. Featuring the powerful ICP-SOL4-P 32-zone control panel, the elegant IUI-SOL-TS7 7” touchscreen keypad, and three ISC-BDL2-WP12G Tri-Tech motion detectors, this kit provides an exceptional balance of detection accuracy, user accessibility, and expandability.

Ideal for medium-sized installations, the Solution 4000 supports up to 64 users, offers multi-area partitioning, and integrates with mobile platforms via Bosch’s RSC+ app. A siren kit is included to ensure immediate audio alerts upon detection of an intrusion.

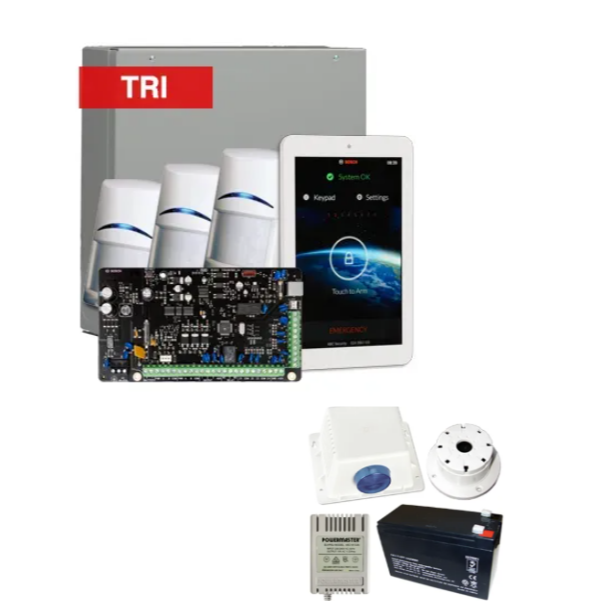

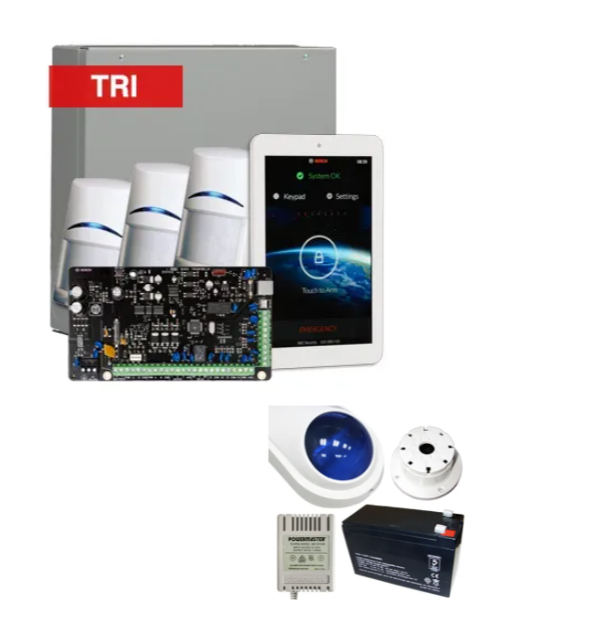

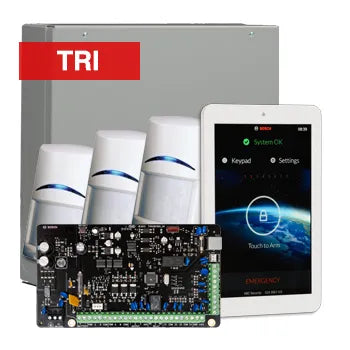

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS7 7" Touchscreen Keypad

• 3x ISC-BDL2-WP12G Tri-Tech Motion Detectors

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick Start User Guide

Main Features

• Zones: 16 onboard, expandable to 32 (wired/wireless)

• Partitions: Supports 2 independent areas

• User Capacity: 64 total users (32 PINs and 32 key fobs)

• Tri-Tech Motion Detection: Combines PIR + microwave for increased reliability

• Touch Interface: TS7 keypad with 7” capacitive display and intuitive menu system

• Wireless Ready: Compatible with RADION B810 and WE800EV2 receivers

• Remote Control via App: Bosch RSC+ app integration for arming, disarming, and control

• Outputs: 4 onboard (expandable to 28 via B308 module)

• Door Integration: Support for up to 4 doors using B901 module

Detailed Specifications

ICP-SOL4-P Control Panel:

• Zones: Up to 32 (16 onboard, 16 via B228/RADION)

• Outputs: 4 native outputs, expandable to 28

• User Codes: 64 user codes, 1 installer code

• Communication Options: CID, SIA, CSV-IP, Push (via B426-M or B450-M)

• Power Supply: TF008 Plug Pack + 12VDC SLA backup

• Dimensions: 103 mm x 183 mm x 28 mm

• Operating Temp: 0 °C to 45 °C

• Humidity: 10%–95% (non-condensing)

IUI-SOL-TS7 Keypad:

• Display: 7” full-color touchscreen

• Interface: Icon-driven user experience with enhanced navigation

• Functionality: Full system management and real-time status display

ISC-BDL2-WP12G Tri-Tech Detectors:

• Detection: PIR + Microwave

• Range: Up to 12 meters

• Pet Immunity: Yes, up to 45 kg

• Installation: Designed for areas with variable temperatures and high activity

Warranty Information

The K4000-3TRI-TS7 alarm kit is covered under a 3-year Bosch manufacturer warranty, offering assurance of performance and reliability through Bosch’s authorized support network.

Brand Description

Bosch Security Systems is a globally recognized name in security and surveillance technologies. Known for innovation, durability, and precision, Bosch alarm solutions are trusted by professionals across Australia and New Zealand for their performance, flexibility, and seamless integration.

SKU

K4000-3TRI-TS7

Practical Use Scenarios

• Premium Residential Installations: The 7” touchscreen keypad blends with modern interiors while enabling easy access for all household members.

• Pet-Friendly Environments: Tri-Tech detectors reduce nuisance alarms from pets up to 45 kg.

• Multi-Zone Commercial Sites: Use partitioning for offices, storage, and common areas.

• Warehouse or Industrial Areas: Advanced sensors work reliably in fluctuating temperature zones.

Datasheets / Downloadable Resources

• ICP-SOL4-P Control Panel Datasheet

• IUI-SOL-TS7 Keypad Datasheet

• ISC-BDL2-WP12G Detector Datasheet

Excellence for the Australian and New Zealand Market

• Compliance: Certified for use under RCM (Australia) and Telepermit (New Zealand)

• Network-Ready: Supports CSV-IP for full NBN and fiber monitoring integration

• Region-Specific Design: Optimized for environmental conditions across AU and NZ

• Authorized Resale & Support: Distributed through certified Bosch partners

• Warranty Handling: Backed by Bosch’s local technical support infrastructure

SEO-Optimized FAQs

Q1: What makes the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS7) suitable for modern homes?
A1: The K4000-3TRI-TS7 features a stylish 7” touchscreen keypad (TS7) and Tri-Tech sensors, offering intuitive control and high-performance detection in elegant, pet-friendly packages.

Q2: Can the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS7) be expanded with wireless devices?
A2: Yes, it supports wireless expansion via the RADION B810 receiver and key fob-only use via the WE800EV2 receiver.

Q3: How many zones and users does the Bosch Solution 4000 Kit (K4000-3TRI-TS7) support?
A3: The system supports up to 32 zones and 64 users (32 fob users and 32 PIN codes), ideal for growing setups.

Q4: Is the Bosch Solution 4000 Alarm Kit (K4000-3TRI-TS7) compatible with remote monitoring?
A4: Yes, remote access and notifications are available via the Bosch RSC+ app when used with optional communication modules (B426-M/B450-M).

Q5: Is the Bosch Solution 4000 Kit (K4000-3TRI-TS7) certified for use in Australia and New Zealand?
A5: Absolutely. It meets RCM and Telepermit standards and is fully compatible with IP-based monitoring used by AU/NZ security providers.
