The Bosch Solution 4000 Wireless Alarm Kit (Part Number: K4000-3WPIR-PREM) delivers a comprehensive and scalable security solution tailored for small to medium-sized residential and commercial environments. At its core is the ICP-SOL4-P 32-zone control panel, offering robust intrusion detection capabilities. The system is complemented by the IUI-SOL-ICON LCD keypad for intuitive user interaction, three RFPR-12 wireless PIR detectors ensuring expansive motion coverage, a B810 wireless receiver for seamless device integration, and two RFKF-FB key fob transmitters for convenient remote control

Designed with flexibility in mind, the Solution 4000 supports both wired and wireless peripherals, allowing for easy system expansion and customization. Its compatibility with the RADION and WE800EV2 wireless systems ensures adaptability to various installation requirements. With features like remote access via the RSC+ app, IP and LTE communication capabilities, and compliance with Australian and New Zealand standards, this kit stands as a reliable choice for modern security needs.

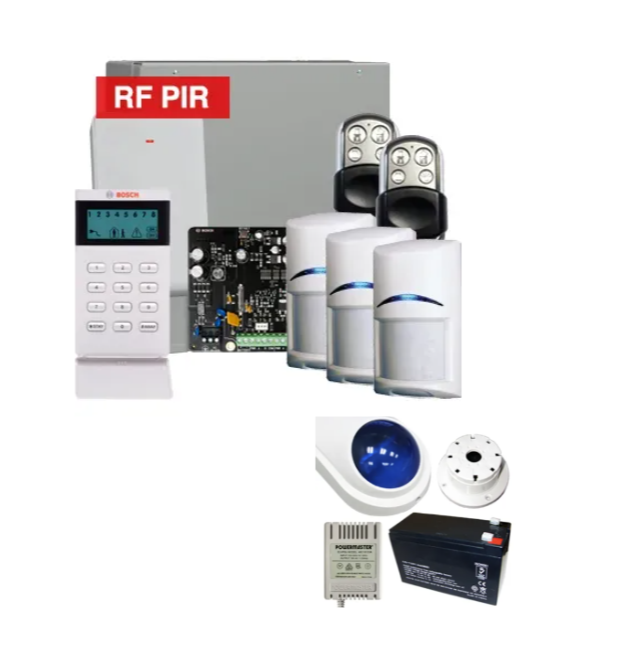

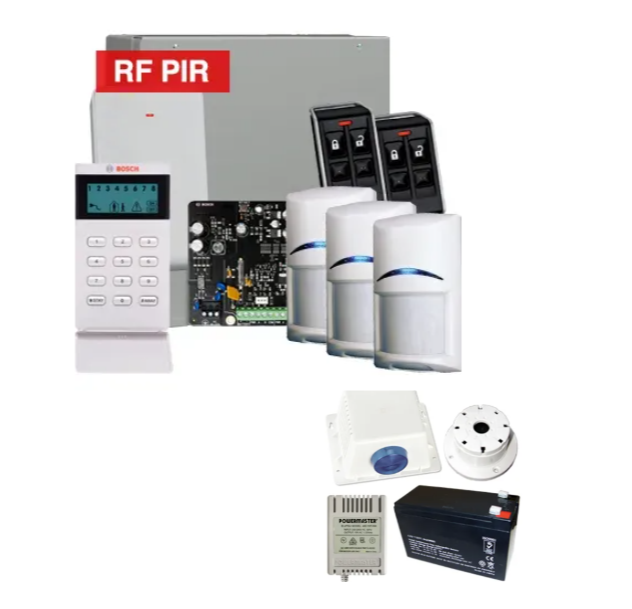

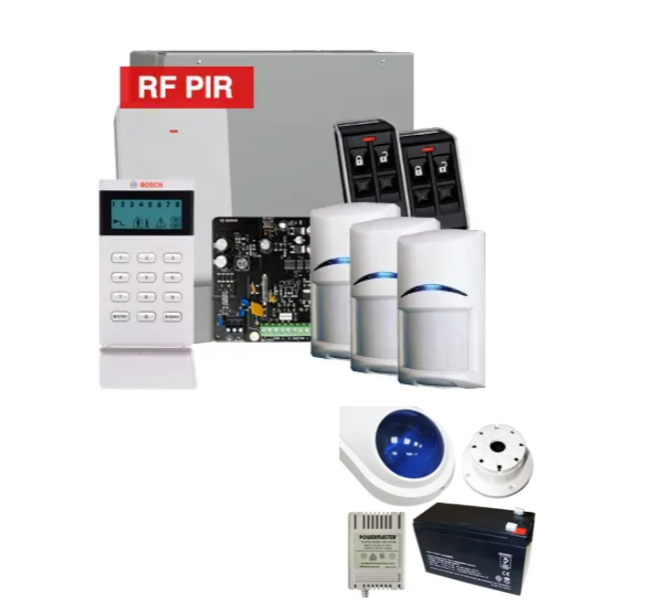

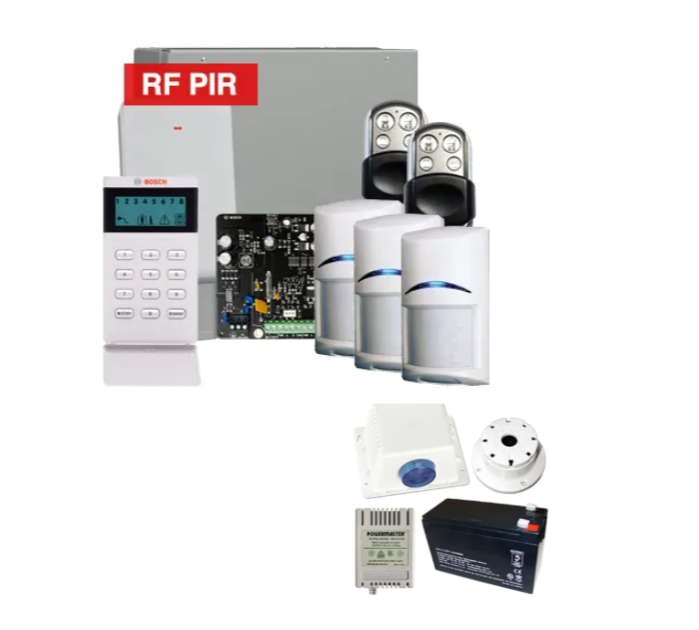

What's Included in the Box

• 1x ICP-SOL4-P 32-Zone Control Panel

• 1x IUI-SOL-ICON LCD Icon Keypad

• 3x RFPR-12 Wireless PIR Motion Detectors

• 1x B810 Wireless Receiver

• 2x RFKF-FB Key Fob Transmitters or 2x HCT4UL transmitters

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Zone Capacity: 16 on-board zones, expandable to 32

• Outputs: 4 on-board outputs, expandable to 28

• Partitions: Supports 2 independent areas

• User Codes: Accommodates up to 64 users (32 key fobs / 32 PINs)

• Keypad Support: Compatible with up to 4 keypads

• Wireless Integration: Seamless integration with RADION and WE800EV2 systems

• Communication: IP and LTE capabilities (with additional modules)

• Remote Access: Control and monitor via the RSC+ mobile app

• Door Control: Supports 4 doors through the B901 Door Controller

• Compliance: NBN/Fiber-ready with IP module compatibility

Detailed Specifications

Control Panel (ICP-SOL4-P):

• Zones: 16 on-board, expandable to 32

• Outputs: 4 on-board, expandable to 28

• Partitions: 2

• User Codes: 64 (32 key fobs / 32 PINs)

• Keypad Support: Up to 4

• Door Control: Supports 4 doors via B901 Door Controller

• Communication: CID, SIA, Email*, Domestic Dialing, CSV-IP, Push Notification* (*Requires B426-M or B450-M modules)

• Power Supply:

  • Primary: TF008 Plug Pack (Australia only)

  • Secondary: 12 VDC, 6.5Ah sealed lead-acid battery

• Dimensions: 103 mm x 183 mm x 28 mm

• Weight: 165 g

• Operating Temperature: 0 °C – 45 °C

• Humidity: 10% – 95% non-condensing

Wireless PIR Detector (RFPR-12):

• Coverage: 12 m x 12 m (40 ft x 40 ft)

• Mounting Height: Flexible

• Pet Immunity: Up to 13 kg (30 lbs)

• Battery: One CR123A Lithium battery, 3 VDC

• Battery Life: Up to 5 years

• Tamper Protection: Supervised for low-battery, cover-tamper, and removal from mounting surface

• Operating Temperature: -10°C to +49°C

• Humidity: Up to 93% non-condensing

Warranty Information

Bosch offers a 3-year warranty on the Solution 4000 Wireless Alarm Kit, covering defects in materials and workmanship under normal use conditions.

Brand Overview

Bosch Security Systems is a globally recognized leader in security and safety solutions, renowned for its commitment to quality, innovation, and reliability. With a comprehensive portfolio ranging from intrusion detection to video surveillance, Bosch delivers integrated solutions that meet the diverse needs of residential, commercial, and industrial clients worldwide.

SKU

K4000-3WPIR-PREM

Practical Use Scenarios

• Residential Security: Ideal for homeowners seeking a reliable and expandable security system with remote access capabilities.

• Small to Medium Businesses: Provides businesses with a scalable solution to monitor multiple areas, manage user access, and integrate door controls.

• Retail Stores: Enhances security by monitoring entry points and sensitive areas, with the flexibility to expand as needed.

• Remote Properties: Offers peace of mind for properties that require off-site monitoring and control through mobile applications.

Datasheets and Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Compliance: Meets Australian RCM and AS/CA S002:2010 standards, as well as New Zealand Telepermit requirements.

• Certifications: Adheres to EN50130-4:2011 and EN61000-3:2007/A1:2011 standards.

• Market Optimization: Tailored for the Australian and New Zealand markets, ensuring compatibility with local communication infrastructures like NBN and fiber networks.

• Authorized Distribution: Sourced exclusively through authorized Bosch representatives, guaranteeing authenticity and support.

• Warranty Support: Direct warranty handling through Bosch, ensuring prompt and reliable service.

FAQs

Q1: Can the Bosch Solution 4000 Wireless Alarm Kit (K4000-3WPIR-PREM) be expanded beyond 32 zones?
A1: Yes, the system supports up to 32 zones, combining both wired and wireless inputs. Expansion beyond this limit would require integration with additional systems or panels.

Q2: Is the RFPR-12 PIR detector pet-friendly?
A2: Yes, the RFPR-12 is designed with pet immunity for animals weighing up to 13 kg (30 lbs), reducing false alarms caused by small pets

Q3: What mobile applications are compatible with the Solution 4000 system?
A3: The system is compatible with the Bosch Remote Security Control Plus (RSC+) app, allowing users to arm/disarm the system and receive notifications remotely.

Q4: Does the kit include all necessary components for installation?
A4: The kit includes the control panel, keypad, PIR detectors, wireless receiver, key fob transmitters, siren kit, hardware pack, and a quick user guide. Additional accessories or modules may be required based on specific installation needs

Q5: Is professional installation required for the K4000-3WPIR-PREM kit?
A5: While the system is designed for straightforward installation, professional installation is recommended to ensure optimal performance and compliance with local regulations.
