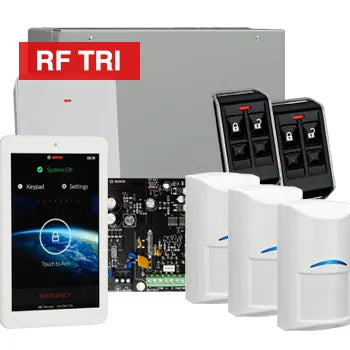

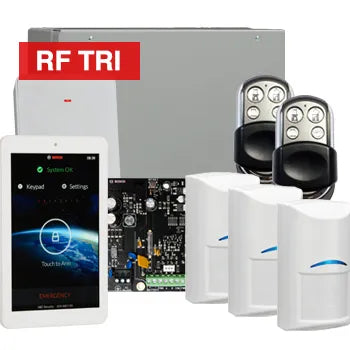

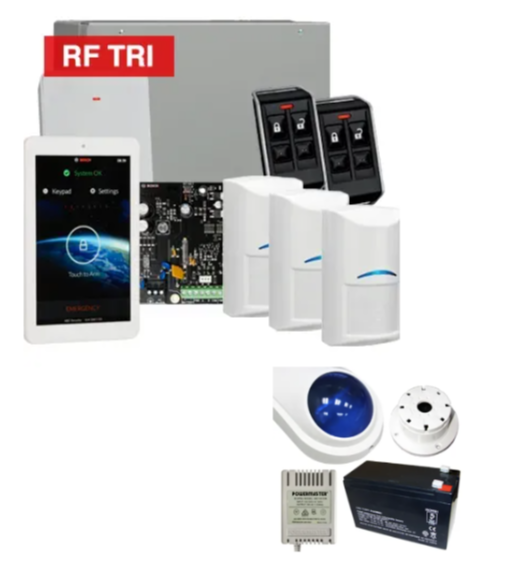

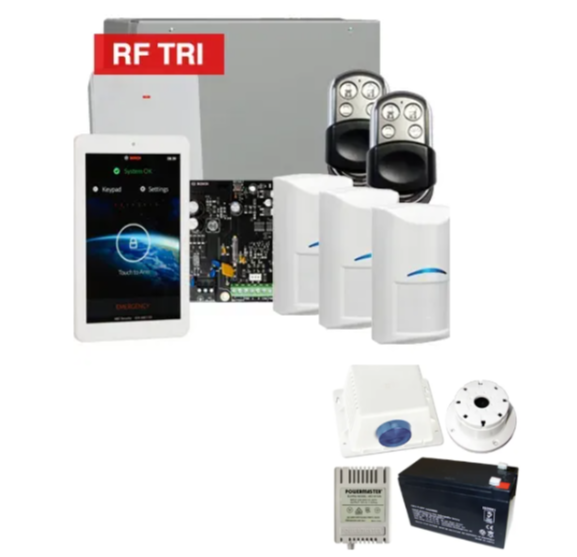

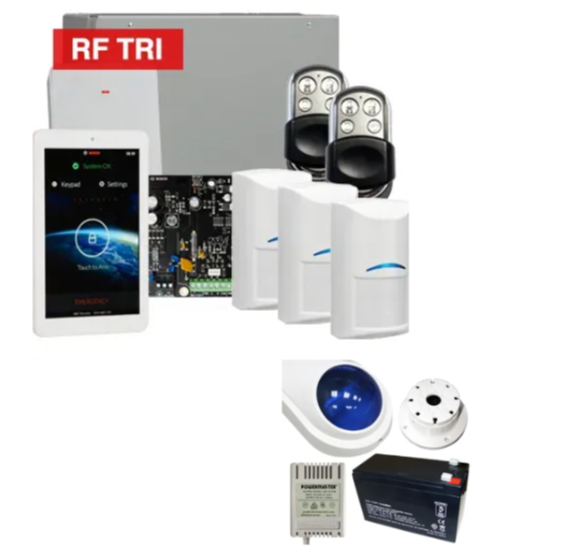

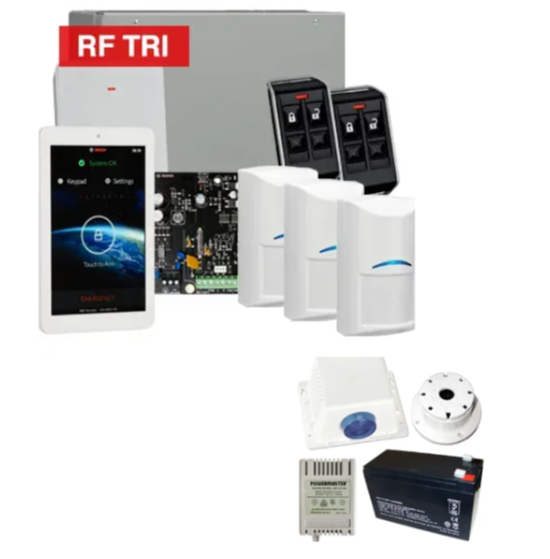

The Bosch Solution 4000 Wireless Alarm Kit (Part Number: K4000-3WTRI-TS7-PREM) combines industry-leading security performance with the flexibility of wireless installation. Powered by the feature-rich ICP-SOL4-P control panel, this advanced package includes a large 7" IUI-SOL-TS7 touchscreen keypad, three RFDL-11 wireless Tri-Tech motion detectors, a B810 RADION receiver, and two RFKF-FB or HCT4UL wireless keyfobs, all complemented by a professional siren kit.

Engineered for residential and small commercial installations, this system supports up to 32 programmable zones, 64 users, and independent area control, allowing it to function as two separate systems in one. With Tri-Tech technology for superior detection accuracy, pet-friendly settings, and seamless mobile control via the Bosch RSC+ app, this alarm kit is ideal for secure, connected living.

What's Included in the Box

• 1x ICP-SOL4-P 32-Zone Control Panel

• 1x IUI-SOL-TS7 7" Touchscreen Keypad

• 3x RFDL-11 Wireless Tri-Tech Motion Detectors

• 1x B810 RADION Wireless Receiver

• 2x RFKF-FB or 2x HCT4UL Wireless Keyfob Transmitters

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Zone Capacity: 16 onboard, expandable to 32

• Outputs: 4 onboard, expandable to 28

• Partitioning: 2 independent areas

• Users: Supports 64 users (32 PINs and 32 keyfobs)

• Tri-Tech Detection: Combines PIR and microwave sensing for high-accuracy intrusion detection

• Pet Immunity: Ideal for pet-occupied homes

• Keypad: Full-color 7” capacitive touchscreen with intuitive controls

• Wireless Ready: Suits B810 RADION receiver for seamless peripheral integration

• Remote Access: Controlled via Bosch RSC+ mobile app for arming/disarming and real-time alerts

• Communications: Compatible with IP (CSV-IP) and LTE modules for NBN/Fiber networks

Detailed Specifications

ICP-SOL4-P Control Panel

• Intrusion Zones: 32 total (16 onboard + 16 expandable)

• Door Zones: 4

• Outputs: 4 onboard (expandable to 28 with B308 module)

• User Codes: 64 total (1 installer + 63 users)

• Keypads: Supports up to 4

• Communication Options: CID, SIA, CSV-IP, Push Notification, Email (B426-M/B450-M required)

• Power: 12 VDC, 6.5Ah battery backup, TF008 Plug Pack (sold separately)

• Dimensions: 103 x 183 x 28 mm

• Operating Temp: 0 °C – 45 °C

• Humidity: 10% – 95% non-condensing

RFDL-11 Wireless Tri-Tech Detectors

• Sensing Type: PIR + Microwave

• Coverage: 12 m x 12 m

• Battery: 1x CR123A Lithium (up to 5 years battery life)

• Pet Immunity: Configurable

• Temp Range: -10 °C to +49 °C

• Humidity: Up to 93% non-condensing

IUI-SOL-TS7 Touchscreen Keypad

• Screen: 7" full-color capacitive touchscreen

• Functions: Arm/disarm, view system status, navigate menus

• Installation: Wall-mount, indoor use

Warranty Information

This Bosch alarm system kit comes with a 3-year manufacturer's warranty, ensuring peace of mind and long-term reliability from one of the most trusted names in security technology.

Brand Description

Bosch Security Systems is a global leader in safety and security solutions, delivering robust, technologically advanced products. Known for their exceptional quality and engineering, Bosch solutions are trusted by homeowners and businesses alike.

SKU

K4000-3WTRI-TS7-PREM

Practical Use Scenarios

• Smart Homes: Enable full remote control and status monitoring through the Bosch RSC+ app.

• Homes with Pets: Tri-Tech detectors reduce false alarms caused by small animals.

• Medical Clinics & Studios: Partitioning allows secure zone separation for front-desk vs. private rooms.

• Retail & Office Security: Large touchscreen and wireless peripherals simplify user management and installation.

Datasheets & Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

The Bosch K4000-3WTRI-TS7-PREM Wireless Alarm Kit has been built and certified for optimal operation in Australia and New Zealand. It meets RCM certification and AS/CA S002:2010 compliance in Australia and carries Telepermit approval for New Zealand. Fully compatible with NBN and fiber infrastructures, the system supports IP and mobile communication reporting to suit the majority of local monitoring stations. All components are sourced through authorized Bosch representatives, and warranty and support are managed directly by Bosch ANZ operations.

Frequently Asked Questions (FAQs)

Q1: How does the K4000-3WTRI-TS7-PREM alarm system handle pet movement?
A1: The system includes RFDL-11 Tri-Tech detectors that feature pet immunity settings, minimizing false alarms triggered by pets.

Q2: Can the K4000-3WTRI-TS7-PREM be controlled via mobile device?
A2: Yes, it can be managed remotely using the Bosch RSC+ app, available for both iOS and Android devices.

Q3: What is the advantage of the TS7 keypad in the K4000-3WTRI-TS7-PREM kit?
A3: The IUI-SOL-TS7 features a large 7” touchscreen, offering an intuitive interface for simplified system control and clear status display.

Q4: How many users and keyfobs can the system support (K4000-3WTRI-TS7-PREM)?
A4: It supports up to 64 users in total—32 via PIN codes and 32 via wireless keyfobs.

Q5: Is the Bosch K4000-3WTRI-TS7-PREM kit approved for use in Australia and New Zealand?
A5: Yes, the system complies with Australian RCM and New Zealand Telepermit standards and is optimized for NBN and fiber networks.
