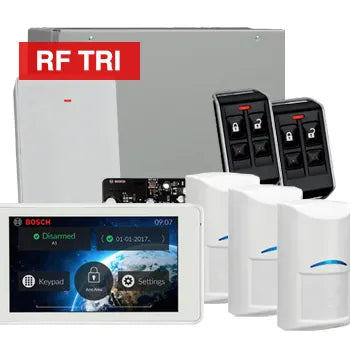

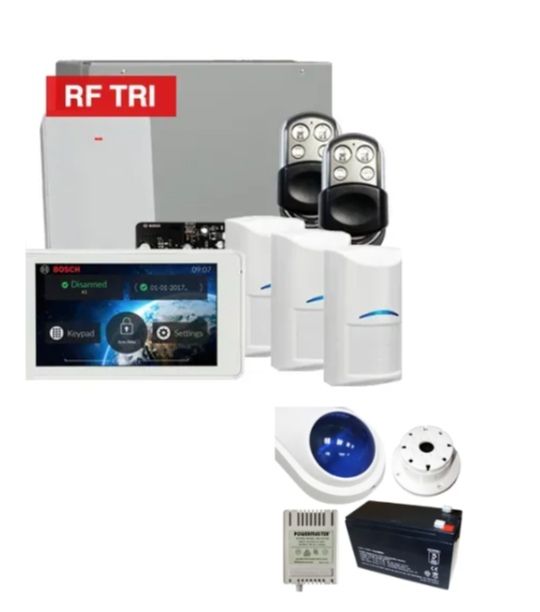

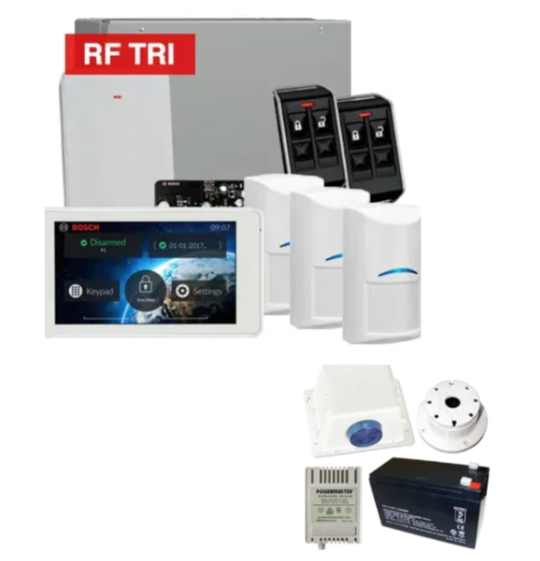

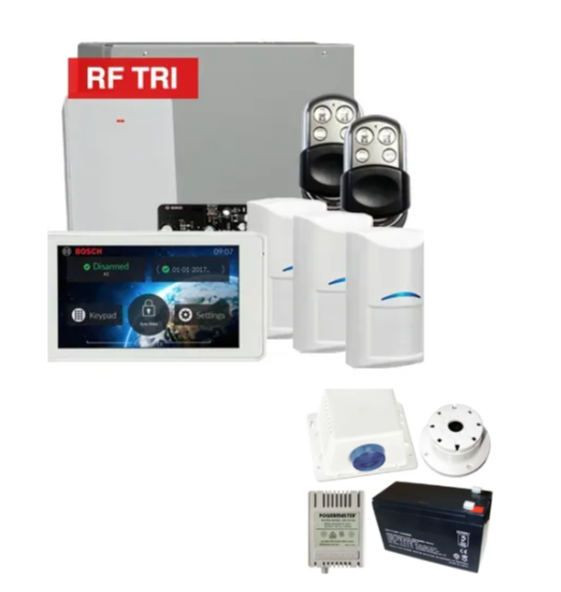

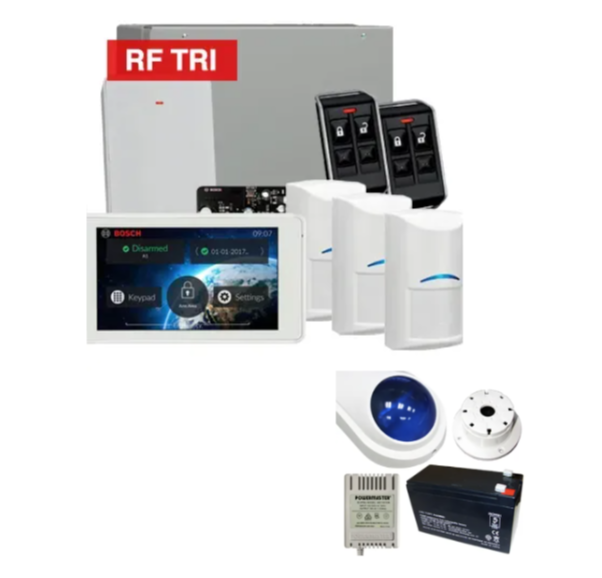

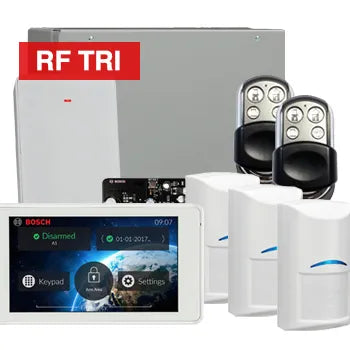

The Bosch Solution 4000 Wireless Alarm Kit (Part Number: K4000-3WTRI-TS5-PREM) delivers exceptional security performance in a smart, wireless-ready package designed for Australian and New Zealand conditions. Featuring the robust ICP-SOL4-P 32-zone control panel, this kit includes the IUI-SOL-TS5 5" Touchscreen Keypad, three advanced RFDL-11 wireless Tri-Tech motion detectors, a B810 RADION wireless receiver, and your choice of RFKF-FB or HCT4UL keyfob transmitters, plus a complete siren kit.

Ideal for small to medium residential and commercial installations, this system is expandable, remote-controllable via the RSC+ mobile app, and integrates seamlessly with Bosch’s RADION wireless range. The RFDL-11 detectors use both passive infrared and microwave sensing for heightened detection accuracy and reduced false alarms, especially in challenging environments or homes with pets.

What's Included in the Box

• 1x ICP-SOL4-P 32-Zone Control Panel

• 1x IUI-SOL-TS5 5" Touchscreen Keypad

• 3x RFDL-11 Wireless Tri-Tech Motion Detectors

• 1x B810 RADION Wireless Receiver

• 2x RFKF-FB or 2x HCT4UL Wireless Keyfob Transmitters

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Zones: 16 onboard zones, expandable to 32

• Outputs: 4 onboard, expandable up to 28

• Partitions: Up to 2 areas with individual control

• Users: 64 user codes (32 keyfobs + 32 PINs)

• Detectors: Tri-Tech motion detection with PIR + microwave technology

• Pet Immunity: RFDL-11 detectors help reduce false alarms from pets

• Keypad: 5" capacitive touchscreen interface (TS5)

• Wireless Integration: Compatible with B810 RADION receiver for wireless devices

• Remote Access: Bosch RSC+ app for mobile control and push notifications

• Communication Ready: Compatible with CSV-IP, LTE, CID, and SIA via optional modules

• Compliance: Built for full compatibility with NBN/Fiber networks

Detailed Specifications

ICP-SOL4-P Control Panel

• Intrusion Zones: 32 (16 onboard, expandable)

• Door Zones: 4

• Outputs: 4 onboard (expandable with B308)

• User Codes: 64 (1 installer, 63 users)

• Keypads: Supports up to 4

• Communication: CID, SIA, CSV-IP, Email*, Push Notification* (*requires B426-M or B450-M)

• Power: 12 VDC, TF008 Plug Pack (sold separately), 6.5Ah battery backup

• Dimensions: 103 mm H x 183 mm W x 28 mm D

• Operating Temp: 0 °C – 45 °C

RFDL-11 Tri-Tech Detectors

• Sensing Technology: PIR + Microwave

• Coverage: 12m x 12m

• Battery: 1x CR123A Lithium

• Battery Life: Up to 5 years

• Pet Immunity: Configurable

• Operating Temp: -10 °C to +49 °C

• Humidity: Up to 93%, non-condensing

IUI-SOL-TS5 Keypad

• Type: 5" Touchscreen

• Interface: User-friendly graphical interface

• Mounting: Wall mount, indoor

Warranty Information

All components in the K4000-3WTRI-TS5-PREM kit are covered by a 3-year Bosch manufacturer’s warranty, ensuring reliable performance and customer peace of mind.

Brand Description

Bosch Security Systems delivers innovative and trustworthy electronic security solutions across residential, commercial, and industrial sectors. Known globally for engineering excellence, Bosch products are built to exacting standards and supported by dedicated local distribution and service networks.

SKU

K4000-3WTRI-TS5-PREM

Practical Use Scenarios

• Smart Homes: Manage security from your mobile device and arm/disarm zones independently.

• Pet-Occupied Residences: Rely on Tri-Tech detection to avoid false alarms caused by pets.

• Small Businesses: Protect premises with zone-specific detection and user-level access control.

• Rental Properties: Enable remote management of multiple areas and secure access control for tenants.

Datasheets & Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

The Bosch K4000-3WTRI-TS5-PREM Wireless Alarm Kit is specifically designed to meet Australian and New Zealand standards, including RCM certification, AS/CA S002:2010 compliance, and Telepermit registration for New Zealand. Its IP and mobile communication support ensure smooth integration with local NBN and fiber systems. All products are sourced from authorized Bosch distributors in the region, and warranty and support services are handled directly by Bosch Australia and New Zealand, guaranteeing fast, reliable assistance.

Frequently Asked Questions (FAQs)

Q1: How many motion detectors are included in the K4000-3WTRI-TS5-PREM alarm kit?
A1: The kit includes 3x RFDL-11 wireless Tri-Tech motion detectors, offering dual-technology sensing for increased accuracy.

Q2: Can the Bosch K4000-3WTRI-TS5-PREM alarm system be controlled via smartphone?
A2: Yes, using the Bosch RSC+ mobile app, you can remotely arm/disarm the system and receive alerts and push notifications.

Q3: Does the K4000-3WTRI-TS5-PREM system work with pets in the house?
A3: Yes, the Tri-Tech detectors offer pet immunity and are designed to minimize false alarms from pets under a configurable weight threshold.

Q4: What’s the main advantage of the TS5 keypad in the K4000-3WTRI-TS5-PREM kit?
A4: The 5” TS5 touchscreen keypad provides a modern, intuitive interface for easy arming, disarming, and system navigation.

Q5: Is the Bosch K4000-3WTRI-TS5-PREM alarm kit certified for Australia and New Zealand?
A5: Absolutely. It meets all relevant standards including RCM (Australia) and Telepermit (New Zealand), and is compatible with NBN and local monitoring systems.
