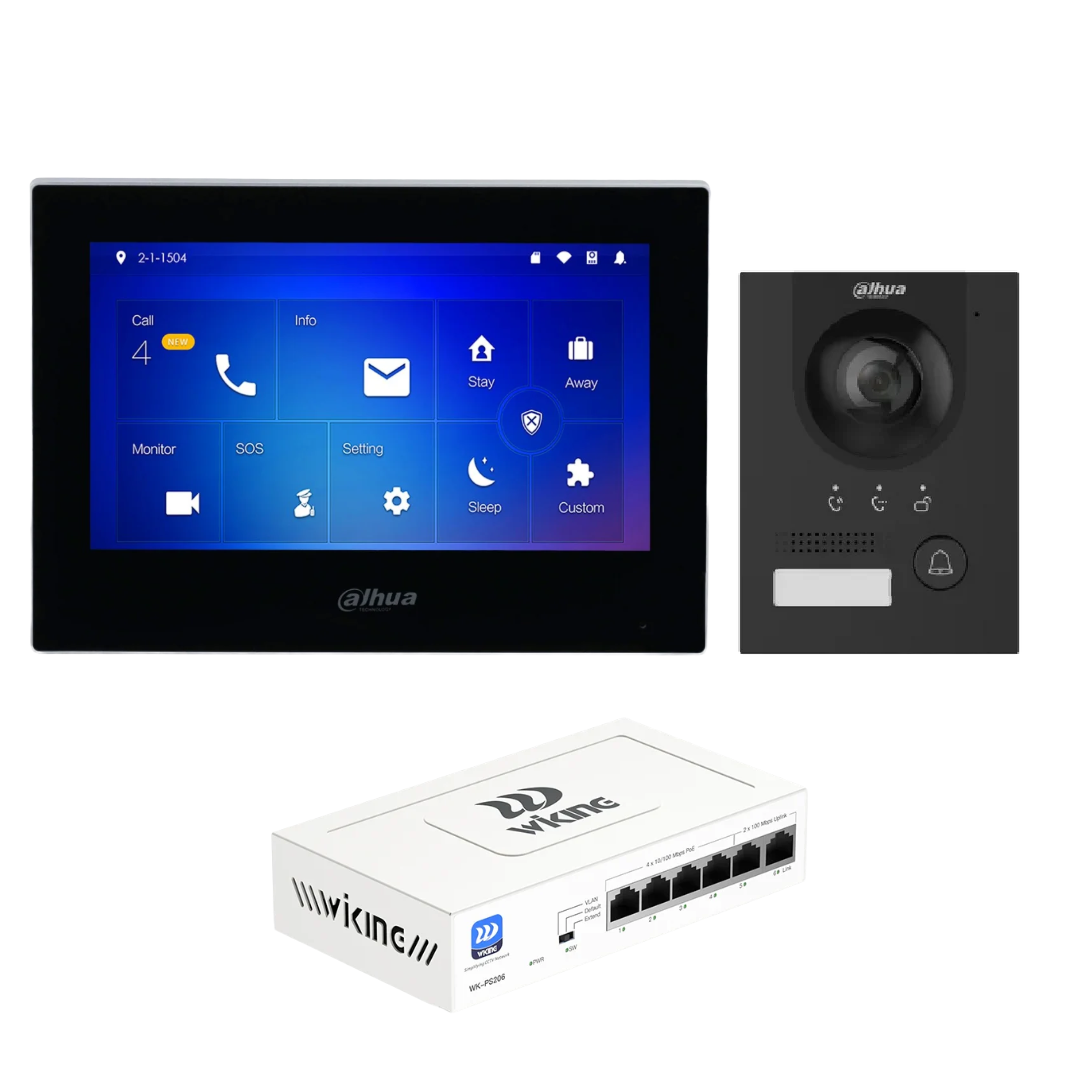

The Dahua Black IP Video Intercom Kit combines the Dahua DHI-VTH2621G-P 7-inch touchscreen indoor monitor, Dahua VTO2202FB-P-S3-DH Black 2MP outdoor door station, and Wi-Tek Wiking WK-PS206 4-Port PoE Switch into a convenient wired IP door entry solution. Designed for homes, villas, townhouses and small offices, this intercom package offers HD visitor monitoring, two-way audio communication, compatible remote door unlocking and streamlined Power over Ethernet connectivity.
Featuring a coordinated black indoor monitor and outdoor door station, this kit provides an attractive and functional solution for contemporary residential entrances.
The outdoor door station features a 2MP CMOS camera with an ultra-wide 168.6° horizontal field of view, 120 dB Wide Dynamic Range, automatic infrared illumination and a durable aluminium housing. Its IP65 weather protection and IK07 impact resistance make it suitable for outdoor installations when fitted according to Dahua's sealing requirements.
Inside the property, the 7-inch Dahua capacitive touchscreen monitor provides a convenient interface for viewing visitors and communicating through built-in two-way audio. The 1024 × 600 display supports video monitoring from compatible door stations and IP surveillance cameras.
What's Included in the Kit?
| Quantity |
Product |
Model |
| 1 × |
Dahua 7" Black IP Indoor Touchscreen Monitor |
DHI-VTH2621G-P |
| 1 × |
Dahua Black 2MP IP Villa Door Station |
VTO2202FB-P-S3-DH |
| 1 × |
Wi-Tek Wiking 4-Port PoE Switch with 2 Uplink Ports |
WK-PS206 |
| 1 × |
Wi-Tek PoE Switch Power Adapter |
WK-PS206 Accessory |
| 1 × |
Wi-Tek Quick Installation Guide |
WK-PS206 Documentation |
Ethernet cables, an electric door lock, Micro SD card, external internet router and installation services are not included.
Main Features & Benefits
Complete Three-Component IP Intercom Package
Combines an outdoor video door station, indoor touchscreen intercom monitor and PoE network switch into one convenient package for an appropriately configured Dahua IP video intercom installation.
2MP HD Outdoor Door Station Camera
The black Dahua door station features a 1/2.9-inch 2MP CMOS image sensor, providing clear video for identifying visitors at residential and commercial entrances.
Ultra-Wide 168.6° Viewing Angle
The outdoor camera delivers a 168.6° horizontal viewing angle, helping monitor a broad area around the entrance.
7-Inch Indoor Touchscreen Monitor
The DHI-VTH2621G-P includes a 7-inch TFT capacitive touchscreen with 1024 × 600 resolution, providing convenient access to compatible intercom video and communication functions.
Two-Way Audio Communication
Communicate with visitors through the indoor monitor and outdoor door station without needing to open the entrance door. Audio processing includes echo suppression and noise reduction features.
Remote Door Unlocking
Supports remote door release through compatible Dahua intercom and electric locking arrangements. Smartphone unlocking can be enabled through an appropriately configured Dahua mobile-connected system.
Power over Ethernet Convenience
Both Dahua devices support standard PoE connectivity. The included WK-PS206 switch provides four IEEE 802.3af/at-compatible PoE output ports, helping simplify an Ethernet-based installation.
Day & Night Visitor Monitoring
Automatic infrared compensation and day/night switching support the outdoor station's video monitoring performance in changing lighting conditions.
120 dB Wide Dynamic Range
Helps maintain useful video detail in challenging entrance lighting, including bright backgrounds and shaded doorway areas.
Outdoor-Ready Black Aluminium Door Station
The outdoor station features a black anodised aluminium front panel, IP65 environmental protection and IK07 impact resistance.
H.265 & H.264 Video Support
The Dahua door station supports H.265 and H.264 video compression, while the indoor monitor supports decoding these formats from compatible sources.
Wi-Tek Smart PoE Networking
The WK-PS206 offers DIP-switch-controlled networking features:
-
250m Extend Mode: Long-distance PoE capability under supported network conditions.
-
Port VLAN Isolation: Separates supported PoE downlink ports for controlled network traffic.
-
PD Alive: Detects and automatically restarts certain unresponsive PoE-powered devices.
Extend Mode can reduce network speed to 10 Mbps. The 250m capability is a switch specification, not a guaranteed operating distance for this intercom kit. The selected VLAN and watchdog modes must be checked against the intercom configuration.
Silent & Durable PoE Switch
The Wi-Tek switch uses a robust metal enclosure and fanless cooling design, making it suitable for quiet indoor installation locations.
Smart Visitor Communication
The outdoor station supports Dahua mobile-connected visitor communication, subject to internet connectivity, account configuration and supported device firmware.
Detailed Technical Specifications
Kit Overview
| Specification |
Details |
| Product Type |
Wired IP Video Intercom Kit |
| Main Brand |
Dahua Technology |
| Network Switch Brand |
Wi-Tek Wiking |
| Indoor Monitor |
DHI-VTH2621G-P |
| Outdoor Door Station |
VTO2202FB-P-S3-DH |
| PoE Switch |
WK-PS206 |
| Indoor Monitor Colour |
Black |
| Door Station Colour |
Black |
| Display Size |
7 Inches |
| Door Camera Resolution |
2MP |
| Network Type |
Wired IP Ethernet |
| Power Technology |
IEEE 802.3af/at PoE |
| Communication |
Two-Way Audio |
| Remote Unlocking |
Supported with compatible lock and configuration |
| Installation |
Indoor Monitor + Outdoor Door Station + Indoor PoE Switch |
| Intended Applications |
Homes, Villas, Townhouses, Small Offices |

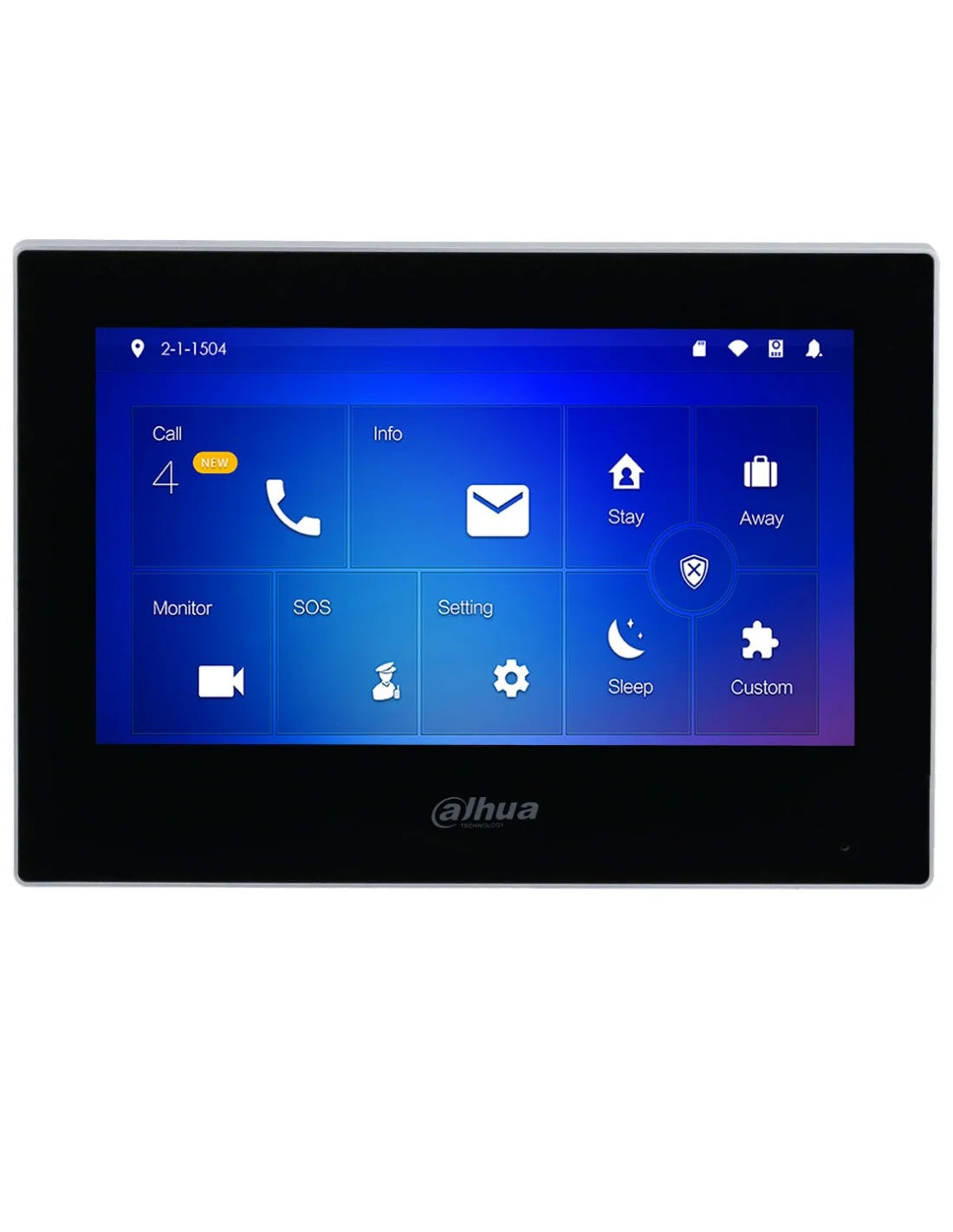

Component 1: Dahua DHI-VTH2621G-P Black 7-Inch Indoor Monitor
| Specification |
Details |
| Model |
DHI-VTH2621G-P |
| Product Type |
IP Indoor Monitor |
| Colour |
Black |
| Display |
7" TFT |
| Touchscreen |
Capacitive |
| Resolution |
1024 × 600 |
| Processor |
Dual-Core 1.2 GHz |
| Operating System |
Embedded Linux |
| RAM |
128 MB |
| ROM |
128 MB |
| Video Decoding |
H.265, H.264 |
| Audio Communication |
Two-Way Audio |
| Audio Compression |
G.711a, G.711u, PCM |
| Audio Output |
Built-in Speaker |
| Audio Enhancement |
Echo Suppression |
| Network |
1 × 10/100Mbps Ethernet |
| Interoperability |
ONVIF, SDK |
| Network Protocols |
RTSP, RTP, SIP, DNS, SSH |
| Alarm Inputs |
6 |
| Alarm Outputs |
1 |
| Doorbell Input |
Supported via Alarm Input |
| Do Not Disturb |
Supported |
| Extension Support |
Villa: 9; Apartment: 4 |
| Storage |
Micro SD up to 64GB, reserved for software |
| Power Supply |
12 VDC/1A or Standard PoE |
| PoE Input |
36–57 V, 0.35 A |
| Standby Power |
≤2 W |
| Operating Power |
≤6 W |
| Housing |
PC + ABS |
| Mounting |
Surface Mount |
| Dimensions |
189.6 × 134.6 × 26 mm |
| Operating Temperature |
−10°C to +55°C |
| Certifications Listed |
CE, FCC |

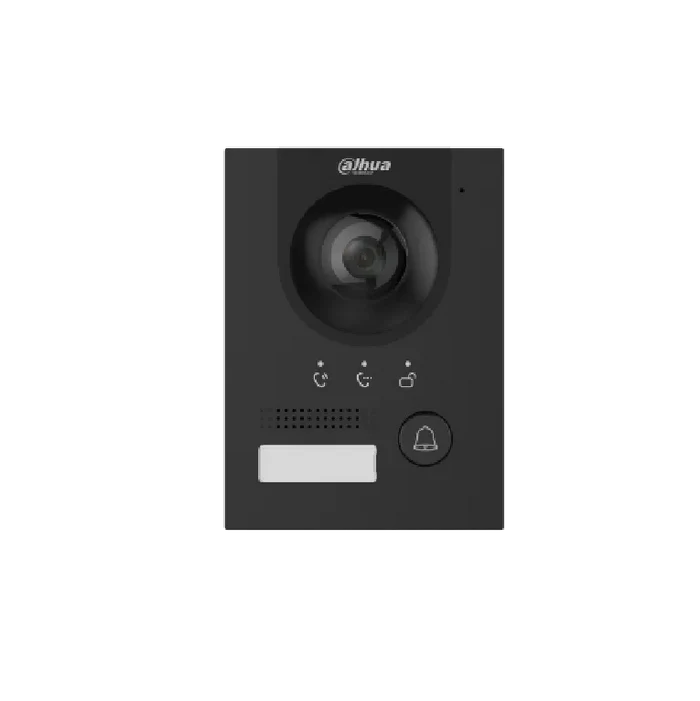

Component 2: Dahua VTO2202FB-P-S3-DH Black 2MP Outdoor Door Station
| Specification |
Details |
| Requested Model |
VTO2202FB-P-S3-DH |
| Manufacturer Reference |
DHI-VTO2202FB-P-S3 |
| Product Type |
2-Wire IP Villa Door Station |
| Colour |
Black |
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux |
| Camera |
1/2.9" 2MP CMOS |
| Horizontal Field of View |
168.6° |
| Vertical Field of View |
87.1° |
| Diagonal Field of View |
176.7° |
| WDR |
120 dB |
| Noise Reduction |
3D NR |
| Video Compression |
H.265, H.264 |
| Video Frame Rate |
25 fps |
| Video Bit Rate |
256 Kbps–8 Mbps |
| Light Compensation |
Automatic IR |
| Day/Night |
Auto ICR / Colour / B&W |
| Audio |
Two-Way |
| Audio Output |
Built-in Speaker |
| Audio Enhancement |
Echo Suppression, Digital Noise Reduction |
| Communication Mode |
Digital 2-Wire |
| Ethernet |
1 × RJ-45, 10/100 Mbps |
| Network Protocols |
IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP, SIP |
| Unlock Mode |
Remote |
| Lock Control |
1 |
| Exit Button Input |
1 |
| Door Status Detection |
1 |
| Alarm Output |
1 |
| Tamper Alarm |
Supported |
| RS-485 |
1 |
| Auxiliary Power Output |
12 VDC, 600 mA |
| Micro SD Support |
Up to 256 GB |
| Web Configuration |
Supported |
| Power Supply |
Dahua 2-Wire Switch, 48 VDC/1A or PoE |
| PoE |
IEEE 802.3af/at |
| Standby Consumption |
≤4 W |
| Working Consumption |
≤5 W |
| Housing |
Anodised Aluminium |
| Weather Protection |
IP65 |
| Impact Resistance |
IK07 |
| Mounting |
Surface Mount |
| Dimensions |
130 × 96 × 28.5 mm |
| Operating Temperature |
−30°C to +60°C |
| Certification Listed |
CE |
Outdoor Installation Requirement: Dahua specifies silicone sealing for the housing to achieve the stated environmental protection.

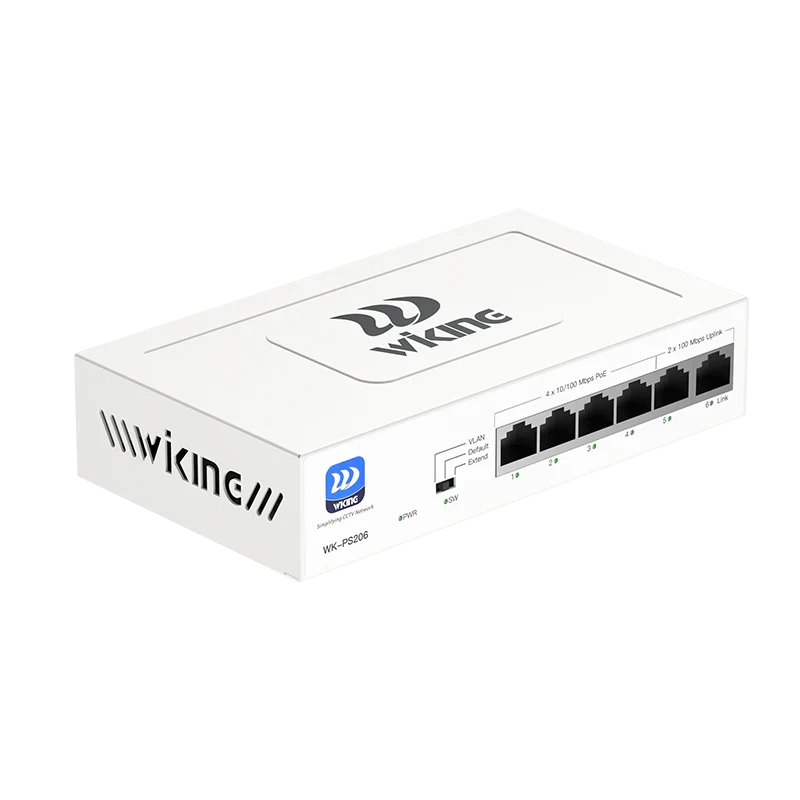

Component 3: Wi-Tek Wiking WK-PS206 4-Port PoE Switch
| Specification |
Details |
| Brand |
Wi-Tek Wiking |
| Model |
WK-PS206 |
| Product Type |
Unmanaged PoE Switch |
| PoE Ports |
4 × 10/100Mbps RJ45 |
| Uplink Ports |
2 × 10/100Mbps RJ45 |
| Total Network Ports |
6 |
| PoE Standards |
IEEE 802.3af/at Compatible |
| Maximum PoE Per Port |
30 W |
| Total PoE Budget |
45 W |
| Network Speed |
10/100 Mbps |
| Extend Mode |
Up to 250m |
| Extended Mode Data Rate |
10 Mbps |
| VLAN Function |
Supported |
| PD Alive |
Supported |
| DIP Switch Modes |
Default / VLAN / Extend |
| Switching Capacity |
1.2 Gbps |
| Packet Forwarding Rate |
0.89 Mpps |
| MAC Address Table |
2K |
| Housing |
Metal |
| Cooling |
Fanless |
| Operation |
Unmanaged / Plug and Play |
| Installation |
Desktop / Wall Mount |
| Switch Dimensions |
160 × 90 × 35 mm |
Installation & Connection Overview
The intended wired IP configuration uses the Wi-Tek WK-PS206 as the central Ethernet and PoE connection point.
Typical proposed connection arrangement:
-
Connect the Dahua VTH2621G-P indoor monitor to a PoE-enabled port on the WK-PS206 using compatible Ethernet cabling.
-
Connect the VTO2202FB-P-S3-DH door station to a separate PoE-enabled port using its supported Ethernet/PoE interface.
-
Connect the Wi-Tek switch to the local network/router through one of its uplink ports if internet-connected functionality is required.
-
Configure the Dahua door station, indoor monitor and intercom communication settings in accordance with their supported firmware and network requirements.
-
Configure optional mobile access and compatible door-lock control where required.
Important Installation & Compatibility Notes
-
This kit is intended for standard Ethernet/PoE connections, rather than connecting the two devices directly using the Dahua proprietary digital 2-wire system.
-
The WK-PS206 is a standard Ethernet PoE switch, not a Dahua digital 2-wire intercom converter.
-
Existing 2-wire cabling installations may require a compatible Dahua 2-wire switch, which is not included.
-
Exact VTO/VTH intercom compatibility and firmware support should be confirmed before installation.
-
The switch's VLAN isolation settings may affect intercom communication if configured incorrectly.
-
Standard mode is the sensible starting point for commissioning; Extend and VLAN modes should only be enabled when suitable for the network design.
-
The switch's 250m Extend Mode must not be confused with Dahua's specified 50m maximum power distance when using a compatible Dahua 2-wire switch.
-
Compatible lock hardware, correct power allocation and suitable wiring are required for door unlocking.
-
The door station's 12 VDC/600 mA auxiliary output requires an IEEE 802.3at-compliant power sourcing device when used to supply an external load.
Professional installation and system configuration are recommended.
Practical Applications & Use Scenarios
Residential Houses
Use the Dahua IP Video Intercom Kit to view visitors on the indoor touchscreen monitor and communicate with them before opening the entrance door.
Townhouses & Villas
The matching black monitor and outdoor door station provide an attractive entrance communication solution for contemporary residential developments.
Front Door Security Upgrades
The kit provides core IP video intercom components for suitable new wired installations or upgrades where compatible Ethernet cabling and network infrastructure are available.
Remote Visitor Communication
With compatible Dahua mobile app configuration, users can communicate with visitors through their smartphone and operate a supported electric door lock remotely.
Small Offices & Reception Areas
Install the touchscreen monitor in an office or reception area to communicate with visitors and manage supported entrance access.
Gated Residential Entrances
The outdoor station's camera, two-way audio and lock control interfaces support suitable gate-entry communication arrangements, subject to installation design and compatible access hardware.
Home Security Integration
The VTH2621G-P can display compatible IP camera streams and provides alarm input/output interfaces, enabling additional functions in supported security installations.
Warranty Information
The Dahua Black IP Video Intercom Kit contains products from two manufacturers:
Warranty coverage is subject to the applicable manufacturer's warranty conditions, authorised supplier arrangements and relevant consumer protection laws.
Warranty Duration: Dahua 3-year warranty, Wi-Tek 1-year warranty
In Australia and New Zealand, applicable statutory consumer guarantees continue to apply.
About the Brands
Dahua Technology
Dahua Technology is a global provider of video surveillance, video intercom, access control and intelligent security solutions.
Its product portfolio includes IP cameras, network video recorders, intercom door stations, indoor monitors and integrated security equipment.
The Dahua VTH and VTO product families provide options for visitor communication, entrance monitoring and access control in residential and commercial environments.
Wi-Tek Wiking
Wi-Tek specialises in networking and Power over Ethernet solutions, including Ethernet switches and related networking equipment.
The Wiking WK-PS206 provides a compact, fanless PoE switching option for IP surveillance, video intercom, wireless networking and other compatible low-power network devices.
Product SKU & Identification
| Field |
Value |
| Product Name |
Dahua Black IP Video Intercom Kit with Wi-Tek PoE Switch |
| Kit SKU |
To be assigned by Globlelink |
| Indoor Monitor SKU |
DHI-VTH2621G-P |
| Outdoor Door Station SKU |
VTO2202FB-P-S3-DH |
| PoE Switch SKU |
WK-PS206 |
| Main Brand |
Dahua Technology |
| Additional Brand |
Wi-Tek Wiking |
| Colour |
Black Indoor Monitor & Black Door Station |
| Product Category |
IP Video Intercom Kits |
| Network Connection |
Wired Ethernet |
| Power |
Standard PoE |
| Application |
Residential / Small Commercial |
Datasheets & Downloadable Resources
Official Dahua DHI-VTH2621G-P / DHI-VTH2621GW-P Datasheet (PDF)
Official Dahua Product Datasheet — DHI-VTO2202FB-P-S3 (PDF)
WK-PS206 - Datasheet
Excellence for the Australian and New Zealand Market
The Dahua Black IP Video Intercom Kit with Wi-Tek WK-PS206 PoE Switch offers a practical entrance communication solution for homes, villas, townhouses and small business premises across Australia and New Zealand.
Designed for Modern Australian & New Zealand Properties
The black Dahua outdoor station and matching indoor touchscreen monitor complement modern residential architecture and internal finishes.
The wired IP configuration makes the kit suitable for buildings with appropriately installed Ethernet networking infrastructure.
Outdoor Durability
The Dahua outdoor door station features documented IP65 weather protection and IK07 impact resistance, with an operating temperature range of −30°C to +60°C.
These characteristics offer flexibility for a range of local environmental conditions when the station is correctly installed and sealed according to the manufacturer's instructions.
Documented Quality Standards
Dahua lists CE certification for the black door station and CE/FCC certifications for the indoor monitor.
Applicable Australian and New Zealand electrical, electromagnetic compatibility and telecommunications compliance documentation, including RCM requirements where relevant, should be verified with the authorised local supplier before sale or installation.
Efficient PoE Installation
The included Wi-Tek Wiking WK-PS206 supports standard IEEE 802.3af/at PoE equipment, helping reduce the need for separate power connections at compatible indoor and outdoor devices.
Network cabling, PoE design and electrical work should comply with applicable Australian and New Zealand installation requirements.
Genuine Equipment Sourcing
Globlelink should source these components through verified authorised Dahua and Wi-Tek representatives or approved distribution channels to ensure genuine equipment and appropriate regional support.
Manufacturer Warranty Coordination
Warranty enquiries should be managed according to the confirmed manufacturer and supplier arrangements, with access to authorised support services and the applicable consumer guarantees in Australia and New Zealand.
Frequently Asked Questions
1. What is included in the Dahua VTH2621G-P, VTO2202FB-P-S3-DH and Wi-Tek WK-PS206 Intercom Kit?
The kit contains one Dahua VTH2621G-P black 7-inch touchscreen indoor monitor, one VTO2202FB-P-S3-DH black 2MP outdoor door station and one Wi-Tek WK-PS206 4-Port PoE Switch. The supplied WK-PS206 package information also identifies a power adapter and quick installation guide.
2. Does the Dahua VTH2621G-P and VTO2202FB-P-S3-DH intercom kit support two-way audio?
Yes. Both Dahua devices support two-way audio communication. With a compatible and properly configured intercom system, users can speak with visitors at the entrance through the indoor monitor.
3. Can the Dahua VTO2202FB-P-S3-DH door station provide HD video to the VTH2621G-P monitor?
The documented VTO2202FB-P-S3 product family features a 2MP camera, while the VTH2621G-P supports H.265/H.264 decoding and a 1024 × 600 display. Video display and intercom functionality depend on verified model and firmware compatibility.
4. Can the Wi-Tek WK-PS206 PoE switch power the Dahua VTH2621G-P and VTO2202FB-P-S3-DH?
The WK-PS206 provides standard IEEE 802.3af/at-compatible PoE ports, and both documented Dahua product models support standard PoE. A suitable installation can use the switch to supply power and network connections, subject to verification of the exact outdoor variant and system configuration.
5. Does the Dahua VTH2621G-P and VTO2202FB-P-S3-DH intercom kit support smartphone remote unlocking?
The Dahua outdoor station product family supports smartphone visitor communication and remote door unlocking through compatible Dahua mobile-connected systems. Remote unlocking requires a properly configured network connection and compatible electric locking hardware.
6. Is the Dahua VTO2202FB-P-S3-DH black door station waterproof?
The documented Dahua VTO2202FB-P-S3 black model has an IP65 environmental protection rating. It is designed for outdoor use when correctly installed, including the silicone sealing required by Dahua. IP65 is weather protection, not a claim that the device is suitable for submersion.
7. Does the Dahua VTH2621G-P indoor monitor have a touchscreen?
Yes. The VTH2621G-P features a 7-inch capacitive TFT touchscreen with 1024 × 600 resolution for convenient operation of supported video intercom functions.
8. How many devices can the Wi-Tek WK-PS206 connect in this intercom kit?
The WK-PS206 provides four 10/100Mbps PoE ports and two 10/100Mbps Ethernet uplink ports. The Dahua monitor and outdoor station can each use a PoE port in a suitable Ethernet configuration, leaving additional switch ports available within the 45W total PoE budget.
9. Does the Wi-Tek WK-PS206 support 250m PoE transmission for the Dahua VTO2202FB-P-S3-DH?
The WK-PS206 supports Extend Mode for PoE transmission up to 250m under specified conditions, normally at a reduced 10Mbps connection speed. This feature is not a guarantee that the Dahua door station will operate at that distance. Cable conditions, device compatibility and power requirements must be checked.
10. Can the Dahua VTH2621G-P and VTO2202FB-P-S3-DH be installed using existing 2-wire cabling with the WK-PS206?
The WK-PS206 is a conventional Ethernet PoE switch, not a Dahua 2-wire intercom switch. Installations relying on the door station's dedicated digital 2-wire communication may require additional compatible Dahua 2-wire equipment, which is not included in this package.
11. Does the Dahua VTO2202FB-P-S3-DH offer night vision?
The published Dahua VTO2202FB-P-S3 specifications include automatic infrared light compensation and day/night switching for low-light entrance monitoring. Confirmation of the exact -DH variant is recommended.
12. Can the Dahua VTH2621G-P monitor display IP security cameras?
Yes. The VTH2621G-P supports monitoring compatible IP cameras alongside door stations, providing additional viewing capabilities within a properly configured Dahua security system.
13. Can the Dahua VTO2202FB-P-S3-DH door station unlock an electric door lock?
The documented door station family supports remote unlocking and includes a lock control interface and 12 VDC/600 mA auxiliary power output. A compatible electric lock and appropriate installation wiring are required, with 802.3at power sourcing specified if the auxiliary power output is used for a load.
14. Is the Wi-Tek WK-PS206 PoE switch silent during operation?
Yes. The WK-PS206 features a fanless metal enclosure, avoiding mechanical cooling fan noise. This makes it suitable for quiet indoor networking locations.
15. Does the Dahua VTH2621G-P, VTO2202FB-P-S3-DH and WK-PS206 kit include Ethernet cables?
Ethernet cables are not specified among the supplied kit components. Suitable network cables should be selected according to the installation distance, cabling conditions and applicable local standards.
16. Is the Dahua VTH2621G-P, VTO2202FB-P-S3-DH and WK-PS206 intercom kit suitable for Australia and New Zealand?
The kit uses networking and intercom products with features suitable for many residential and small commercial applications. The exact model variants, local regulatory compliance, authorised sourcing, installation requirements and applicable warranties should be confirmed before supply in Australia or New Zealand.
17. What warranty is available for the Dahua VTH2621G-P, VTO2202FB-P-S3-DH and Wi-Tek WK-PS206 kit?
Warranty terms depend on the Dahua and Wi-Tek product warranties and the authorised supplier's arrangements. Globlelink should confirm the applicable coverage for each component, with Australian and New Zealand statutory consumer protections applying as required.
