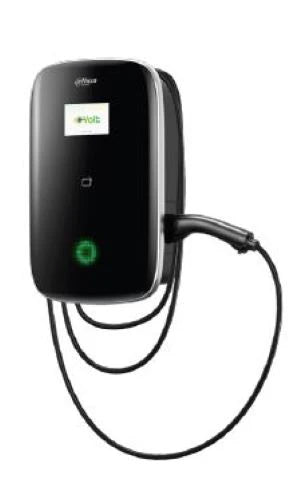

The DAHUA Intelligent D-Volt Pro 22kW EV Charger DHI-ICS-A220E-B2D is a high-performance commercial electric vehicle charger designed for fast, smart and secure EV charging in workplaces, retail sites, public parking areas, hospitals, shopping centres and visitor destinations. With 22kW three-phase AC charging, Type 2 connectivity, RFID/app/plug-and-play control, OCPP 1.6J support and a 4.3-inch LCD display, it delivers intelligent EV charging management for modern Australian and New Zealand installations.
The D-Volt Pro is engineered for reliable day-to-day charging with adjustable current, scheduled charging, remote operation and strong electrical protection. It supports integration through OCPP 1.6J and ModBus TCP, making it suitable for managed EV charging environments where monitoring, control and maintenance visibility are important. Dahua’s Oceania product page lists the D-Volt Pro cable version with a 4.3-inch LCD display, RFID/app/plug-and-play charging methods, OCPP 1.6J, ModBus TCP, built-in MID-certified meter, IP66 cable protection, IK10 impact rating and 3-year warranty.
What’s Included in the Box
- DAHUA D-Volt Pro EV Charger unit
- Integrated Type 2 charging cable, model dependent
- Wall-mount back plate
- Decorative cover and waterproof cover
- Installation screws and mounting accessories
- Product documentation / installation resources
Main Features
-
22kW three-phase AC EV charging for commercial and high-demand locations
-
Type 2 charging connection suitable for compatible EVs
-
4.3-inch LCD display for clear charging status visibility
-
Three start methods: plug-and-play, RFID control and app control
-
OCPP 1.6J and ModBus TCP support for smart charging management
-
Built-in MID-certified meter for energy measurement
- Adjustable charging current from 6A to 32A
-
Scheduled charging to help optimise charging times and energy usage
-
USB and remote upgrade support via OCPP 1.6J
-
Integrated leakage protection: 30mA Type A RCD + 6mA DC protection
-
Multiple safety protections, including overvoltage, undervoltage, overcurrent, short-circuit, surge, leakage and overtemperature protection
-
IP66 cable version / IP55 socket version protection and IK10 impact resistance
-
Indoor or outdoor installation in suitable well-ventilated locations
- Wall mount and vertical pole mount installation options
Detailed Specifications
| Specification |
Details |
| Brand |
DAHUA |
| Series |
D-Volt Pro |
| Product Type |
Intelligent EV Charger |
| Product Code |
DHI-ICS-A220E-B2D |
| Rated Power |
22kW |
| Power Supply |
AC400V ±15%, 50/60Hz, 3-phase |
| Operating Current |
3 × 32A max |
| Wiring Method |
L1 / L2 / L3 / N / PE |
| Connector Type |
Type 2, 5m cable / Type 2 socket depending on variant |
| Display |
4.3-inch LCD |
| Charging Protocol |
Mode 3, EN/IEC 61851 |
| Charging Control |
Plug & Play / RFID / App |
| Communication Protocol |
OCPP 1.6J and ModBus TCP |
| Ethernet |
1 × RJ-45 port |
| Additional Ports |
RS485 × 2, CAN × 2, USB |
| Metering |
Built-in MID-certified meter |
| Leakage Protection |
30mA Type A RCD + 6mA DC |
| Protection Rating |
IP66 cable version / IP55 socket version |
| Impact Rating |
IK10 |
| Operating Temperature |
–30°C to +50°C |
| Storage Temperature |
–40°C to +70°C |
| Operating Humidity |
≤95% RH, non-condensing |
| Product Dimensions |
443.0mm × 273.0mm × 171.5mm |
| Net Weight |
6.0kg ± 0.5kg |
| Package Weight |
12.0kg ± 1.0kg |
| Installation |
Wall mount or vertical pole mount |
| Installation Environment |
Indoor or outdoor, well-ventilated areas free from oil stains, chemicals, flammable or explosive substances |
| Certifications Listed by Manufacturer |
CE/CB, EN IEC61851-1, EN IEC61851-21-2, IEC62955, 2011/65/EU, 2015/863/EU and listed ETSI/EN standards |
| Warranty |
3 years |
Warranty Information
The DAHUA DHI-ICS-A220E-B2D D-Volt Pro EV Charger is listed with a 3-year warranty. Warranty handling should be completed through authorised Dahua channels or direct brand representative communication, subject to local terms, installation requirements and warranty policy.
Brand Description
DAHUA Technology is a global provider of intelligent IoT, video-centric and smart infrastructure solutions. Its D-Volt EV charging range extends the brand’s intelligent hardware and software capabilities into electric vehicle charging, supporting connected charging, remote operation, monitoring and commercial energy management.
Practical Use Scenarios
- Commercial office EV charging stations
- Shopping centre and retail car parks
- Hospitals and healthcare facility parking
- Hotels, resorts and tourist attractions
- Public institutions and enterprise parking areas
- Fleet charging areas for compatible EVs
- Apartment or mixed-use developments requiring managed charging
- Outdoor or semi-outdoor EV charging points where suitable installation conditions are met
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The DAHUA DHI-ICS-A220E-B2D D-Volt Pro 22kW EV Charger is well suited to Australian and New Zealand commercial EV charging environments where smart control, robust protection and reliable charging performance are required. Dahua Oceania lists the D-Volt Pro cable version with a 22kW option, OCPP 1.6J, ModBus TCP, MID-certified metering, Type 2 connection, IP-rated protection and IK10 impact resistance.
For AU/NZ projects, installation should always be completed by a licensed electrician in accordance with local electrical regulations, site requirements and utility/network rules. No NDSS approval is claimed for this EV charger, as NDSS approval is not a relevant certification category for EV charging equipment. For best support, sourcing should be through authorised Dahua representatives, with warranty matters handled through official Dahua or authorised brand channels.
FAQs
What is the DAHUA DHI-ICS-A220E-B2D EV Charger used for?
The DAHUA DHI-ICS-A220E-B2D is a 22kW intelligent EV charger designed for commercial and managed electric vehicle charging locations such as car parks, workplaces, retail centres, hospitals and public facilities.
Does the DAHUA DHI-ICS-A220E-B2D support 22kW charging?
Yes. The DAHUA DHI-ICS-A220E-B2D is part of the D-Volt Pro 22kW range and supports three-phase AC charging with up to 3 × 32A operating current.
What charging methods does the DAHUA DHI-ICS-A220E-B2D support?
The DAHUA DHI-ICS-A220E-B2D supports plug-and-play charging, RFID control and app-based charging control.
Does the DAHUA DHI-ICS-A220E-B2D support OCPP?
Yes. The DAHUA DHI-ICS-A220E-B2D supports OCPP 1.6J, allowing integration with compatible EV charging management systems.
Is the DAHUA DHI-ICS-A220E-B2D suitable for outdoor installation?
The DAHUA DHI-ICS-A220E-B2D is designed for indoor or outdoor installation in well-ventilated environments, provided the site is free from oil stains, chemicals and flammable or explosive substances.
What protection rating does the DAHUA DHI-ICS-A220E-B2D have?
The DAHUA DHI-ICS-A220E-B2D D-Volt Pro range is listed with IP66 protection for the cable version, IP55 for the socket version and IK10 impact resistance.
Does the DAHUA DHI-ICS-A220E-B2D include leakage protection?
Yes. The DAHUA DHI-ICS-A220E-B2D includes 30mA Type A RCD and 6mA DC leakage protection.
What warranty does the DAHUA DHI-ICS-A220E-B2D include?
The DAHUA DHI-ICS-A220E-B2D is listed with a 3-year manufacturer warranty, subject to Dahua warranty terms and correct installation.
