The Dahua DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ 8MP Smart Dual Light Vari‑focal Eyeball WizSense Network Camera delivers ultra‑clear 4K surveillance with advanced AI detection, smart dual‑light tech, and robust build quality — perfect for demanding outdoor and indoor security environments. Featuring built‑in IR and warm lights, intelligent human/vehicle classification, and starlight low‑light performance, this camera ensures accurate monitoring and high fidelity video even in challenging conditions. Engineered for Australian and New Zealand installations, it combines cutting‑edge Dahua deep learning algorithms with compliant hardware and network security.
What’s Included in the Box

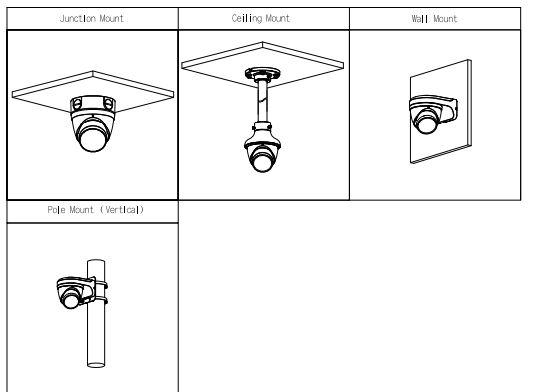

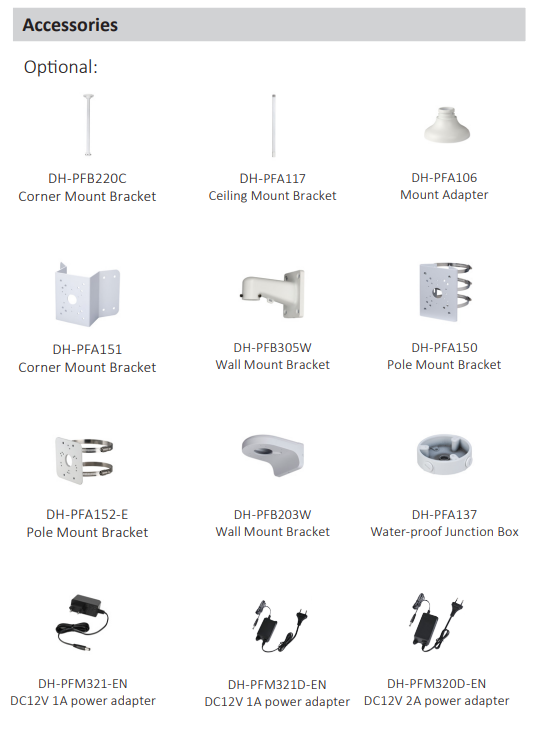

Accessories Sold Separately: Mount brackets (ceiling, wall, corner, pole), junction box, power adapters, test tools, and MicroSD card options.
Main Features
-
8MP Ultra HD Video: Rich 3840×2160 resolution at up to 30 fps for crystal‑clear monitoring.
-
WizSense AI: Advanced perimeter protection with human/vehicle classification reduces false alarms.
-
Smart Dual Light: Switches between IR and warm light to capture full‑colour details at night when movement is detected.
-
Deep Learning Scene Adaptation (AI SSA): Automatically adjusts imaging according to environmental conditions like rain/fog/backlight.
-
Smart Motion Detection 4.0 (SMD 4.0): Detects genuine targets and filters out irrelevant movements.
-
Flexible Optics: Motorized vari‑focal lens (2.7–13.5 mm) with wide to narrow view adjustment.
-
Robust Protection: IP67 rating for dust/drenching protection, suitable for outdoor use.
-
Local Storage: Supports up to 512 GB Micro SD card.
-
PoE & 12 VDC Power: Convenient network‑powered installation with PoE (802.3af).
-
Cyber Security: Encrypted transmission, secure boot, account lockout, IP/MAC filtering, and advanced auth protocols.
Detailed Specifications
| Category |
Specification |
| Image Sensor |
1/2.7″ CMOS |
| Max Resolution |
3840×2160 (8MP) |
| Frame Rate |
Up to 25/30 fps |
| Lens |
Motorized vari‑focal 2.7–13.5 mm, F1.4 |
| Field of View |
H:114°–32° / V:58°–17° / D:138°–36° |
| Illumination |
IR up to 50 m, Warm light up to 40 m |
| Video Compression |
H.265 / H.264 / Smart H.265+ / Smart H.264+ |
| Network |
RJ‑45 (10/100 Mbps), IPv4/IPv6, ONVIF Profiles S/G/T/M |
| Storage |
Micro SD (max 512 GB), FTP/SFTP/NAS |
| Protection |
IP67 outdoor rating |
| Power |
12 VDC or PoE (802.3af) |
| Operating Temp. |
−30 °C to +60 °C |

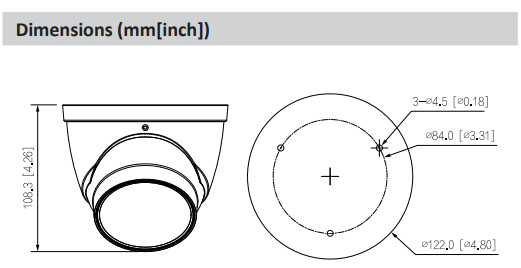

| Dimensions |
108.3 mm × Ø122.0 mm |
| Weight |
690 g |
Warranty Information
Backed by Dahua’s 3-year manufacturer warranty. Warranty support is provided through authorised Dahua distributors and service partners.
Brand Description
Dahua Technology is a global leader in video surveillance solutions, known for innovation in AI, imaging, and network security. Dahua’s WizSense series incorporates smart analytics and adaptive imaging to deliver reliable and intelligent security products.
Practical Use Scenarios
-
Commercial & Retail Security: Detect and alert on human/vehicle movement with reduced false alarms.
-
Perimeter & Asset Protection: Reliable 24/7 monitoring with smart illumination.
-
Residential Surveillance: High‑definition imaging and warm light capture for night time identification.
-
Parking Lots & Driveways: Wide DORI coverage and classification help monitor vehicles and people.
Datasheets & Downloads
Datasheet
Excellence for the Australian and New Zealand Market
This Dahua DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ camera meets Australian and NZ environmental and performance expectations with a robust IP67 outdoor rating and stable operation across extreme temperatures. Sourced through authorised Dahua channels and supported locally for warranty and service, the unit is ideal for systems integrators, security installers, and end‑users requiring compliant, high‑performance CCTV solutions.
FAQs
Q: What is the best installation height for the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ camera?
A: The DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ performs best when installed between 2.5 m and 4 m above ground for optimal perimeter and person/vehicle detection.
Q: Does the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ support PoE?
A: Yes, the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ supports standard PoE (802.3af), making installation simpler without separate power cabling.
Q: Can the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ record in full colour at night?
A: Yes, thanks to Smart Dual Light technology, the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ can capture full‑colour video at night when warm light is triggered by motion.
Q: What Micro SD capacity does the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ support?
A: The DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ supports Micro SD storage up to 512 GB for local video retention.
Q: Is the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ weather‑proof?
A: Yes, the DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ has an IP67 rating, ensuring protection against dust and heavy water exposure.
SKU: DH‑IPC‑HDW3867T‑ZS‑IL‑ANZ
