The Dahua DH-IPC-HDW5442T-ZE 4MP WizMind AI Network Camera is a professional-grade IP surveillance camera featuring a 4MP 1/1.8" CMOS sensor, motorised 2.7–12 mm vari-focal lens, up to 40 m infrared night vision, 140 dB WDR, SMD 3.0, AcuPick, AI-powered perimeter protection, face detection and people counting. With PoE/ePoE connectivity, IP67 weather protection and support for up to a 1 TB MicroSD card, the DH-IPC-HDW5442T-ZE is designed for advanced commercial and professional video surveillance installations.
Powered by Dahua's deep-learning WizMind platform, the camera provides sophisticated video analytics including intrusion and tripwire detection, fast-moving target detection, loitering, people gathering and parking detection. Human, animal and vehicle classification helps improve event accuracy and reduce unwanted alarms.
The motorised 2.7–12 mm vari-focal lens provides a horizontal field of view from approximately 115° to 47°, allowing installers to remotely adjust the viewing angle for wide-area coverage or more targeted monitoring. Its F1.8 aperture and low-light imaging capabilities are complemented by dual IR LEDs delivering illumination up to 40 metres. The camera outputs up to 2688 × 1520 at 25/30 fps, while 1080p operation supports up to 50/60 fps.
Main Features
-
4MP resolution: Up to 2688 × 1520 @ 25/30 fps
-
1/1.8" CMOS image sensor with high-performance low-light imaging
-
Motorised 2.7–12 mm vari-focal lens with F1.8 maximum aperture
-
Up to 40 m IR night vision with two built-in IR LEDs
-
140 dB Wide Dynamic Range (WDR)
-
SMD 3.0 smart motion detection
-
AcuPick intelligent target search when used with compatible back-end devices
-
Deep-learning perimeter protection
-
Human, animal and vehicle classification for supported IVS functions
-
Face detection and attribute extraction
-
Video metadata and smart object detection
-
People counting, queue management and heat map
-
Smart H.265+ / Smart H.264+ and AI H.265 / AI H.264 coding
-
Four-stream capability
-
Built-in microphone
-
Up to 1 TB MicroSD local storage
-
PoE (802.3af), 12 VDC and ePoE
-
ONVIF Profile S/G/T/M interoperability
-
IP67 weather protection
-
Metal casing
Detailed Specifications
| Specification |
DH-IPC-HDW5442T-ZE |
| Image Sensor |
1/1.8" CMOS |
| Maximum Resolution |
2688 × 1520 (4MP) |
| RAM / ROM |
1 GB / 4 GB |
| Lens |
Motorised vari-focal |
| Focal Length |
2.7–12 mm |
| Maximum Aperture |
F1.8 |
| Horizontal FOV |
115°–47° |
| Vertical FOV |
62°–27° |
| Diagonal FOV |
137°–54° |
| Minimum Illumination |
0.0007 lux colour / 0.0004 lux B&W @ F1.8, 30 IRE |
| IR Distance |
Up to 40 m |
| IR LEDs |
2 |
| WDR |
140 dB |
| Main Stream |
4MP @ 25/30 fps; 1080p @ up to 50/60 fps |
| Stream Capability |
4 streams |
| Video Compression |
H.265, H.264, H.264H, H.264B, MJPEG (sub-stream) |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| AI Coding |
AI H.265 / AI H.264 |
| Audio |
Built-in microphone |
| Local Storage |
MicroSD up to 1 TB |
| Network |
RJ-45 10/100 Ethernet |
| Interoperability |
ONVIF Profile S/G/T/M, CGI |
| Power |
12 VDC / PoE 802.3af / ePoE |
| Maximum Power Consumption |
6.7 W (12 VDC); 8.2 W (PoE) |
| Protection |
IP67 |
| Operating Temperature |
–30°C to +60°C / –30°C to +55°C as specified by operating condition |
| Operating Humidity |
≤95% |
| Casing |
Metal |

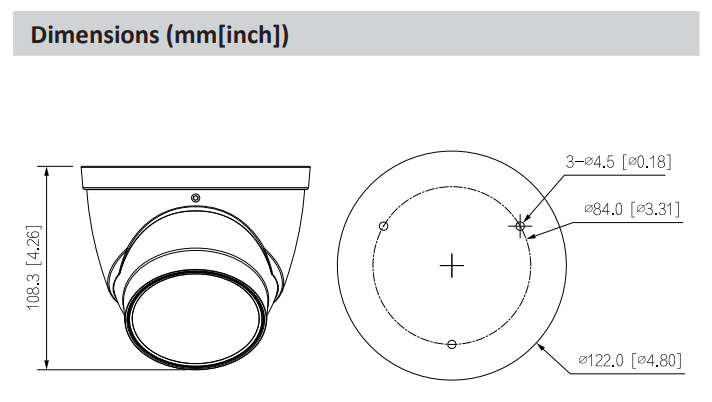

| Dimensions |
108.3 mm × Φ122 mm |
| Net Weight |
0.70 kg |
| Gross Weight |
0.96 kg |
Intelligent Video Analytics
The DH-IPC-HDW5442T-ZE provides an extensive suite of Dahua WizMind analytics. Perimeter Protection supports intrusion, tripwire and fast-moving detection with classification of vehicles, animals and humans, as well as loitering, people gathering and parking detection. The camera also supports smart abandoned/missing object detection, SMD 3.0, face detection, video metadata, people counting and heat-map functionality.
AcuPick combines front-end and compatible back-end intelligence to assist operators in locating people, animals and motor vehicles within live and recorded surveillance video.
What's Included in the Box
1x IPC-HDW5442TP-ZE-S3
Compatible Optional Accessories

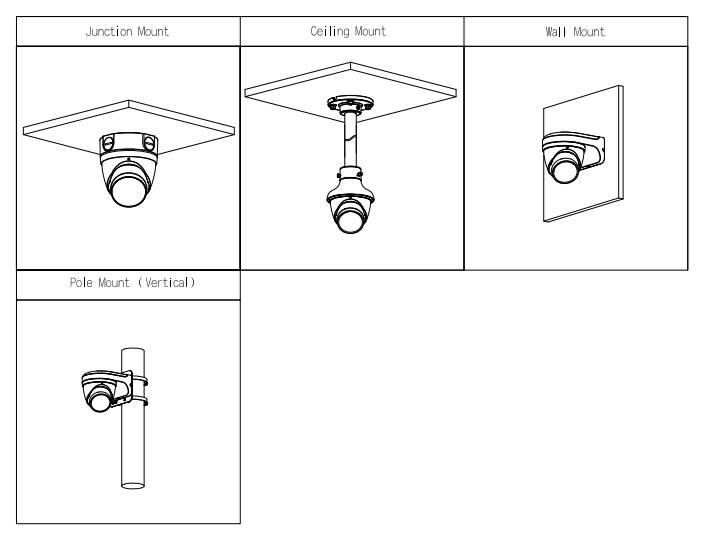

FB203W Wall Mount Bracket, PFA152-E Pole Mount Bracket, PFA106 Mount Adapter, PFB220C Ceiling Mount Bracket, PFA137 Junction Box, PFM321D 12 VDC 1 A Power Adapter, PFM900-E Integrated Mount Tester and TF-P100 MicroSD Memory Card -these are optional accessories.
Practical Use Scenarios
The combination of 4MP imaging, motorised optical adjustment and advanced analytics makes the DH-IPC-HDW5442T-ZE suitable for professional surveillance of commercial properties, offices, warehouses, retail premises, entrances and exits, car parks, building perimeters and other indoor or outdoor security environments. People counting and queue-management functions can additionally support environments where occupancy and customer-flow analytics are useful.
Warranty Information
Warranty: 3 years
About Dahua Technology
Dahua Technology develops video-centric security and AIoT products and solutions. The WizMind portfolio incorporates deep-learning technologies across cameras, recorders and related surveillance platforms, with an emphasis on intelligent video analytics and professional security applications.
Datasheet & Downloadable Resources
Download the official DH-IPC-HDW5442T-ZE S3 Datasheet (PDF)
Excellence for the Australian and New Zealand Market
The Dahua DH-IPC-HDW5442T-ZE offers IP67 environmental protection, PoE installation, flexible motorised vari-focal coverage and advanced AI surveillance capabilities suitable for professional security projects across Australia and New Zealand.
The supplied manufacturer documentation lists CE-LVD, CE-EMC, FCC and UL/CUL certifications, but it does not state Australian RCM certification, NDSS approval or other Australia/New Zealand-specific certification. These should not be claimed for this model without separate supporting documentation. Likewise, authorised Australian/New Zealand distribution status and direct-brand warranty handling should be confirmed against the seller's actual supply arrangement before being advertised.
FAQs
What resolution does the Dahua DH-IPC-HDW5442T-ZE provide?
The DH-IPC-HDW5442T-ZE delivers up to 4MP (2688 × 1520) video at 25/30 fps, providing detailed video for professional surveillance applications.
What lens does the Dahua DH-IPC-HDW5442T-ZE use?
The DH-IPC-HDW5442T-ZE features a motorised 2.7–12 mm vari-focal F1.8 lens with an approximately 115°–47° horizontal field of view.
How far can the Dahua DH-IPC-HDW5442T-ZE see at night?
The DH-IPC-HDW5442T-ZE has two built-in IR LEDs providing an infrared illumination distance of up to 40 metres.
Does the Dahua DH-IPC-HDW5442T-ZE support PoE?
Yes. The DH-IPC-HDW5442T-ZE supports standard 802.3af PoE as well as 12 VDC and Dahua ePoE power/network deployment.
Does the Dahua DH-IPC-HDW5442T-ZE have AI detection?
Yes. The DH-IPC-HDW5442T-ZE incorporates Dahua WizMind deep-learning functions including perimeter protection, SMD 3.0, face detection, video metadata, smart object detection and people counting
Does the Dahua DH-IPC-HDW5442T-ZE support MicroSD recording?
Yes. The S3-series DH-IPC-HDW5442T-ZE supports MicroSD storage with a maximum capacity of 1 TB.
Is the Dahua DH-IPC-HDW5442T-ZE suitable for outdoor installation?
The DH-IPC-HDW5442T-ZE carries an IP67 protection rating, providing dust and water protection for appropriately installed outdoor surveillance applications.
Does the Dahua DH-IPC-HDW5442T-ZE have a built-in microphone?
Yes. The DH-IPC-HDW5442T-ZE incorporates a built-in microphone and supports G.711a, G.711Mu, PCM, G.726 and G.723 audio compression.
Does the Dahua DH-IPC-HDW5442T-ZE support ONVIF?
Yes. The DH-IPC-HDW5442T-ZE supports ONVIF Profiles S, G, T and M, helping facilitate interoperability with compatible network video surveillance equipment.
