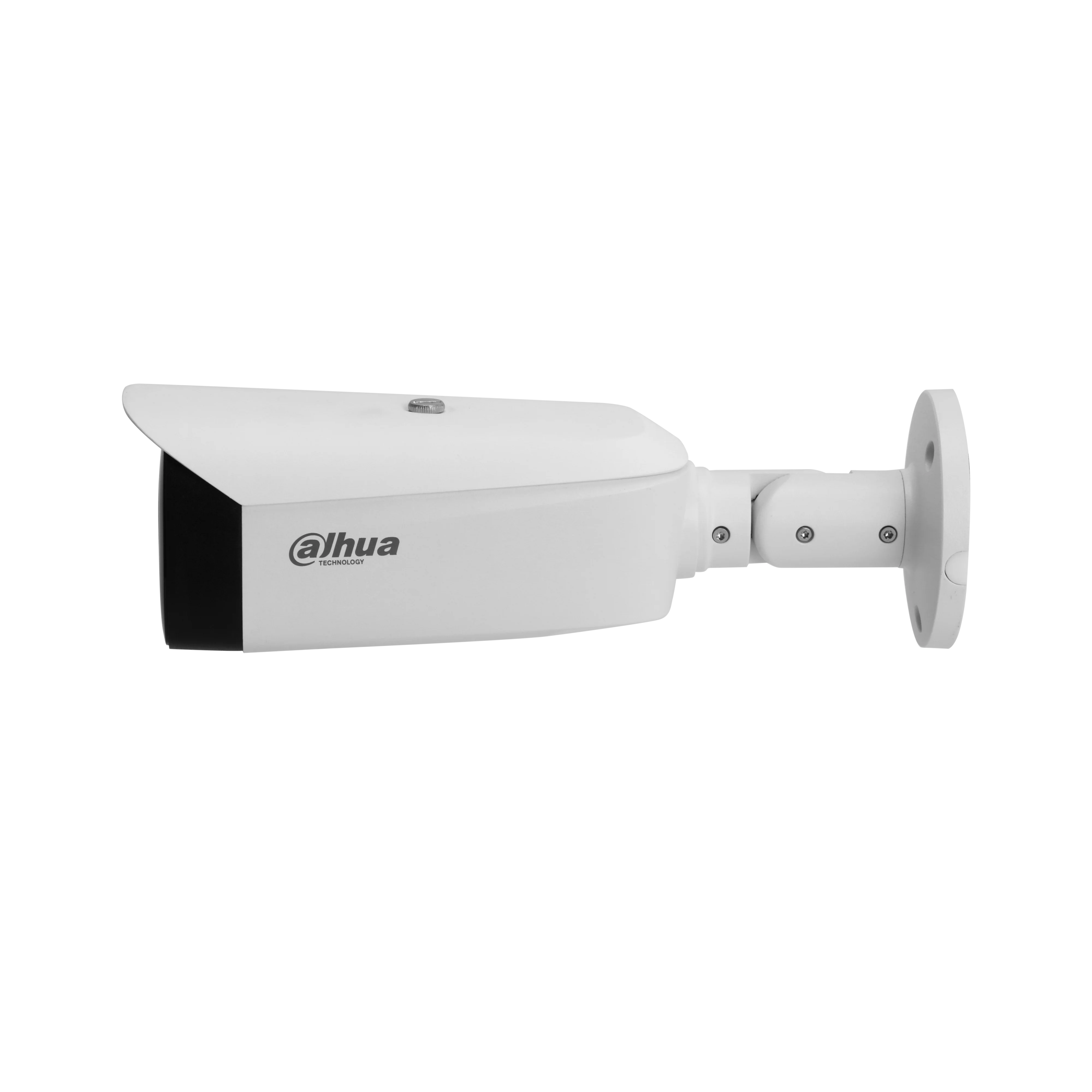

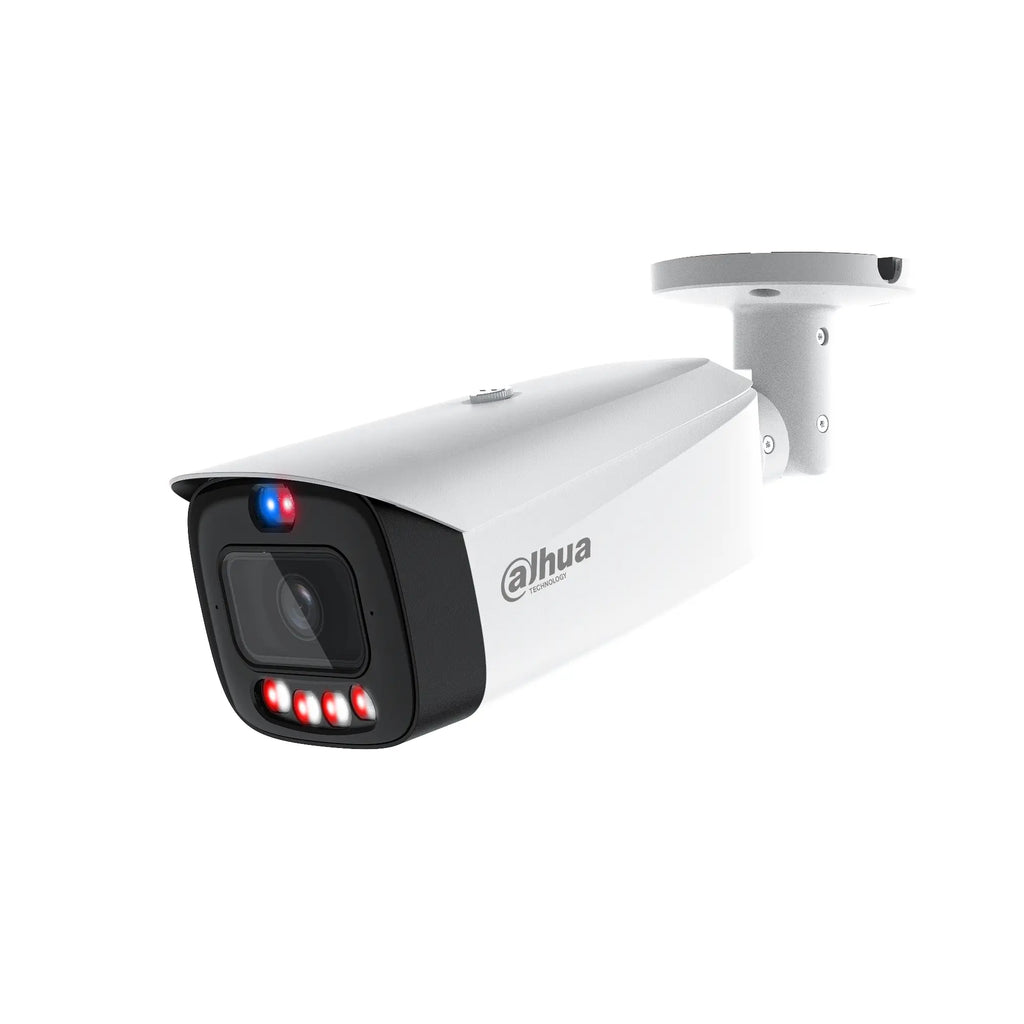

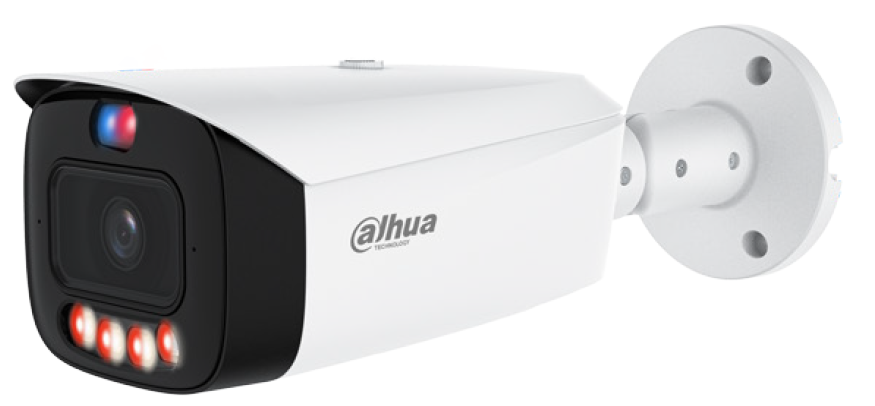

The Dahua DH-IPC-HFW3649T1-AS-PV-PRO-ANZ 6MP Smart Dual Light Active Deterrence Bullet Camera delivers ultra-clear 6MP resolution, advanced AI-powered human and vehicle classification, and proactive sound and light deterrence in a robust IP67-rated bullet design. Featuring 50m IR and warm light range, SMD 4.0, WizSense deep learning technology, and AI Coding for bandwidth optimisation, this camera provides reliable perimeter protection and full-colour evidence capture in low-light conditions. Purpose-built for demanding Australian and New Zealand environments, it ensures intelligent, accurate, and highly efficient surveillance performance.

What’s Included in the Box

• 1 × Dahua DH-IPC-HFW3649T1-AS-PV-PRO-ANZ Network Camera

• Mounting hardware

• Waterproof connector

• Quick installation guide

• Warranty documentation

Key Features

🔹 6MP High-Definition Imaging

• 1/1.8" CMOS image sensor

• Max resolution: 3288 × 1850 @ 25/30fps

• Ultra-low illumination:

  • 0.0005 Lux (Colour)

  • 0 Lux with illuminator on

• 120dB Wide Dynamic Range

🔹 Smart Dual Light (50m Range)

• IR illumination up to 50m

• Warm light illumination up to 50m

• Automatically switches to full-colour recording when a target is detected

• Reduces unnecessary light pollution

🔹 Active Deterrence – Siren & Red/Blue Warning Lights

• Built-in speaker with selectable voice prompts

• Custom voice import supported

• Red & blue flashing lights

• Immediate audible and visual deterrence on perimeter trigger

🔹 Advanced AI Detection (WizSense 3 Series)

• Intrusion detection

• Tripwire protection

• Human & vehicle classification

• SMD 4.0 smart motion detection

• AcuPick for rapid target search

• AI Scene Self-Adaptation (AI SSA)

• One-tap arming/disarming via mobile app

🔹 Smart Compression & Storage Efficiency

• H.265 / H.264 compression

• Smart H.265+ / H.264+

• AI Coding (≥25% compression efficiency improvement)

• Triple stream support

• MicroSD support up to 512GB

🔹 Audio & Alarm Integration

• Built-in dual microphones

• Built-in speaker (two-way talk)

• 1 × Alarm input / 1 × Alarm output

• 1 × Audio input / 1 × Audio output

🔹 Cyber Security Protection

• HTTPS & 802.1x authentication

• IP/MAC filtering

• Firmware & configuration encryption

• Trusted boot & secure upgrade

Detailed Technical Specifications

Camera

• Image Sensor: 1/1.8" CMOS

• Max Resolution: 3288 × 1850

• ROM: 256MB

• RAM: 2GB

• Shutter Speed: 1/3s–1/100,000s

• S/N Ratio: >56dB

Lens Options

• Aperture: F1.0

• Mount: M16

Illumination

• IR Distance: Up to 50m

• Warm Light Distance: Up to 50m

• 4 Multi-core LEDs (IR + Warm)

Video

• Compression: H.265 / H.264 / MJPEG (sub stream)

• Smart Codec: Smart H.265+ / H.264+

• AI Coding: Supported

• Bit Rate: 3kbps–16384kbps

• 3 Streams supported

Storage

• Micro SD up to 512GB

• FTP / SFTP / NAS

Network

• RJ-45 (10/100 Base-T)

• ONVIF Profile S / G / T

• IPv4 / IPv6 supported

• Maximum 20 users

Power

• 12V DC or PoE+ (802.3at)

• Max consumption:

  • 11.8W (DC)

  • 15.1W (PoE+)

Environmental

• Operating Temp: -40°C to +60°C

• Humidity: ≤95% (non-condensing)

• Protection: IP67

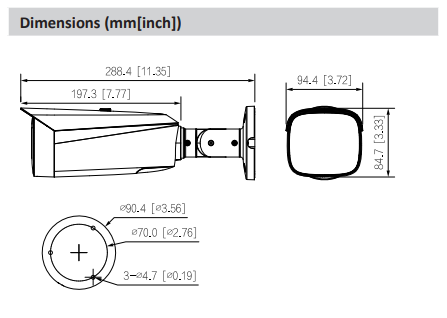

Physical

• Metal + Plastic housing

• Dimensions: 288.4 × 94.4 × 84.7mm

• Net Weight: 1.0kg

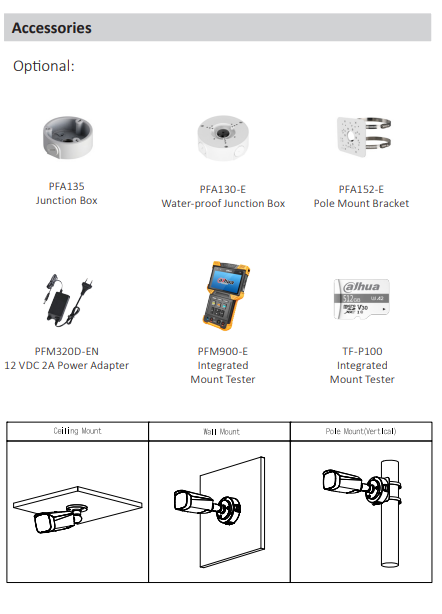

Optional Accessories

• PFA135 Junction Box

• PFA130-E Waterproof Junction Box

• PFA152-E Pole Mount Bracket

• PFM320D-EN 12V 2A Power Adapter

• PFM900-E Integrated Mount Tester

• TF-P100 MicroSD Card

Practical Use Scenarios

✔ Driveways and perimeter fencing
✔ Commercial building exteriors
✔ Warehouse loading zones
✔ Industrial facilities
✔ School campuses
✔ Car parks and vehicle entry points

The extended 50m illumination range makes this bullet camera ideal for larger open areas requiring long-distance coverage and proactive deterrence.

Warranty Information

• Manufacturer-backed warranty

• Supplied through authorised ANZ distribution

• Full compliance with regional support standards

About Dahua Technology

Dahua Technology is a global provider of AIoT-based smart video surveillance solutions. The WizSense series integrates independent AI chips and deep learning algorithms to deliver precise human and vehicle detection while minimising false alarms and storage consumption.

Datasheets & Resources

• Official datasheet

Excellence for the Australian and New Zealand Market

The DH-IPC-HFW3649T1-AS-PV-PRO-ANZ model is specifically supplied for the Australian and New Zealand market, ensuring:

• Compliance with CE-LVD (EN 62368-1) and CE-EMC standards

• Optimised voltage tolerance for unstable outdoor power conditions

• IP67-rated weatherproof protection for harsh climates

• PoE+ (802.3at) support for professional commercial installations

• Supplied through authorised brand channels

• Warranty support aligned with ANZ service standards

Built to withstand extreme temperatures and demanding outdoor environments, this model delivers reliable long-term performance across residential, commercial, and industrial applications.

Frequently Asked Questions (FAQs)

1. Does DH-IPC-HFW3649T1-AS-PV-PRO-ANZ support full-colour recording at night?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ uses Smart Dual Light technology to switch to warm light for full-colour recording when a target is detected.

2. What is the illumination range of DH-IPC-HFW3649T1-AS-PV-PRO-ANZ?

DH-IPC-HFW3649T1-AS-PV-PRO-ANZ provides up to 50 metres of IR and 50 metres of warm light illumination.

3. Does DH-IPC-HFW3649T1-AS-PV-PRO-ANZ support PoE?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ supports both 12V DC and PoE+ (802.3at) power supply.

4. Can DH-IPC-HFW3649T1-AS-PV-PRO-ANZ reduce false alarms?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ features SMD 4.0 with AI human and vehicle classification to significantly minimise false triggers.

5. Is DH-IPC-HFW3649T1-AS-PV-PRO-ANZ suitable for harsh outdoor conditions?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ is IP67-rated and operates from -40°C to +60°C.

6. What storage options are supported by DH-IPC-HFW3649T1-AS-PV-PRO-ANZ?

DH-IPC-HFW3649T1-AS-PV-PRO-ANZ supports Micro SD cards up to 512GB and network storage including FTP, SFTP, and NAS.
