The Dahua DHI‑ART‑ARC3800H‑06‑FW2 wireless alarm kit offers video alarm verification, multi‑network redundancy (Ethernet, Wi‑Fi & 4G), PIR cameras, sirens, keyfob control and cloud updates — ideal for homes, offices & commercial sites.

Product Description

The Dahua DHI‑ART‑ARC3800H‑06‑FW2 Wireless Alarm Kit is a comprehensive smart security solution designed to protect residential and commercial properties with advanced alarm verification and reliable connectivity. This kit supports alarm video verification through integrated IPC cameras, multi‑network redundancy (Ethernet, Wi‑Fi and 4G cellular), two‑way communication with wireless peripherals and remote management via mobile app. With cloud updates and robust wireless performance, it delivers powerful security monitoring with simplified setup and control.

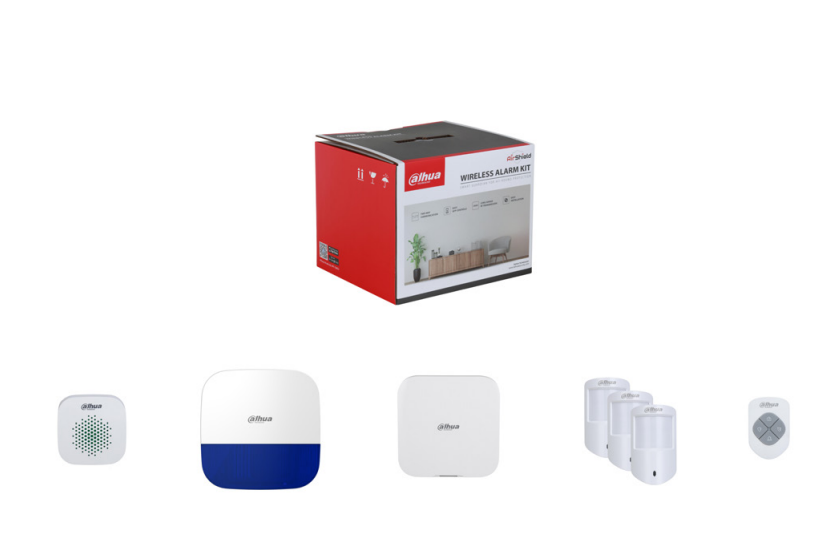

What’s Included in the Box

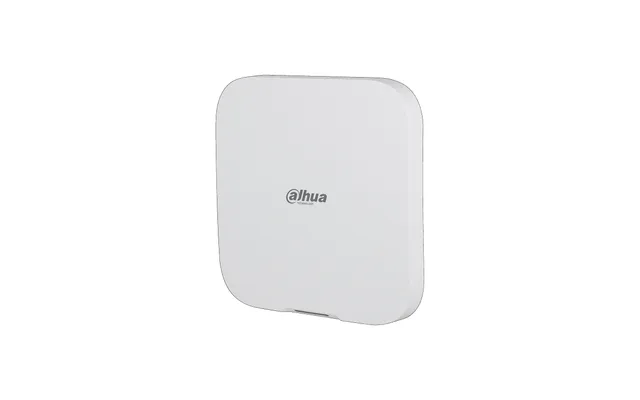

• 1 × Hub (ARC3800H‑FW2)

• 1 × Keyfob (ARA24‑W2)

• 3 × PIR Detectors (ARD1233‑W2)

• 1 × Internal Siren (ARA12‑W2)

• 1 × External Siren (ARA13‑W2)

Main Features

• Alarm Video Verification: Detects and uploads video clips from IPC cameras when an alarm is triggered.

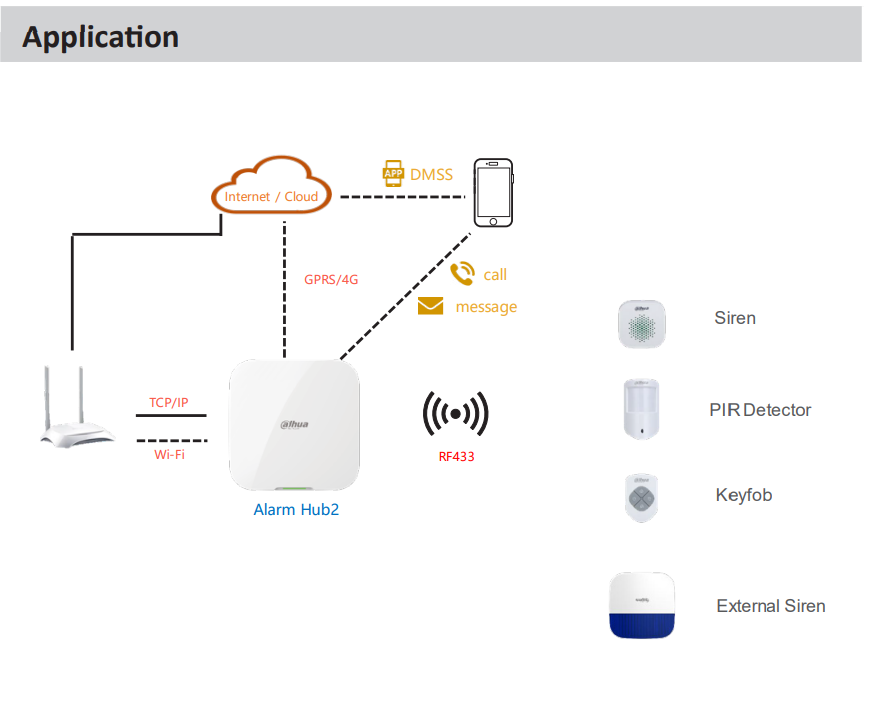

• Multi‑Network Redundancy: Stable connectivity with Ethernet, Wi‑Fi, and 4G cellular (dual SIM ready).

• Two‑Way Communication: Bidirectional wireless protocol with frequency hopping for reliable peripheral connectivity.

• Voice Call Alerts: Automated voice calls to notify of alarm events.

• Remote Cloud Updates: Easily update the hub and peripherals via mobile app with dual backup and auto recovery.

• Large Peripheral Support: The hub supports up to 150 wireless devices including PIR cameras, keypads, keyfobs, sirens and repeaters.

Detailed Specifications

Network & Connectivity

• Network Modes: Ethernet, Wi‑Fi (IEEE 802.11b/g/n), 4G Cellular (GSM/WCDMA/LTE)

• Ethernet Port: 1 × RJ‑45, 10/100 Mbps

• Wi‑Fi Frequency: 2.4 GHz (2400–2483.5 MHz)

• Cellular Bands: Supports EU & AU LTE/3G/2G frequency ranges

• SIM: Dual SIM support (one active at a time)

Wireless Zones & Devices

• Wireless Zones: Up to 150 peripherals

  • 6 Sirens

  • 64 PIR Cameras (8 indoor)

  • 64 Keyfobs

  • 8 Keypads

  • 4 Repeaters

Audio & Alerts

• Audio Output: 1 channel

• Voice Broadcast: Telephone & local speaker

• Volume Control: Yes

User Management & Alerts

• SMS Alerts: Up to 5 numbers

• Phone Call Alerts: Up to 5 numbers

• App Users: 33 (31 general, 1 admin, 1 installer)

• Keypad Users: 32

• Offline Cache: 50 alarm messages

• Log Capacity: Up to 5,000 entries

Sensors & Detection (PIR)

• Sensing Type: Dual‑element low‑noise PIR

• Detection Range: 12 m @ 90° (2.2 m installation)

• Detection Speed: 0.3 m/s – 3 m/s

• Pet Immunity: ≤ 18 kg

• White Light Resistance: 6500 lx

• Digital Temperature Compensation: Yes

• Frequency: 433.1–434.6 MHz

• Encryption: AES128

• Communication Distance (Open Space):

  • Hub: ~1,400 m

  • Keyfob: ~500 m

  • PIR Detector: ~1,200 m

  • Siren/External Siren: ~800 m / ~1,200 m

Power & Battery

• Hub Power: 100–240 VAC (50/60 Hz), Built‑in 4,750 mAh rechargeable battery (backup up to ~12 h)

• Keyfob: CR2032 battery (up to ~3 years)

• PIR Detector: CR123A (up to ~4 years)

• Sirens: CR123A / External Siren battery or DC supply

Environmental & Physical

• Operating Temp:

  • Hub/Keyfob/PIR/Siren: –10 °C to +55 °C

  • External Siren: –25 °C to +60 °C

• Operating Humidity: 10%–90% RH

• Casing: PC + ABS (External Siren: IP65 rated)

• Protection: Anti‑corrosion (basic)

Dimensions & Weight

• Hub: 174.8 × 174.8 × 38.3 mm | 510 g

• Keyfob: 60 × 39.5 × 15 mm | 20 g

• PIR Detector: 104 × 60 × 50 mm | 100 g

• Internal Siren: 81 × 81 × 26 mm | 105 g

• External Siren: 200 × 200 × 52.5 mm | 610 g

• Kit Gross Weight: ~3 kg

Warranty Information

• Manufacturer’s warranty varies by region.

• Warranty support and service facilitated through Dahua authorized distributors and service partners in Australia & New Zealand.

Brand Overview

Dahua Technology stands as a global leader in intelligent video surveillance and smart security products, known for innovation, high‑performance engineering and dependable solutions for residential, commercial and industrial environments.

SKU

DHI‑ART‑ARC3800H‑06‑FW2

Practical Use Scenarios

✔ Home Security: Full wireless alarm system with video verification and long‑range communication.
✔ Small Business Protection: Multi‑zone alarm coverage with cloud updates & remote control.
✔ Remote Property Monitoring: Dual network redundancy ensures reliable connectivity even in low‑signal areas.
✔ Integration with Mobile App: Arm/disarm, update devices, and receive alerts on the go.

Datasheets & Resources

• Official product datasheet

Excellence for the Australian and New Zealand Market

The Dahua DHI‑ART‑ARC3800H‑06‑FW2 Wireless Alarm Kit meets stringent quality and safety expectations in Australia & New Zealand. Sourced through authorized Dahua distributors, it aligns with relevant local certifications and comes with dependable regional warranty support, ensuring compliance and performance for homeowners and businesses alike.

FAQs

1. What is the Dahua DHI‑ART‑ARC3800H‑06‑FW2 Wireless Alarm Kit? (Product Code: DHI‑ART‑ARC3800H‑06‑FW2)
The Dahua DHI‑ART‑ARC3800H‑06‑FW2 is a complete wireless alarm kit with PIR detectors, sirens, keyfob, hub and external siren — supporting video verification, multi‑network redundancy and cloud updates.

2. Does the DHI‑ART‑ARC3800H‑06‑FW2 support video alarm verification? (Product Code: DHI‑ART‑ARC3800H‑06‑FW2)
Yes. The kit supports alarm video verification by integrating IPC cameras for image upload when alarms are triggered.

3. Can the DHI‑ART‑ARC3800H‑06‑FW2 work on 4G networks? (Product Code: DHI‑ART‑ARC3800H‑06‑FW2)
Yes. The hub supports 4G cellular networks with dual SIM slots (one active at a time) for added redundancy.

4. How many wireless devices does the DHI‑ART‑ARC3800H‑06‑FW2 hub support? (Product Code: DHI‑ART‑ARC3800H‑06‑FW2)
It supports up to 150 wireless peripherals including PIR cameras, sirens, keyfobs, keypads and repeaters.

5. What are the power options for the DHI‑ART‑ARC3800H‑06‑FW2 components? (Product Code: DHI‑ART‑ARC3800H‑06‑FW2)
The hub uses mains power with a built‑in rechargeable battery backup. Other devices use long‑life batteries such as CR2032 and CR123A.
