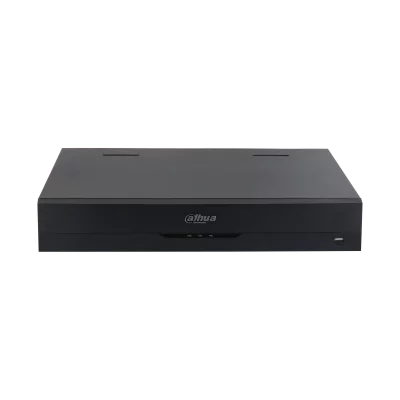

The Dahua DHI-NVR5464-AI/ANZ is a powerful 64-channel AI-powered WizSense network video recorder engineered to deliver scalable, intelligent video surveillance for enterprise-grade environments. Designed with a 1.5U form factor and support for up to 4 HDDs, it combines Dahua’s leading-edge AI chip and deep learning algorithms to enable real-time face recognition, perimeter protection, smart motion detection (SMD Plus), and advanced video metadata analysis.

With a high-bandwidth capacity of 384 Mbps, support for Smart H.265+/H.264+ compression, 4K display, and multi-channel decoding, this NVR guarantees smooth and efficient recording. It integrates seamlessly with third-party ONVIF devices, ensuring adaptability across complex security infrastructures. The DHI-NVR5464-AI/ANZ is an ideal solution for commercial, industrial, and urban monitoring systems seeking intelligent automation and accurate detection.

What's Included in the Box:

• 1 × Dahua DHI-NVR5464-AI/ANZ WizSense NVR

• 1 × Power Supply Cable

• 1 × Rack Mount Kit

• 1 × USB Mouse

• 1 × Quick Start Guide

• Screws and Installation Accessories

Key Features:

• AI by Recorder: 2-channel face detection/recognition, 4-channel perimeter protection, 8-channel SMD Plus

• AI by Camera: Up to 16-channel face recognition, people counting, heat maps, ANPR, stereo analysis, metadata & more

• High Bandwidth Performance: 384 Mbps for incoming/recording/outgoing streams

• Smart Compression Support: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

• Decoding Capability: Up to 32-channel 1080p real-time decoding

• RAID Support: 4 × SATA HDDs (up to 16 TB each)

• 4K HDMI & VGA Output, with multi-screen support

• ONVIF 21.12 and third-party compatibility

• Advanced Intelligent Alarms with snapshot, buzzer, email, and logging linkage

Detailed Specifications:

System:

• Processor: Industrial-grade processor

• OS: Embedded Linux

• Interface: Web, Local GUI

AI Features:

• Recorder-Based: 2CH face recognition, 4CH perimeter protection, 8CH SMD Plus

• Camera-Based: 16CH face detection, 8CH metadata, ANPR, stereo analysis, heat maps

Face Recognition:

• Database Capacity: Up to 20,000 images across 20 databases

• Attributes Captured: Gender, age, glasses, expression, mask, beard

Video & Playback:

• Channels: 64 IP cameras

• Resolution Support: Up to 32MP

• Decoding (AI off): 32CH 1080p@30fps

• Decoding (AI on): 24CH 1080p@30fps

• Playback: Up to 16-channel smart playback

Storage & Backup:

• HDD Bays: 4 SATA (up to 16 TB per HDD)

• Backup: USB device and network

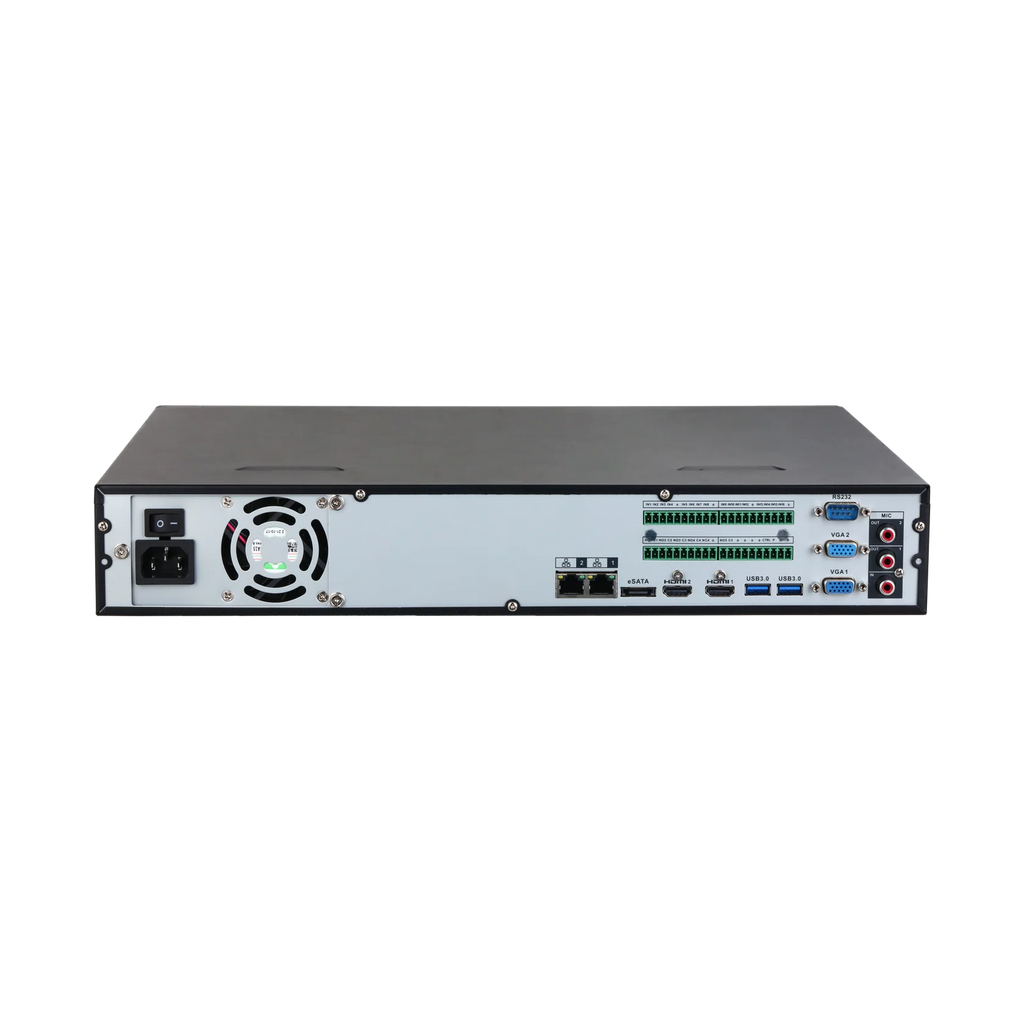

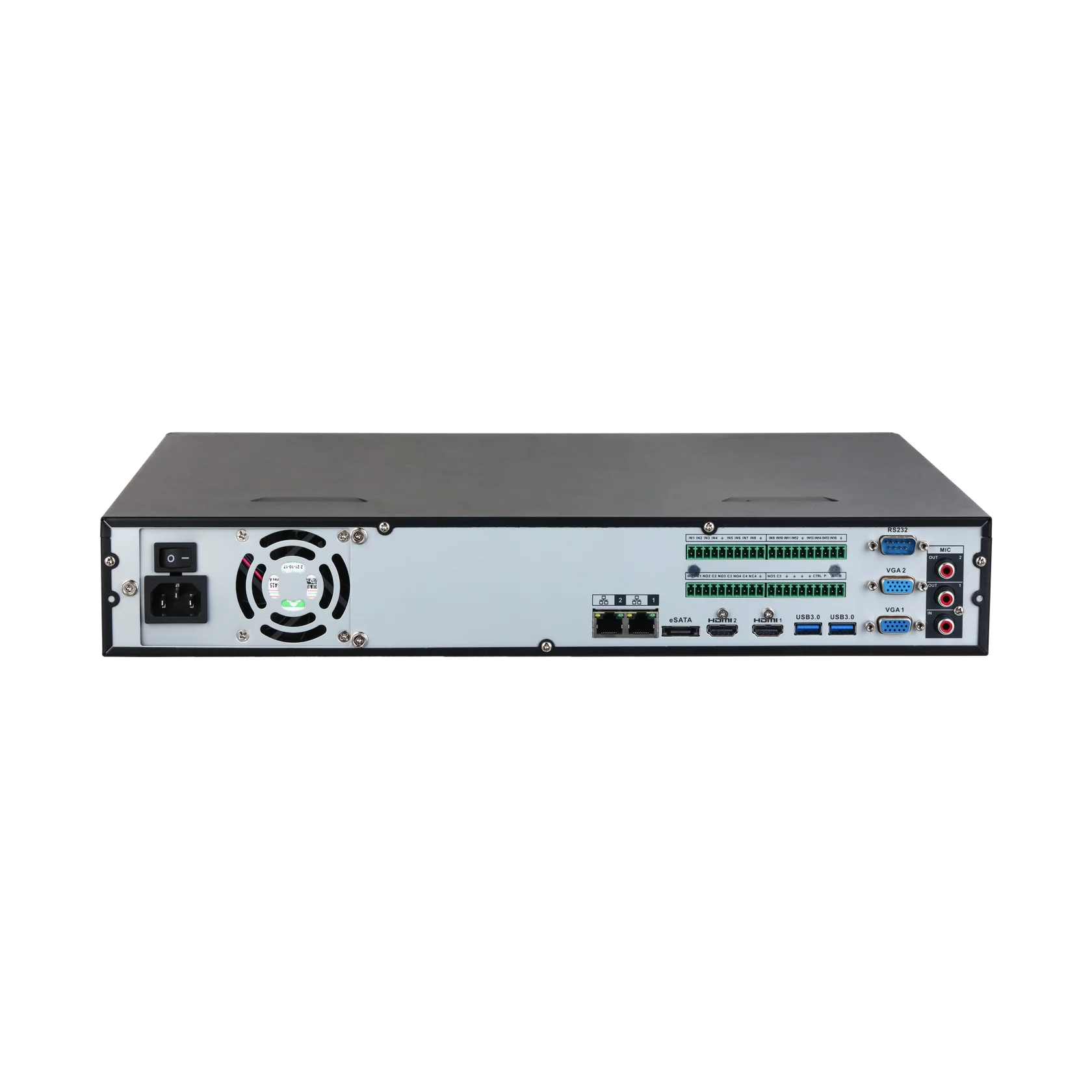

Connectivity:

• Network Ports: 2 × RJ-45 (10/100/1000 Mbps)

• USB Ports: 1 × USB 2.0 (front), 2 × USB 3.0 (rear)

• Video Output: 2 HDMI, 2 VGA

• Audio I/O: 1 input / 2 outputs (RCA)

• Alarm I/O: 16 in / 6 out

Power & Physical:

• Power Supply: 100–240 VAC, 50–60 Hz

• Power Consumption: ≤13 W (without HDD)

• Dimensions: 440 mm × 415.1 mm × 70 mm

• Net Weight: 4.74 kg

Certifications:

• FCC, CE-EMC, CE-LVD

Warranty Information:

The Dahua DHI-NVR5464-AI/ANZ includes a 3-year limited warranty, with all service and support provided via certified Dahua partners or authorized local distributors.

Brand Information:

Dahua Technology is a world-leading video surveillance solution provider, known for high-quality AI-enabled security innovations. Its WizSense series focuses on intelligent, efficient, and human/vehicle-targeted detection to empower security solutions worldwide.

SKU: DHI-NVR5464-AI/ANZ

Practical Use Scenarios:

• Retail Stores: Track foot traffic patterns, customer dwell times, and deter theft using face recognition and heat mapping.

• Commercial Offices: Ensure restricted access with real-time facial identification and perimeter security.

• Parking & Logistics: Monitor and manage vehicle movement using ANPR and vehicle metadata analysis.

• Public Venues & Events: Use people counting and SMD Plus to enhance crowd control and detect anomalies.

• Transportation & Warehousing: Enable smart alarms, metadata analysis, and quick video search through AI indexing.

Datasheets or Downloadable Resources:

• DHI-NVR5464-AI/ANZ

Excellence for the Australian and New Zealand Market:

The DHI-NVR5464-AI/ANZ is meticulously designed to meet the rigorous standards of the Australian and New Zealand surveillance industry:

• Complies with CE, FCC, and LVD certifications

• Optimized for ANZ power and network requirements

• Distributed through authorized ANZ channels only

• Backed by local technical support and warranty handling

• Fully compatible with NDSS-compliant integrations where applicable

FAQs – Dahua DHI-NVR5464-AI/ANZ

Q1: What AI capabilities does the Dahua DHI-NVR5464-AI/ANZ support?
A1: The DHI-NVR5464-AI/ANZ supports AI features such as 2-channel face recognition, 4-channel perimeter protection, 8-channel SMD Plus by recorder, and up to 16-channel face detection, people counting, ANPR, and metadata analysis by connected cameras.

Q2: How much storage does the DHI-NVR5464-AI/ANZ support?
A2: The DHI-NVR5464-AI/ANZ supports up to 4 HDDs with a maximum capacity of 16 TB per drive, for a total of up to 64 TB.

Q3: Is the Dahua DHI-NVR5464-AI/ANZ compatible with third-party IP cameras?
A3: Yes, the DHI-NVR5464-AI/ANZ supports ONVIF Profile T/S/G, allowing seamless integration with IP cameras from brands like Axis, Sony, Panasonic, and more.

Q4: Can I use the DHI-NVR5464-AI/ANZ for 4K surveillance?
A4: Absolutely. The DHI-NVR5464-AI/ANZ supports 4K HDMI and VGA output, and it can decode and display ultra-HD video streams from compatible cameras.

Q5: What is SMD Plus on the DHI-NVR5464-AI/ANZ and how does it work?
A5: SMD Plus filters motion detection alerts by recognizing human and vehicle shapes, reducing false alarms caused by movement from trees, rain, or animals.

Q6: Is the DHI-NVR5464-AI/ANZ suitable for Australian and New Zealand deployments?
A6: Yes, the DHI-NVR5464-AI/ANZ is fully compliant with ANZ standards and is available through authorized local distributors, ensuring full compatibility and warranty support.
