The Dahua DHI-VTO2202F-P IP Villa Door Station is a robust and versatile outdoor intercom solution designed for single-tenant residential applications. Featuring a 2MP wide-angle camera, two-way audio communication, and flexible power options (2-wire or PoE), this device ensures secure and convenient access control. Its durable aluminum alloy construction, IP65 weather resistance, and IK07 vandal protection make it ideal for various environmental conditions. Compatible with Dahua's indoor monitors and mobile applications, it offers seamless integration into modern smart home systems.

What’s in the Box

• Dahua DHI-VTO2202F-P IP Villa Door Station

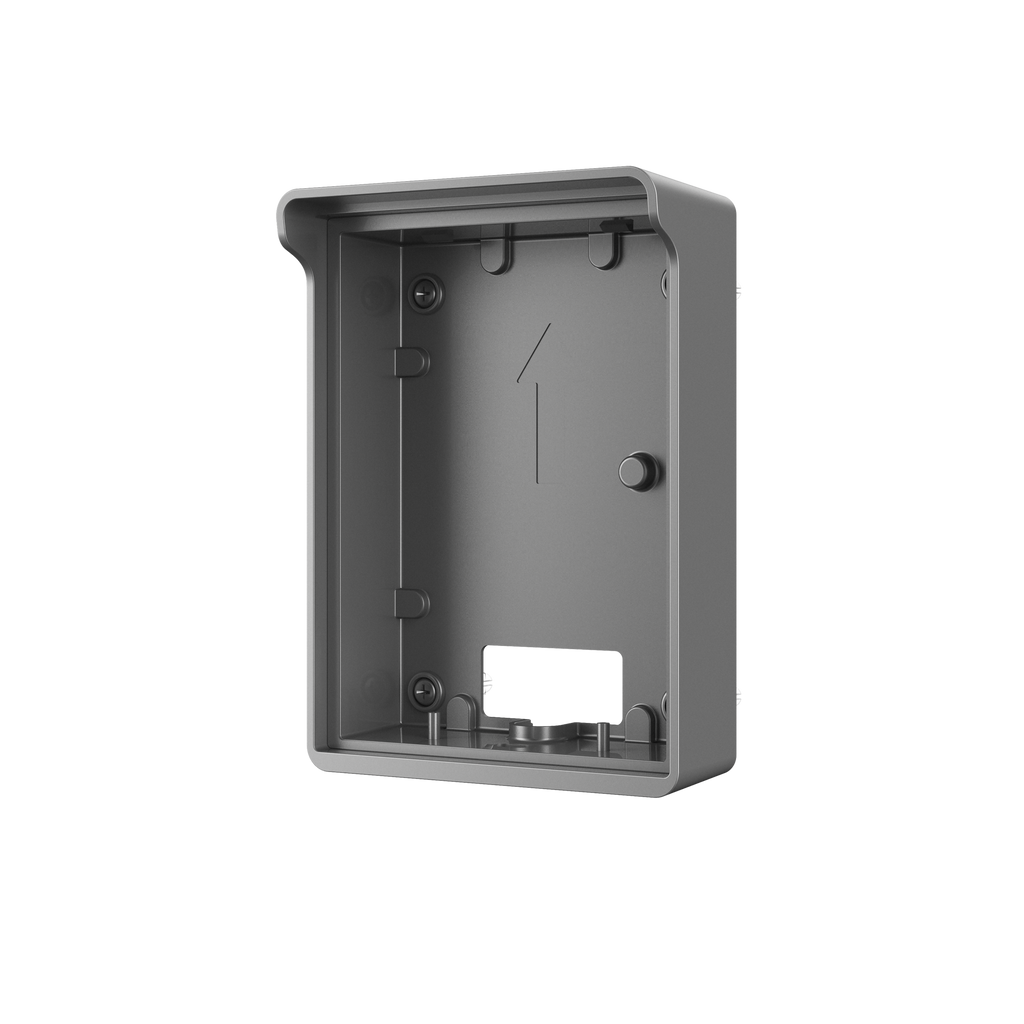

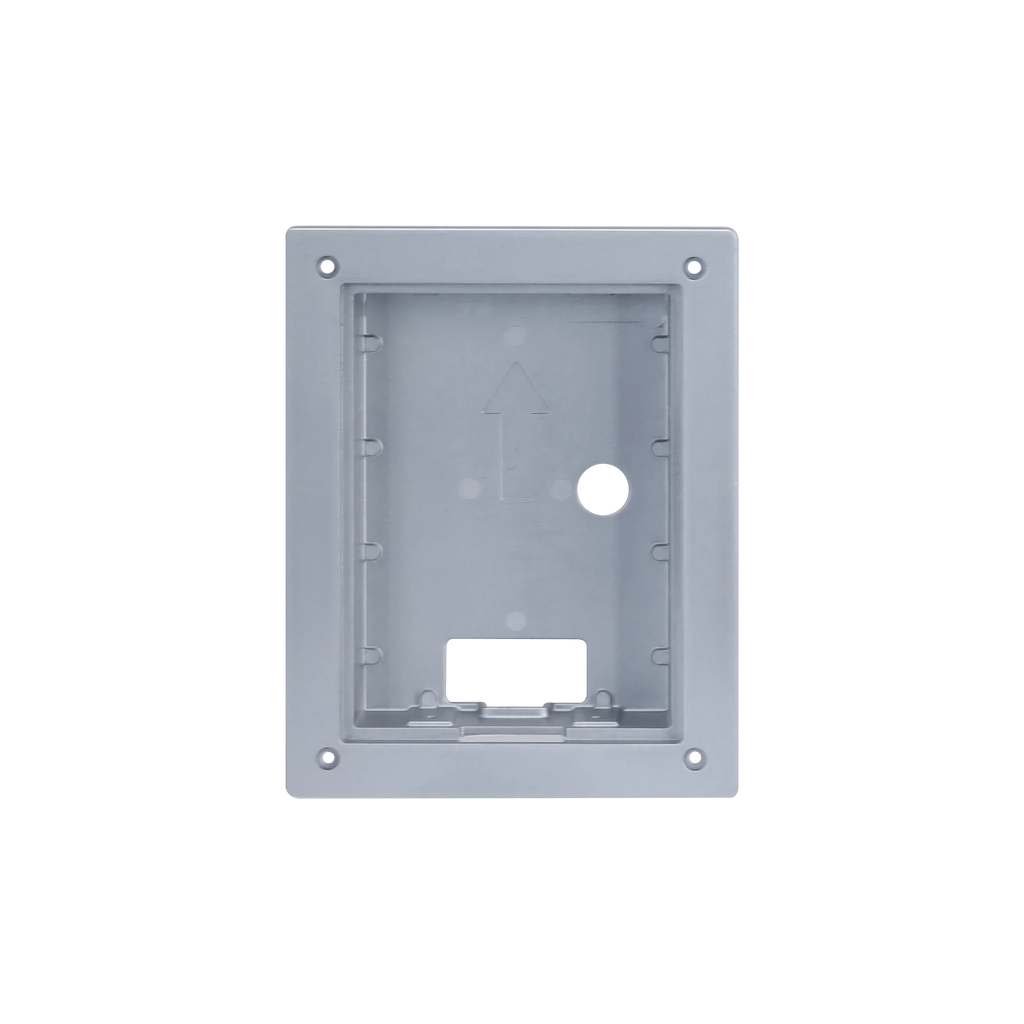

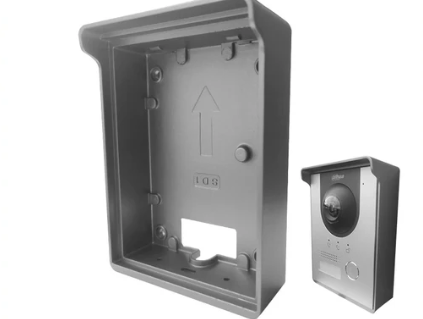

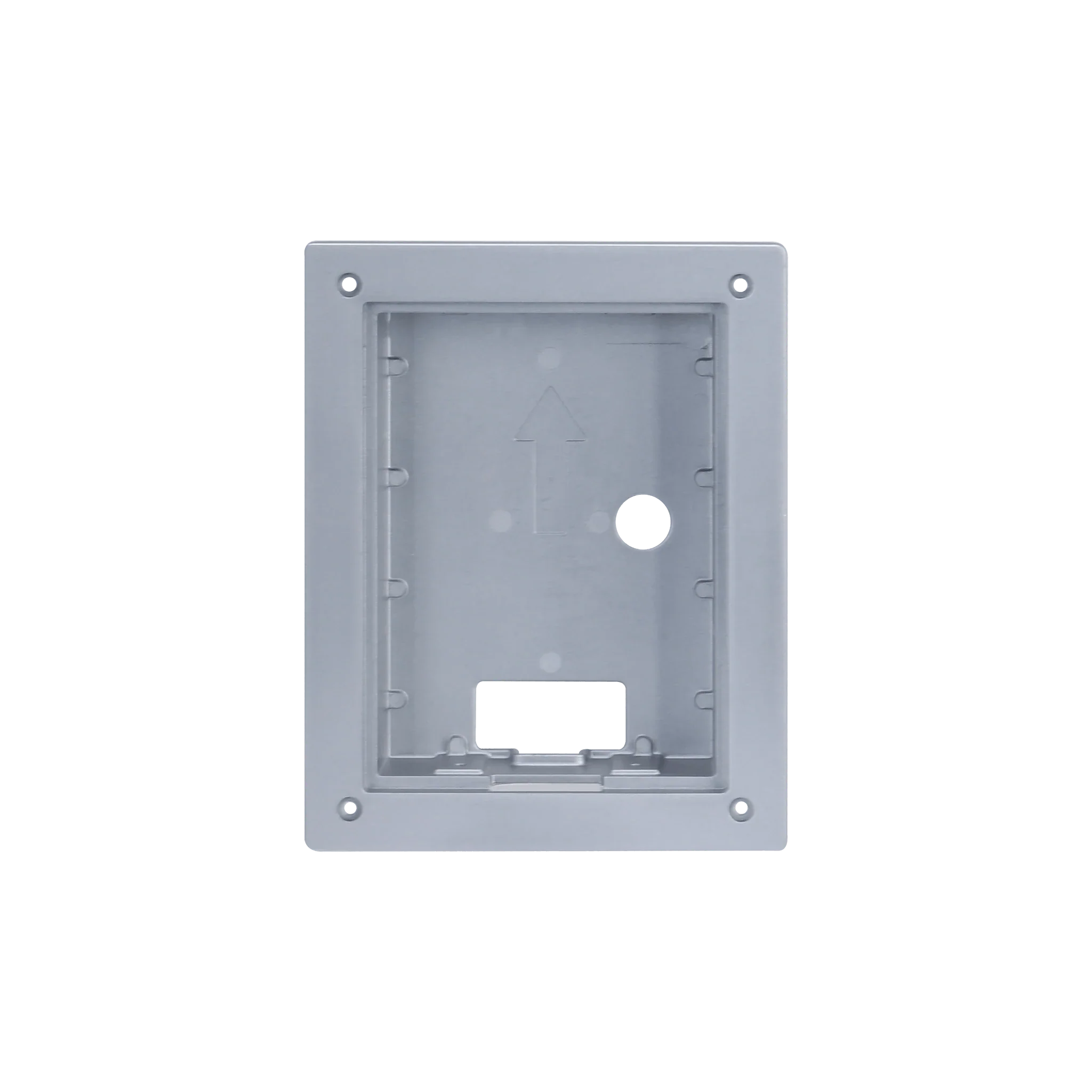

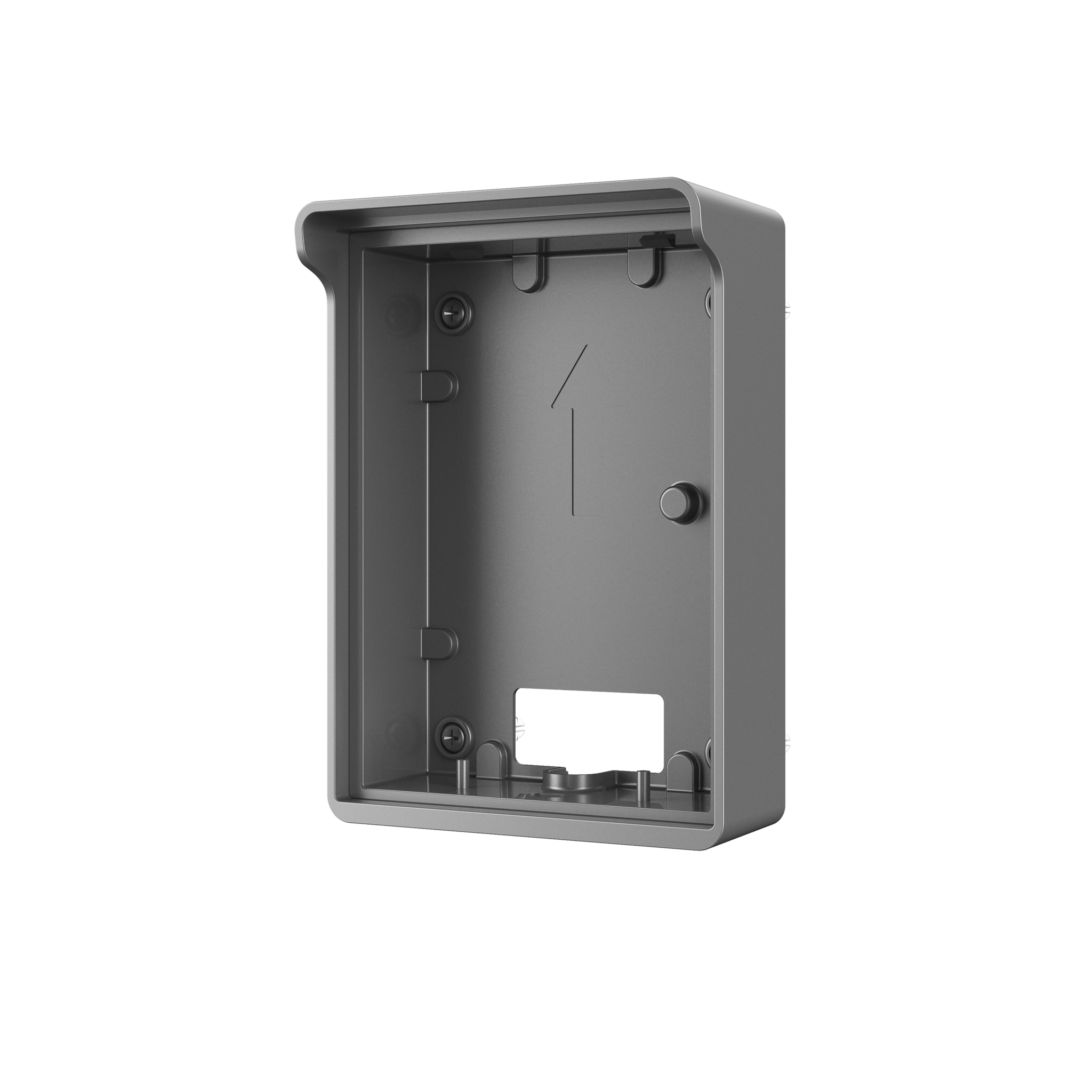

• Mounting accessories (surface and flush mount options)

• Quick Start Guide

• Installation screws and anchors

Main Features

• High-Resolution Camera: 2MP CMOS sensor with a 160° horizontal field of view for comprehensive coverage

• Two-Way Audio: Built-in microphone and speaker facilitate clear communication between visitors and residents

• Flexible Power Options: Supports both 2-wire interface and Power over Ethernet (PoE) for versatile installation

• Durable Construction: Anodized aluminum front panel with IP65 ingress protection and IK07 vandal resistance

• Night Vision: Infrared illumination ensures visibility in low-light conditions

• Remote Access: Compatible with Dahua's mobile app for remote monitoring and door unlocking

• Expandable Storage: Supports Micro SD cards up to 64GB for video and audio message storage

• Integration: Compatible with Dahua indoor monitors like DHI-VTH5222CH-S1 and controllers like DHI-VTNS1006A-2

Detailed Specifications

• Camera:

  • Sensor: 1/2.8" 2MP CMOS

  • Field of View: Horizontal: 160°, Vertical: 82°, Diagonal: 180°

  • Focal Length: 1.95 mm

  • WDR: Supported

  • Night Vision: IR Supplement

• Audio:

  • Input: Built-in omnidirectional microphone

  • Output: Built-in loudspeaker

  • Compression: G.711 U

• Video:

  • Compression: H.264

  • Frame Rate: PAL: 25 fps, NTSC: 30 fps

  • Bit Rate: 256K to 2M

• Network:

  • Interface: 1 x RJ-45 10/100 Mbps

  • Protocols: IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP, SIP

• Storage:

  • Micro SD card support up to 64GB

• Power:

  • Supply: 12V DC via 2-wire interface or PoE

  • Consumption: ≤12W

• Physical:

  • Dimensions: 130 mm × 96 mm × 28.5 mm

  • Weight: 0.35 kg

  • Material: Aluminum alloy

  • Ingress Protection: IP65 (with proper sealing)

  • Vandal Resistance: IK07

  • Operating Temperature: -30°C to +60°C

  • Operating Humidity: 10%–90%

Warranty Information

Dahua offers a standard 3-year warranty for the DHI-VTO2202F-P IP Villa Door Station, covering manufacturing defects and hardware failures under normal usage conditions. Warranty claims can be processed through authorized Dahua service centers.

Brand Overview

Dahua Technology is a leading provider of video-centric smart IoT solutions and services. With a commitment to innovation and quality, Dahua offers a comprehensive range of security products, including advanced video surveillance systems, access control solutions, and intelligent building management systems.

SKU

DHI-VTO2202F-P

Practical Use Scenarios

• Residential Security: Enhances home security by allowing residents to see and communicate with visitors before granting access

• Small Office Entrances: Provides secure entry management for small businesses or office buildings

• Gated Communities: Facilitates controlled access and communication between visitors and residents

• Remote Monitoring: Enables homeowners to monitor and control access remotely via mobile applications

Datasheets and Downloadable Resources

• DHI-VTO2202F-P Product Datasheet

Excellence for the Australian and New Zealand Market

• Compliance: Meets Australian and New Zealand standards for electronic security devices

• Authorized Distribution: Sourced through official Dahua channels, ensuring genuine products and full warranty support

• Local Support: Access to local technical support and service centers for prompt assistance

• Optimized for Local Conditions: Designed to withstand the diverse environmental conditions prevalent in Australia and New Zealand

FAQs

Q1: What is the maximum distance supported for the 2-wire power supply in the DHI-VTO2202F-P?
A1: The DHI-VTO2202F-P supports a maximum power supply distance of 50 meters when using the Dahua 2-wire switch.

Q2: Can the DHI-VTO2202F-P be integrated with third-party indoor monitors?
A2: While the DHI-VTO2202F-P is optimized for use with Dahua indoor monitors, integration with third-party devices may be possible through standard protocols like SIP. However, full functionality cannot be guaranteed.

Q3: Does the DHI-VTO2202F-P support remote unlocking via a mobile app?
A3: Yes, the DHI-VTO2202F-P supports remote door unlocking through the Dahua mobile application, allowing users to grant access from anywhere.

Q4: What is the storage capacity supported by the DHI-VTO2202F-P?
A4: The device supports Micro SD cards up to 64GB for storing video and audio messages.

Q5: Is the DHI-VTO2202F-P suitable for outdoor installation in harsh weather conditions?
A5: Yes, with an IP65 ingress protection rating and IK07 vandal resistance, the DHI-VTO2202F-P is designed for outdoor use in various environmental conditions.
