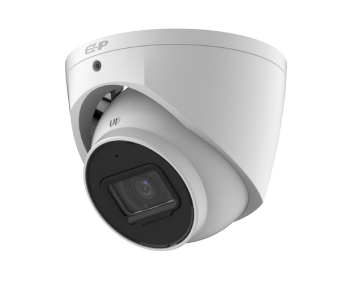

The Dahua EZ-IP EZ-IPC-T1B83-SMD 8MP IR Fixed-Focal Eyeball Network Camera delivers 4K 3840 × 2160 surveillance video, a wide-angle 2.8mm lens, SMD Plus, human and vehicle perimeter protection, 120dB WDR, built-in microphone, 30m infrared night vision, MicroSD recording, PoE and IP67 weather protection. Designed for high-resolution IP CCTV installations, the EZ-IPC-T1B83-SMD combines intelligent detection with Smart H.265+/H.264+ compression for efficient residential and commercial video surveillance.

Built around an 8MP 1/2.7-inch CMOS image sensor, the camera outputs a maximum resolution of 3840 × 2160 at up to 20fps and supports 2688 × 1520 at up to 25/30fps. Its fixed 2.8mm F2.0 lens provides a wide 106° horizontal field of view, making it particularly useful for monitoring entrances, building exteriors, offices, retail environments and other broad surveillance areas.

For intelligent event detection, the EZ-IPC-T1B83-SMD features SMD Plus and perimeter protection. Intrusion and tripwire functions support human and vehicle classification, helping distinguish relevant targets and reduce unwanted alarms caused by non-concerned motion.

The integrated IR LED provides infrared illumination at distances of up to 30 metres, while low-light sensitivity, automatic ICR day/night switching, 120dB WDR, 3D noise reduction, HLC and BLC help maintain usable images across challenging lighting environments.

What's Included in the Box

1 × Dahua EZ-IP EZ-IPC-T1B83-SMD 8MP IR Fixed-Focal Eyeball Network Camera

Main Features

• 8MP / 4K network surveillance camera

• 1/2.7" CMOS image sensor

• Maximum 3840 × 2160 resolution

• 8MP recording at up to 20fps

• 2688 × 1520 at up to 25/30fps

• Fixed 2.8mm F2.0 lens

• Wide 106° horizontal field of view

• 30m infrared night vision

• 1 × built-in IR LED

• Low-light sensitivity

• SMD Plus

• Intelligent human and vehicle classification

• Intrusion detection

• Tripwire detection

• 120dB WDR

• 3D Noise Reduction

• BLC and HLC

• Smart H.265+ and Smart H.264+

• ROI support

• Two video streams

• Built-in microphone

• Audio detection

• Up to 256GB MicroSD storage

• FTP, SFTP and NAS storage support

• ONVIF Profile S/G/T interoperability

• 12V DC or IEEE 802.3af PoE

• IP67 weather protection

• Metal inner core and metal cover

• Operating temperature from –40°C to +55°C

• iOS and Android mobile client support

8MP 4K Ultra HD Video

The EZ-IPC-T1B83-SMD uses a 1/2.7-inch CMOS image sensor with a maximum resolution of 3840 × 2160, delivering approximately 8 megapixels of image detail.

The camera supports:

3840 × 2160: up to 20fps
2688 × 1520: up to 25/30fps

This high resolution can provide greater image detail than lower-resolution surveillance cameras, particularly when reviewing recorded footage or monitoring areas where finer visual information is important.

2.8mm Wide-Angle Fixed Lens

The camera uses a fixed-focal 2.8mm M12 lens with a maximum aperture of F2.0.

Its field of view is:

Horizontal: 106°
Vertical: 56°
Diagonal: 125°

The wide horizontal field of view makes the EZ-IPC-T1B83-SMD particularly suitable for entrances, rooms, building exteriors, retail areas and other locations where broad scene coverage is required.

The specified close-focus distance is approximately 1.3 metres.

SMD Plus Smart Motion Detection

The EZ-IPC-T1B83-SMD features SMD Plus, using intelligent algorithms to categorise targets responsible for triggering motion events.

This helps the surveillance system focus on relevant targets and filter motion alarms caused by non-concerned activity, improving the usefulness and accuracy of motion-based alerts.

Human & Vehicle Perimeter Protection

The camera supports intelligent intrusion and tripwire detection, with both functions supporting classification and accurate detection of humans and vehicles.

Deep-learning algorithms allow the camera to identify relevant target types within configured surveillance areas, helping reduce false alarms associated with unrelated movement.

This can be particularly useful for monitoring property boundaries, entrances, driveways, loading areas, restricted zones and other defined surveillance areas.

30m Infrared Night Vision

A built-in IR LED provides infrared illumination at distances of up to 30 metres.

Minimum illumination is specified as:

Colour: 0.009 lux @ F2.0, 30 IRE
Black & White: 0.0009 lux @ F2.0, 30 IRE
IR Illuminator On: 0 lux

Automatic and manual illuminator controls are supported.

120dB Wide Dynamic Range

The EZ-IPC-T1B83-SMD features 120dB WDR, helping maintain detail in scenes containing both bright and dark areas.

This makes the camera useful for environments such as entrances, doorways, windows, reception areas and outdoor scenes where strong backlighting or brightness differences may otherwise make subjects difficult to see.

Additional image processing includes BLC, HLC, 3D NR, gain control, white balance, smart illumination and image rotation.

Smart H.265+ & Smart H.264+ Compression

The camera supports:

H.265, H.264, H.264H, H.264B and MJPEG, with MJPEG available on the sub stream.

Smart codec options include:

Smart H.265+
Smart H.264+

These compression technologies are designed to provide efficient video encoding and help reduce bandwidth and storage requirements while maintaining useful surveillance image quality.

Built-In Microphone

The EZ-IPC-T1B83-SMD includes a built-in microphone, allowing compatible surveillance systems to capture audio alongside video without requiring a separate external microphone.

Supported audio compression formats include:

G.711a, G.711Mu, PCM and G.726.

Audio recording should be configured and used in accordance with applicable privacy and surveillance laws.

MicroSD Edge Storage

The camera supports a MicroSD card with capacity up to 256GB, allowing compatible memory cards to be used for local edge recording.

Additional storage options include:

FTP, SFTP and NAS.

This provides flexibility for standalone recording, supplementary storage or integration with a compatible NVR or network storage environment.

Detailed Specifications

Video Resolution & Frame Rate

The main stream supports:

3840 × 2160: 1–20fps
2688 × 1520: 1–25/30fps

The sub stream supports:

704 × 576: 1–25fps
704 × 480: 1–30fps

The manufacturer notes that these are maximum frame rates for individual streams and that multiple-stream performance is subject to the total encoding capacity.

Supported resolutions include 3840 × 2160, 3072 × 2048, 3072 × 1728, 2880 × 1620, 2688 × 1520, 2048 × 1536, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720, D1, VGA and CIF.

DORI Distance – 2.8mm Lens

DORI values provide standardised guidance for estimating the level of visual detail at different distances and should not be interpreted as guaranteed identification performance under every installation or lighting condition.

Abnormality & Alarm Detection

The EZ-IPC-T1B83-SMD supports event detection for:

No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, audio detection, voltage detection, SMD and security exception.

Network Protocols

Supported protocols include IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS and PPPoE.

Cyber Security Features

The supplied specification lists security functionality including configuration encryption, trusted execution, Digest authentication, security logs, WSSE, account lockout, syslog, video encryption, 802.1X, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot, firmware encryption and generation/importing of X.509 certificates.

These functions provide security controls for compatible network environments but should form part of a broader cybersecurity approach that includes secure passwords, current firmware, appropriate network segmentation and controlled remote access.

IP67 Weather Protection

The EZ-IPC-T1B83-SMD carries an IP67 protection rating.

According to the supplied product information, the enclosure is designed for dust protection and passes testing involving immersion in water at a depth of 1 metre for 30 minutes under specified test conditions.

The camera's operating temperature range of –40°C to +55°C further supports installation across a wide range of indoor and outdoor environments.

Power Options

The camera can be powered using either:

12V DC
or
IEEE 802.3af PoE

Typical/basic consumption is specified at 2.7W using 12V DC and 3.4W using PoE.

Maximum consumption is specified at 4.5W using 12V DC or 5.4W using PoE under the stated high-load configuration.

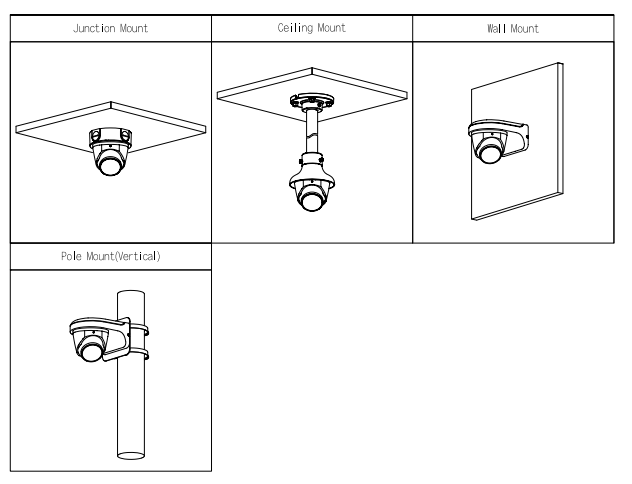

Optional Accessories

Compatible accessories identified in the supplied documentation include:

• PFA130-E – Waterproof Junction Box

• PFB204W – Wall Mount Bracket

• PFA152-E – Pole Mount Bracket

• PFA106 – Mount Adapter

• PFB220C – Ceiling Mount Bracket

• PFM321D – 12V DC 1A Power Adapter

• PFM900-E – Integrated Mount Tester

• TF-P100 – MicroSD Memory Card

These accessories are optional and are not stated as standard inclusions with the camera.

Practical Use Scenarios

The Dahua EZ-IPC-T1B83-SMD is well suited to surveillance locations requiring high-resolution wide-angle coverage and intelligent human/vehicle detection.

Typical applications include home entrances and driveways, retail stores, offices, warehouses, building entrances, reception areas, schools, workshops, car parks, external building perimeters and other commercial or residential surveillance areas.

The 2.8mm wide-angle lens is particularly useful where broad scene coverage is more important than a narrow, highly magnified field of view.

SMD Plus and human/vehicle perimeter classification can be useful for sites where operators want to prioritise relevant motion events, while the built-in microphone and MicroSD support provide additional flexibility for standalone or NVR-based deployments.

Warranty Information

2 year warrenty

About Dahua Technology

Dahua Technology develops video-centric AIoT and security products including IP cameras, network video recorders, access control, video intercom, alarm and related surveillance solutions.

The EZ-IP range combines IP surveillance functionality with features designed to simplify deployment, including PoE connectivity, intelligent video functions, efficient video compression and compatibility with network recording platforms.

SKU

EZ-IPC-T1B83-SMD

Datasheets & Downloadable Resources

Datasheet

Excellence for the Australian and New Zealand Market

The Dahua EZ-IPC-T1B83-SMD offers a combination of 8MP resolution, PoE connectivity, IP67 environmental protection, intelligent human and vehicle detection and a broad –40°C to +55°C operating range that can suit a variety of Australian and New Zealand surveillance environments.

For Australian and New Zealand installations, purchasers should verify the exact regional product version, applicable electrical and regulatory requirements, firmware and warranty arrangements with their supplier.

The supplied technical specification identifies CE-LVD EN62368-1 and CE-EMC under Electromagnetic Compatibility Directive 2014/30/EU. These European certifications should not be treated as evidence of Australian or New Zealand regulatory approval.

No claim of NDSS approval is made for the EZ-IPC-T1B83-SMD because such approval was not established by the supplied product information.

Where authorised distribution, Australian/New Zealand compliance or manufacturer-backed warranty arrangements are project requirements, these details should be independently confirmed for the exact unit being purchased.

FAQs

What is the Dahua EZ-IPC-T1B83-SMD?

The Dahua EZ-IPC-T1B83-SMD is an 8MP IR fixed-focal eyeball network camera featuring 4K resolution, a 2.8mm lens, SMD Plus, human and vehicle perimeter protection, 30m infrared illumination, built-in microphone, MicroSD storage, PoE and IP67 protection.

What resolution does the Dahua EZ-IPC-T1B83-SMD support?

The Dahua EZ-IPC-T1B83-SMD supports a maximum resolution of 3840 × 2160 (8MP/4K) at up to 20fps and can output 2688 × 1520 at up to 25/30fps.

What lens does the Dahua EZ-IPC-T1B83-SMD have?

The Dahua EZ-IPC-T1B83-SMD has a fixed 2.8mm F2.0 lens with a 106° horizontal, 56° vertical and 125° diagonal field of view.

Does the Dahua EZ-IPC-T1B83-SMD support SMD Plus?

Yes. The Dahua EZ-IPC-T1B83-SMD features SMD Plus, which uses intelligent algorithms to categorise motion targets and help filter alarms generated by non-concerned targets.

Can the Dahua EZ-IPC-T1B83-SMD detect humans and vehicles?

Yes. The Dahua EZ-IPC-T1B83-SMD supports intrusion and tripwire intelligent detection with human and vehicle classification.

How far can the Dahua EZ-IPC-T1B83-SMD see at night?

The Dahua EZ-IPC-T1B83-SMD has a built-in IR LED with a specified maximum infrared illumination distance of 30 metres.

Does the Dahua EZ-IPC-T1B83-SMD have a built-in microphone?

Yes. The Dahua EZ-IPC-T1B83-SMD includes a built-in microphone and supports G.711a, G.711Mu, PCM and G.726 audio compression.

Does the Dahua EZ-IPC-T1B83-SMD support MicroSD recording?

Yes. The Dahua EZ-IPC-T1B83-SMD supports a MicroSD card up to 256GB, along with FTP, SFTP and NAS storage options.

Does the Dahua EZ-IPC-T1B83-SMD support PoE?

Yes. The Dahua EZ-IPC-T1B83-SMD supports IEEE 802.3af PoE, allowing compatible network and power connectivity over Ethernet. It can alternatively be powered by 12V DC.

Is the Dahua EZ-IPC-T1B83-SMD waterproof?

The Dahua EZ-IPC-T1B83-SMD has an IP67 protection rating, providing specified protection against dust and water ingress. Appropriate installation and weatherproofing practices should still be followed, particularly around connections and cable entries.

Does the Dahua EZ-IPC-T1B83-SMD support WDR?

Yes. The Dahua EZ-IPC-T1B83-SMD features 120dB Wide Dynamic Range, designed to improve image detail in scenes containing strong differences between bright and dark areas.

What video compression does the Dahua EZ-IPC-T1B83-SMD support?

The Dahua EZ-IPC-T1B83-SMD supports H.265, H.264, H.264H and H.264B, plus MJPEG on the sub stream. It also supports Smart H.265+ and Smart H.264+ encoding.

Can the Dahua EZ-IPC-T1B83-SMD work with an NVR?

Yes. The Dahua EZ-IPC-T1B83-SMD is a network camera designed for IP surveillance and can work with compatible NVR systems. It supports ONVIF Profile S, Profile G and Profile T interoperability, although individual functions can vary between recorders.

Does the Dahua EZ-IPC-T1B83-SMD support ONVIF?

Yes. The Dahua EZ-IPC-T1B83-SMD supports ONVIF Profile S, Profile G and Profile T, along with CGI, P2P and Milestone interoperability.

Can the Dahua EZ-IPC-T1B83-SMD record without an NVR?

The Dahua EZ-IPC-T1B83-SMD supports local MicroSD storage up to 256GB as well as FTP, SFTP and NAS storage. This allows compatible standalone recording configurations without relying exclusively on an NVR.

What is the operating temperature of the Dahua EZ-IPC-T1B83-SMD?

The Dahua EZ-IPC-T1B83-SMD has a specified operating temperature range of –40°C to +55°C, with operating humidity up to 95%.

Is the Dahua EZ-IPC-T1B83-SMD suitable for outdoor installation?

The Dahua EZ-IPC-T1B83-SMD has an IP67-rated metal enclosure and an operating range from –40°C to +55°C, making it designed for compatible outdoor surveillance installations when correctly installed.

What mounting accessories are available for the Dahua EZ-IPC-T1B83-SMD?

Optional accessories listed for the Dahua EZ-IPC-T1B83-SMD include the PFA130-E waterproof junction box, PFB204W wall mount, PFA152-E pole mount, PFA106 mount adapter and PFB220C ceiling mount.

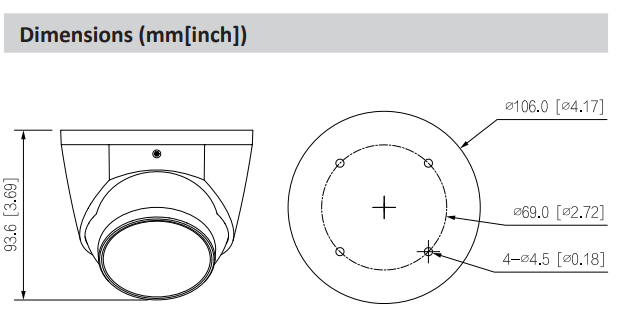

What are the dimensions of the Dahua EZ-IPC-T1B83-SMD?

The Dahua EZ-IPC-T1B83-SMD measures approximately 93.6mm × Φ106.0mm and has a net weight of approximately 0.42kg.

Is the Dahua EZ-IPC-T1B83-SMD suitable for Australian and New Zealand security systems?

The Dahua EZ-IPC-T1B83-SMD offers features relevant to Australian and New Zealand surveillance applications, including IP67 protection, PoE, a wide operating temperature range, 8MP resolution and intelligent human/vehicle detection. Buyers should verify the exact regional model, applicable local compliance requirements and warranty arrangements with their supplier before installation.
