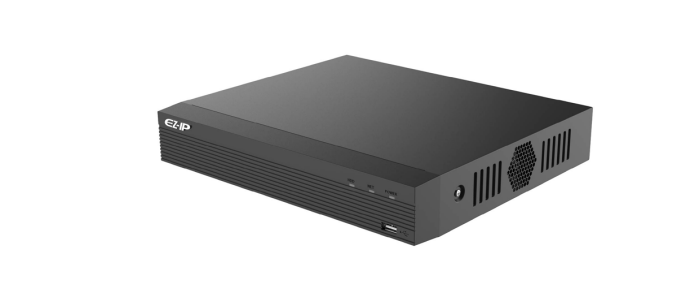

The Dahua EZ-IP EZ-N48PRO 8 Channel Network Video Recorder (NVR) is a compact 1U 8-channel PoE NVR with 4K HDMI output, up to 12MP IP camera support, Smart H.265+ compression and AI by Camera functionality. Featuring 8 integrated PoE ports, up to 160 Mbps incoming recording bandwidth, one SATA HDD bay supporting up to 20TB, and intelligent surveillance capabilities, the EZ-N48PRO provides a practical recording platform for residential, retail, office, education and commercial IP CCTV systems.

Designed as part of the Dahua EZ-IP Series, the EZ-N48PRO combines an 8-channel network video recorder and eight-port PoE camera interface in one compact unit. Its IEEE 802.3af/at PoE ports simplify compatible IP camera installations by supplying network connectivity and power through Ethernet cabling.

The NVR supports IP cameras with resolutions up to 12MP and provides HDMI output at up to 3840 × 2160 (4K) in simultaneous-output mode. Smart H.265+, H.265, Smart H.264+ and H.264 video compression provide flexible options for managing surveillance video bandwidth and storage.

What's Included in the Box

1 × Dahua EZ-N48PRO 8CH Compact 1U 8PoE 1HDD Network Video Recorder

Main Features

• 8-channel IP Network Video Recorder

• 8 × integrated 10/100 Mbps PoE ports

• IEEE 802.3af/at PoE support

• Supports IP cameras up to 12MP

• Up to 160 Mbps incoming bandwidth with AI disabled

• Up to 160 Mbps recording bandwidth with AI disabled

• Up to 80 Mbps outgoing bandwidth with AI disabled

• Up to 8 × 1080p@30fps decoding with AI disabled

• HDMI video output up to 3840 × 2160 4K

• VGA video output

• Smart H.265+, H.265, Smart H.264+ and H.264 video compression

• AI by Camera functionality

• Up to 6-channel SMD Plus by compatible cameras

• Up to 6-channel perimeter protection by compatible cameras

• Up to 6-channel face detection by compatible cameras

• Up to 6-channel face recognition by compatible cameras

• People counting support by compatible cameras

• Stereo analysis support by compatible cameras

• Heat map support by compatible cameras

• One-click arming and disarming

• Up to 8-channel playback

• 1 × SATA HDD interface

• Up to 20TB HDD capacity according to the supplied specification

• Gigabit Ethernet network port

• ONVIF interoperability

• iOS and Android mobile access

• USB and network backup

• Rack or desktop installation

AI & Intelligent Surveillance Features

SMD Plus by Camera

When used with compatible cameras, the EZ-N48PRO supports Smart Motion Detection Plus on up to six channels. SMD Plus is designed to categorise relevant motion targets and filter motion alarms generated by non-concerned targets, helping improve the effectiveness and accuracy of surveillance alerts.

Face Detection by Camera

Compatible cameras can detect faces appearing in video and use deep-learning algorithms for face detection, tracking, optimisation and image capture. Supported face attributes listed for the NVR include gender, age group, glasses, expressions, face mask and beard.

The EZ-N48PRO supports face detection by camera on up to 6 channels.

Face Recognition by Camera

Face recognition technology extracts characteristics from captured faces and compares them against faces stored in a configured face database.

The EZ-N48PRO supports face recognition by compatible cameras on up to 6 channels.

Perimeter Protection by Camera

Compatible intelligent cameras can provide perimeter protection designed to reduce false alarms caused by irrelevant environmental activity such as animals, moving leaves and bright or changing lights.

The EZ-N48PRO supports perimeter protection by camera on up to 6 channels.

Stereo Analysis by Camera

With compatible cameras, stereo analysis uses deep-learning algorithms and three-dimensional scene information to identify specified behaviours and conditions such as fall detection, violence detection, stay detection and space exceptions, generating alarms and configured linkage actions when applicable.

Heat Map by Camera

Heat-map functionality from compatible cameras can visually represent crowd density and appearance probability using different colours. This provides a way to analyse activity across both spatial and time dimensions.

Detailed Specifications

Decoding Capability

AI Disabled

• 1-channel 12MP @ 30fps

• 2-channel 8MP @ 30fps

• 3-channel 5MP @ 30fps

• 4-channel 4MP @ 30fps

• 8-channel 1080p @ 30fps

AI Enabled

• 1-channel 12MP @ 30fps

• 1-channel 8MP @ 30fps

• 2-channel 5MP @ 30fps

• 3-channel 4MP @ 30fps

• 7-channel 1080p @ 30fps

Network Protocols

The EZ-N48PRO supports HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration and IP Search.

Recording, Playback & Backup

The EZ-N48PRO supports general, motion detection, intelligent and alarm recording modes.

Playback options include instant playback, general playback, event playback, tag playback and smart playback, with simultaneous playback of up to 8 channels.

Recorded footage can be backed up using a USB device or over the network.

Alarm & Event Management

General alarm capabilities include motion detection, privacy masking, video loss, scene changing, PIR alarm and IPC external alarm functionality.

System anomaly monitoring includes camera disconnection, storage errors, disk-full conditions, IP conflicts, MAC conflicts, login lock and cybersecurity exceptions.

Intelligent alarm functionality includes face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map, subject to compatible camera capabilities.

Alarm linkage options include recording, snapshots, IPC external alarm output, audio, buzzer, log, preset and email.

Storage

The EZ-N48PRO provides one SATA HDD interface. According to the supplied specification, the recorder supports a disk capacity of up to 20TB, although the stated maximum may vary depending on environmental temperature.

A hard drive should not be assumed to be supplied with the recorder unless explicitly included in the product bundle.

Practical Use Scenarios

The Dahua EZ-N48PRO is particularly suited to surveillance installations requiring up to eight IP cameras and straightforward PoE connectivity.

Typical applications include residential properties requiring multi-camera perimeter and entry monitoring, retail stores covering entrances, sales floors and stock areas, small and medium offices, educational environments, financial or professional premises, warehouses and workshops, reception areas and other commercial sites.

For installations using compatible intelligent Dahua cameras, the NVR can also form part of systems requiring SMD Plus, perimeter monitoring, face-related analytics, people counting, stereo analysis or heat-map functionality.

Warranty Information

2 year Warranty

About Dahua Technology

Dahua Technology is a video-centric AIoT technology company offering surveillance and security products including network cameras, network video recorders, access control, video intercom, alarm, display and associated solutions.

Dahua Australia currently maintains a dedicated regional product portfolio and support resources, including network recorders and downloadable product resources.

SKU

EZ-N48PRO

Datasheets & Downloadable Resources

Datasheet

Excellence for the Australian and New Zealand Market

For Australian and New Zealand projects, the EZ-N48PRO should be sourced in the appropriate regional configuration through an authorised supply channel. Dahua maintains an Australian regional website, product catalogue and Download Center for locally relevant product and support information.

Dahua Australia's current Network Recorders catalogue confirms that the company offers region-specific network recorder products for Australian deployments, while its Download Center provides access to firmware and technical product resources. Any applicable regional certifications, warranty coverage or compliance requirements should be verified for the exact EZ-N48PRO unit being supplied.

FAQs

What is the Dahua EZ-N48PRO 8 Channel Network Video Recorder?

The Dahua EZ-N48PRO is an 8-channel compact 1U Network Video Recorder featuring eight integrated PoE ports, 4K HDMI output, support for IP cameras up to 12MP, AI by Camera functionality and one SATA HDD interface.

How many IP cameras can the Dahua EZ-N48PRO support?

The Dahua EZ-N48PRO supports up to 8 IP camera channels, making it suitable for surveillance systems requiring as many as eight network cameras.

Does the Dahua EZ-N48PRO have built-in PoE?

Yes. The Dahua EZ-N48PRO has 8 integrated 10/100 Mbps PoE ports supporting IEEE 802.3af/at. The total PoE power output is 72 W, with a maximum output of 25.5 W on a single port.

Does the Dahua EZ-N48PRO support 4K video output?

Yes. The Dahua EZ-N48PRO supports HDMI video output at up to 3840 × 2160 4K resolution in its specified simultaneous-output mode.

What is the maximum camera resolution supported by the Dahua EZ-N48PRO?

The Dahua EZ-N48PRO supports IP cameras with resolutions up to 12MP, as well as 8MP, 6MP, 5MP, 4MP, 3MP, 1080p and lower resolutions.

What bandwidth does the Dahua EZ-N48PRO support?

With AI disabled, the Dahua EZ-N48PRO supports up to 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing bandwidth. With AI enabled, the specification states 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing bandwidth.

Does the Dahua EZ-N48PRO support SMD Plus?

Yes. The Dahua EZ-N48PRO supports SMD Plus by Camera on up to 6 channels when used with compatible cameras.

Does the Dahua EZ-N48PRO support face detection?

Yes. The Dahua EZ-N48PRO supports face detection supplied by compatible cameras on up to 6 channels.

Does the Dahua EZ-N48PRO support face recognition?

Yes. The Dahua EZ-N48PRO supports face recognition by compatible cameras on up to 6 channels. Actual functionality depends on the connected cameras and system configuration.

Does the Dahua EZ-N48PRO support perimeter protection?

Yes. The Dahua EZ-N48PRO supports perimeter protection by compatible cameras on up to 6 channels, helping provide more targeted intelligent surveillance alerts.

Does the Dahua EZ-N48PRO support people counting and heat maps?

Yes. The Dahua EZ-N48PRO supports people counting and heat-map functionality provided by compatible AI cameras.

What video compression formats does the Dahua EZ-N48PRO support?

The Dahua EZ-N48PRO supports Smart H.265+, H.265, Smart H.264+ and H.264 video compression.

How much HDD storage can the Dahua EZ-N48PRO support?

The Dahua EZ-N48PRO contains one SATA interface. The supplied specification states that the disk can contain up to 20TB, with the limit varying depending on environmental temperature.

Does the Dahua EZ-N48PRO include a hard drive?

The Dahua EZ-N48PRO is specified as a 1HDD Network Video Recorder, meaning it provides one HDD interface/bay. The supplied documentation does not confirm that a hard drive is included, so HDD inclusion should be checked against the specific bundle being purchased.

Can the Dahua EZ-N48PRO record eight 1080p cameras at 30fps?

With AI disabled, the Dahua EZ-N48PRO has a specified maximum decoding capability of 8 channels of 1080p at 30fps. Recording capability also depends on camera configuration, encoding, bitrate and available recording bandwidth.

Does the Dahua EZ-N48PRO work with third-party IP cameras?

The Dahua EZ-N48PRO specification lists support for ONVIF as well as third-party camera access from Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha. Available functions can vary between camera brands, models, firmware and interoperability implementations.

Does the Dahua EZ-N48PRO have a Gigabit Ethernet port?

Yes. The Dahua EZ-N48PRO features one 10/100/1000 Mbps RJ-45 Gigabit Ethernet network port.

Can the Dahua EZ-N48PRO be accessed from a mobile phone?

Yes. The Dahua EZ-N48PRO specification lists mobile access support for iOS and Android.

What are the dimensions of the Dahua EZ-N48PRO?

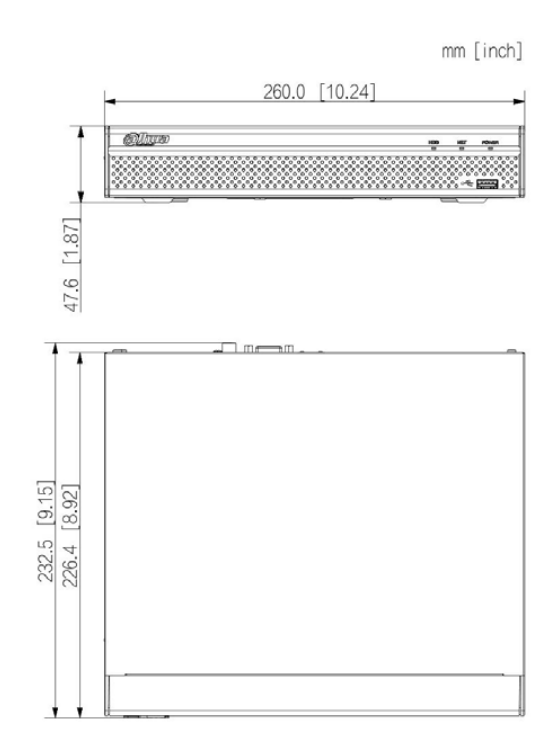

The Dahua EZ-N48PRO measures 260.0 × 232.5 × 47.6 mm (W × D × H) and has a net weight of approximately 0.92 kg.

Is the Dahua EZ-N48PRO suitable for Australian and New Zealand CCTV installations?

The Dahua EZ-N48PRO can be considered for Australian and New Zealand surveillance projects where its technical specifications suit the installation. Buyers and installers should verify the exact regional model, applicable certifications, firmware, warranty arrangements and local installation requirements with their authorised supplier before deployment.
