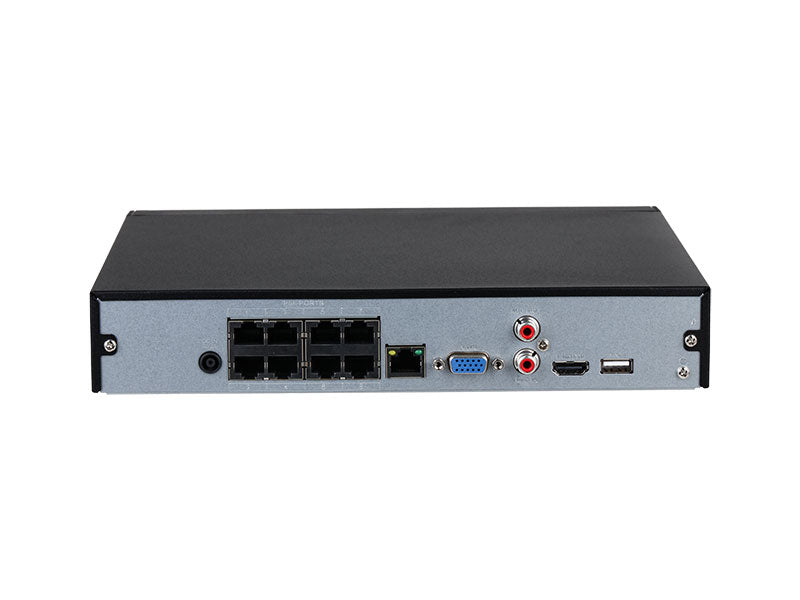

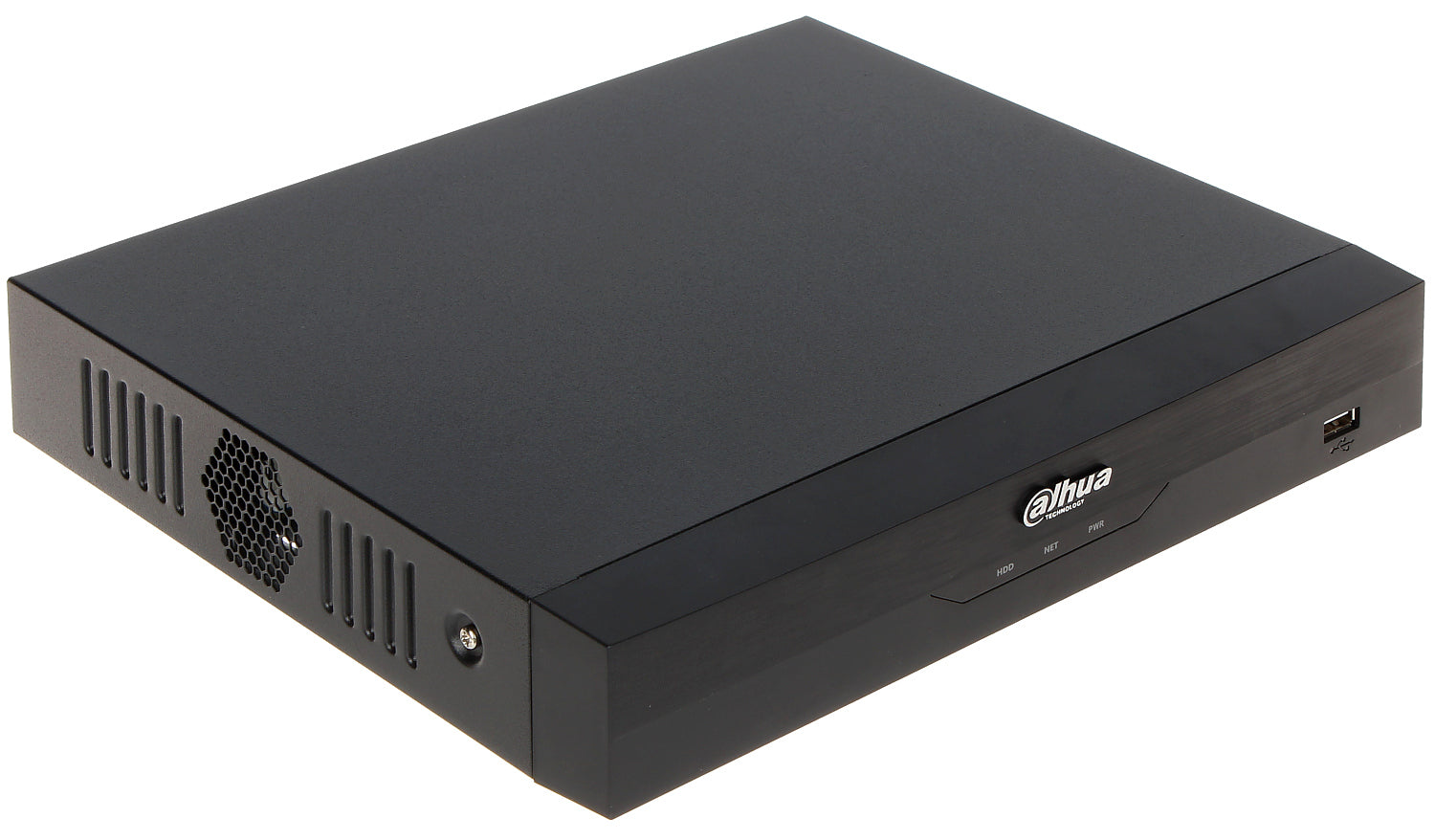

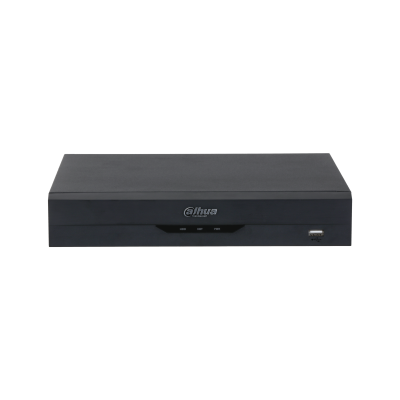

The Dahua DHI-NVR4108HS-8P-AI/ANZ is a compact yet advanced 8-channel network video recorder from Dahua’s WizSense AI-powered lineup, designed to bring intelligent security to small and medium-sized installations. Featuring 8 integrated PoE ports and AI-enhanced analytics including face recognition, perimeter protection, and Smart Motion Detection (SMD Plus), this NVR delivers powerful surveillance and accurate event filtering in a cost-efficient form factor.
Powered by an industrial-grade processor and embedded Linux OS, the DHI-NVR4108HS-8P-AI/ANZ supports up to 16 MP resolution and is compatible with both Dahua and third-party ONVIF-compliant cameras. Its smart codec support (Smart H.265+/H.265/H.264+/H.264/MJPEG) ensures efficient bandwidth usage while preserving video quality. With capabilities like Quick Pick, face database management, and AI search, users can locate footage with high precision and speed.
This model is tailored for the Australian and New Zealand markets, offering local compliance, wide third-party interoperability, and high reliability under varying environmental conditions.
What's Included in the Box
Main Features
-
8-Channel Input with 8 PoE Ports (IEEE 802.3 af/at) for plug-and-play installation
-
AI by NVR: Face detection & recognition (1-channel), perimeter protection (2-channel), SMD Plus (4-channel)
-
AI by Camera: Face recognition, ANPR, people counting, heat map, and perimeter analytics
-
High Decoding Performance: Up to 16 × 1080p@30fps
-
Smart Codec Support: Smart H.265+, H.265, H.264+, H.264, MJPEG
-
Face Database: 10 databases, up to 20,000 face images
-
Advanced Search Functions: AI-based metadata filtering and face similarity matching
-
Quick Pick Functionality: Fast retrieval of human/vehicle targets
-
4K HDMI and Full HD VGA Outputs with dual simultaneous display
-
1 SATA Bay supporting up to 16TB HDD
-
Compact 1U Rackmount/Desk-Mount Design
Detailed Specifications
Model: DHI-NVR4108HS-8P-AI/ANZ
Channels: 8 IP Channels
PoE Ports: 8 × 10/100 Mbps, IEEE 802.3 af/at
Max Decoding: Up to 16 × 1080p@30fps
AI Functions by NVR:
-
1-ch Face Detection & Recognition
-
2-ch Perimeter Protection
-
4-ch SMD Plus
AI by Camera: Up to 8 channels for face detection, perimeter protection, SMD Plus, people counting, heat map, ANPR
Face Recognition Capacity: 10 databases, 20,000 face images
Video Output: 1 HDMI (up to 4K), 1 VGA
Video Resolution: 16MP down to CIF
Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
HDD Interface: 1 × SATA, up to 16TB
USB Ports: 2 × USB 2.0 (front and rear)
Network Bandwidth:
-
AI Off: 256 Mbps input/output/recording
-
AI On: 180 Mbps input/output/recording
Browser Support: Chrome, IE9+, Firefox
Mobile Access: iOS, Android
Power Supply: 53VDC, 1.812A
Power Consumption:
-
NVR: <10W (no HDD)
-
PoE Total: 72W (max 25.5W per port)
Operating Temperature: –10°C to +55°C
Installation: Rackmount or Desktop
Certifications: FCC, CE-EMC, CE-LVD
Dimensions (W×L×H): 260mm × 232.7mm × 47.6mm
Weight: Net 0.92kg, Gross 2.05kg
Warranty Information
The Dahua DHI-NVR4108HS-8P-AI/ANZ comes with a 3-Year Manufacturer Warranty, with all warranty support facilitated by Dahua-authorized service centers and partners in Australia and New Zealand.
Brand Description
Dahua Technology is a globally recognized innovator in the video surveillance industry, delivering end-to-end solutions driven by cutting-edge AI and deep learning. Dahua’s WizSense series offers intelligent security that's accessible, powerful, and optimized for a wide variety of applications.
SKU
SKU: DHI-NVR4108HS-8P-AI/ANZ
Practical Use Scenarios
-
Retail Environments: Monitor customer flow, generate heat maps, and receive accurate intrusion alerts.
-
Warehouses & Offices: Utilize AI-powered perimeter protection and SMD Plus for reduced false alarms.
-
Schools & Institutions: Benefit from centralized facial recognition and event-based recording.
-
Small Business Premises: Easy camera integration, intuitive interface, and intelligent alerts.
-
Residential Complexes: Identify and alert on face recognition, vehicles, and other key events.
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The Dahua DHI-NVR4108HS-8P-AI/ANZ is purpose-built for the Australian and New Zealand markets. It complies with regional certifications including FCC, CE-EMC, and CE-LVD, and supports the electrical and network standards used locally. The unit is distributed exclusively through authorized Dahua partners in ANZ, ensuring authentic product sourcing and reliable warranty handling directly with the brand’s certified service channels.
FAQs – Product Code: DHI-NVR4108HS-8P-AI/ANZ
Q1: Does the DHI-NVR4108HS-8P-AI/ANZ support third-party IP cameras?
A1: Yes, the DHI-NVR4108HS-8P-AI/ANZ supports ONVIF-compliant third-party cameras, including brands like Axis, Panasonic, Sony, and more.
Q2: What AI features are supported by the DHI-NVR4108HS-8P-AI/ANZ?
A2: The NVR supports face detection and recognition, perimeter protection, SMD Plus, and Quick Pick via its onboard AI and supported IP cameras.
Q3: How much storage can the DHI-NVR4108HS-8P-AI/ANZ handle?
A3: The unit supports 1 SATA hard drive with a capacity of up to 16TB, depending on environmental temperature.
Q4: Is the DHI-NVR4108HS-8P-AI/ANZ suitable for high-resolution cameras?
A4: Yes, it supports resolutions up to 16MP and decoding up to 16x 1080p@30fps.
Q5: What power budget is available for the PoE ports on the DHI-NVR4108HS-8P-AI/ANZ?
A5: The NVR provides 72W total PoE power, with a maximum of 25.5W per individual port.
Q6: Does the DHI-NVR4108HS-8P-AI/ANZ comply with Australian safety standards?
A6: Yes, the device holds CE and FCC certifications and meets electrical safety standards required in Australia and New Zealand.
