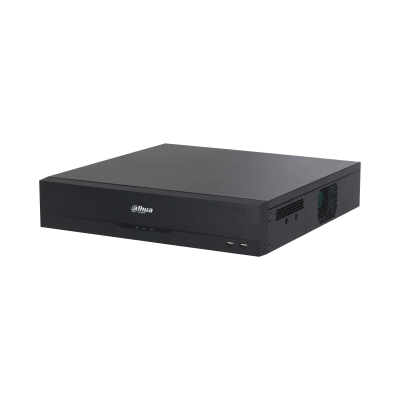

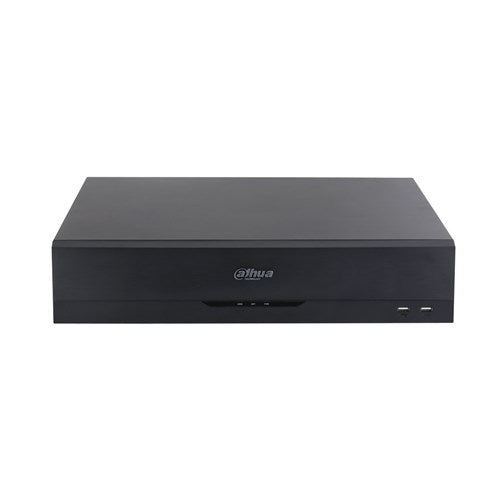

The Dahua NVR5864-AI/ANZ is a high-performance 64-channel AI-powered network video recorder designed for advanced surveillance systems. With support for up to 8 HDDs and cutting-edge WizSense technology, this recorder offers reliable AI functions including face recognition, perimeter protection, and SMD Plus for both cameras and the recorder itself. With a robust bandwidth of 384 Mbps, 4K display support, RAID configurations, and compatibility with third-party ONVIF cameras, it delivers exceptional flexibility and security intelligence for commercial and enterprise-scale applications.

Tailored for smart environments, this NVR supports metadata analysis, ANPR, people counting, and heat mapping, helping security professionals extract actionable insights from video data. Whether deployed in retail, transportation, government, or corporate environments, the NVR5864-AI/ANZ ensures secure, efficient, and AI-enhanced video recording performance.

What's Included in the Box:

• 1 × Dahua NVR5864-AI/ANZ WizSense NVR

• 1 × Power Cable

• 1 × Rack Mount Kit

• 1 × USB Mouse

• 1 × Quick Start Guide

• Screws & Accessories Kit

Key Features:

• AI by Recorder: 2-channel face recognition, 4-channel perimeter protection, 8-channel SMD Plus

• AI by Camera: Face detection, metadata, ANPR, people counting, heat map & more

• 384 Mbps Bandwidth (incoming/recording/outgoing)

• Supports RAID 0/1/5/6/10 and 8 × SATA drives (up to 16 TB per drive)

• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG Compression

• Multi-channel Playback: Up to 16 simultaneous channels

• 4K Output Support with dual HDMI and VGA

• 64-channel IP Camera Access

• Browser Access: Chrome, IE9+, Firefox

• Third-party Support via ONVIF 21.12 (Profiles T/S/G)

• Advanced Alarm Management with intelligent linkage options

Detailed Specifications:

System:

• Processor: Industrial-grade embedded processor

• OS: Embedded Linux

• Interface: Web GUI & local GUI

AI Capabilities:

• Recorder: 2CH Face Recognition, 4CH Perimeter Protection, 8CH SMD Plus

• Camera: Face detection, metadata, people counting, ANPR, heat map, etc.

Face Recognition:

• Up to 20,000 face images in 20 databases

• Simultaneous 16CH recognition via camera

Video & Recording:

• Decoding (AI off): Up to 32CH 1080p@30fps

• Decoding (AI on): Up to 24CH 1080p@30fps

• Resolution Support: Up to 32MP

Storage & RAID:

• HDD Bays: 8 SATA ports

• RAID: 0/1/5/6/10

• Max HDD: 16 TB each

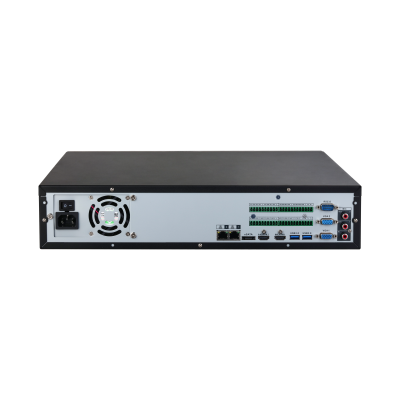

Connectivity & Ports:

• USB: 2 × USB 2.0 (front), 2 × USB 3.0 (rear)

• Network: 2 × RJ-45 (10/100/1000 Mbps)

• Audio: 1 in, 2 out (RCA)

• Alarm: 16 in / 8 out

• RS-232 / RS-485 / eSATA supported

Certifications:

• FCC, CE-EMC, CE-LVD

Power & Dimensions:

• Power Supply: 100–240 VAC, 50–60 Hz

• Dimensions: 439.9 × 457.9 × 89.0 mm

• Net Weight: 6.4 kg

Warranty Information:

The Dahua NVR5864-AI/ANZ is backed by a 3-year limited warranty. Warranty claims are handled directly via authorized distributors or Dahua’s official support channels.

Brand Information:

Dahua Technology is a globally recognized leader in video surveillance solutions, known for its innovations in AI-driven security technologies. With a focus on quality, reliability, and scalable systems, Dahua offers end-to-end security products suitable for commercial, industrial, and residential environments.

SKU: NVR5864-AI/ANZ

Practical Use Scenarios:

• Retail Chain Security: Track customer movement, detect theft, and monitor high-traffic zones using people counting and heat mapping.

• Transportation Hubs: Use ANPR and vehicle metadata to manage traffic flow and identify security threats.

• Corporate Campuses: Employ facial recognition for secure, touchless access and perimeter monitoring.

• Government Facilities: Ensure high-level surveillance and AI-supported threat detection.

• Public Venues: Use metadata and SMD Plus to minimize false alarms and improve response efficiency.

Datasheets or Downloadable Resources:

•  Datasheet

Excellence for the Australian and New Zealand Market:

The Dahua NVR5864-AI/ANZ is specifically optimized for the Australian and New Zealand security standards.

• Fully certified for CE and FCC compliance

• NDSS-compatible (where applicable for integration)

• Supplied exclusively via authorized Australian and New Zealand distributors

• Warranty and service requests are managed locally through approved channels

• Designed for full interoperability with local power grids and network protocols

FAQs – Dahua NVR5864-AI/ANZ

Q1: What AI features are included in the Dahua NVR5864-AI/ANZ?
A1: The Dahua NVR5864-AI/ANZ supports AI functions such as face detection, face recognition, perimeter protection, SMD Plus, video metadata, people counting, and ANPR — both through the recorder and compatible cameras.

Q2: Can the Dahua NVR5864-AI/ANZ support third-party IP cameras?
A2: Yes, the NVR5864-AI/ANZ supports ONVIF 21.12 compliant third-party IP cameras including models from Axis, Panasonic, Sony, and more.

Q3: How much storage can the Dahua NVR5864-AI/ANZ handle?
A3: The NVR5864-AI/ANZ supports 8 SATA drives, each up to 16 TB, allowing a maximum of 128 TB of raw storage capacity.

Q4: Is the Dahua NVR5864-AI/ANZ suitable for 4K surveillance systems?
A4: Absolutely. The Dahua NVR5864-AI/ANZ supports multiple 4K camera streams and provides 4K HDMI video output.

Q5: What RAID levels are supported by the Dahua NVR5864-AI/ANZ?
A5: RAID 0, 1, 5, 6, and 10 are supported on the Dahua NVR5864-AI/ANZ, providing flexibility for data redundancy and performance.

Q6: How does the SMD Plus function work in the Dahua NVR5864-AI/ANZ?
A6: SMD Plus on the NVR5864-AI/ANZ enhances motion detection accuracy by distinguishing humans and vehicles, filtering out false alarms caused by weather or environment.

Q7: Is the Dahua NVR5864-AI/ANZ approved for use in Australia and New Zealand?
A7: Yes, the NVR5864-AI/ANZ complies with local electrical and EMC standards, and is distributed exclusively through authorized ANZ channels with local support and warranty.
