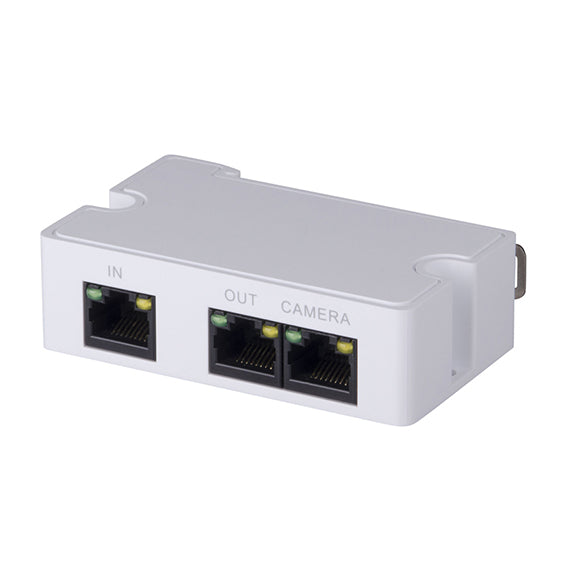

The Dahua PFT1300 PoE Extender is a compact, high-performance Power over Ethernet repeater designed to extend both data and power for IP cameras across long distances. Supporting IEEE 802.3af/at PoE standards, the PFT1300 enables passive PoE cascading up to two levels, allowing the connection of up to three IP cameras over 300 meters total transmission range when used with a compatible High PoE Midspan (PFT1200). With three RJ45 ports for input, output to camera, and output to another extender, this unit provides efficient, reliable, and scalable network expansion without additional power supplies. Its versatile mounting options (DIN rail or internal junction box) make it an ideal choice for professional surveillance system installations.
What’s Included in the Box
1 × Dahua PoE Extender – PFT1300
Quick Start Guide
Main Features
3-Port PoE Extension: Includes PoE input, one port for IP camera, and one for cascading to the next extender.
300m PoE Extension: When used with Dahua PFT1200 midspan, supports 2-level cascading to power 3 IP cameras over a total distance of 300 m.
IEEE 802.3af/at Compliant: Fully compatible with standard PoE IP cameras.
Passive Power Transfer: No external power source required; draws power from upstream PoE injector or midspan.
Compact & Lightweight: Only 57g and 79 × 52 × 23 mm, easy to install in tight spaces.
Multiple Mounting Options: Supports DIN rail and internal junction box mounting.
Low Power Consumption: ≤3W, ensuring energy efficiency.
Detailed Specifications
Category
Specification
Model
PFT1300
Ethernet Ports
3 × 10/100 Mbps (1 PoE input, 1 PoE for IPC, 1 PoE for next extender)
Power Input
Passive PoE
Power Output
IEEE 802.3af/at compliant
Max Transmission Distance
300 m (with PFT1200 and total power ≤25W)
Power Consumption
≤3W
Operating Temperature
–30°C to +65°C
Operating Humidity
10%–90% RH
Mounting Options
DIN rail / Junction box internal
Dimensions
79 × 52 × 23 mm
Weight
57 g
Warranty Information The Dahua PFT1300 PoE Extender is backed by Dahua's standard hardware warranty. Support and service are provided locally through authorised ANZ distributors and installers.
Brand Description Dahua Technology is a global leader in innovative video surveillance solutions. Its networking accessories, like the PFT1300 PoE Extender, are designed to complement high-performance IP camera systems with reliability, efficiency, and easy integration.
SKU: PFT1300
Practical Use Scenarios
Extended Outdoor Camera Installations: Power and connect cameras up to 300m from the NVR or switch using cascading extenders.
Warehouses & Large Properties: Ideal for projects where power outlets are limited and long-distance cable runs are required.
Commercial & Retail Complexes: Expand camera coverage across floors or buildings without laying new power lines.
Smart City Infrastructure: Perfect for pole-mounted or roadside camera installations where power access is restricted.
Excellence for the Australian and New Zealand Market
The Dahua PFT1300 is optimized for demanding installation environments across Australia and New Zealand. Built for durability in fluctuating climates (–30°C to +65°C), and supported through locally authorised channels, this unit ensures compliance with regional standards, including fast turnaround for warranty claims, trusted supply chains, and compatibility with Dahua’s Australian-certified PoE cameras and accessories.
FAQs
Q: What is the maximum transmission distance of the PFT1300 PoE Extender? A: The PFT1300 supports up to 300m transmission when used with a PFT1200 midspan and total camera load under 25W.
Q: Can the PFT1300 power multiple cameras? A: Yes, when used in a 2-level cascade setup with PFT1200, the PFT1300 can help power up to three IP cameras in total.
Q: Is the PFT1300 compatible with non-Dahua devices? A: Yes, the PFT1300 is IEEE 802.3af/at compliant, making it compatible with standard PoE IP cameras from other brands.
Q: Does the PFT1300 require an external power supply? A: No, the PFT1300 uses passive PoE and draws power from the upstream device such as a PoE midspan or injector.
Q: What mounting options are available for the PFT1300? A: The PFT1300 supports both DIN rail and junction box internal mounting for flexible installation.
