NEW* Dahua TIOC 3.0 Advanced IPC-HDW3849H-AS-PV-ANZ-S2 Dahua 8MP AI Active Deterrence Full color Night Vision IP Turret CCTV Camera with ACUPICK

Roll over image to zoom in Click on image to zoom

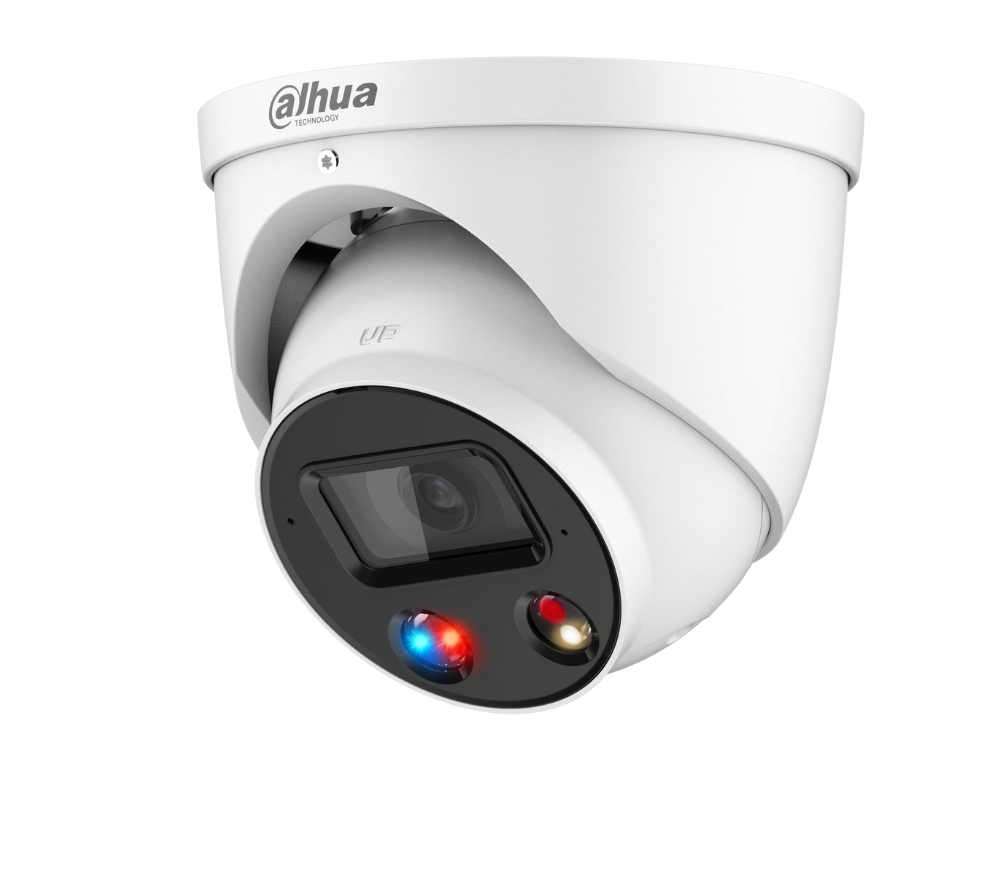

NEW* Dahua TIOC 3.0 Advanced IPC-HDW3849H-AS-PV-ANZ-S2 Dahua 8MP AI Active Deterrence Full color Night Vision IP Turret CCTV Camera with ACUPICK

Save $118.78

DahuaSKU: IPC-HDW3849H-AS-PV-ANZ-S2-TW

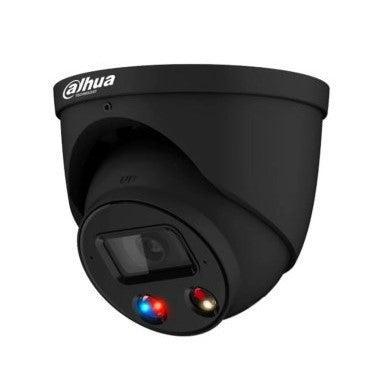

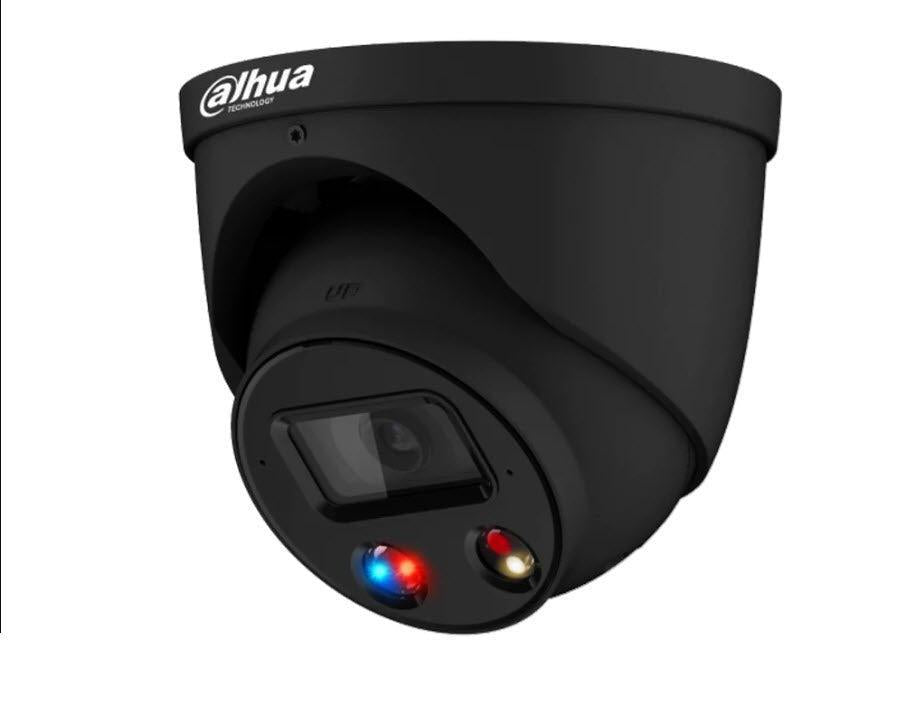

Color: White

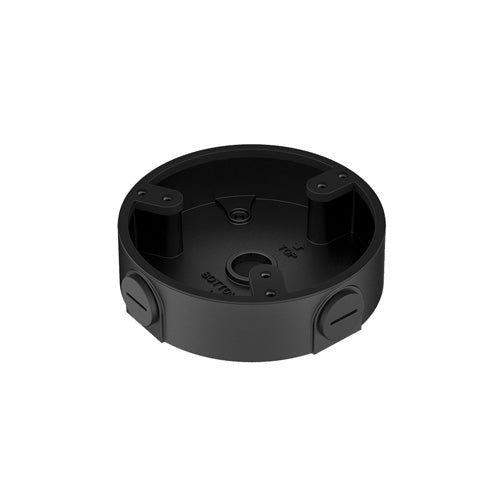

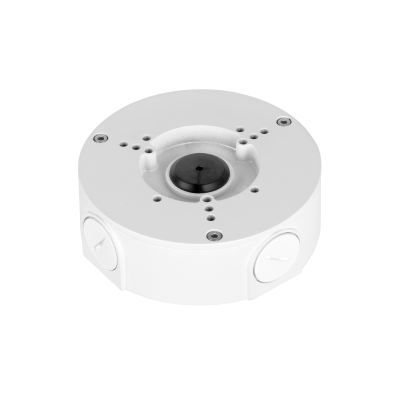

Bracket: No Bracket

Variant

Price:

$319.00 AUD $437.78 AUD

Tax included Shipping calculated at checkout

Quantity:

Pickup available at 1/30 Tower Ct

Usually ready in 2-4 days

Share this product

8MP Smart Dual Illumination Active Deterrence Fixed-Focal Eyeball WizSense Network Camera

The Dahua IPC-HDW3849H-AS-PV-ANZ-S2 is a cutting-edge 8MP WizSense Network Camera designed to provide advanced surveillance with smart dual illumination, intelligent detection, and active deterrence. This camera is ideal for residential, commercial, and industrial security applications, offering high-quality video and robust security features.

Key Features:

Exceptional Video Performance:

8MP CMOS Sensor: 1/2.7" sensor delivers stunning 4K resolution images with high clarity even in low-light environments.
Max Resolution: 3840 × 2160 @ 25/30 fps ensures detailed and smooth video recording.
Dual Illumination: Built-in IR and warm light LEDs provide up to 30m (98.4 ft) illumination for crystal-clear images in darkness.

Smart Video Coding:

H.265 Codec: High compression rate reduces bandwidth and storage requirements without compromising quality.
AI H.265/H.264: Advanced AI algorithms offer a 25% or greater reduction in bit rate compared to traditional methods.

Intelligent Monitoring:

Perimeter Protection: Intrusion and tripwire detection with precise human/vehicle classification.
SMD 4.0: Filters out irrelevant objects for accurate motion detection alerts.
AcuPick Technology: AI-powered search simplifies finding human or vehicle targets in live or recorded footage.

Enhanced Image Processing:

WDR (120 dB): Adjusts exposure for clear images in high-contrast lighting.
3D Noise Reduction: Removes noise for a clearer image.
Smart Scene Adaptation (SSA): Automatically adjusts camera settings to changing environmental conditions.

Active Deterrence:

Sound & Light Alarm: Red/blue lights and a built-in siren deter intruders in real time.
Two-Way Audio: Integrated microphone and speaker enable live communication with visitors or intruders.

Comprehensive Alarm Support:

Alarms triggered by motion, intrusion, tampering, audio detection, and more.
Supports external alarm input/output for expanded functionality.

Rugged Design:

Weatherproof: IP67-rated metal casing protects against dust, rain, and harsh weather.
Wide Operating Temperature: Reliable operation from -40°C to +60°C (-40°F to +140°F).

Flexible Storage and Connectivity:

Storage Options: MicroSD card support up to 256GB, FTP, NAS.
Multiple Streams: Supports three simultaneous video streams for versatile viewing options.

Technical Specifications:

Camera:

Lens Options: Fixed 2.8mm or 3.6mm for tailored field-of-view coverage.
DORI Distances: Detect, Observe, Recognize, Identify range optimized for lens choice.
Illumination: IR and warm light reach up to 30m (98.4 ft).

Video & Audio:

Resolution Options: From 8MP (3840 × 2160) to CIF (352 × 240).
Privacy Masking: Up to 4 customizable areas.
Audio Channels: 1 input, 1 output with built-in microphone and speaker.

Network & Protocols:

Port: RJ-45 (10/100 Base-T).
Compatibility: ONVIF (Profiles S, G, T), CGI.
Cybersecurity Features: Data encryption, account lockout, and HTTPS support.

Power:

Power Options: 12 VDC or PoE.
Max Power Consumption: 10.1 W (PoE with all features active).

Physical Dimensions:

Size: Φ122.0 mm × 110.9 mm (4.80" × 4.37").
Weight: 0.75 kg (1.65 lb).

What's in the Box:

Dahua IPC-HDW3849H-AS-PV-ANZ-S2 Camera
Mounting Bracket and Screws
Waterproof Network Connector
User Manual

Warranty:

3-Year Limited Warranty covering hardware defects and support.

The Dahua IPC-HDW3849H-AS-PV-ANZ-S2 offers unparalleled performance for modern surveillance systems, combining advanced AI features, stunning 8MP image quality, and proactive deterrence tools. Perfect for ensuring safety in any environment.

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

256 MB

RAM

2 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 lux@F1.0 (Color, 30 IRE)

0.0004 lux@F1.0 (B/W, 30 IRE)

0 lux (illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 106°; V: 55°; D: 125°

3.6 mm: H: 85; V: 45°; D: 102°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

(216.54 ft)

26.4 m

(86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

3.6 mm

78.0 m

(255.91 ft)

22.2 m

(102.36 ft)

15.6 m

(51.18 ft)

7.8 m

(25.59 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)

Video Frame Rate

Main stream: 3840 × 2160 @(1 fps–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR/ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G;Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP;SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 9/11
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encrypton;Firmware encrypton;Confguraton

encrypton;Digest;WSSE;Account lockout;Security logs;IP/

MAC fltering;Generaton and importng of X.509 ce

rtfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted

executon;Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC; PoE

Power Consumption

Basic: 4.5 W (12 VDC); 5.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")

Net Weight

0.75 kg (1.65 lb)

Gross Weight

0.92 kg (2.03 lb)

Datasheets

Class	Date	Title	Language	Type	Download
Datasheet	2024-08-29	IPC-HDW3849H-AS-PV-ANZ-S2_datasheet	English	pdf

User Manual

Warranty

3 years warranty

FREE SHIPPING ON ALL ORDERS OVER $200 AUSTRALIA WIDE

All orders are delivered using the Australia Post shipping method and this is the most efficient method of delivery.

A flat rate of $12 applies to all orders under $200.

Delivery typically takes 3-5 business days all over Australia including Tasmania.

New Zealand: 10-15 business days.

Processing Times

We process orders from Monday to Friday, ensuring they are shipped within 24 hours of placement, excluding weekends and public holidays.

Tracking Your Order

Once your order is packed and dispatched from our warehouse, you will receive an email with a tracking number. This tracking number can be used to monitor your parcel's progress.

For your convenience, if you are not home at the time of delivery, the delivery driver will leave your parcel in a secure place if deemed safe. If it is not safe to leave the parcel, or if the parcel is too large, a card will be left with instructions on how to retrieve your parcel from the local depot.

Warranty period is given in the product description.

CCTV Importers’s Products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure of the Product and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Products repaired or replaced if the Products fail to be of acceptable quality and the failure does not amount to a major failure.

Return and refund

Return form

TiOC 2.0

Smart Dual Light

• Smart Illumination Mode (Default): Switch between IR Mode and warm light when target is detected.

• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary warm light is not required, significantly reducing light pollution.

• Warm Light Mode (Optional): Only the warm light is ON. It is suitable for scenes that require color video footages.

VoiceCatcher Technology

• Newly-designed Dual Mic Array intercepts external circuit interference.

• Audio pick-up distance is increased by 7 meters compared with the previous version of TiOC in a lab environment.

• The Dahua VoiceCatcher reduces noise and extracts audible audio signals.

Better Image

• First Dahua camera powered by OPC (Optical Path Technology). It corrects the refraction angle of different light path. With F1.0 large aperture lens, it outputs brighter and clearer black & white images.

• 4K Real-time: Smooth 4K real-time images at 30 fps even when AI is enabled, with high brightness using F1.0 large aperture.

Easy Operation

• Alarm-in Port: Allows alarm receiving or one-tap disarming through the alarm system interface.

• One-tap Disarming: Turns on/off the warning light and siren via the DMSS or alarm-in port.

• Alarm Sounds: Offers 11 built-in sounds and supports importing of custom voice audio for different scenarios.

AI Features

SMD 4.0: Reduces false alarms caused by animals

With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.

Perimeter Protection

The perimeter protection function based on tripwire and area intrusion sends an alarm only when unwanted movements triggered by human or vehicle targets occur, saving users from unnecessary actions caused by false alarms.

AI SSA

With the continuous development of video surveillance and AI, the demand for images with higher quality is also increasing.
The Dahua AI SSA (Scene Self-adaption) technology is based on deep learning algorithm that can intelligently identify multiple scenes and adjust to their optimal images.

Auto Tracking 3.0 (PTZ)

Smooth Tracking Process

Combined with PFA 3.0 algorithm (a deep fusion of intelligent algorithms and focusing algorithms), it realizes touchless focusing during the tracking and capturing process.

Long Tracking Distance

With the Automatic Tracking 2.0 algorithm as its foundation, the requirements on the tracking size of the target are further reduced, making the target size smaller and the tracking distance longer. The tracking distance of Automatic Tracking 3.0 can reach up to 870 meters.

Applications

Private Places

• Less Light Pollution: Less use of white light means less light pollution

• Active Deterrence: Warn off intruders during the intrusion

• Color Monitoring: Presents color alarm videos

• Scenarios: Villas, shops, warehouses, etc.

Public Areas

• Active Deterrence: Customized sounds and light alarm to warn the target in the area

• Accurate Detection: Focuses on human and vehicle targets to accurately identify real targets

• Ecosystem: One-tap disarming with alarm-in port or DMSS.

• Scenarios: Fire exits, emergency exits, etc.

How Dahua's TiOC became their best selling camera

What Our Clients Say About Us

CCTV Importers

4.6

Andria

5 months ago

I would definitely recommend this company. Not only were they happy to help with resolving the problems with my security camera system, they were also spent time explaining, and showing me how to check the system and reset. Also, how to troubleshoot our alarm system. A very big thank you to CCTV importers. You definitely have a returning customer. I am happy to recommend you to friends and family.

Sanjay Kahawatte

a year ago

Highly recommend! Great technical knowledge and readily available at a moment’s notice. Fast delivery on products also!

Joshua Collins

a year ago

Recently purchased a Hikvision IP camera kit, really happy with the purchase. And got it at great price. Very satisfied!

ovovish

a year ago

Fast delivery and good quality products! Definitely will recommend to my friends and family⭐️⭐️⭐️⭐️⭐️

Read All Reviews

NEW* Dahua TIOC 3.0 Advanced IPC-HDW3849H-AS-PV-ANZ-S2 Dahua 8MP AI Active Deterrence Full color Night Vision IP Turret CCTV Camera with ACUPICK

Description

Key Features:

Exceptional Video Performance:

Smart Video Coding:

Intelligent Monitoring:

Enhanced Image Processing:

Active Deterrence:

Comprehensive Alarm Support:

Rugged Design:

Flexible Storage and Connectivity:

Technical Specifications:

What's in the Box:

Warranty:

Datasheets

Warranty

Processing Times

Tracking Your Order

Return and refund
