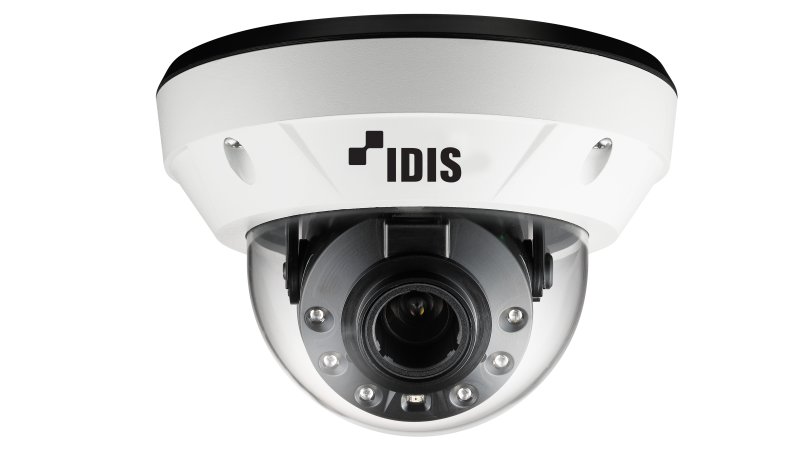

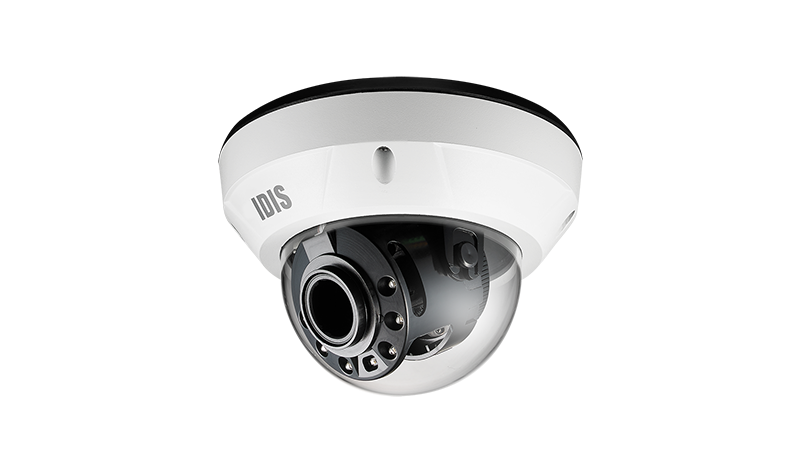

The DC‑D4536HRX from IDIS is a heavy-duty, outdoor-ready 5 MP dome camera, built to withstand harsh environments. Its motorized varifocal lens (3.0–13.5 mm) lets you adjust between wide and tele perspectives. With robust features like IK10 vandal resistance, IP67 weather sealing, built-in heater for cold climates, NDAA compliance, and support for up to 5 years of operation, this camera is ideal for demanding surveillance environments. It supports DirectIP, ONVIF, microSD edge storage, two‑way audio, alarms, and advanced video functionality for professional security systems.
What’s Included in the Box
-
1 × DC‑D4536HRX 5MP Outdoor Dome Camera
-
Mounting hardware (screws, anchors, mounting template)
-
Quick Start / Installation Guide
-
Warranty / Compliance Sheet
Main Features
-
5 MP high resolution (2592 × 1944)
-
Motorized varifocal lens (3.0 to 13.5 mm) with DC iris
-
Wide-angle to telephoto adjustment (91º to 31º horizontal view)
-
True WDR (120 dB) for scenes with contrast
-
IR illumination up to 30 m (6 LEDs)
-
Day/Night operation with IR cut filter (ICR)
-
Edge storage: microSD/SDHC/SDXC up to 512 GB, Smart Failover
-
Two‑way audio, alarm in/out, pre‑recorded voice alert support
-
Built-in heater and cold-start capable down to –40 °C
-
Vandal‑resistant housing (IK10)
-
Weather-resistant (IP67)
-
Power via PoE (IEEE 802.3af, Class 3) or 12V DC
-
NDAA compliant, up to 5-year operational support
-
ONVIF compatibility, DirectIP 2.0 protocol
-
3-axis mechanical adjustment (pan/tilt/rotate) for flexible installation
Detailed Specifications
| Category |
Specification |
| Image / Video |
|
| Image Sensor |
1/2.8″ CMOS |
| Max. Resolution |
2592 × 1944 |
| Scanning Mode |
Progressive |
| Lens |
Motorized varifocal (3.0 – 13.5 mm) |
| Aperture |
F1.4 – F3.2 |
| Iris Control |
DC iris |
| Field of View |
Wide: ~91° (H) × 66° (V) × 120° (D)
Tele: ~31° (H) × 23° (V) × 38° (D) |
| Minimum Illumination |
Color: 0.15 lux @ F1.4
B/W (IR on): 0 lux |
| Dynamic Range |
120 dB (True WDR) |
| Electronic Shutter |
Auto / Manual (1/30 – 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day / Night |
Yes, with ICR (IR cut filter) |
| IR Distance |
Up to 30 m (6 × IR LEDs) |
| Image Settings |
Exposure, White Balance, Sharpness, Contrast, Brightness, Self‑Adjusting Mode |
| Backlight Compensation |
On / Off |
| Privacy Masking |
8 zones |
| Intelligent Video |
Motion Detection, Tampering Alarm, Trip Zone |
|
|
| Network / Encoding |
|
| Video Compression |
H.265, H.264 (MP), MJPEG |
| Intelligent Codec |
Supported |
| Bitrate Control |
CBR / VBR modes |
| Protocols |
DirectIP 2.0, IPv4, IPv6, RTP/RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| ONVIF |
Profile S supported |
| Frame Rate |
4:3: 30 fps @ 2592×1944
16:9: 30 fps @ 2592×1456 |
| Multi‑stream |
Up to 4 streams |
| Security |
SSL / HTTPS encryption, multi-user authority, IEEE 802.1x, IP filtering |
| Edge Storage |
microSD / SDHC / SDXC up to 512 GB (Smart Failover) |
|
|
| Alarm / Audio |
|
| Two‑way Audio |
Yes (1 in / 1 out) |
| Alarm I/O |
1 alarm in, 1 alarm out |
| Trigger Events |
Motion detection, audio, tampering, trip zone, alarm in |
| Notifications |
Remote software, email with image |
| Pre‑recorded Voice Alert |
Supported (via IDIS protocol) |
|
|
| Environmental / Mechanical / Electrical |
|
| Vandal Resistance |
IK10 |
| Weather Rating |
IP67 |
| Operating Temp. |
–40 °C to +55 °C (cold start above –20 °C) |
| Operating Humidity |
0% – 90% |
| Power |
PoE (IEEE 802.3af Class 3, ~11 W) or 12V DC (1.1A, ~13.2W) |
| Approvals |
FCC, CE, KC |
| Dimensions |
Ø155 × 104.4 mm |
| Weight |
~1.0 kg |
|
|
| Installation Adjustments |
|
| Pan Range |
–175° to +175° |
| Tilt Range |
0° to 67° |
| Rotation |
–177° to +177° |
Use Cases & Applications
-
Ideal for outdoor surveillance in parking lots, building exteriors, perimeters
-
Monitoring entrances, fences, driveways, and other vulnerable zones
-
Suitable for cold or hot climates due to built-in heater and wide temperature tolerance
-
Vandal-prone areas such as transit hubs, retail storefronts, public buildings
-
Use in NDAA-restricted installations (government, enterprise)
-
Works in systems using DirectIP NVR or ONVIF-compatible third-party NVRs
SKU / Product Code
SKU: DC‑D4536HRX
Brand / Quality & Compliance
This camera is part of IDIS’s advanced lineup of surveillance cameras, built for durability, high performance, and long operational lifespans. It meets vandal resistance (IK10), weather sealing (IP67), and NDAA compliance standards, making it suitable for security-sensitive deployments.
FAQs
Q: What is the model name and SKU of this camera (DC‑D4536HRX)?
A: The model is DC‑D4536HRX, and that is the SKU used for inventory and cataloging.
Q: What resolution does the DC‑D4536HRX support?
A: The DC‑D4536HRX provides 5 MP resolution (2592 × 1944) with full WDR support.
Q: What type of lens does DC‑D4536HRX use?
A: It has a motorized varifocal lens (3.0–13.5 mm) with DC iris control, letting you adjust between wide and tele views.
Q: Is the DC‑D4536HRX suitable for outdoor use?
A: Yes, it features IP67 weather sealing, IK10 vandal resistance, and built‑in heater to handle harsh environments.
Q: What is the IR illumination range for DC‑D4536HRX?
A: It provides infrared illumination up to 30 meters (98.4 ft) via six IR LEDs.
Q: Does DC‑D4536HRX support edge storage and failover?
A: Yes — it accepts microSD/SDHC/SDXC up to 512 GB with Smart Failover capability.
Q: Can I power the DC‑D4536HRX via PoE?
A: Yes, it supports PoE (IEEE 802.3af, Class 3) as well as 12V DC input.
Q: Is the DC‑D4536HRX NDAA compliant?
A: Yes, this model supports NDAA compliance and is built for long-term support, up to 5 years.
