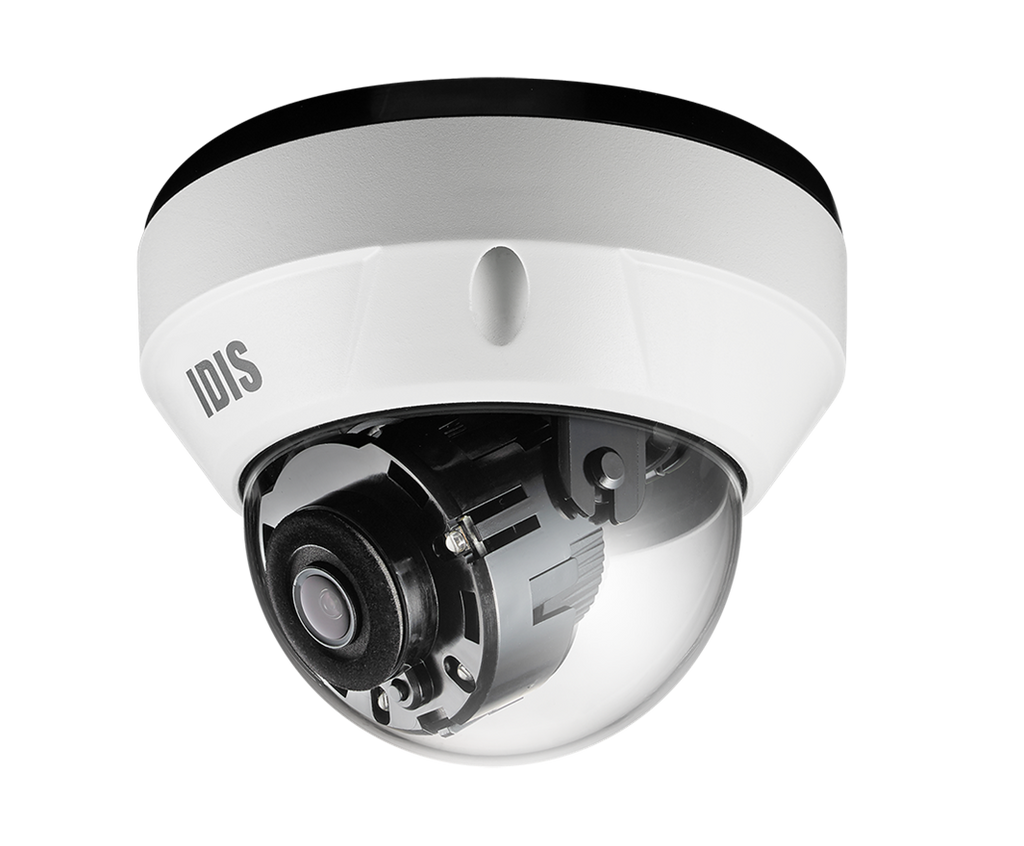

The DC‑D4811WRX‑3.3MM is an advanced 8MP vandal-resistant dome camera engineered by IDIS to deliver ultra-high-definition video surveillance with reliable outdoor performance. Featuring a wide-angle fixed 3.3 mm lens, this camera is equipped with H.265 compression, IR illumination up to 30 m, and support for ONVIF and DirectIP protocols. Its rugged IK10-rated and IP67-certified housing ensures durability in challenging environments, while built-in two-way audio, alarm I/O, and Smart Failover edge recording make it an excellent choice for critical security applications. NDAA compliance ensures its suitability for government and high-security installations.
What’s Included in the Box
Main Features
-
8MP resolution (3840 × 2160) for ultra-HD clarity
-
Wide 3.3 mm fixed lens (horizontal FOV: 101.3°)
-
IR LEDs with 30 m range for clear night vision
-
Rugged construction: IK10 vandal protection, IP67 weatherproof
-
NDAA compliant for secure and restricted-use installations
-
Two-way audio support (1 input / 1 output)
-
Alarm I/O (1 input / 1 output)
-
PoE (IEEE 802.3af, Class 3) for easy installation
-
Edge storage (microSD/SDHC/SDXC up to 256 GB) with Smart Failover
-
3-axis mechanical adjustment for flexible mounting
-
True WDR (120 dB) for difficult lighting conditions
-
ONVIF Profile S compatibility and DirectIP 2.0 protocol
Detailed Specifications
| Category |
Specification |
| Image / Optics |
|
| Image Sensor |
1/2.8″ CMOS |
| Max Resolution |
3840 × 2160 (8MP) |
| Scanning Mode |
Progressive |
| Lens |
Fixed-focal (3.3 mm) |
| Aperture |
F2.0 |
| Iris Control |
Fixed |
| Field of View |
H: 101.3° / V: 54.5° / D: 119.7° |
| Minimum Illumination |
Color: 0.2 lux @ F2.0; B/W: 0 lux with IR |
| IR Distance |
30 m (4 IR LEDs) |
| Day/Night |
IR cut filter with auto switch (ICR) |
| WDR |
True WDR 120 dB |
| Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000); Anti-Flicker; Slow Shutter (1/7.5, 1/15) |
| Image Settings |
Exposure, White Balance, Sharpness, Contrast, Brightness |
| Privacy Masking |
8 zones |
| Video Intelligence |
Motion Detection, Tampering, Trip Zone |
|
|
| Audio / Alarm |
|
| Audio In/Out |
1 / 1 (Two-way audio supported) |
| Alarm In/Out |
1 / 1 |
| Voice Alert |
Pre-recorded voice alert (IDIS Protocol) |
|
|
| Video & Network |
|
| Video Compression |
H.265, H.264 (MP), MJPEG |
| Intelligent Codec |
Yes |
| Bitrate Control |
CBR / VBR (H.265 & H.264) |
| Frame Rate |
Up to 30 fps @ 3840 × 2160
Up to 15 fps with WDR enabled |
| Resolutions Supported |
3840 × 2160, 1920 × 1080, 1280 × 720, 640 × 360 |
| Multi-streaming |
Quad streaming |
| Protocols |
DirectIP 2.0, IPv4, IPv6, RTP, RTSP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| ONVIF Support |
Profile S |
| Security |
SSL encryption, HTTPS, IEEE 802.1x, IP filtering, multi-user access |
| Remote Access |
IDIS Web, Mobile, Solution Suite, DirectIP NVR |
| Ethernet |
RJ45 (10/100BASE-T) |
|
|
| Storage |
|
| Edge Storage |
microSD/SDHC/SDXC (up to 256 GB) |
| Smart Failover |
Yes |
| Session Buffer |
Up to 60 MB (NLTSrec) |
|
|
| Environmental / Mechanical |
|
| Operating Temperature |
–20°C to +55°C (Start-up above 0°C) |
| Operating Humidity |
0% ~ 90% RH |
| Weatherproof |
IP67 rated |
| Vandal Resistance |
IK10 rated |

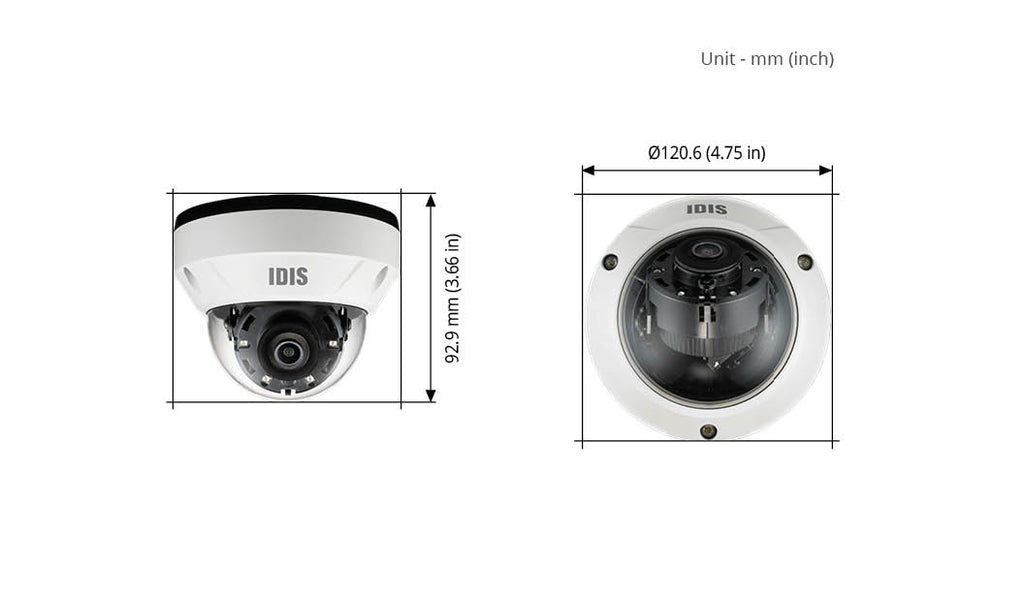

| Dimensions |
Ø120.6 × 92.9 mm |
| Weight |
0.48 kg |
|
|
| Electrical |
|
| Power Source |
PoE (IEEE 802.3af Class 3) |
| Power Consumption |
Max. 9.0 W |
| Compliance |
FCC, CE, KC |
| NDAA Compliance |
Yes |
Practical Use Scenarios
-
Government or critical infrastructure requiring NDAA-compliant equipment
-
Outdoor parking areas, building perimeters, entryways
-
Schools, public transit stations, and commercial storefronts
-
Installations in areas exposed to weather and potential vandalism
-
Projects needing 8MP clarity with wide-angle coverage
SKU / Product Code
SKU: DC‑D4811WRX‑3.3MM
Brand Overview
IDIS is a globally recognized manufacturer of end-to-end surveillance solutions. Known for their DirectIP technology, advanced VMS integration, and NDAA-compliant offerings, IDIS cameras are trusted in commercial, industrial, and government security deployments worldwide.
Warranty & Support
This model is eligible for up to 5 years of manufacturer warranty, depending on registration and channel. For warranty support, customers can contact IDIS or authorized representatives in their region.
Excellence for the Australian and New Zealand Market
-
Fully compliant with local import and safety standards
-
Sourced exclusively through authorized IDIS distributors in the ANZ region
-
Built for high-temperature and outdoor use in Australian and New Zealand climates
-
Covered by regional warranty with local support from authorized service partners
-
NDAA-compliant, making it suitable for security projects in regulated industries
FAQs
Q: What resolution does the DC‑D4811WRX‑3.3MM support?
A: The DC‑D4811WRX‑3.3MM delivers ultra-HD 8MP resolution at 3840 × 2160 pixels.
Q: Is the DC‑D4811WRX‑3.3MM outdoor-ready and vandal-resistant?
A: Yes, it is IP67-rated for weather resistance and IK10-rated for vandal protection.
Q: What type of lens is used in DC‑D4811WRX‑3.3MM?
A: It features a fixed-focal 3.3 mm lens with a wide 101.3° horizontal field of view.
Q: Does the DC‑D4811WRX‑3.3MM support PoE?
A: Yes, it supports PoE (IEEE 802.3af Class 3) and consumes up to 9.0 W.
Q: Is the DC‑D4811WRX‑3.3MM NDAA compliant?
A: Absolutely — it is NDAA compliant, suitable for use in government and enterprise systems.
Q: Can DC‑D4811WRX‑3.3MM store footage on its own?
A: Yes, it supports edge storage via microSD/SDHC/SDXC up to 256 GB and includes Smart Failover.
Q: What IR range does the DC‑D4811WRX‑3.3MM offer?
A: It has infrared night vision up to 30 meters (98.4 ft).
Q: Is two-way audio supported on the DC‑D4811WRX‑3.3MM?
A: Yes, the camera has 1 audio input and 1 output for two-way audio functionality.
