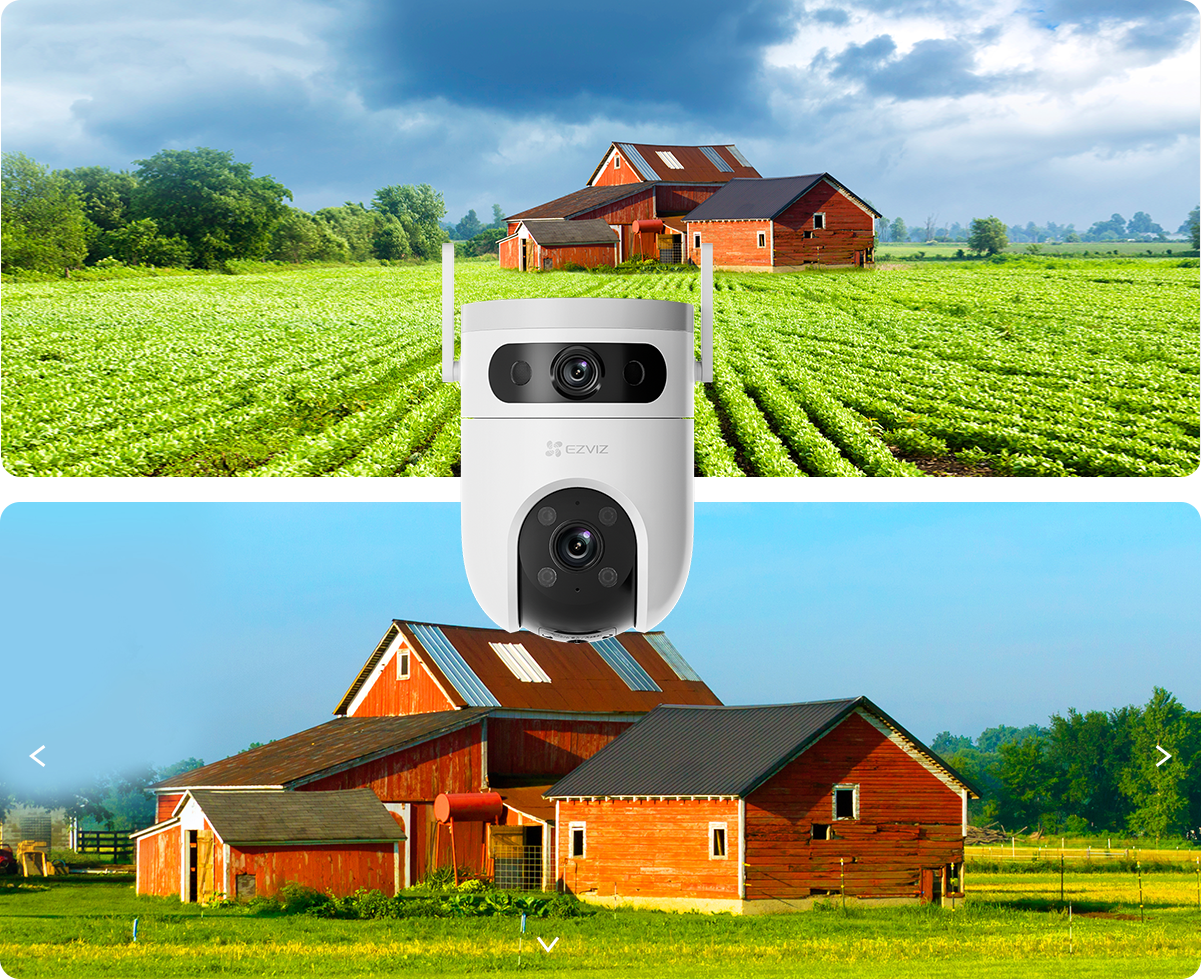

The EZVIZ CS‑H9C combines dual-lens technology with AI-powered detection to deliver superior, seamless surveillance with minimal effort. Featuring both a wide-angle lens and a motorised pan-tilt telephoto lens, this camera provides expansive coverage and detailed tracking in ultra-high definition—ideal for homes and businesses requiring robust monitoring.
What’s Included in the Box
Main Features
-

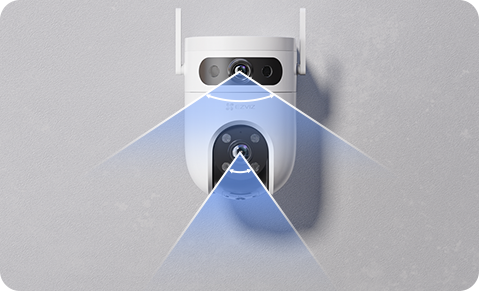

Dual‑Lens Pan‑Tilt Design: 2.8 mm wide-angle (F/1.6) + 6 mm telephoto (F/1.6) with motorized pan (350°) and tilt (80°)—ensures 360° coverage and a full view of what matters.
-
3K (2880×1620) Video Output: Crisp, high-resolution imaging delivers stunning clarity for both live view and recordings.
-

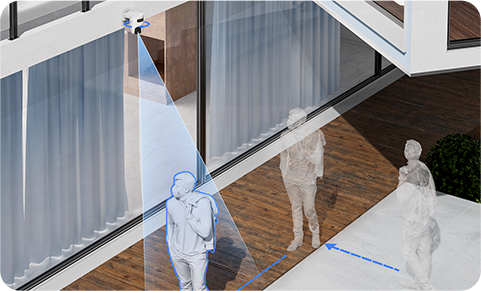

AI Detection & Auto‑Tracking: Intelligent human and vehicle shape detection triggers the telephoto lens to track movement—even when the wide‑angle lens spots activity first.
-
Night Vision Modes: Clear B/W infrared up to 30 m with optional color night vision using built-in spotlights.
-
Smart Patrol Modes: Customize patrol paths or let the camera sweep automatically across your premises.
-
Active Defense: Loud siren and strobe light deter intruders upon detection.
-

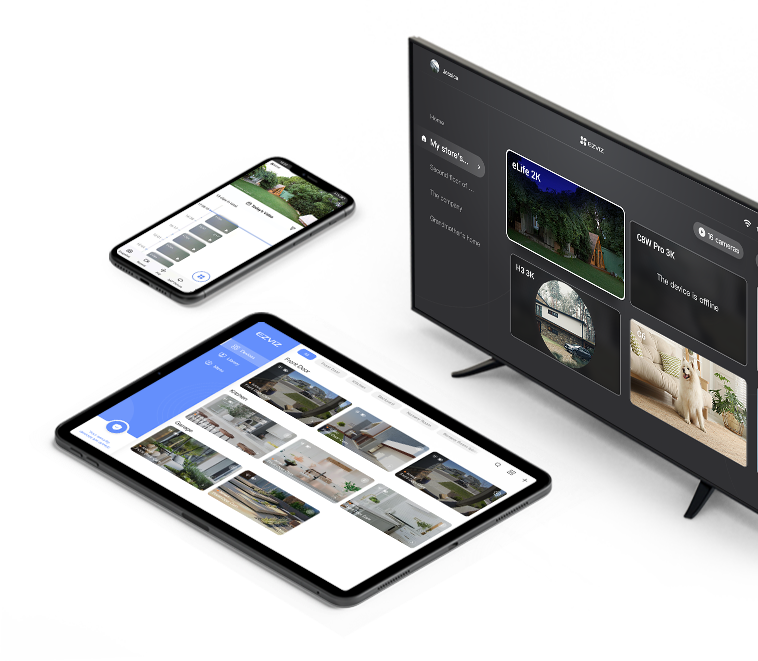

Two‑Way Talk: Built-in speaker and mic to communicate remotely via the EZVIZ app.
-

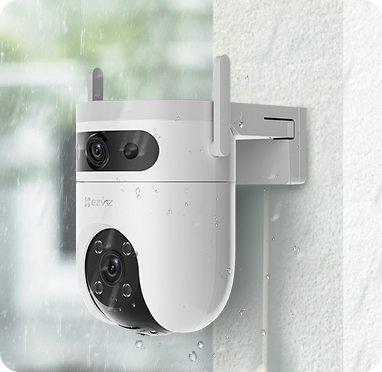

Weatherproof Build: IP65 rating ensures reliable performance outdoors from –30 °C to 50 °C.
-
Connectivity & Storage: Supports 2.4 GHz Wi‑Fi (IEEE 802.11b/g/n), RJ‑45 Ethernet, microSD (up to 512 GB), and EZVIZ CloudPlay.
-
Video Compression: Efficient H.265/H.264 encoding with adaptive bitrate ensures smooth uploads and storage management.
Detailed Specifications
Feature |
Specification |
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Lens (Wide) |
2.8 mm, F/1.6 — Diagonal 132°, Horizontal 110°, Vertical 58° |
Lens (Telephoto) |
6 mm, F/1.6 — Diagonal 64°, Horizontal 56°, Vertical 29° |
Pan/Tilt Range |
Pan: 350°, Tilt: 80° |
Min Illumination |
0.5 Lux (AGC ON), 0 Lux with IR |
Night Vision |
Infrared B/W up to 30 m (98 ft) |
Video Resolution |
2880 × 1620 (3K) |
Max Frame Rate |
Up to 15 fps (adaptive) |
Network Support |
Wi‑Fi 2.4 GHz (802.11b/g/n) + RJ‑45 10/100 Mbps |
Security |
WPA‑PSK/WPA2‑PSK |
Storage |
microSD up to 512 GB; EZVIZ CloudPlay |
Power |
DC 12 V / 1.5 A, Max 12 W |
Physical Size |

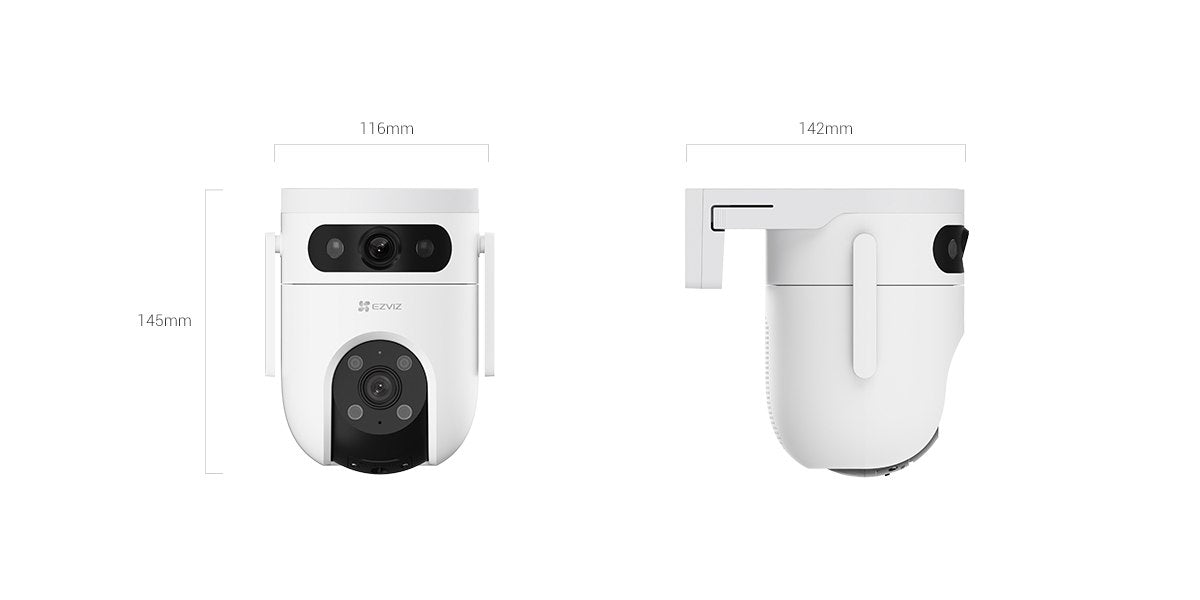

145 × 116 × 142 mm; Net weight: 668 g; Packaged: 960 g |
Operating Conditions |
–30 °C to 50 °C; Humidity < 95% (non-condensing) |
Certifications |
CE / UKCA / RoHS / WEEE / REACH |
Brand Overview
EZVIZ — a global leader in smart home surveillance, delivering innovative, AI-driven camera solutions trusted for clarity, reliability, and intelligent monitoring performance.
SKU
CS‑H9C‑R100‑8G55WKFL
Practical Use Scenarios
-
Residential Perimeters: Monitor wide outdoor areas with panoramic views and detailed zoomed tracking when movement is detected.
-
Business Entrances & Driveways: AI detection and active deterrence make it perfect for secure facility ingress.
-
Warehouses & Wareyards: Large space coverage and remote patrol reduce monitoring effort with comprehensive visibility.
Excellence for the Australian and New Zealand Market
Designed with Australian and New Zealand users in mind, the CS‑H9C adheres to regional quality standards and certifications including CE, UKCA, RoHS, and WEEE.
-
Authorized Distribution: Sourced directly from EZVIZ’s certified brand partners to ensure authenticity and compliance.
-
Brand-Backed Warranty: Any warranty or technical support is handled directly through the brand’s official channels, ensuring dependable service and adherence to local consumer protection regulations.
-
Optimized for Local Conditions: Built for wide temperature ranges and weather resistance — ideal for diverse climates across ANZ.
FAQs
Q1: What resolution does the CS‑H9C use?
A1: The CS‑H9C provides 3K resolution at 2880 × 1620, delivering sharper and more detailed footage than standard 2K or 1080p cameras. (Product Code: CS‑H9C‑R100‑8G55WKFL)
Q2: Does the camera support local storage?
A2: Yes, the CS‑H9C supports local microSD storage up to 512 GB and also offers EZVIZ CloudPlay options. (Product Code: CS‑H9C‑R100‑8G55WKFL)
Q3: Is active deterrence included?
A3: Absolutely — the camera features an adjustable siren and strobe light that activate when AI detection is triggered. (Product Code: CS‑H9C‑R100‑8G55WKFL)
Q4: Can the camera operate outdoors in different climates?
A4: Yes, the CS‑H9C is rated IP65 and operates from –30 °C to 50 °C, making it suitable for varied outdoor environments. (Product Code: CS‑H9C‑R100‑8G55WKFL)
Q5: How does the dual‑lens system work?
A5: The wide-angle lens detects motion and the pan-tilt telephoto lens automatically tracks the target—combining broad coverage with precision focus. (Product Code: CS‑H9C‑R100‑8G55WKFL)
