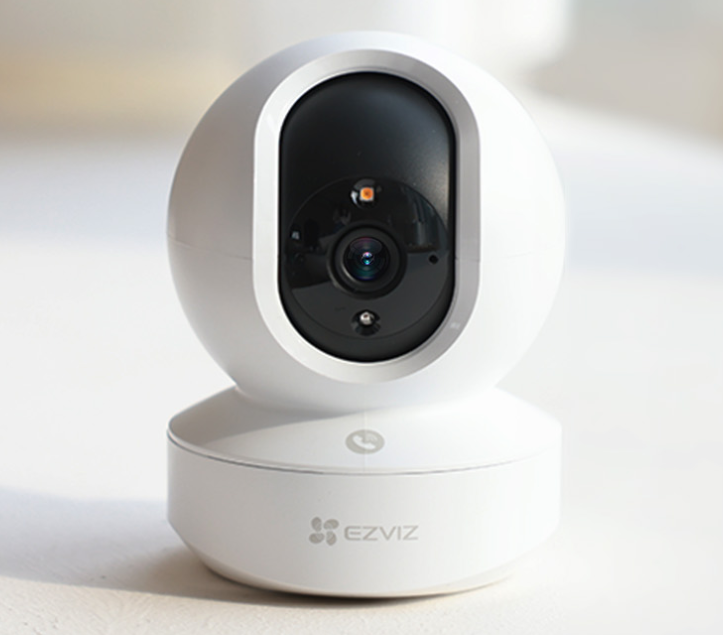

The EZVIZ TY1 Pro 2K⁺ Type-C Pan & Tilt Smart Home Camera CS-TY1-R105-1J4WF delivers sharp 4MP 2K⁺ indoor security with intelligent motion alerts, panoramic coverage, smart colour night vision, auto-zoom tracking and convenient two-way calling. Designed for homes, apartments, family spaces and small offices, this compact indoor Wi-Fi camera helps you monitor people, movement and sound with greater clarity and control.

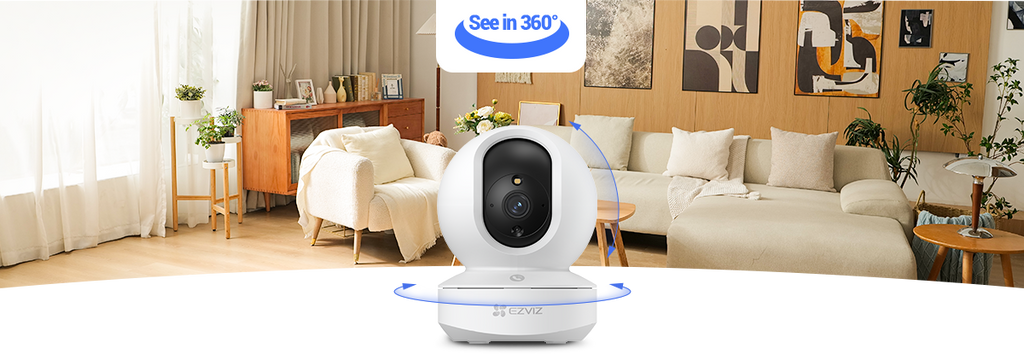

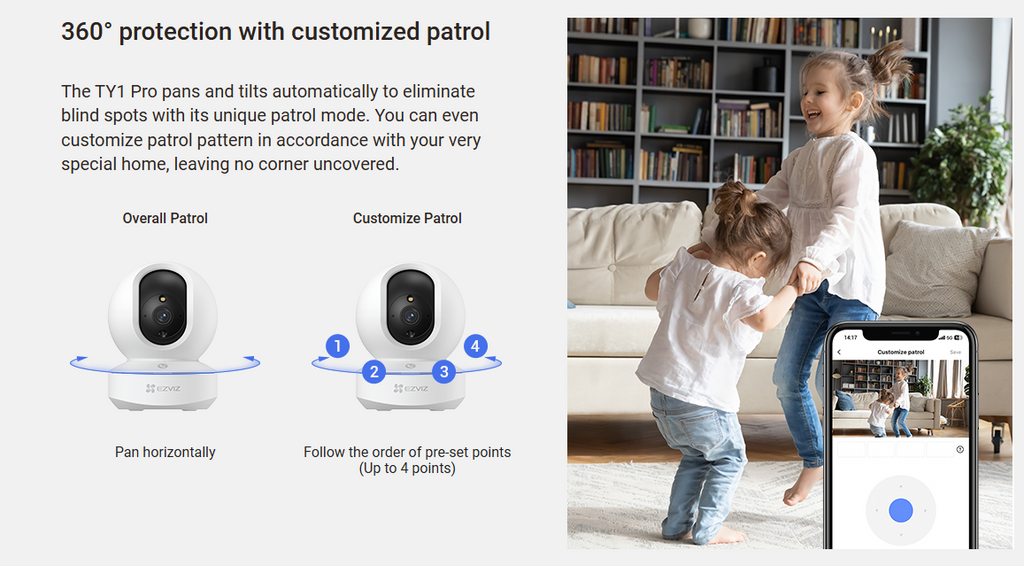

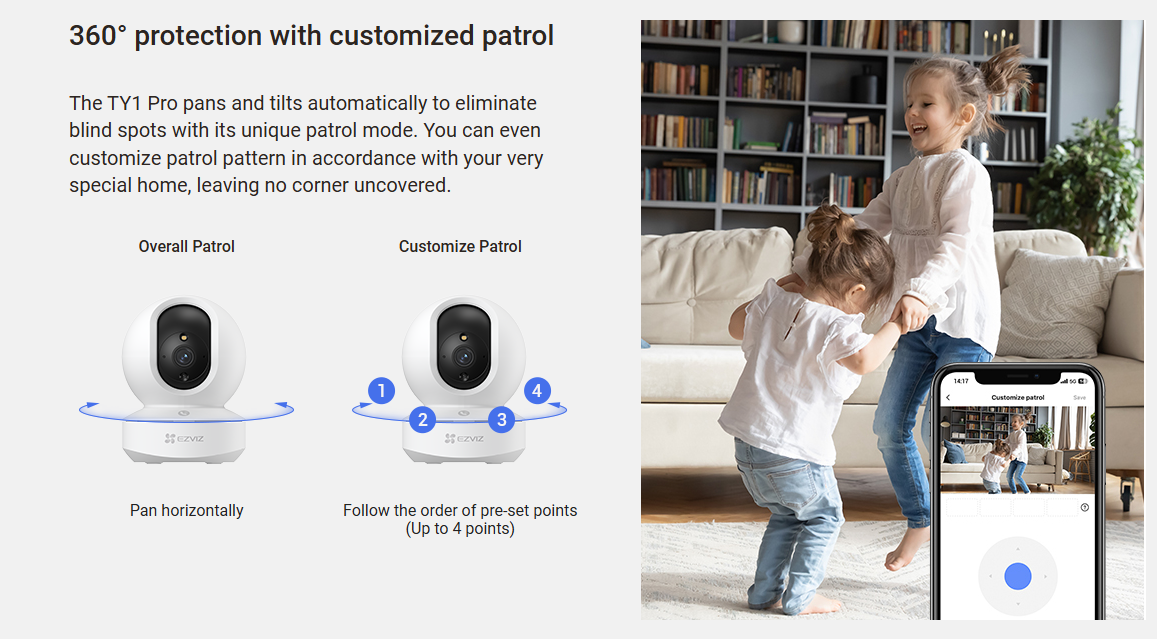

Built for smarter everyday security, the TY1 Pro 2K⁺ can rotate 340° horizontally and 55° vertically, helping reduce blind spots across rooms, living areas, nurseries, hallways and entry spaces. Its patrol mode allows the camera to pan automatically or follow up to four preset points, giving users more complete indoor coverage from one camera.
The camera supports smart human shape detection, loud noise detection, auto-zoom tracking up to 4×, and app-based controls through the EZVIZ App. It also includes a touch call button, allowing family members to easily initiate contact from the camera side.
With smart colour night vision up to 5 metres, nighttime imaging up to 10 metres, H.265 video compression and support for both 2.4GHz and 5GHz Wi-Fi, the TY1 Pro 2K⁺ is designed for reliable indoor monitoring day and night. Local microSD storage supports cards up to 512GB, with EZVIZ CloudPlay available in selected markets.
What’s Included in the Box
- EZVIZ TY1 Pro 2K⁺ Camera
- Power Adapter
- Power Cable
- Drill Template

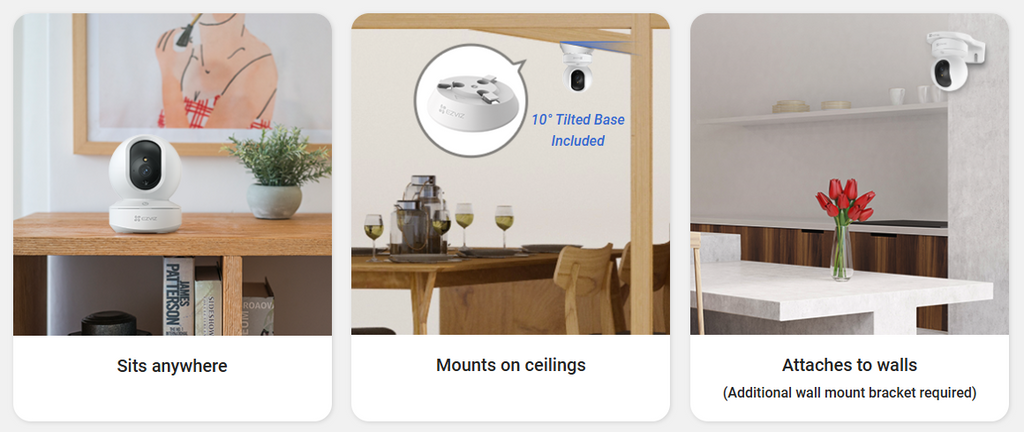

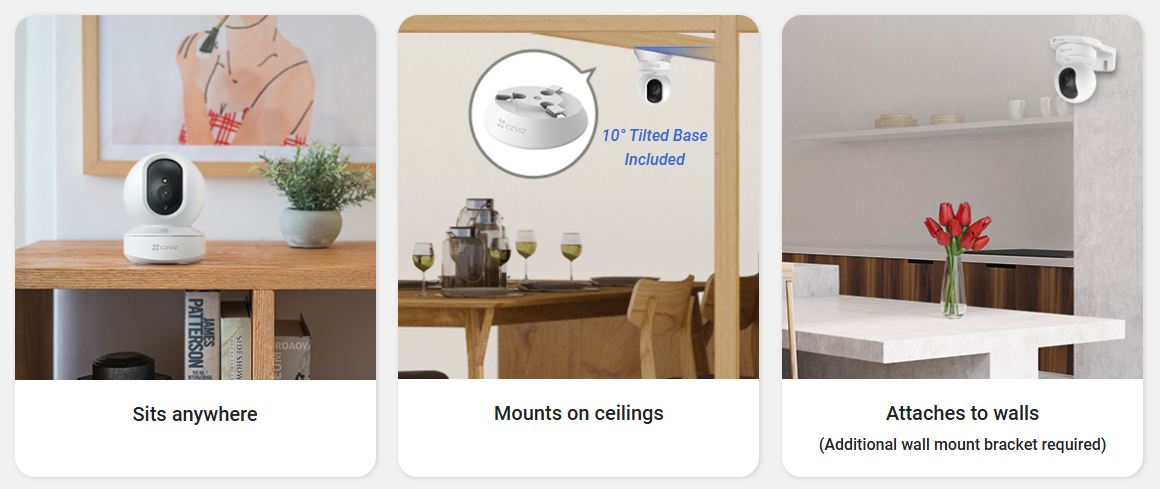

- Mounting Plate
- Screw Kit
- Regulatory Information
- Quick Start Guide
Main Features
- 4MP 2K⁺ resolution for sharper indoor video
- Pan and tilt coverage with 340° horizontal rotation and 55° vertical rotation
- Patrol mode with automatic horizontal panning
- Custom patrol support with up to 4 preset points
- Smart human shape detection to help reduce unnecessary alerts
- Auto-zoom tracking up to 4× for moving people
- Loud noise detection for sudden sound changes
- Two-way calling with touch call button

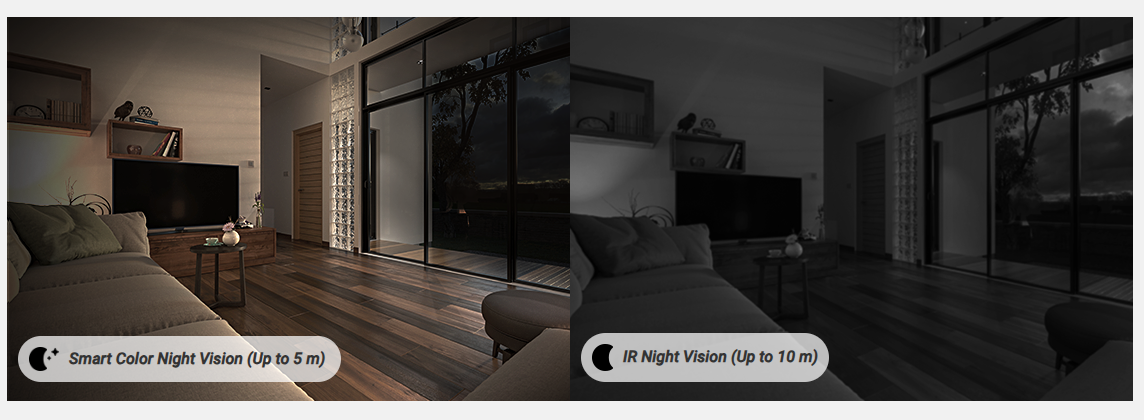

- Smart colour night vision up to 5 metres
- Nighttime imaging up to 10 metres
- Sleep mode for privacy protection
- H.264 / H.265 video compression
- H.265 compression helps reduce storage and bandwidth use compared with H.264 under EZVIZ lab conditions
- Dual-band Wi-Fi support: 2.4GHz and 5GHz
- Wired network support via RJ45 Ethernet port
- MicroSD card support up to 512GB
- EZVIZ CloudPlay storage support in selected markets
- TLS data transmission encryption and AES-128 data encryption listed by EZVIZ
- EZVIZ App support for live view, alerts, remote control, detection zones, video history and connected home use
Detailed Specifications
| Specification |
Details |
| Brand |
EZVIZ |
| Product Name |
TY1 Pro 2K⁺ Type-C Pan & Tilt Smart Home Camera |
| Product Code / Model |
CS-TY1-R105-1J4WF |
| Camera Type |
Indoor Pan & Tilt Smart Home Camera |
| Resolution |
4MP / 2K⁺ |
| Max. Resolution |
2560 × 1440 |
| Image Sensor |
F1.6 @ 1/3" Progressive Scan CMOS |
| Lens |
4mm |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto switch |
| Shutter Speed |
Self-adaptive shutter |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Video Compression |
H.264 / H.265 |
| Video Bit Rate |
Adaptive bit rate |
| Frame Rate |
Max. 30fps; self-adaptive during network transmission |
| Horizontal Rotation |
340° |
| Vertical Rotation |
55° |
| Smart Alarm |
Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
| Patrol Mode |
Overall Patrol and Custom Patrol |
| Preset Patrol Points |
Up to 4 points |
| Auto-Zoom Tracking |
Up to 4× |
| Night Vision |
Smart colour night vision up to 5m; nighttime imaging up to 10m |
| Wi-Fi Pairing |
AP pairing |
| Wireless Standard |
IEEE802.11a/b/g/n |
| Wi-Fi Frequency |
2.4GHz: 2400–2483.5MHz; 5GHz: 5150–5250MHz |
| Channel Bandwidth |
20MHz |
| Wi-Fi Security |
WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wired Network |
RJ45 × 1, 10M/100M self-adaptive Ethernet port |
| Storage |
MicroSD card slot, max. 512GB |
| Cloud Storage |
EZVIZ CloudPlay, availability varies by market |
| Power Interface |
Type-C |
| Power Supply |
DC 5V / 2A |
| Power Consumption |
Max. 8W |
| Operating Conditions |
-10°C to 45°C; humidity 95% or less, non-condensing |
| Dimensions |
88 × 88.2 × 119 mm |
| Packaging Dimensions |
103 × 103 × 168 mm |
| Bare Weight |
218g |
| Certifications Listed by EZVIZ |
CE / UL / WEEE / REACH / RoHS / UKCA |
Specifications are based on the official EZVIZ Australia product page for the TY1 Pro 2K⁺ Type-C.
Warranty Information
Warranty coverage may vary by country, supplier and purchase channel. The EZVIZ Australia product page references a one-year warranty for purchases through the EZVIZ Store, but AU/NZ customers should confirm final warranty handling with the authorised retailer, distributor or brand representative before purchase.
Brand Description
EZVIZ is a smart home security brand offering indoor cameras, outdoor cameras, smart entry products and connected home devices. Its products are designed to help users monitor, protect and manage their homes through simple app-based control and smart security features.
SKU
EZVIZ-TY1-PRO-2KPLUS-TYPEC
Alternative Manufacturer Model: CS-TY1-R105-1J4WF
Practical Use Scenarios
Home security monitoring: Use the TY1 Pro 2K⁺ to monitor indoor spaces such as living rooms, entryways, hallways and stair areas.
Family care: Keep an eye on children, elderly family members or pets with live view, two-way calling and loud noise detection.
Nursery and baby monitoring: Receive sound-based alerts when noise levels change suddenly, such as crying or unexpected sounds.
Apartment and rental property monitoring: Install the camera indoors for flexible, app-controlled coverage without requiring a complex security system.
Small office monitoring: Monitor reception spaces, office corners, stock rooms or work areas with pan and tilt coverage and smart alerts.
Pet monitoring: Check in remotely, talk through the camera and follow movement using auto-zoom tracking.
Datasheets & Downloadable Resources
- Official EZVIZ TY1 Pro 2K⁺ Type-C Product Page
- TY1 Pro 2K⁺ Specification Resource
- Quick Start Guide
- EZVIZ Support Centre
- EZVIZ App Download Resource
- CloudPlay storage information, subject to local availability
Excellence for the Australian and New Zealand Market
The EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF is listed on the EZVIZ Australia product website, making it suitable for AU-focused product catalogues where customers require indoor smart security, dual-band Wi-Fi, app alerts, local microSD storage and reliable Type-C power connectivity.
For the Australian and New Zealand market, product compliance, plug type, power adapter suitability, local warranty terms and CloudPlay availability should be confirmed through the authorised EZVIZ supply channel. EZVIZ lists CE, UL, WEEE, REACH, RoHS and UKCA certifications for this model; NDSS approval is not listed and is not applicable to this smart camera category. Warranty support should be handled through authorised brand representatives, distributors or approved retailers.
FAQs
1. What is the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF used for?
The EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF is used for indoor smart home monitoring, offering 2K⁺ video, pan and tilt viewing, human detection, noise alerts, two-way calling and remote access through the EZVIZ App.
2. What resolution does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF record in?
The EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF records at up to 2560 × 1440, delivering 4MP 2K⁺ image detail.
3. Does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF support pan and tilt?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports pan and tilt coverage with 340° horizontal rotation and 55° vertical rotation.
4. Does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF have human detection?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports smart human shape detection to help identify people and reduce unnecessary alerts.
5. Does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF support auto tracking?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports auto-zoom tracking up to 4× to follow moving people.
6. Does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF support dual-band Wi-Fi?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports both 2.4GHz and 5GHz Wi-Fi. The Wi-Fi band must be selected during setup and cannot be changed afterward without resetting the setup process.
7. Can the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF use a microSD card?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports microSD cards up to 512GB. The card must be purchased separately.
8. Does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF support cloud storage?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports EZVIZ CloudPlay storage, but availability depends on the local market.
9. Does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF have night vision?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports smart colour night vision up to 5 metres and nighttime imaging up to 10 metres.
10. Does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF support two-way calling?
Yes, the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF supports two-way calling and includes a touch call button for easy family communication.
11. What power connection does the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF use?
The EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF uses a Type-C power interface with DC 5V / 2A power supply.
12. Is the EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF suitable for Australian and New Zealand homes?
The EZVIZ TY1 Pro 2K⁺ Type-C CS-TY1-R105-1J4WF is suitable for indoor smart home monitoring, but AU/NZ buyers should confirm local adapter type, compliance, CloudPlay availability and warranty support with the authorised EZVIZ supply channel before purchase.
