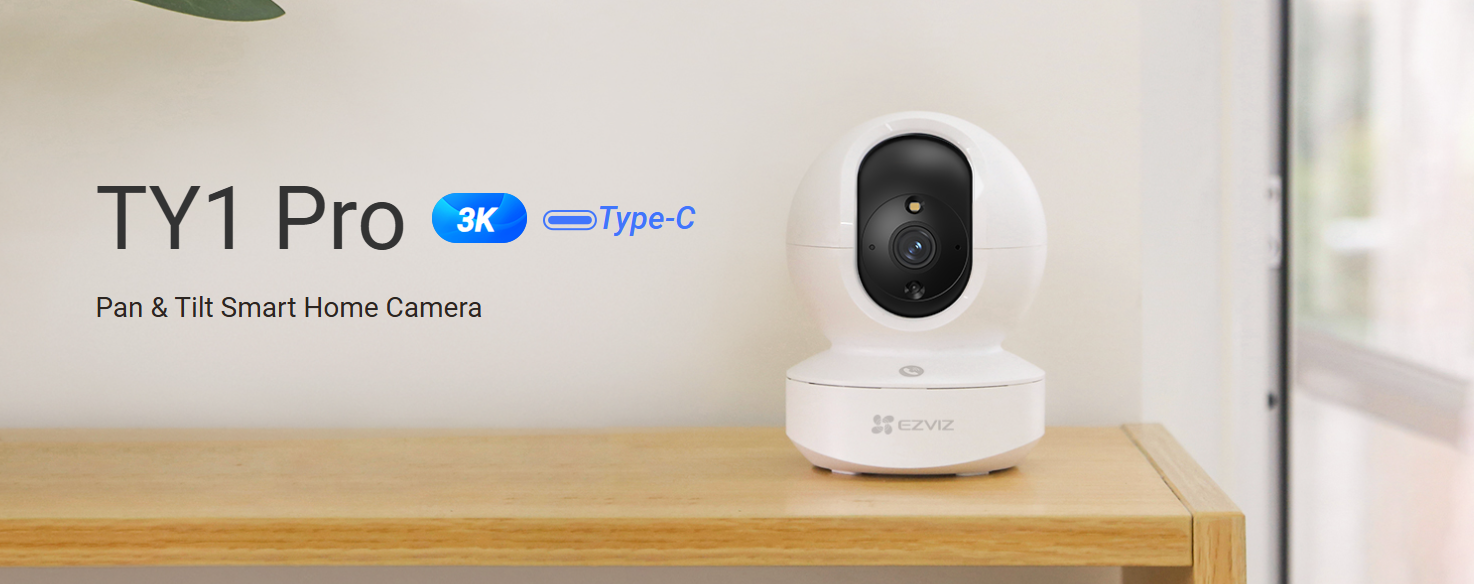

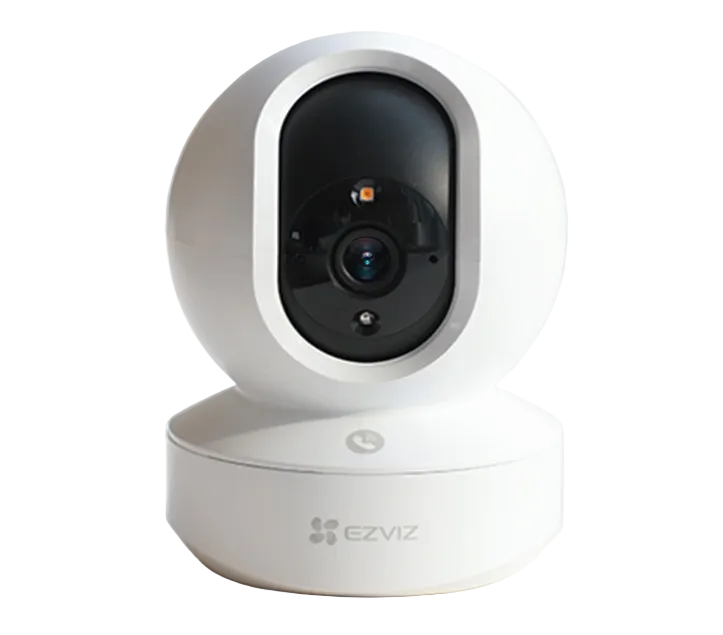

The EZVIZ TY1 Pro 3K Type-C Pan & Tilt Smart Home Camera CS-TY1-R105-1J5WF delivers sharp 3K indoor security monitoring with intelligent human detection, panoramic pan-and-tilt coverage, smart colour night vision, loud noise detection, auto-zoom tracking and convenient two-way calling. Designed for home security, family care, baby monitoring, pet monitoring and small indoor spaces, this smart Wi-Fi camera helps you see, hear and respond from anywhere through the EZVIZ App.
With 2880 × 1620 maximum resolution, the TY1 Pro 3K captures clearer indoor detail than standard Full HD cameras, helping users monitor key areas such as living rooms, hallways, nurseries, entry areas and home offices. Its motorised design provides 340° horizontal rotation and 55° vertical rotation, while patrol mode can automatically scan the room or follow up to four preset patrol points.
The TY1 Pro 3K is built for smarter notifications. It supports motion detection, smart human shape detection, loud noise detection and patrol mode detection, helping users focus on important activity rather than every small movement. The camera can also automatically zoom up to 4× to follow a moving person, giving a better view of key details while maintaining the wider scene.
For everyday convenience, the camera includes two-way calling with a touch button, so family members can easily contact you from the camera side. It also supports smart colour night vision up to 5 metres, infrared nighttime imaging up to 10 metres, H.265 video compression, 2.4GHz / 5GHz dual-band Wi-Fi, wired Ethernet networking, local microSD storage up to 512GB, and EZVIZ CloudPlay storage where available.
What’s Included in the Box
- EZVIZ TY1 Pro 3K Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- EZVIZ Screw Kit
- Regulatory Information
- Quick Start Guide
Box contents are listed by EZVIZ for model CS-TY1-R105-1J5WF.
Main Features
-
3K indoor video resolution for sharper smart home monitoring
- 2880 × 1620 maximum resolution
-

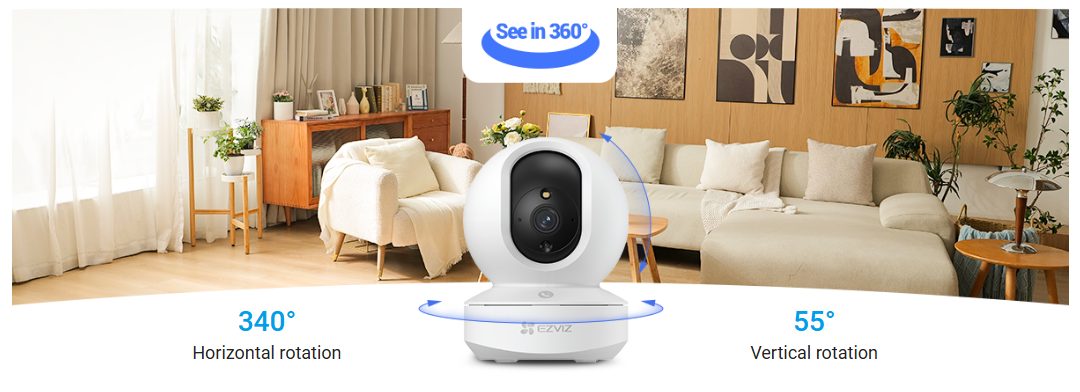

Pan and tilt panoramic coverage with 340° horizontal rotation and 55° vertical rotation
-

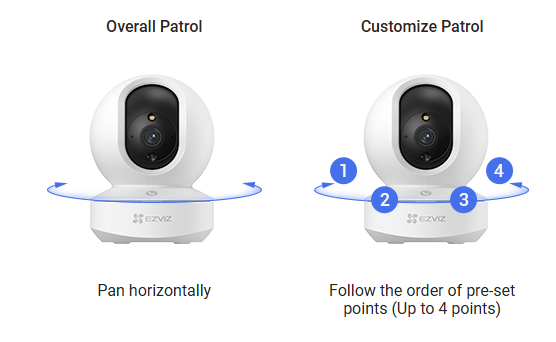

Patrol mode with overall patrol and custom patrol support
- Custom patrol with up to 4 preset points
-
Smart human shape detection to help reduce unnecessary alerts
-
Auto-zoom tracking up to 4× for moving people
-
Loud noise detection for sudden sound changes such as crying, alarms or unusual noise
-
Two-way calling with touch button for simple family communication
- Smart colour night vision up to 5 metres
- Nighttime imaging up to 10 metres
- Sleep mode for privacy protection
-
H.265 video technology for efficient video storage and streaming
- 2.4GHz and 5GHz dual-band Wi-Fi support
-
RJ45 wired Ethernet port for flexible network setup
- MicroSD card support up to 512GB
-
EZVIZ CloudPlay storage support, subject to local market availability
-
EZVIZ App support for instant alerts, remote control, live view, detection zones, video history and connected home use
-
TLS data transmission encryption and AES-128 data encryption listed by EZVIZ
Feature information is based on the official EZVIZ TY1 Pro 3K product page and datasheet.
Detailed Specifications
| Specification |
Details |
| Brand |
EZVIZ |
| Product Name |
TY1 Pro 3K Type-C Pan & Tilt Smart Home Camera |
| Product Code / Model |
CS-TY1-R105-1J5WF |
| Camera Type |
Indoor Pan & Tilt Smart Home Camera |
| Max. Resolution |
2880 × 1620 |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Lens |
4mm @ F1.6 |
| Viewing Angle |
87° horizontal, 53° vertical, 104° diagonal |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto switch |
| Shutter Speed |
Self-adaptive shutter |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Video Compression |
H.264 / H.265 |
| Video Bit Rate |
Adaptive bit rate |
| Frame Rate |
Self-adaptive during network transmission |
| Smart Alarm |
Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
| Horizontal Rotation |
340° |
| Vertical Rotation |
55° |
| Auto-Zoom Tracking |
Up to 4× |
| Night Vision |
Smart colour night vision up to 5m; IR nighttime imaging up to 10m |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Local Storage |
MicroSD card slot, up to 512GB |
| Cloud Storage |
EZVIZ CloudPlay, availability varies by market |
| Power Interface |
Type-C |
| Wired Network |
RJ45 × 1, 10M/100M self-adaptive Ethernet port |
| Wi-Fi Standard |
IEEE802.11a/b/g/n |
| Wi-Fi Frequency Range |
2.4GHz: 2400–2483.5MHz; 5GHz: 5150–5250MHz |
| Channel Bandwidth |
20MHz |
| Wi-Fi Security |
WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b 11Mbps, 11g 54Mbps, 11n HT20 MCS7, 11a 54Mbps, 11n HT20 MCS7 |
| Output Power |
19 dBm EIRP |
| Antenna Gain |
1.9 dBi |
| Power Supply |
DC 5V / 2A |
| Power Consumption |
Max. 8W |
| Operating Conditions |
-10°C to 45°C; humidity 95% or less, non-condensing |

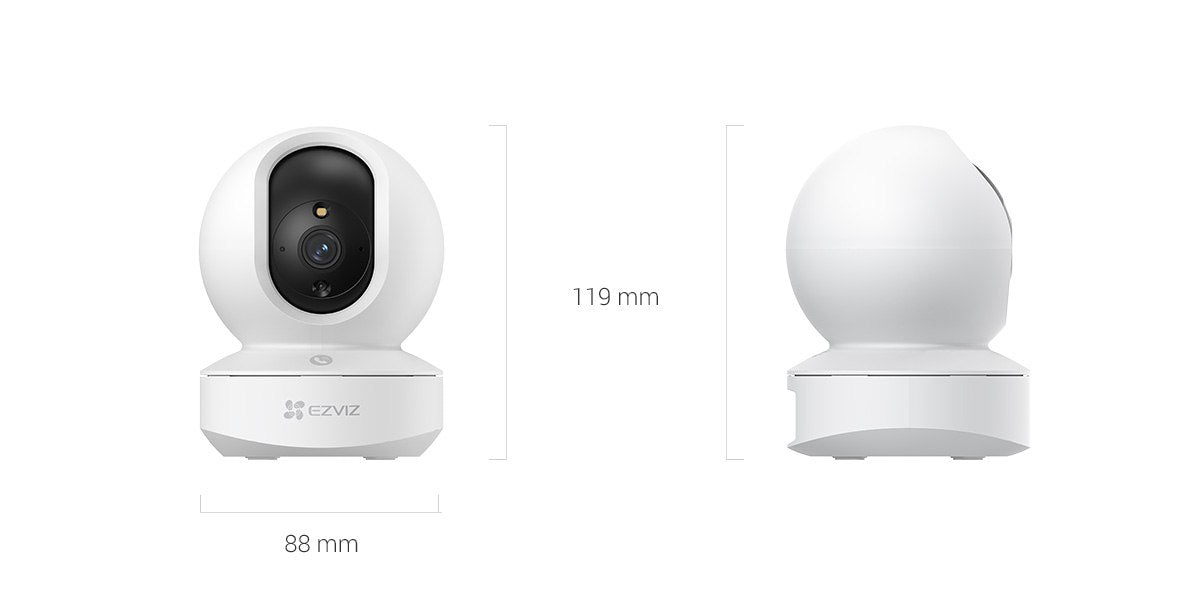

| Dimensions |
88 × 88.2 × 119 mm |
| Packaging Dimensions |
103 × 103 × 168 mm |
| Bare Weight |
213g |
| Certifications Listed by EZVIZ |
CE / UL / WEEE / REACH / RoHS |
Specifications are sourced from the official EZVIZ TY1 Pro 3K product page and datasheet.
Warranty Information
Warranty coverage may vary by country, supplier and purchase channel. Customers should retain proof of purchase and follow the warranty process provided by the authorised EZVIZ retailer, distributor or brand representative. For Australian and New Zealand sales, final warranty terms should be confirmed with the authorised local supply channel before purchase.
Brand Description
EZVIZ is a smart home security brand offering connected cameras, smart entry products and app-based home protection solutions. Its product range is designed to help users monitor, protect and manage indoor and outdoor spaces through accessible smart security technology.
SKU
EZVIZ-TY1-PRO-3K-TYPEC
Alternative Manufacturer Model: CS-TY1-R105-1J5WF
Practical Use Scenarios
Home security monitoring: Monitor living rooms, hallways, entry areas and shared indoor spaces with 3K clarity and pan-and-tilt coverage.
Baby and child monitoring: Use loud noise detection, night vision, two-way calling and app alerts to stay aware of activity in nurseries or play areas.
Elderly family care: Check in remotely and allow family members to contact you using the touch call button.
Pet monitoring: View pets from the EZVIZ App, speak through the camera and follow movement with auto-zoom tracking.
Apartment monitoring: Use local microSD recording or CloudPlay where available for convenient indoor security without a complex installation.
Small office monitoring: Monitor reception areas, office rooms, storerooms or customer-facing spaces with smart activity detection.
Datasheets & Downloadable Resources
- Official EZVIZ TY1 Pro 3K Product Page
- EZVIZ TY1 Pro 3K Datasheet
- EZVIZ TY1 Pro 3K Quick Start Guide
- EZVIZ Support Centre
- EZVIZ App Download Resource
- EZVIZ CloudPlay information, subject to local availability
EZVIZ notes that the Wi-Fi frequency band must be selected during setup, local storage cards are purchased separately, and CloudPlay availability varies by market.
Excellence for the Australian and New Zealand Market
The EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF is suitable for Australian and New Zealand smart home catalogues where customers are looking for higher-resolution indoor security, dual-band Wi-Fi, app-based monitoring, flexible local storage and easy family communication. Its Type-C power input, RJ45 wired network option and microSD support make it practical for homes, apartments, rental properties and small business spaces.
For AU/NZ listings, confirm local plug type, electrical suitability, radio compliance, CloudPlay availability and warranty terms with the authorised EZVIZ supply channel before sale. EZVIZ lists CE, UL, WEEE, REACH and RoHS certifications for this model; NDSS approval is not listed and is not applicable to this smart camera category. Warranty support should be handled through authorised brand representatives, distributors or approved retailers.
FAQs
1. What is the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF used for?
The EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF is used for indoor smart home monitoring, including home security, baby monitoring, pet monitoring, family care and small office surveillance.
2. What resolution does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF support?
The EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports up to 2880 × 1620 video resolution for sharp 3K indoor viewing.
3. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF support pan and tilt viewing?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports motorised pan and tilt coverage with 340° horizontal rotation and 55° vertical rotation.
4. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF have smart human detection?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports smart human shape detection to help identify human activity and reduce unnecessary alerts.
5. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF support auto-zoom tracking?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF can automatically zoom up to 4× to follow a moving person.
6. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF have loud noise detection?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports loud noise detection, which can help alert users to sudden sound changes such as crying, alarms or unexpected noise.
7. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF support two-way calling?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports two-way calling with a touch button, allowing family members to contact the app user from the camera side.
8. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF have night vision?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports smart colour night vision up to 5 metres and infrared nighttime imaging up to 10 metres.
9. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF support 2.4GHz and 5GHz Wi-Fi?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports both 2.4GHz and 5GHz Wi-Fi, with the frequency band selected during device setup.
10. Can the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF use a microSD card?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports microSD cards up to 512GB. The microSD card is purchased separately.
11. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF support EZVIZ CloudPlay?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF supports EZVIZ CloudPlay storage, but availability depends on the local market.
12. What power connection does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF use?
The EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF uses a Type-C power interface with DC 5V / 2A power supply.
13. Does the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF support wired networking?
Yes, the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF includes an RJ45 10M/100M self-adaptive Ethernet port for wired network connection.
14. Is the EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF suitable for Australian and New Zealand homes?
The EZVIZ TY1 Pro 3K Type-C CS-TY1-R105-1J5WF is suitable for indoor smart home monitoring in AU/NZ settings, but customers should confirm local plug type, compliance, CloudPlay availability and warranty support with the authorised EZVIZ supply channel before purchase.
