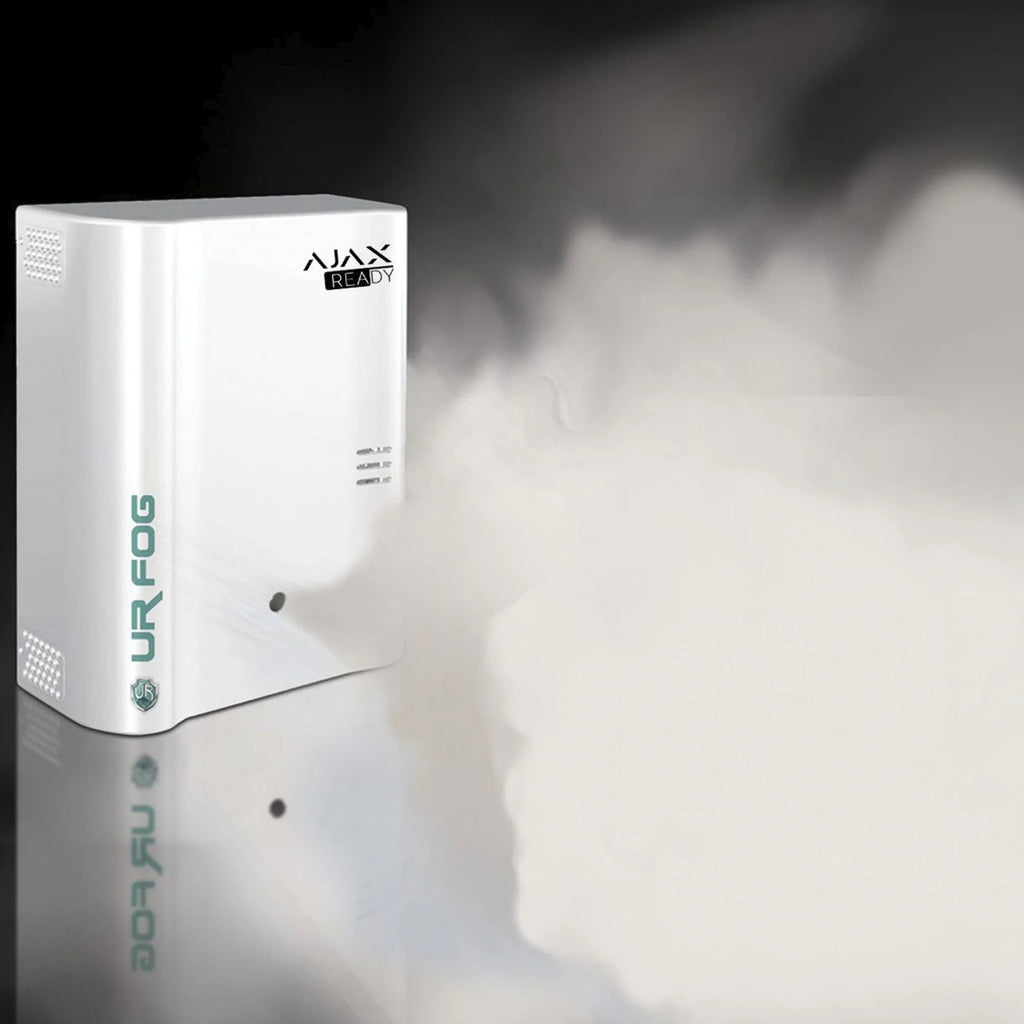

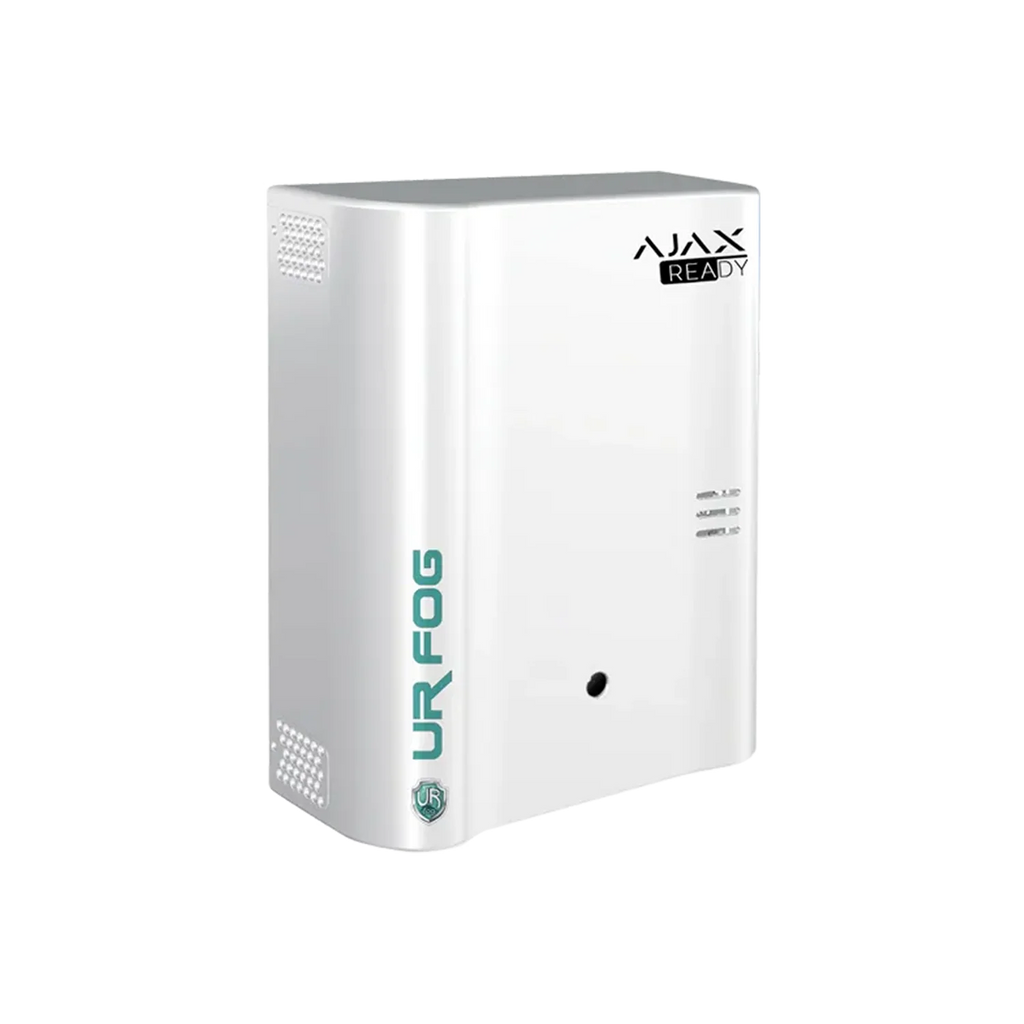

The FPU03ESM200AR UR Fog Modular 200 AJAX Ready Security Fogging System is a high-performance anti-intrusion fog generator designed to rapidly protect residential, commercial, and retail environments by instantly eliminating visibility during a break-in attempt. Engineered for seamless integration with Ajax alarm systems, this advanced fogging unit can fill up to 200m³ with visibility below 1 metre in just 28 seconds, creating an immediate barrier against theft and intrusion. Featuring wireless Ajax Ready compatibility, programmable shooting duration, low power consumption, and support for remote activation, the Modular 200 provides professional-grade security protection for modern installations across Australia and New Zealand.
Its compact cabinet design, flexible mounting options, and intelligent control capabilities make it ideal for shops, offices, warehouses, pharmacies, and high-value asset protection environments.
What’s Included in the Box
- UR Fog Modular 200 AJAX Ready Fogging System
- 500 ml Fog Fluid Bag
- Installation Kit
- Quick Start Guide
Main Features
Rapid Fog Deployment
- Covers up to 200m³ with visibility below 1 metre
- Full fog deployment in only 28 seconds
AJAX Ready Integration
- Designed for seamless integration with Ajax alarm systems
- Supports wireless activation methods through Ajax ecosystem
Advanced Anti-Intrusion Protection
- Creates immediate zero-visibility conditions during alarm events
- Helps deter theft and reduce intruder movement
Flexible Installation Options
- Vertical wall mounting supported
- Horizontal mounting supported
- Optional desk stand available
Low Power Consumption
- Efficient insulated heating system
- Over 1 hour operation without mains power
Programmable Fog Emission
- Adjustable shot duration in seconds
- Remote arming and triggering capabilities
Professional Communication Interfaces
- RS232 serial interface
- Standard UR Fog communication protocol
- Optional Active Cloud LAN/WiFi control board
Technical Specifications
| Specification |
Details |
| Product Code |
FPU03ESM200AR |
| Product Name |
UR Fog Modular 200 AJAX Ready |
| Fog Coverage (<1m visibility) |
200 m³ |
| Fog Coverage (>1.5m visibility) |
600 m³ |
| Maximum Emission Time |
28 seconds |
| Total Discharge Capacity |
850 m³ |
| Fog Fluid Capacity |
500 ml |
| Number of Fluid Bags |
1 |
| Mounting Options |
Vertical / Horizontal |
| Communication |
RS232 + UR Fog Protocol |
| Power Supply |
230V or 120V |
| Average Consumption |
37W |
| Heater Startup Power |
170W |
| Backup Battery Support |
Yes (optional) |
| Operating Time Without Mains |
Over 1 hour |
| Heating Time |
Approx. 2 hours |
| Dimensions |
30 × 13 × 39 cm |
| Weight |
7.5 kg |
| Colour Options |
White / Black |
| Operating Environment |
Indoor |
Technical specifications sourced from the official UR Fog Modular 200 technical documentation.
Practical Use Scenarios
Retail Store Protection
Rapidly fills stores with dense fog during break-in attempts, reducing visibility and preventing theft.
Jewellery & Luxury Retail Security
Ideal for protecting high-value merchandise and display areas.
Warehouse & Commercial Security
Provides immediate intrusion response for warehouses, stockrooms, and office environments.
Integrated AJAX Alarm Systems
Works seamlessly with Ajax motion detectors, opening sensors, and panic buttons for automated or manual activation.
Anti-Robbery Applications
Can be manually triggered using Ajax panic buttons and remote devices during emergency situations.
Warranty Information
Manufacturer Warranty: 24 Months
About UR Fog
UR Fog is an internationally recognized manufacturer of advanced security fogging systems, specializing in rapid anti-intrusion solutions designed to stop theft and unauthorized access by instantly creating zero-visibility environments.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels and optimized for professional security installations throughout Australia and New Zealand.
Key advantages include:
- Genuine UR Fog product
- AJAX Ready compatibility for modern smart security systems
- Compliant with current European standards
- Certified fog fluid for safe operation
- Professional installer-friendly integration
- Warranty support through authorized suppliers
This ensures customers receive a high-quality, reliable, and professionally supported fogging security solution for residential and commercial applications across Australia and New Zealand.
Datasheets & Resources
FAQs – FPU03ESM200AR
1. What area does the FPU03ESM200AR UR Fog Modular 200 protect?
The FPU03ESM200AR UR Fog Modular 200 can cover up to 200m³ with visibility below 1 metre in only 28 seconds.
2. Is the FPU03ESM200AR compatible with Ajax alarm systems?
Yes, the FPU03ESM200AR is fully AJAX Ready and designed for integration with Ajax security systems.
3. How quickly does the FPU03ESM200AR deploy fog?
The FPU03ESM200AR can generate dense anti-intrusion fog in as little as 28 seconds.
4. Can the FPU03ESM200AR operate during power outages?
Yes, the FPU03ESM200AR supports backup battery operation and can function for over 1 hour without mains power.
5. Can the FPU03ESM200AR be mounted on a wall or ceiling?
Yes, the FPU03ESM200AR supports both vertical and horizontal mounting configurations.
6. Does the FPU03ESM200AR support remote control and monitoring?
Yes, the FPU03ESM200AR supports optional Active Cloud LAN/WiFi connectivity for remote monitoring and control.
