High‑performance, ANSI footprint electric strike designed for residential and light commercial doors. offering weather resistance, superior holding strength (1300 kg), and versatile Power‑to‑Lock/Power‑to‑Release functionality. Ideal for secure entry systems where reliability meets compliance with Australian and British fire standards.

📦 Product Description

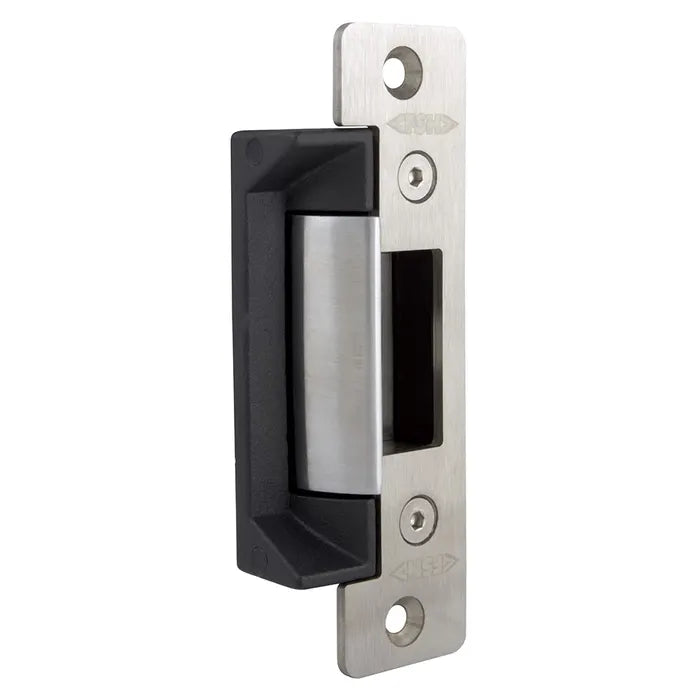

The FSH FES10 Electric Strike (Non‑Monitored, Part No. FES10) is a compact, ANSI footprint strike engineered for reliable access control in light commercial and residential installations. Built with a stainless steel faceplate and keeper plus a patented Barbell mechanism, this strike is easily converted between Power‑to‑Lock (PTL) and Power‑to‑Release (PTR). The robust design supports doors with up to 15 mm latch depth and delivers a holding strength of over 1300 kg, providing exceptional security performance.

Weather‑resistant to IP56, the FES10 strike is ideal for both indoor and outdoor use. Its low power consumption and compatibility with standard voltages make it perfectly suited to modern access control systems. Backed by a 5‑year warranty and engineered to meet Australian and British fire test standards, the FES10 strike is a dependable locking solution for secure entry requirements.

📋 What’s Included

• 1 × FSH FES10 Electric Strike (Non‑Monitored)

• 1 × Installation template

• 1 × Fixing screws and hardware pack

• 1 × Warranty card

• 1 × Instruction sheet

⭐ Main Features

• ANSI footprint design for easy retrofit

• Weather resistant IP56 (non‑monitored model only)

• Superior holding strength up to 1300 kg

• Patented Barbell mechanism for simple PTL/PTR change‑over

• Stainless steel faceplate and keeper

• Pre‑drilled for extension lips

• Low power consumption

• Compatible with latch depths up to 15 mm

• 5‑year manufacturer warranty

📐 Detailed Specifications

🧰 Practical Use Scenarios

• Residential entry access control for front/back doors

• Light commercial buildings, offices, and retail

• Retrofit installations replacing existing ANSI footprint strikes

• Weather‑exposed doors requiring IP56 protection

• Secure perimeter entrances with high holding strength needs

🔧 Accessories and Compatible Parts

• FES10‑EL15 – 15 mm Extension Lip

• FES10‑EL25 – 25 mm Extension Lip

• FES10‑EL50 – 50 mm Extension Lip

• FES10‑EL75 – 75 mm Extension Lip
  (Extension lips help adapt the strike to wider frames.)

Datasheets

Datasheet

📦 Warranty

5‑Year Manufacturer Warranty: Covers defects in materials and workmanship when installed according to instructions and used under normal conditions.

🏷 SKU

FES10

🇦🇺 Excellence for the Australian & New Zealand Market

The FSH FES10 Electric Strike (FES10) is engineered to meet Australian quality standards and British fire test approvals, making it compliant with local building and safety requirements. This product is sourced from authorized brand representatives, with warranty support and service available directly through certified partners in Australia and NZ. Its weather‑resistant IP56 rating ensures suitability for outdoor installations subject to the elements — a key requirement for Australasian climates.

❓ Frequently Asked Questions

Q1. What voltage does the FES10 (SKU: FES10‑NSW‑AU‑01) electric strike operate on?
A1. The FES10 electric strike supports dual voltage operation (12–24 V AC/DC), compatible with most access control systems.

Q2. Is the FES10 (SKU: FES10‑NSW‑AU‑01) weatherproof for external doors?
A2. Yes, the FES10 model is rated IP56 weather resistant, suitable for external door installations.

Q3. What is the holding strength of the FES10 (SKU: FES10‑NSW‑AU‑01) strike?
A3. The FES10 delivers a holding strength of over 1300 kg, providing high security.

Q4. Can the FES10 (SKU: FES10‑NSW‑AU‑01) be used with a 15 mm deep latch?
A4. Yes, the FES10 is compatible with door latch depths up to 15 mm.

Q5. What warranty comes with the FES10 (SKU: FES10‑NSW‑AU‑01)?
A5. The FES10 strike carries a 5‑year manufacturer warranty.
