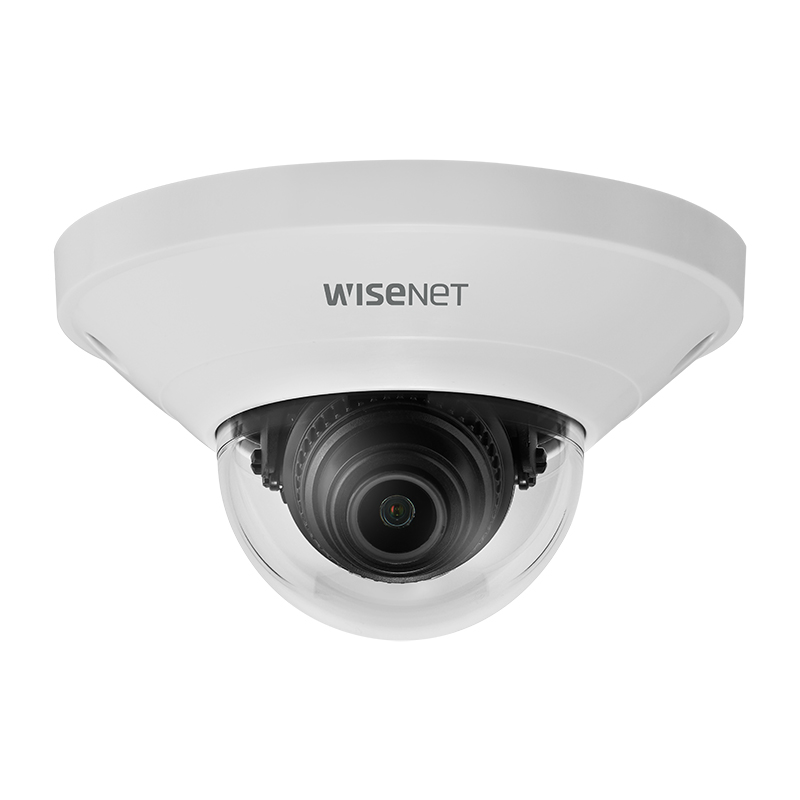

The Hanwha QND-8011 and QND-8021 are compact, high-resolution 5MP indoor network dome cameras designed for reliable surveillance in retail, commercial, and small business environments. Offering fixed lens options (2.8mm or 4mm), True WDR (120dB), and efficient H.265 compression with WiseStream II, these models deliver crystal-clear imaging with reduced bandwidth and storage requirements. Engineered with built-in analytics, hallway view support, and microSD storage capabilities, they are ideal for applications where space-saving form factors and dependable performance are critical.
What’s Included in the Box
Main Features
-
5 Megapixel resolution (2592 × 1944) for ultra-detailed video
-
Choice of fixed lenses: 2.8mm (QND-8011) or 4.0mm (QND-8021)
-
Excellent low-light performance: 0.15 Lux (color)
-
True WDR (120dB) for backlight and contrast handling
-
Triple codec support: H.265, H.264, MJPEG
-
Smart compression with WiseStream II
-
Built-in analytics: Motion Detection, Tampering, Defocus Detection
-
Business Intelligence feature: People Counting
-
Micro SD/SDHC/SDXC slot (up to 128GB) for edge storage
-
Hallway View (90°/270°) and video rotation
-
PoE-powered (IEEE802.3af Class 2)
-
Compact housing with IP42 and IK08 protection ratings
Detailed Specifications
| Specification |
QND-8011 |
QND-8021 |
| Lens |
2.8mm Fixed |
4.0mm Fixed |
| Aperture |
F2.0 |
F1.6 |
| Field of View (H/V/D) |
104.4° / 76.7° / 136.1° |
80.1° / 58.0° / 105.8° |
| Sensor |
1/2.8" 5MP CMOS |
1/2.8" 5MP CMOS |
| Resolution |
2592 × 1944 (5MP) |
2592 × 1944 (5MP) |
| Framerate |
Max. 30fps @ 5MP (H.265/H.264) |
Max. 30fps @ 5MP (H.265/H.264) |
| Minimum Illumination |
0.15 Lux (Color, 1/30s) |
0.15 Lux (Color, 1/30s) |
| Video Compression |
H.265, H.264, MJPEG |
H.265, H.264, MJPEG |
| Smart Codec |
WiseStream II |
WiseStream II |
| WDR |
120dB True WDR |
120dB True WDR |
| Storage |
Micro SD/SDHC/SDXC (Max. 128GB) |
Micro SD/SDHC/SDXC (Max. 128GB) |
| Analytics |
Motion, Tampering, Defocus Detection |
Motion, Tampering, Defocus Detection |
| Business Intelligence |
People Counting |
People Counting |
| Power |
PoE (IEEE802.3af, Class 2) |
PoE (IEEE802.3af, Class 2) |
| Power Consumption |
Max. 5W, Typical 4W |
Max. 5W, Typical 4W |
| Operating Temp |
–10°C to +40°C |
–10°C to +40°C |
| Protection |
IP42 (Dust/Water), IK08 (Impact) |
IP42 (Dust/Water), IK08 (Impact) |
| Dimensions |
Ø99 × 56mm |
Ø99 × 56mm |
| Weight |
165g |
165g |
Warranty Information
The Hanwha QND-8011 and QND-8021 come with a 3-year limited manufacturer warranty, covering defects in materials and workmanship under normal use. Warranty claims are processed through authorized Hanwha distributors or service centers.
Brand Description
Hanwha Vision (formerly Hanwha Techwin) is a trusted name in surveillance solutions, offering cutting-edge IP cameras, video management systems, and AI-powered analytics. Their Wisenet series delivers intelligent, reliable security for enterprises, retailers, and institutions around the globe.
SKU / Product Codes
-
QND-8011 (2.8mm lens)
-
QND-8021 (4.0mm lens)
Practical Use Scenarios
-
Indoor retail stores and boutique shops
-
Hotel lobbies and reception areas
-
School hallways and classroom monitoring
-
Commercial building interiors and common areas
-
Small office surveillance and meeting room security
-
Entryways and corridors requiring compact design and hallway view support
Datasheets / Downloadable Resources
Please consult official documentation for:
Excellence for the Australian and New Zealand Market
-
Designed to meet Australian and New Zealand electrical and safety standards
-
Fully compliant with ONVIF protocols, ensuring compatibility with leading NVRs used across the region
-
Distributed through certified and authorized ANZ partners, guaranteeing genuine product and support
-
Temperature and humidity specifications align with ANZ indoor commercial use cases
-
Local warranty servicing handled by trusted Hanwha representatives within Australia and New Zealand
Frequently Asked Questions (FAQs)
Q: What is the difference between the QND-8011 and QND-8021 (SKU: QND-8011 / QND-8021)?
A: The QND-8011 features a 2.8mm lens offering a wider field of view, while the QND-8021 has a 4.0mm lens for narrower but longer-range viewing.
Q: Does the QND-8011 / QND-8021 (SKU: QND-8011 / QND-8021) support PoE?
A: Yes, both models support Power over Ethernet (PoE, IEEE802.3af Class 2) for simplified single-cable installation.
Q: Can the QND-8011 / QND-8021 (SKU: QND-8011 / QND-8021) record footage locally?
A: Yes, both models support microSD/SDHC/SDXC cards up to 128GB for edge recording.
Q: Are the QND-8011 / QND-8021 (SKU: QND-8011 / QND-8021) suitable for outdoor use?
A: These models are primarily designed for indoor use with IP42 and IK08 protection, not suitable for exposed outdoor environments.
Q: What intelligent features are included in the QND-8011 / QND-8021 (SKU: QND-8011 / QND-8021)?
A: Built-in analytics include motion detection, defocus detection, tampering, and business intelligence features like people counting.
