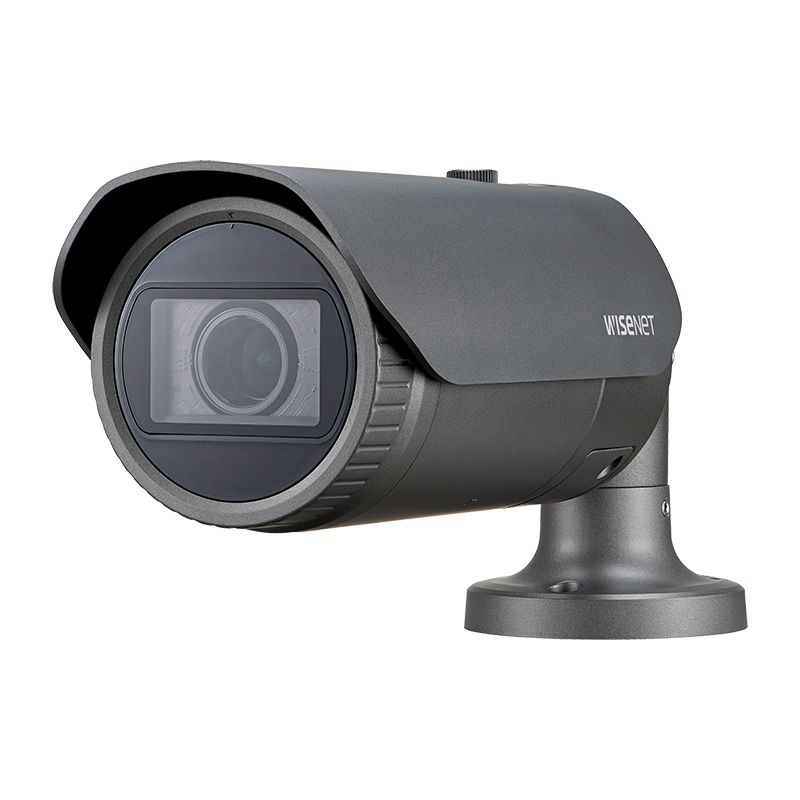

The Hanwha QNO‑8080R is a professional-grade 5-megapixel IR network bullet camera, purpose-built for reliable outdoor surveillance. Featuring a 3.2–10 mm motorized varifocal lens, True WDR (120 dB), and advanced video analytics, this camera delivers sharp, detailed footage in both day and night conditions. With industry-leading WiseStream II compression technology and triple codec support, the QNO‑8080R ensures high-quality video while minimizing bandwidth usage. Designed for challenging environments, it comes equipped with IP66 weatherproof and IK10 vandal-resistant housing, making it ideal for commercial, industrial, and high-traffic security applications.
What’s Included in the Box
Main Features
-
5MP resolution (2592 × 1944) for ultra-clear video
-
3.2–10mm motorized varifocal lens with 3.1× optical zoom
-
0.15Lux minimum illumination (color), 0Lux with IR on (B/W)
-
Infrared night vision up to 30 meters
-
Triple codec: H.265, H.264, MJPEG with multiple streaming profiles
-
WiseStream II smart compression technology
-
Day/Night functionality with True WDR (120dB)
-
Intelligent analytics: motion detection, defocus, tampering, virtual line, enter/exit
-
Micro SD/SDHC/SDXC slot (supports up to 128GB) for edge recording
-
Hallway view and video rotation support
-
IP66-rated weatherproof and IK10-rated vandal-resistant enclosure
-
Power over Ethernet (PoE, IEEE802.3af Class 3)
Detailed Specifications
| Category |
Specification |
| Imaging Device |
1/2.8″ 5MP CMOS Sensor |
| Resolution |
2592 × 1944 (5MP) |
| Lens |
3.2–10 mm motorized varifocal, F1.6–F2.9 |
| IR Illumination |
Up to 30 m (98.42 ft) |
| Minimum Illumination |
0.15Lux (Color), 0Lux (B/W, IR on) |
| Frame Rate |
Max. 30fps @ 5MP (H.265/H.264) |
| Compression |
H.265, H.264, MJPEG |
| Smart Codec |
WiseStream II |
| Field of View |
H: 100.3°–31.2°, V: 72.3°–23.5°, D: 133.1°–38.8° |
| WDR |
True WDR, 120dB |
| Video Analytics |
Motion, Tampering, Defocus, Virtual Line, Enter/Exit |
| Audio/Alarm |
1 Input / 1 Output |
| Storage |
Micro SD/SDHC/SDXC (Max 128GB) |
| Network Protocols |
IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, FTP, DHCP, DNS, SNMP, and more |
| Security Features |
SSL Login, Digest Authentication, IP Filtering, 802.1X |
| Operating Temp |
-30°C to +55°C |
| Protection Ratings |
IP66 (weather), IK10 (vandal) |
| Power |
PoE (IEEE802.3af, Class 3), Max 9.5W |
| Dimensions |
Ø91 x 322.9 mm |
| Weight |
Approx. 1.19 kg |
Warranty Information
The QNO‑8080R includes a standard 3-year manufacturer’s warranty, covering hardware defects and performance reliability. Local support is available via certified Hanwha Techwin representatives or authorized distributors.
Brand Description
Hanwha Vision (formerly Hanwha Techwin) is a global leader in cutting-edge video surveillance technology. With decades of innovation in optical design, image processing, and cybersecurity, Hanwha delivers high-performance security solutions trusted by enterprises, governments, and institutions worldwide.
SKU / Product Code
QNO‑8080R
Practical Use Scenarios
-
Monitoring retail storefronts and entrances
-
Industrial facility perimeter surveillance
-
Warehouse loading docks and access points
-
Car park and vehicle entry tracking
-
Public infrastructure protection (schools, councils, transit)
-
Applications requiring analytics like intrusion or object detection
Datasheets / Downloadable Resources
Please refer to the manufacturer’s official documentation for:
Excellence for the Australian and New Zealand Market
-
Fully compliant with Australian and New Zealand standards for security and electrical safety
-
Meets regional environmental performance needs with –30°C to +55°C operating range
-
Distributed through certified ANZ-based partners for genuine warranty and product traceability
-
NDSS and ONVIF compatibility ensures integration with existing Australian-compliant NVR systems
-
All warranty claims and technical support managed locally through Hanwha-authorized channels
Frequently Asked Questions (FAQs)
Q: What resolution does the QNO‑8080R (SKU: QNO‑8080R) support?
A: The camera supports up to 5 megapixels (2592 × 1944) resolution for high-detail imaging.
Q: Can I power the QNO‑8080R (SKU: QNO‑8080R) via PoE?
A: Yes, the QNO‑8080R supports Power over Ethernet (IEEE802.3af, Class 3) for efficient single-cable installation.
Q: What is the maximum IR range of the QNO‑8080R (SKU: QNO‑8080R)?
A: The camera offers infrared illumination up to 30 meters, ensuring visibility in complete darkness.
Q: Is the QNO‑8080R (SKU: QNO‑8080R) weatherproof and vandal-resistant?
A: Yes, it is both IP66-rated for outdoor weatherproofing and IK10-rated for impact resistance.
Q: How much internal storage does the QNO‑8080R (SKU: QNO‑8080R) support?
A: It includes a microSD slot that supports up to 128GB for onboard video recording.
Q: Does the QNO‑8080R (SKU: QNO‑8080R) support intelligent video analytics?
A: Yes, it features advanced analytics including motion detection, defocus detection, tampering, virtual line, and enter/exit detection.
