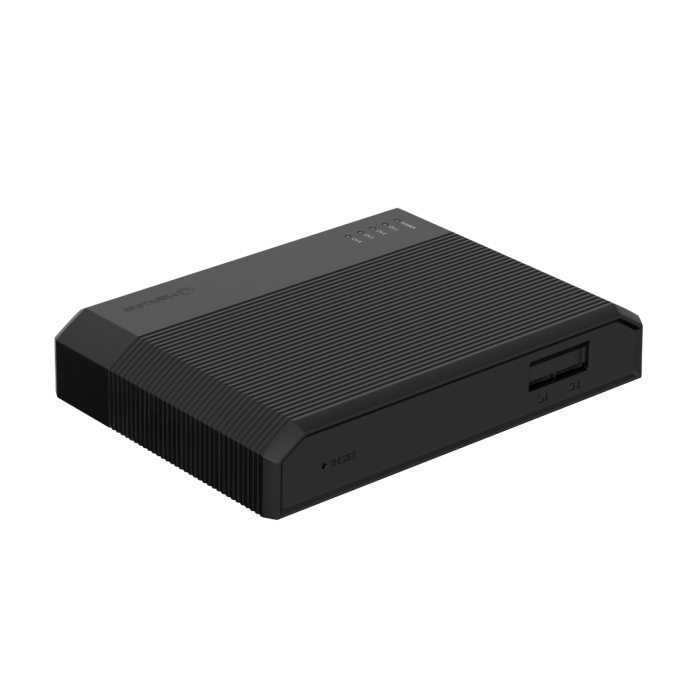

The Hanwha Vision HV-PNM-C20000QB AI Remote-Head Camera is a professional 4-channel network surveillance solution designed for discreet, flexible and intelligent monitoring across retail, banking, transport, entryway, machinery and confined-space applications. With support for up to 4 remote-head channels, AI object detection, business intelligence analytics, HDMI local monitoring, WiseStream and advanced cybersecurity features, the PNM-C20000QB delivers powerful multi-view surveillance from one compact main unit.

Built for installations where camera heads need to be positioned away from the main unit, the HV-PNM-C20000QB supports optional Hanwha Vision remote lens modules and remote lens reach up to 25 metres / 82 feet, making it suitable for ATMs, counters, buses, trains, forklifts, entryways and other space-sensitive environments.

The camera supports AI-based analytics, including person, face, vehicle and licence plate object classification, plus attribute extraction for clothing colour and vehicle type/colour. It also provides business intelligence functions such as people counting and vehicle counting, helping security teams and business operators gain more useful insight from surveillance footage.

What’s Included in the Box

• 1 x Hanwha Vision HV-PNM-C20000QB / PNM-C20000QB AI remote-head camera main unit
• Product documentation, depending on distributor package
• Optional lens/head modules are not confirmed as included and should be selected separately according to the project requirement
• Power supply, microSD cards, HDMI display, network cables and mounting accessories are not listed as included unless specified by the seller

Main Features

• 2MP/5MP x 4CH AI remote-head camera platform
• Single-body design supporting up to 4 camera channels
• WiseAI object detection for person, face, vehicle and licence plate
• AI attribute extraction for person clothing colour and vehicle type/colour
• AI-based business intelligence including people counting and vehicle counting

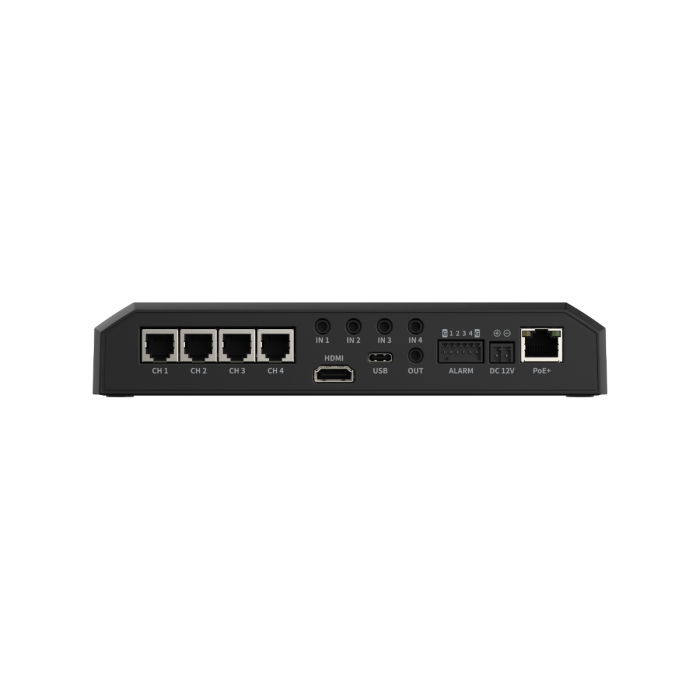

• 4 audio inputs and 1 audio output
• HDMI local monitoring with single or quad view
• Multiple streaming with up to 4 profiles per channel
• WiseStream smart codec based on AI engine
• WiseNR II AI-based noise reduction
• 120dB WDR for challenging lighting environments
• Shock detection, tampering, motion, defocus and audio detection
• 4 configurable I/O ports
• PoE+ or 12VDC power options
• Built-in cybersecurity features including secure boot, signed firmware, encrypted firmware and secure element
• Security certificate listing includes FIPS 140-3 Level 3 and CC EAL6+ secure element references
• Edge storage support up to 1TB x 2 microSD slots, total 2TB

Detailed Specifications

Specifications are based on Hanwha Vision’s official product page and may vary by region or firmware version.

Warranty Information

Warranty terms may vary depending on the authorised distributor, project agreement and region of supply. For Australian and New Zealand customers, warranty handling should be managed through the authorised supplier or direct brand representative channel. Confirm the applicable warranty period at the time of purchase.

Brand Description

Hanwha Vision, formerly known as Hanwha Techwin, is a global vision and video surveillance solutions provider offering professional network cameras, analytics, recording platforms and security technologies for commercial, enterprise and public safety environments.

SKU

HV-PNM-C20000QB

Practical Use Scenarios

The HV-PNM-C20000QB is ideal for discreet, multi-view surveillance where compact remote heads need to be installed separately from the main camera body. Suitable applications include:

• ATMs and bank teller counters
• Retail checkout areas and customer service points
• Entryways and reception areas
• Buses, trains and transport interiors
• Forklifts, machinery and industrial monitoring
• Compact or confined spaces requiring multiple viewing angles
• High-risk areas needing shock detection and tamper alerts
• Business intelligence deployments requiring people or vehicle counting

Datasheets & Downloadable Resources

Hanwha Vision lists downloadable resources for the PNM-C20000QB, including datasheets, manuals, CAD files, certification documents, A&E documents, quick guides, online help, open-source licence information, installation guide sheets, SBOM and firmware. The official product page lists the English datasheet file DataSheet_PNM-C20000QB_20260428_EN_101210.pdf.

Excellence for the Australian and New Zealand Market

The HV-PNM-C20000QB is suitable for professional Australian and New Zealand surveillance projects requiring AI-based monitoring, flexible remote-head installation and strong cybersecurity controls. Official Hanwha Vision specifications list RCM AS/NZS CISPR 32 Class A, supporting alignment with Australian and New Zealand EMC expectations for professional electronic equipment.

For best results in the Australian and New Zealand market, the HV-PNM-C20000QB should be sourced through authorised Hanwha Vision representatives or approved distribution channels. Warranty support should be handled through the supplying distributor or direct communication with the brand’s authorised support network. No NDSS approval is listed in the verified product information for this model, so it should not be advertised as NDSS-approved unless separate official documentation is provided.

FAQs

What is the HV-PNM-C20000QB used for?

The HV-PNM-C20000QB is used for professional multi-channel IP surveillance in areas requiring discreet remote-head camera placement, AI analytics and flexible monitoring from a single main unit.

Does the HV-PNM-C20000QB support 4 camera channels?

Yes. The HV-PNM-C20000QB supports up to 4 channels, allowing multiple remote-head lens modules to be connected for broader coverage.

Does the HV-PNM-C20000QB include lens modules?

The HV-PNM-C20000QB supports optional compatible lens modules, but lens modules are not confirmed as included and should be selected separately for the installation.

What AI analytics does the HV-PNM-C20000QB support?

The HV-PNM-C20000QB supports AI object detection for person, face, vehicle and licence plate, plus virtual line, virtual area, intrusion, loitering, enter/exit, appear/disappear and business intelligence analytics.

Does the HV-PNM-C20000QB support business intelligence?

Yes. The HV-PNM-C20000QB supports AI-based business intelligence functions including people counting and vehicle counting.

Does the HV-PNM-C20000QB have HDMI output?

Yes. The HV-PNM-C20000QB includes HDMI output for local monitoring, supporting single and quad-view display.

How many audio inputs does the HV-PNM-C20000QB have?

The HV-PNM-C20000QB supports 4 selectable audio inputs and 1 audio output, making it suitable for multi-point audio-video monitoring.

Does the HV-PNM-C20000QB support WiseStream?

Yes. The HV-PNM-C20000QB supports WiseStream smart codec technology based on the AI engine.

What power options does the HV-PNM-C20000QB support?

The HV-PNM-C20000QB supports PoE+ IEEE 802.3at Class 4 and 12VDC power input.

Is the HV-PNM-C20000QB suitable for Australian and New Zealand projects?

Yes. The HV-PNM-C20000QB is suitable for professional Australian and New Zealand deployments when supplied through authorised channels, and official specifications list RCM AS/NZS CISPR 32 Class A compliance.
