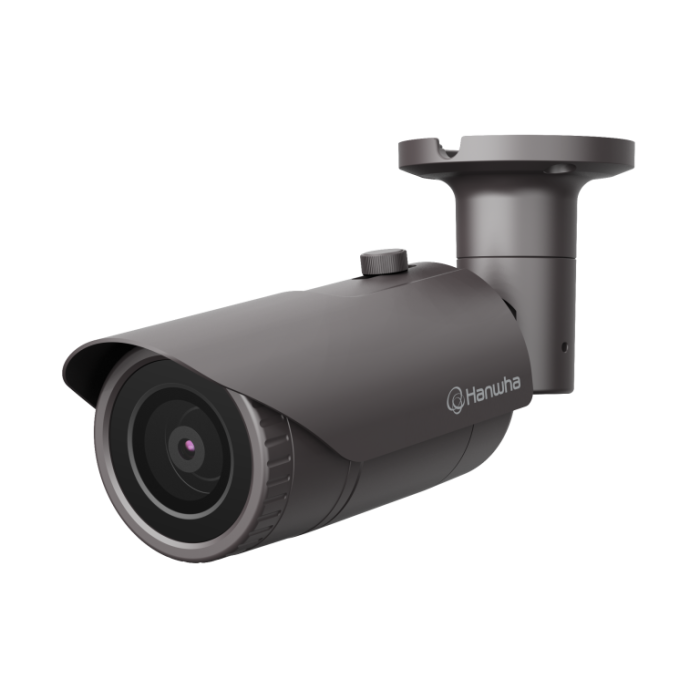

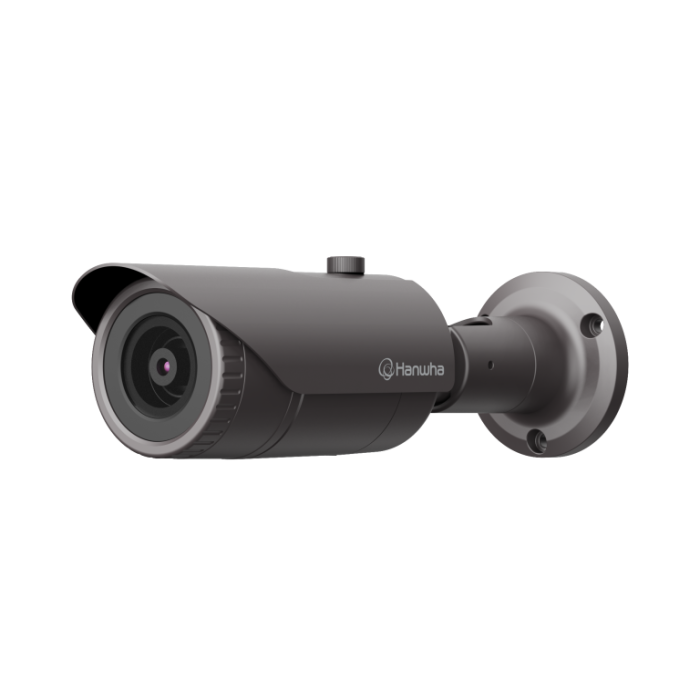

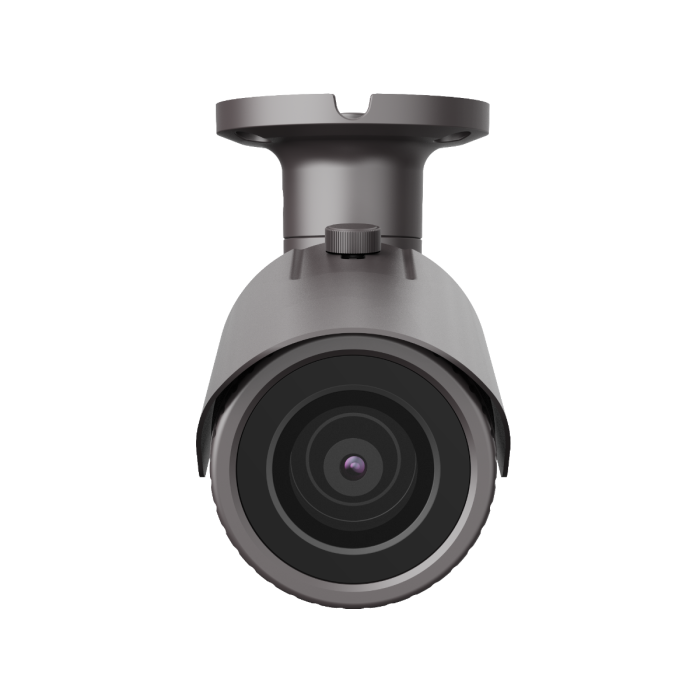

The Hanwha Vision HV-QNO-7012R 4MP Wisenet Q-Series IR Bullet Camera is a reliable outdoor network surveillance camera designed for clear 4MP video, efficient H.265 streaming, night visibility and durable perimeter protection. Featuring a 2.8mm fixed lens, 120dB WDR, WiseStream II, 20m IR illumination, IP66 weather resistance, IK10 impact protection, PoE/12VDC power and edge storage support, the QNO-7012R is ideal for commercial, retail, warehouse, education and general security installations.
The HV-QNO-7012R supports a maximum resolution of 2560 x 1440, with H.265/H.264 video up to 30fps/25fps and MJPEG support for flexible integration into professional video management systems. It also includes intelligent event functions such as motion detection, tampering, defocus detection, virtual line and virtual area analytics.
This model is listed in Hanwha Vision’s NDAA compliant product list under 4MP network cameras as QNO-7012R – 4MP IR Bullet, supporting use in projects requiring NDAA-compliant camera selection.
What’s Included in the Box
1 x Hanwha Vision HV-QNO-7012R / QNO-7012R 4MP IR Bullet Camera
Standard product documentation, depending on distributor package
Mounting hardware may vary by supply channel
Power supply, microSD card, network cable and additional accessories are not confirmed as included unless specified by the seller
Main Features
Maximum 4MP resolution
2.8mm fixed focal lens
H.265, H.264 and MJPEG codec support
Multiple streaming, up to 3 profiles
WiseStream II smart codec technology
Day & Night with automatic ICR
120dB Wide Dynamic Range
20m IR viewable length
Motion detection, tampering and defocus detection
Virtual line crossing and direction detection
Virtual area analytics including intrusion, enter and exit
Hallway view support at 90°/270°
Lens Distortion Correction support
microSD/SDHC/SDXC slot up to 128GB
PoE IEEE 802.3af Class 3 and 12VDC power options
IP66 weather resistance and IK10 impact protection
Colour: 0.15 lux; B/W: 0.015 lux; 0 lux with IR LED on
Lens
2.8mm fixed focal lens
Aperture
F2.0
Field of View
Horizontal 108°, Vertical 60°, Diagonal 122°
Focus Control
Fixed
Day & Night
Auto ICR
Wide Dynamic Range
120dB
Backlight Compensation
BLC, WDR, SSDR
Digital Noise Reduction
SSNR
Video Rotation
Flip, mirror, hallway view 90°/270°
Lens Distortion Correction
Supported
IR Illumination
20m / 65.62ft
IR Wavelength
850nm
Video Compression
H.265, H.264, MJPEG
Smart Codec
Manual, WiseStream II
Streaming
Unicast up to 6 users, multicast support, up to 3 profiles
Audio Input
Selectable mic in / line in
Audio Compression
G.711 u-law / G.726 selectable
Alarm I/O
1 input, 1 output
Analytics
Defocus detection, motion detection, tampering, virtual area, virtual line
Ethernet
RJ-45 10/100BASE-T
API Support
ONVIF Profile S/G/T, SUNAPI
Edge Storage
microSD/SDHC/SDXC, 1 slot up to 128GB
Power Input
PoE IEEE 802.3af Class 3, 12VDC
Power Consumption
PoE max 10.7W, typical 8W; 12VDC max 9.1W, typical 6.8W
Operating Temperature
-40°C to +55°C
Startup Temperature
Startup above -30°C
Operating Humidity
0–95% RH, non-condensing
Colour
Dark grey
Material
Aluminium
Dimensions
Ø70.0 x 246.0mm
Weight
700g
Weather / Impact Rating
IP66, IK10
Compatible Gang Box
Single, double, 4" octagon
AU/NZ EMC Listing
RCM AS/NZS CISPR 32 Class A
NDAA Status
Listed by Hanwha Vision as NDAA compliant
Specifications are based on Hanwha Vision’s official QNO-7012R product information and may vary by region or firmware version.
Warranty Information
Warranty terms may vary depending on the authorised distributor, project agreement and region of supply. For Australian and New Zealand customers, warranty support should be handled through the authorised supplier or direct Hanwha Vision representative channel. Product availability may vary by region, so availability and support terms should be confirmed at the time of purchase.
Brand Description
Hanwha Vision, formerly known as Hanwha Techwin, is a global video surveillance and vision solutions provider offering professional security cameras, recording systems, analytics and network video technologies for commercial, government, industrial and public safety applications. Hanwha Vision’s official product page notes that the company was formerly known as Hanwha Techwin.
SKU
HV-QNO-7012R
Practical Use Scenarios
The HV-QNO-7012R is suitable for everyday commercial and outdoor surveillance where a compact fixed-lens bullet camera is required. Typical applications include:
Retail shopfronts and rear entry points
Warehouses and loading docks
School and education facility perimeters
Office building entrances
Car parks and external walkways
Small business CCTV upgrades
Commercial sites requiring NDAA-compliant camera selection
Installations requiring IP66 outdoor protection and IK10 vandal resistance
Datasheets & Downloadable Resources
Hanwha Vision lists downloadable resources for the QNO-7012R, including datasheets, manuals, CAD files, certification documents, A&E documents, quick guides, online help, open-source licence information and firmware. The official product page lists the datasheet file DataSheet_QNO-7012R_20260204_EN_152705.pdf.
Excellence for the Australian and New Zealand Market
The HV-QNO-7012R is well suited to Australian and New Zealand security projects requiring a reliable 4MP fixed bullet camera with efficient H.265 compression, durable outdoor protection and professional integration support. Official Hanwha Vision specifications list RCM AS/NZS CISPR 32 Class A, supporting alignment with Australian and New Zealand EMC requirements for professional electronic equipment.
For best results, the HV-QNO-7012R should be sourced through authorised Hanwha Vision representatives or approved distribution channels. Warranty handling should be managed through the supplying distributor or direct communication with the brand’s authorised support network. No NDSS approval is listed in the verified product information for this model, so it should not be advertised as NDSS-approved unless separate official documentation is provided.
FAQs
What is the HV-QNO-7012R used for?
The HV-QNO-7012R is used for professional outdoor IP surveillance where 4MP resolution, infrared night vision, fixed-lens coverage and durable bullet-camera protection are required.
Is the HV-QNO-7012R NDAA compliant?
Yes. The HV-QNO-7012R, manufacturer model QNO-7012R, is listed in Hanwha Vision’s NDAA compliant product list as a 4MP IR bullet camera.
What resolution does the HV-QNO-7012R support?
The HV-QNO-7012R supports up to 4MP resolution, with a maximum listed resolution of 2560 x 1440.
What lens does the HV-QNO-7012R have?
The HV-QNO-7012R has a 2.8mm fixed focal lens with a listed horizontal field of view of 108°.
Does the HV-QNO-7012R support night vision?
Yes. The HV-QNO-7012R includes built-in IR illumination with a listed IR viewable length of 20m / 65.62ft.
Does the HV-QNO-7012R support WiseStream II?
Yes. The HV-QNO-7012R supports WiseStream II, helping optimise bandwidth and storage use during video streaming.
Is the HV-QNO-7012R weather resistant?
Yes. The HV-QNO-7012R is rated IP66 for outdoor weather resistance and IK10 for impact protection.
What storage does the HV-QNO-7012R support?
The HV-QNO-7012R supports microSD/SDHC/SDXC edge storage with 1 slot up to 128GB.
What power options does the HV-QNO-7012R support?
The HV-QNO-7012R supports PoE IEEE 802.3af Class 3 and 12VDC power input.
Is the HV-QNO-7012R suitable for Australia and New Zealand?
Yes. The HV-QNO-7012R is suitable for professional Australian and New Zealand projects when sourced through authorised channels, and official specifications list RCM AS/NZS CISPR 32 Class A compliance.
