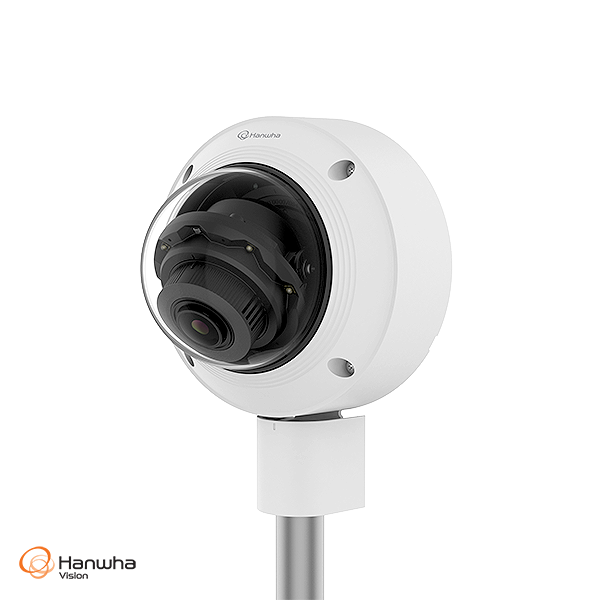

Experience powerful security surveillance with the Hanwha Vision HV-QNV-C8023R, part of the Q-Core series and engineered with advanced AI analytics for high precision and efficiency. This 5MP vandal-resistant dome camera integrates cutting-edge AI that accurately distinguishes people and vehicles from moving objects such as trees or shadows—drastically reducing false alarms and improving operator focus.

Delivering sharp video at up to 5MP resolution and 30fps, the HV-QNV-C8023R excels in challenging lighting conditions thanks to 120dB Wide Dynamic Range (WDR) and WiseNR II technology. Its IR LEDs extend visibility up to 30 meters (98.42 feet), ensuring clear night-time performance.

Equipped with a robust IP66 and IK10-rated housing, it’s designed to withstand harsh environments, making it ideal for both indoor and outdoor applications. From retail and commercial facilities to critical infrastructure, the HV-QNV-C8023R provides reliability, intelligent monitoring, and versatile installation options.

What's Included in the Box

• Hanwha Vision HV-QNV-C8023R 5MP AI Vandal Dome Camera

• Mounting Accessories

• Quick Installation Guide

Main Features

✅ High-Resolution Imaging

• Up to 5MP (2592 x 1944) resolution for exceptional detail capture

✅ Advanced AI Analytics

• Object detection (Person/Vehicle – car, truck, bus, bicycle, motorcycle)

• Color attribute analysis

• BestShot functionality for optimal snapshots

• Motion detection, virtual lines (crossing/direction), and virtual areas (loitering, intrusion, entry, exit)

✅ Superior Low-Light Performance

• Color: 0.05Lux @ F1.6

• B/W: 0.005Lux @ F1.6 or 0 Lux with IR on

✅ IR Night Vision

• IR illumination up to 30m (98.42 ft)

✅ Dynamic Privacy Masking

• Person/Vehicle masking for privacy compliance

✅ Video Compression & Streaming

• H.265, H.264, MJPEG

• WiseStream III AI-based compression

• Multiple streams up to 5 profiles

✅ Network & Security

• HTTPS, IEEE 802.1X, encrypted firmware, secure boot

• Extensive protocol support including ONVIF Profile S/G/T/M and SunAPI

✅ Robust Build Quality

• IP66 weather protection

• IK10 impact resistance

• Aluminum housing with hard-coated dome bubble

✅ Flexible Power Options

• PoE IEEE 802.3af (Class 3), max consumption 8.1W

Detailed Specifications

• Image Sensor: 1/2.8” CMOS

• Lens: 4.0mm fixed, F1.6 aperture

• Field of View: Horizontal 80°, Vertical 59°, Diagonal 102°

• Min. Object Distance: 0.5m (1.64 ft)

• Video Outputs: Micro USB Type B (1280 x 720) for installation

• Pan/Tilt/Rotate: 0°~355° / -30°~75° / 0°~355°

• Edge Storage: microSD/SDHC/SDXC, max 256GB

• RAM/Flash: 2GB / 1GB

• Operating Temperature: -30°C to +55°C (-22°F to +131°F)

• Certifications: IP66, IK10, FCC, CE, UL 62368-1

• Dimensions: Ø120 x 97.5 mm (Ø4.72 x 3.84 inches)

• Weight: 579g (1.27 lb)

Warranty Information

• Manufacturer warranty: 3 years (verify with Hanwha Vision regional support for specific coverage details)

About Hanwha Vision

Hanwha Vision (formerly Hanwha Techwin) is a global leader in innovative video surveillance solutions. With a rich history in imaging technology, Hanwha Vision delivers state-of-the-art security products renowned for quality, reliability, and advanced features like AI analytics and cybersecurity.

SKU

HV-QNV-C8023R

Practical Use Scenarios

• Retail Stores: Protect entrances, aisles, and checkout areas with AI object recognition and privacy masking.

• Office Buildings: Monitor hallways and lobbies, reduce false alarms from moving objects.

• Critical Infrastructure: Vandal-resistant housing ensures reliable surveillance in high-risk zones.

• Public Areas: Capture wide-area overviews while automatically detecting loitering or unauthorized entry.

Datasheets or Downloadable Resources

Hanwha Vision Official Datasheet – HV-QNV-C8023R (PDF)

Excellence for the Australian and New Zealand Market

The HV-QNV-C8023R is fully compliant with Australian and New Zealand electrical and safety standards. It’s certified under CE, FCC, and RoHS, ensuring top-tier performance and quality. Distributed through authorized Hanwha Vision partners in ANZ, warranty support and service are handled locally for peace of mind. Ideal for businesses seeking robust, AI-powered surveillance solutions that meet regional requirements and NDSS compliance.

FAQs (HV-QNV-C8023R)

Q1: What is the IR range of the HV-QNV-C8023R?
A1: The camera offers an IR viewable distance of up to 30 meters (98.42 feet). (HV-QNV-C8023R)

Q2: Does the HV-QNV-C8023R support AI analytics for people and vehicles?
A2: Yes! It uses AI algorithms to detect and classify persons and vehicles, helping reduce false alarms. (HV-QNV-C8023R)

Q3: Is this camera vandal-proof?
A3: Absolutely. It features an IK10-rated housing, making it highly resistant to physical impact. (HV-QNV-C8023R)

Q4: What power source does the HV-QNV-C8023R use?
A4: It operates via PoE (IEEE802.3af, Class 3) with a max power consumption of 8.1W. (HV-QNV-C8023R)

Q5: Can I use microSD storage with this camera?
A5: Yes. It supports edge storage with microSD/SDHC/SDXC cards up to 256GB. (HV-QNV-C8023R)
