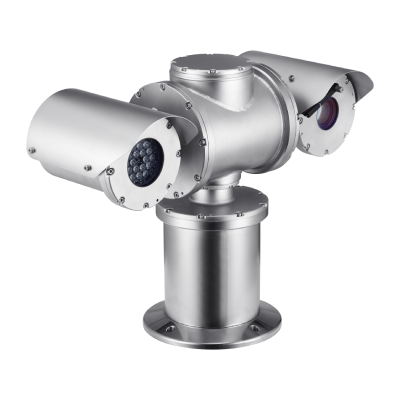

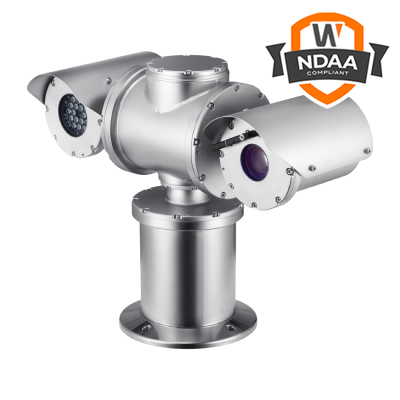

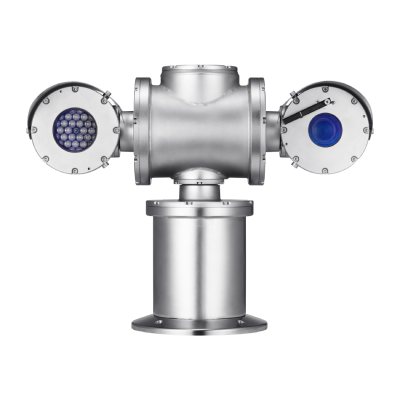

Engineered for the harshest and most hazardous environments, the Hanwha Vision HV-TNU-6322ER explosion-proof camera delivers outstanding surveillance performance and uncompromising durability. Equipped with a 2MP CMOS sensor and an impressive 32x optical zoom lens, it provides crisp detail from wide-area coverage down to fine, distant targets.
Thanks to its integrated infrared (IR) illuminators, the camera achieves clear images up to 200 meters, even in total darkness. Advanced imaging technologies such as WDR (120 dB), WiseNRⅡ noise reduction, and Defog ensure superior video quality under challenging lighting and weather conditions.
Certified for explosion-prone zones (IECEx, ATEX, KCs), and constructed from rugged stainless steel 316L, the HV-TNU-6322ER is ideal for oil & gas facilities, chemical plants, marine applications, and critical infrastructure where safety and reliability are paramount.
What’s Included
Hanwha Vision HV-TNU-6322ER Explosion-Proof Camera
High-Resolution Video: 2MP (1920 x 1080) resolution at up to 60fps
Powerful Zoom: 32x optical zoom (4.44 ~ 142.6 mm), plus 16x digital zoom
Wide Field of View: H: 61.8° ~ 2.19°, V: 36.2° ~ 1.24°
Superior Low-Light Performance:
Color: 0.05 Lux @ F1.6
B/W: 0.005 Lux @ F1.6, 0 Lux with IR
Infrared Illumination: Up to 200 meters IR distance
Explosion-Proof Certification: IECEx, ATEX, KCs
Advanced Analytics: Motion detection, directional detection, face detection, tampering, virtual line, audio detection, and more
Pan/Tilt Capabilities:
Pan: 360° endless rotation, speed 0.5°/s to 80°/s
Tilt: 180° (-90° to +90°), speed 0.1°/s to 60°/s
Up to 300 presets with ±0.25° accuracy
Day/Night Operation: Auto ICR
Wide Dynamic Range: 120 dB for high-contrast scenes
Built-in Wiper: For reliable visibility in harsh conditions
Environmental Durability: IP67 and IK10-rated stainless steel 316L housing
Smart Codec: WiseStream II for efficient bandwidth usage
Audio Support: Mic/line input and line output
Multiple Streams: Up to 10 profiles for optimized streaming
Detailed Specifications
Category
Specification
Sensor
1/2.8" CMOS
Max Resolution
1920 x 1080
Lens
4.44 ~ 142.6mm (32x optical zoom)
Min. Illumination
Color: 0.05 Lux @ F1.6 B/W: 0.005 Lux @ F1.6, 0 Lux with IR
IR Range
Up to 200 meters
Frame Rate
Up to 60fps (H.265/H.264)
WDR
120 dB
Video Compression
H.265, H.264, MJPEG
Audio Compression
G.711, G.726, AAC-LC
Network Protocols
IPv4/IPv6, HTTPS, RTSP, SNMP, ONVIF Profile S/G/T, and more
Analytics
Motion detection, directional detection, fog detection, face detection, tampering, virtual line, audio detection, appear/disappear, enter/exit, loitering
Alarm I/O
1 input, 1 output
Operating Temp
-40°C to +60°C
Power Input
24VAC
Power Consumption
Max. 99W (camera), Max. 50W (IR)
Housing Material
Stainless steel 316L
Dimensions
611(W) x 438(H) x 235(D) mm
Weight
36 kg
Compatible Accessories (Optional)
SBE-100WM Wall Mount
SBE-100B Ceiling Mount
SBE-100PM Pole Mount
Warranty Information
Hanwha Vision provides a 3-year warranty on the HV-TNU-6322ER, covering defects in materials and workmanship under normal use conditions.
Brand Description
Hanwha Vision, formerly Hanwha Techwin, is a global leader in innovative video surveillance technologies, offering solutions renowned for durability, cybersecurity, and advanced analytics across industrial, commercial, and government applications.
SKU: HV-TNU-6322ER
Practical Use Scenarios
Oil & gas refineries and petrochemical plants
Chemical processing facilities
Offshore and marine environments
Explosive environments in manufacturing plants
Critical infrastructure protection in hazardous zones
Excellence for the Australian and New Zealand Market
The HV-TNU-6322ER meets stringent Australian and New Zealand compliance standards for hazardous environments, including IP67 and IK10 protection and ATEX/IECEx certifications. Distributed exclusively through authorized Hanwha Vision partners, it offers robust local warranty and support services to ensure peace of mind for professional security installations across ANZ.
FAQs (SKU: HV-TNU-6322ER)
Q1: Is the HV-TNU-6322ER certified for explosive environments? A1: Yes, it holds IECEx, ATEX, and KCs certifications for use in hazardous and explosion-prone areas.
Q2: What is the maximum IR range of this camera? A2: The camera offers up to 200 meters IR viewable distance, ensuring excellent visibility at night or in low-light conditions.
Q3: Can this camera operate in extreme temperatures? A3: Absolutely. It is rated for operation between -40°C and +60°C.
Q4: Does the HV-TNU-6322ER support intelligent analytics? A4: Yes, it includes advanced analytics such as motion detection, directional detection, face detection, tampering alarms, and more.
Q5: What is the camera’s zoom capability? A5: The camera features a 32x optical zoom, plus 16x digital zoom, delivering exceptional detail at long distances.
