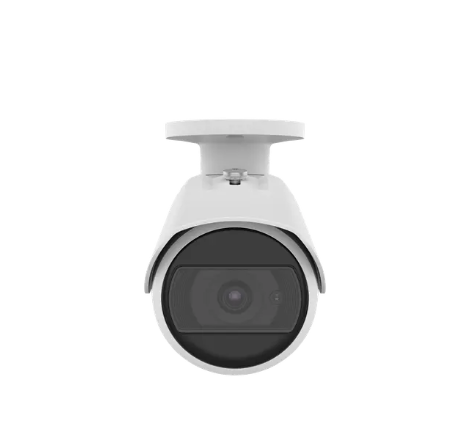

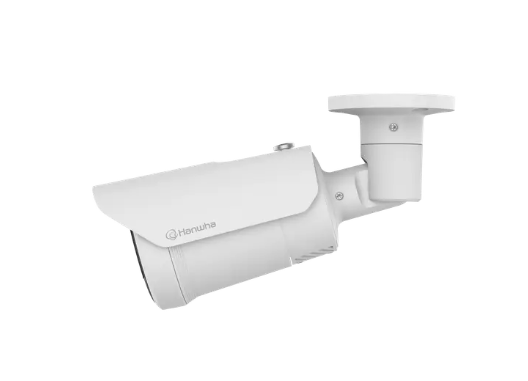

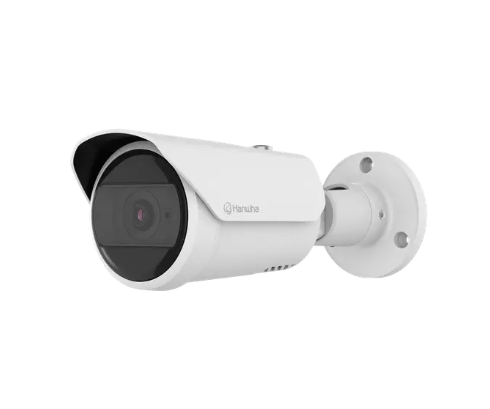

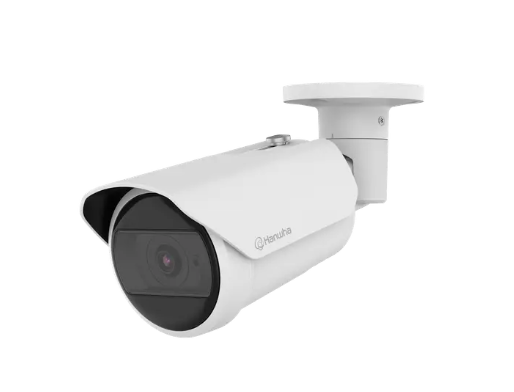

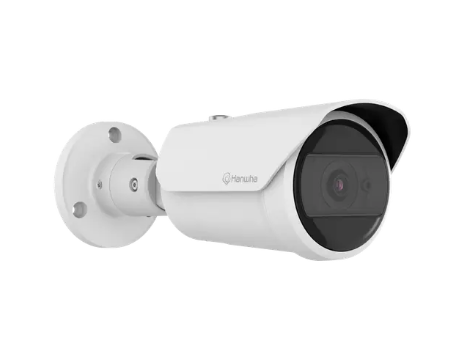

The Hanwha Vision QNO-C8013R is a professional-grade 5MP AI IR Bullet Camera designed for advanced outdoor surveillance in commercial, industrial, retail, educational, and government environments. Equipped with a high-performance 5MP CMOS sensor, AI-powered object classification, people and vehicle analytics, 25m infrared illumination, and intelligent business intelligence features, the QNO-C8013R delivers reliable security monitoring day and night. Its robust IP66 weatherproof and IK10 vandal-resistant housing ensures dependable operation in harsh environments, while PoE simplifies installation and deployment.
Built on Hanwha Vision's advanced AI platform, the camera offers intelligent event detection, virtual line crossing, intrusion monitoring, loitering detection, people counting, queue management, heat mapping, vehicle counting, and dynamic privacy masking. These capabilities help organizations improve security while gaining actionable operational insights.
What's Included in the Box
- Hanwha Vision QNO-C8013R 5MP AI IR Bullet Camera
- Mounting Hardware
- Installation Guide
- Waterproof Accessories (if supplied by manufacturer)
- Regulatory Documentation
Contents may vary by region or distribution package.
Main Features
- 5MP Maximum Resolution (2592 × 1944)
- 3mm Fixed Lens
- Wide Viewing Angle: 100° Horizontal
- AI-Based Object Detection
- Person & Vehicle Classification
- BestShot Thumbnail Capture
- People Counting
- Queue Management Analytics
- Heatmap Analytics
- Vehicle Counting
- Dynamic Privacy Masking
- 25m IR Night Vision
- WiseNR II AI-Based Noise Reduction
- 120dB Wide Dynamic Range (WDR)
- H.265 / H.264 / MJPEG Compression
- Up to 5 Simultaneous Video Streams
- ONVIF S, G, T & M Compatible
- PoE (IEEE 802.3af Class 3)
- IP66 Weatherproof Rating
- IK10 Impact Resistance
- MicroSD Storage up to 256GB
- Direct Cloud Connection Support
- Secure Boot & Encrypted Firmware
Detailed Specifications
Camera
| Specification |
Details |
| Image Sensor |
1/2.8" CMOS |
| Maximum Resolution |
2592 x 1944 (5MP) |
| Lens Type |
Fixed Iris |
| Focal Length |
3.0mm |
| Aperture |
F1.6 |
| Minimum Illumination (Colour) |
0.05 Lux |
| Minimum Illumination (B/W) |
0.005 Lux |
| Day & Night |
Auto ICR |
| WDR |
120dB |
| IR Distance |
Up to 25m |
| IR Wavelength |
850nm |
Viewing Angle
| Specification |
Details |
| Horizontal FoV |
100° |
| Vertical FoV |
73° |
| Diagonal FoV |
129° |
AI Analytics
- Person Detection
- Vehicle Detection
- Colour Attribute Recognition
- BestShot Capture
- Virtual Line Crossing
- Direction Detection
- Intrusion Detection
- Loitering Detection
- Enter/Exit Detection
- Appear/Disappear Detection
- Tampering Detection
- Defocus Detection
- Motion Detection
- People Counting
- Queue Management
- Heatmap Analytics
- Vehicle Counting
Video & Streaming
| Specification |
Details |
| Video Compression |
H.265, H.264, MJPEG |
| Maximum Frame Rate |
30fps |
| Streams |
Up to 5 Profiles |
| Simultaneous Users |
Up to 20 |
| Bitrate Control |
CBR / VBR |
Audio
| Specification |
Details |
| Audio Input |
Mic In / Line In |
| Audio Output |
Line Out |
| Audio Compression |
G.711, G.726, AAC-LC |
Network
- Gigabit Ethernet RJ-45 (10/100BASE-T)
- IPv4 / IPv6
- HTTPS
- SSL/TLS
- MQTT
- FTP / SFTP
- RTSP
- SNMP v1/v2c/v3
- UPnP
- Bonjour
- ONVIF S/G/T/M
Storage
| Specification |
Details |
| Local Storage |
MicroSD/SDHC/SDXC |
| Maximum Capacity |
256GB |
| OnCloud Edge Storage |
Up to 1TB (Certified Hanwha Vision Cards) |
Environmental
| Specification |
Details |
| Operating Temperature |
-30°C to +55°C |
| Storage Temperature |
-50°C to +60°C |
| Humidity |
0–100% RH |
| Protection Rating |
IP66 |
| Impact Protection |
IK10 |
Physical
| Specification |
Details |
| Material |
Aluminum |
| Colour |
White |
| Dimensions |
Ø93.4 × 245.8mm |
| Weight |
890g |
DORI Performance
| DORI Classification |
Distance |
| Detect |
43.5m |
| Observe |
17.5m |
| Recognize |
8.7m |
| Identify |
4.3m |
Warranty Information
Manufacturer Warranty:
Hanwha Vision Limited 5 year Manufacturer Warranty.
For complete warranty terms, coverage, and claim procedures, please consult Hanwha Vision or your authorised distributor.
About Hanwha Vision
Hanwha Vision is a global leader in professional video surveillance technology, delivering AI-powered cameras, video management solutions, and advanced analytics designed to improve security, safety, and operational efficiency across commercial and industrial environments worldwide.
SKU
QNO-C8013R
Practical Use Scenarios
Retail Stores
Monitor customer movement, queue lengths, and heatmaps while improving loss prevention and operational efficiency.
Warehouses & Logistics
Track vehicle movement, loading bays, perimeter activity, and intrusion events with AI-powered analytics.
Commercial Buildings
Secure entrances, parking areas, and public access zones with advanced object classification and event detection.
Schools & Universities
Provide reliable surveillance for campuses, walkways, and building perimeters.
Industrial Facilities
Deploy in harsh environments requiring IP66 weather resistance and IK10 vandal protection.
Datasheets & Resources
Product Datasheet
Excellence for the Australian and New Zealand Market
The Hanwha Vision QNO-C8013R is ideally suited for professional security deployments throughout Australia and New Zealand. The camera is engineered to meet demanding environmental requirements with IP66 weather protection and IK10 impact resistance, making it suitable for harsh outdoor conditions commonly experienced across the region.
Benefits for Australian and New Zealand customers include:
- Sourced exclusively through authorised distribution channels.
- Designed for commercial-grade surveillance deployments.
- Supports modern cybersecurity requirements including encrypted firmware and secure boot.
- Complies with internationally recognised standards and certifications.
- Optimised for integration with enterprise surveillance systems.
- Manufacturer-backed warranty support.
- Suitable for government, education, transport, retail, and industrial applications.
FAQs
What resolution does the QNO-C8013R support?
The QNO-C8013R provides up to 5MP resolution (2592 × 1944) for detailed surveillance footage.
Does the QNO-C8013R include AI analytics?
Yes, the QNO-C8013R features AI-powered analytics including person and vehicle detection, intrusion detection, people counting, heatmapping, and queue management.
What night vision range does the QNO-C8013R offer?
The QNO-C8013R includes integrated infrared LEDs providing visibility up to 25 metres in low-light environments.
Is the QNO-C8013R suitable for outdoor installations?
Yes, the QNO-C8013R is rated IP66 for weather protection and IK10 for vandal resistance, making it suitable for demanding outdoor applications.
Does the QNO-C8013R support local recording?
Yes, the QNO-C8013R supports MicroSD, SDHC, and SDXC cards up to 256GB for edge storage recording.
What field of view does the QNO-C8013R provide?
The QNO-C8013R delivers a wide field of view with 100° horizontal, 73° vertical, and 129° diagonal coverage.
Does the QNO-C8013R support PoE?
Yes, the QNO-C8013R supports Power over Ethernet (PoE) according to IEEE 802.3af Class 3 standards for simplified installation.
What video compression formats are supported by the QNO-C8013R?
The QNO-C8013R supports H.265, H.264, and MJPEG compression formats for efficient bandwidth and storage management.
Is the QNO-C8013R ONVIF compliant?
Yes, the QNO-C8013R supports ONVIF S, G, T, and M profiles for interoperability with compatible video management systems.
Can the QNO-C8013R be used for business intelligence applications?
Yes, the QNO-C8013R includes business intelligence functions such as people counting, queue management, heat mapping, and vehicle counting to provide operational insights.
