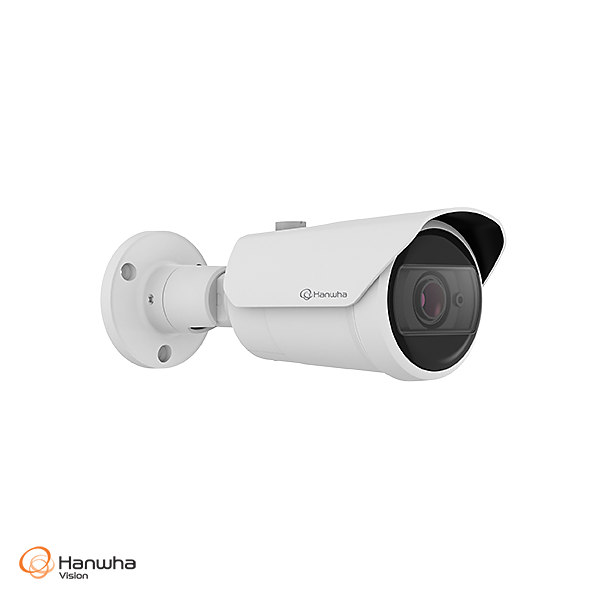

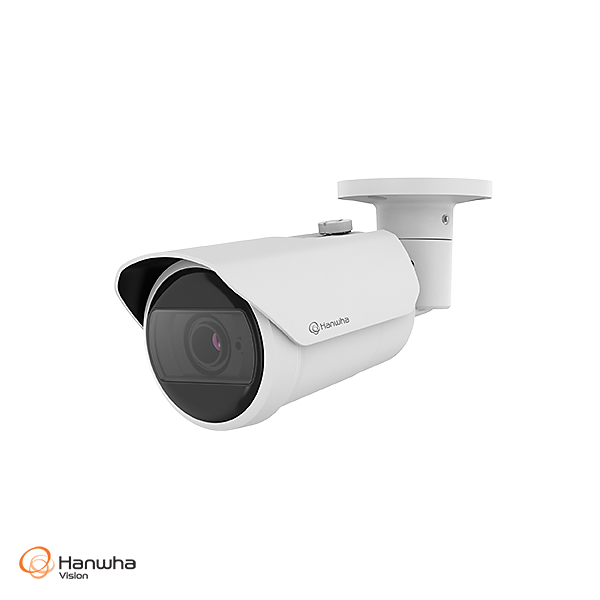

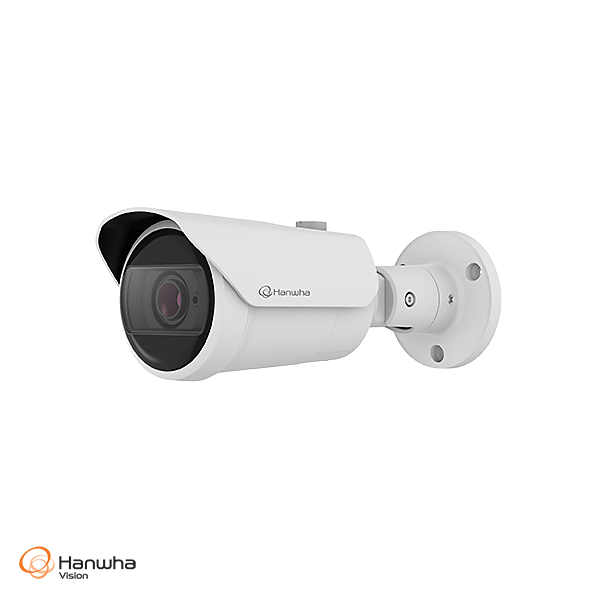

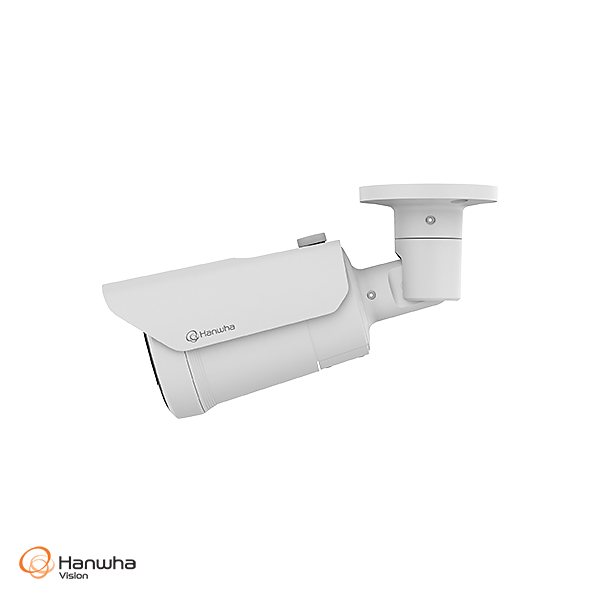

The Hanwha Vision QNO-C8023R is a professional-grade 5MP AI-powered IR bullet camera engineered for high-performance surveillance in outdoor environments. With advanced AI analytics, excellent low-light capabilities, and robust design, this camera delivers enhanced monitoring and intelligent detection for a variety of applications.
What's in the Box
Hanwha Vision QNO-C8023R 5MP AI IR Bullet Camera
Mounting hardware
Quick installation guide
Micro-USB installation cable
Main Features
High-Resolution Output: 5MP (2592x1944) resolution at up to 30fps ensures crisp and clear video.
AI-Driven Analytics: Person and vehicle classification, color attribute detection, BestShot, motion analysis, virtual lines and areas.
Low-Light Excellence: Delivers color at 0.05Lux and B/W at 0.005Lux; complete darkness visibility with IR (0Lux).
30m IR Range: Built-in IR LEDs provide up to 30 metres (98.42 feet) of night vision.
Rugged Construction: Rated IP66 and IK10 for resistance to harsh weather and vandalism.
Optimized Compression: Supports H.265, H.264, MJPEG, and AI-based WiseStream III for bandwidth efficiency.
Dynamic Privacy Masking: AI-assisted masking with mosaic patterns.
Edge Storage Support: MicroSD card slot supports up to 256GB.
PoE Simplification: Power and data through a single Ethernet cable.
Detailed Specifications
Image Sensor: 1/2.8" CMOS
Lens: 4.0mm fixed, F1.6 aperture
Field of View: H: 80°, V: 59°, D: 102°
Minimum Focus Distance: 0.5m (1.64ft)
WDR: 120dB wide dynamic range
Noise Reduction: AI-based WiseNRⅡ and SSNRⅤ
AI Analytics: Motion detection, object classification, queue management, heatmapping, people and vehicle counting
Audio: Mic/line input, line output
Network: RJ-45 (10/100BASE-T); supports multiple streaming and protocols including IPv4/IPv6, HTTPS, MQTT
Video Compression: H.265, H.264, MJPEG
Edge Storage: MicroSD/SDHC/SDXC up to 256GB
Operating Temperature: -30°C to +55°C
Power Supply: PoE (IEEE802.3af, Class 3), max 8.1W
Dimensions: ø93.4 x 245.8mm
Weight: 890g
Warranty Information
This product is covered by Hanwha Vision’s 3-year warranty, ensuring protection against manufacturing defects and failures under normal usage. All warranty claims are processed through official Hanwha Vision service channels.
Brand Description
Hanwha Vision, formerly known as Hanwha Techwin, is a globally recognized leader in video surveillance. The brand is known for combining reliability, innovative technology, and powerful AI analytics into its wide range of professional security products.
Corporate Buildings: Secure entryways, track personnel movement, and ensure compliance.
Public Infrastructure: Deploy in parks, transit stations, or urban zones for enhanced safety.
Industrial Zones: Monitor production areas, perimeter breaches, and equipment safety.
Excellence for the Australian and New Zealand Market
The QNO-C8023R is certified to comply with RCM (AS/NZS CISPR 32 Class A), meeting stringent Australian and New Zealand regulatory standards. Built to perform in diverse climates, it is ideal for both metropolitan and remote deployments across ANZ. All units are sourced through official channels, and warranty claims are handled directly by Hanwha Vision, ensuring prompt and reliable support.
FAQs (QNO-C8023R)
Q: What is the maximum resolution of the QNO-C8023R? A: The QNO-C8023R supports up to 5MP resolution (2592x1944) at 30fps.
Q: Does the QNO-C8023R support PoE installation? A: Yes, the QNO-C8023R supports IEEE802.3af (Class 3) Power over Ethernet.
Q: How far can the IR LEDs on the QNO-C8023R illuminate? A: The QNO-C8023R can illuminate up to 30 metres (98.42 feet) in complete darkness.
Q: What AI features are included in the QNO-C8023R? A: The QNO-C8023R includes person/vehicle classification, motion detection, virtual lines/areas, and BestShot functions.
Q: Is the QNO-C8023R weatherproof and vandal-resistant? A: Yes, it is IP66 weather-rated and IK10 certified for durability in tough outdoor conditions.
Q: Can I store footage locally on the QNO-C8023R? A: Yes, the QNO-C8023R supports microSD cards up to 256GB for edge storage.
Q: What certifications does the QNO-C8023R meet for use in Australia and New Zealand? A: The QNO-C8023R meets RCM certification requirements, including AS/NZS CISPR 32 Class A compliance.
Q: What is the power consumption of the QNO-C8023R? A: The QNO-C8023R consumes a maximum of 8.1W via PoE.
Q: What are the environmental operating limits of the QNO-C8023R? A: The QNO-C8023R operates in temperatures from -30°C to +55°C with full humidity tolerance.
Q: Does the QNO-C8023R support audio? A: Yes, it supports selectable mic/line-in and line-out audio features.
FREE SHIPPING ON ALL ORDERS OVER $200 AUSTRALIA WIDE
All orders are delivered using the Australia Post shipping method and this is the most efficient method of delivery.
A flat rate of $12 applies to all orders under $200.
Delivery typically takes 3-5 business days all over Australia including Tasmania.
New Zealand: 10-15 business days.
Processing Times
We process orders from Monday to Friday, ensuring they are shipped within 24 hours of placement, excluding weekends and public holidays.
Tracking Your Order
Once your order is packed and dispatched from our warehouse, you will receive an email with a tracking number. This tracking number can be used to monitor your parcel's progress.
For your convenience, if you are not home at the time of delivery, the delivery driver will leave your parcel in a secure place if deemed safe. If it is not safe to leave the parcel, or if the parcel is too large, a card will be left with instructions on how to retrieve your parcel from the local depot.
Warranty period is given in the product description.
CCTV Importers’s Products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure of the Product and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Products repaired or replaced if the Products fail to be of acceptable quality and the failure does not amount to a major failure.
The Q series delivers sharp and clear image quality with H.265 compression, ideal in securing small to medium sized applications such as retail, banking and offices. Enhanced features include intelligent video analytics, Wide Dynamic Range, Built-in IR, Hallway View, & WiseStream II.
Wisenet Q series Network Cameras
High Quality Cameras Offering Cost Effective Solutions
Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices
Compact design with affordable price 5MP & 2MP resolution Maximum 30fps framerate WDR 120dB WiseStream II Intelligent video analytics IR viewable length up 30m Hallway view (Rotate 90° / 270°) Micro SD/SDHC/SDXC memory slot Video output CVBS, PoE
5MP and 2MP resolutions
The Wisenet Q series is available in two resolution options to give you the freedom to choose the cameras that best fits your security needs. 5MP Q series cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance providing crisp and vivid monitoring.
Various lens options
Fixed Lens The Wisenet Q series fixed-lens models are available with focal lengths of 2.8mm, 4.0mm and 6.0mm. The 2.8mm lens is available if you prefer a wide-angle view. If an area to monitor is located further away from the camera, the 6.0mm lens can be utilized
Varifocal Lens The 3.2 ~ 10mm (3.1x) varifocal lens, created by Hanwha echwin’s own advanced technology, offers greater flexibility in the field of view. The motorized varifocal option provides quick and easy focus using the simple focus feature
Enhanced video analytics
Wisenet Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility
Reduce bandwidth requirements by up to 99% usingWiseStream II
Using WiseStream II, Hanwha Techwin’s own video ompression technology, with H.265 compression allows Wisenet Q series cameras to reduce bandwidth usage by up to 99% when compared to H.264 technology. As a result, system costs, such as network infrastructure and data storage, are also greatly reduced.
Analog video output for easier installation
The Wisenet Q series cameras support analog video (CVBS) output for easier installation. During the installation, a monitor can be connected to the monitor port to adjust and configure the viewing angle and the focus.*
Hallway view for monitoring vertical shaped areas
Conventional horizontally oriented video streams waste bandwidth and storage along their edges in narrow areas such as store aisles or long hallways. Hallway view created a vertically oriented 3 : 4 or 9 : 16 ratio video stream to maximize usable image space in a narrow environment.
Business intelligence for smarter retail
People Counting People counting applications within a store allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and better understand buying patterns.
HDMI live video output for Public View Monitor
Public view monitors are a convenient way of promoting the safety of retail customers and staff for store management. Wisenet Q mini cameras support HDMI video output for easy connection with Public View Monitors.
