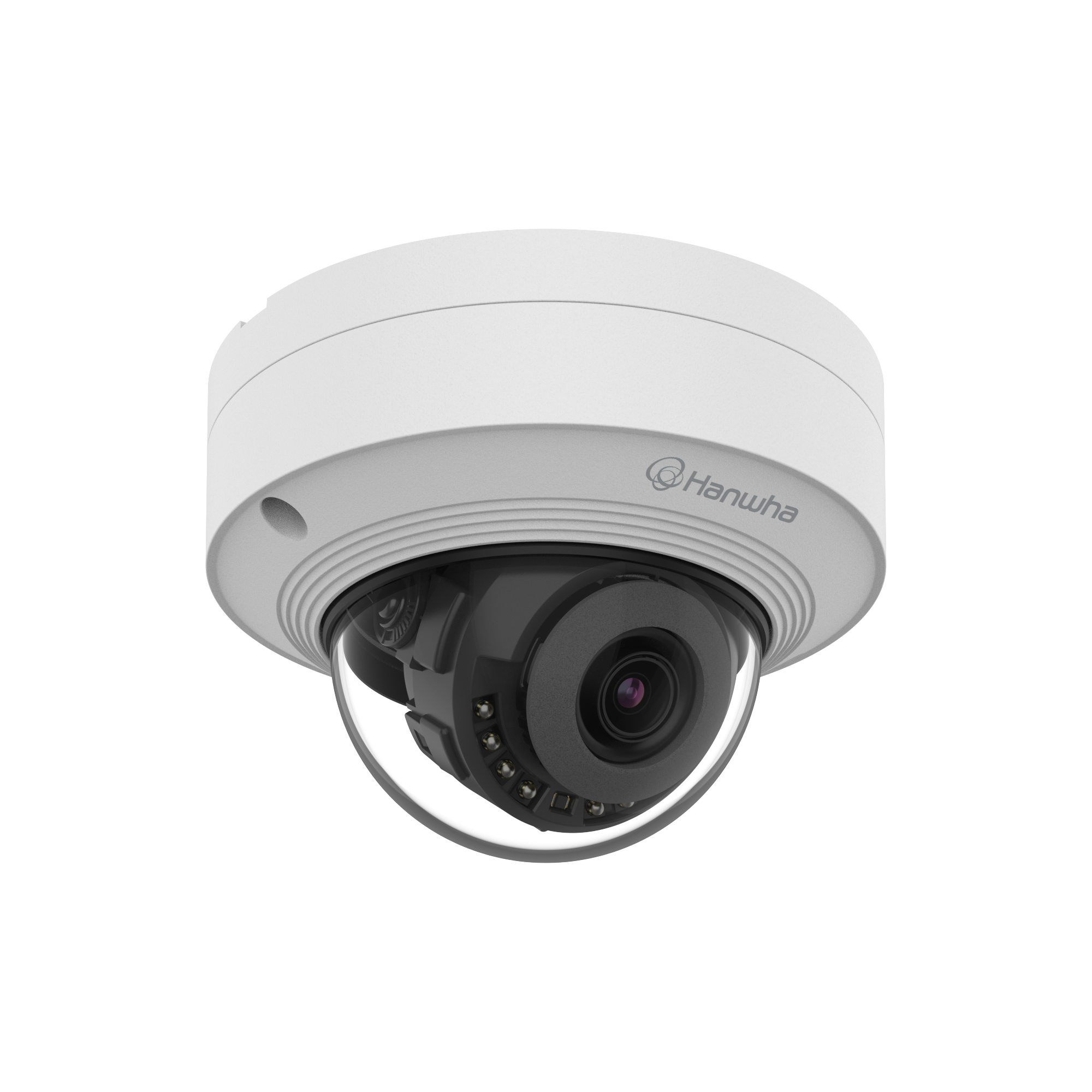

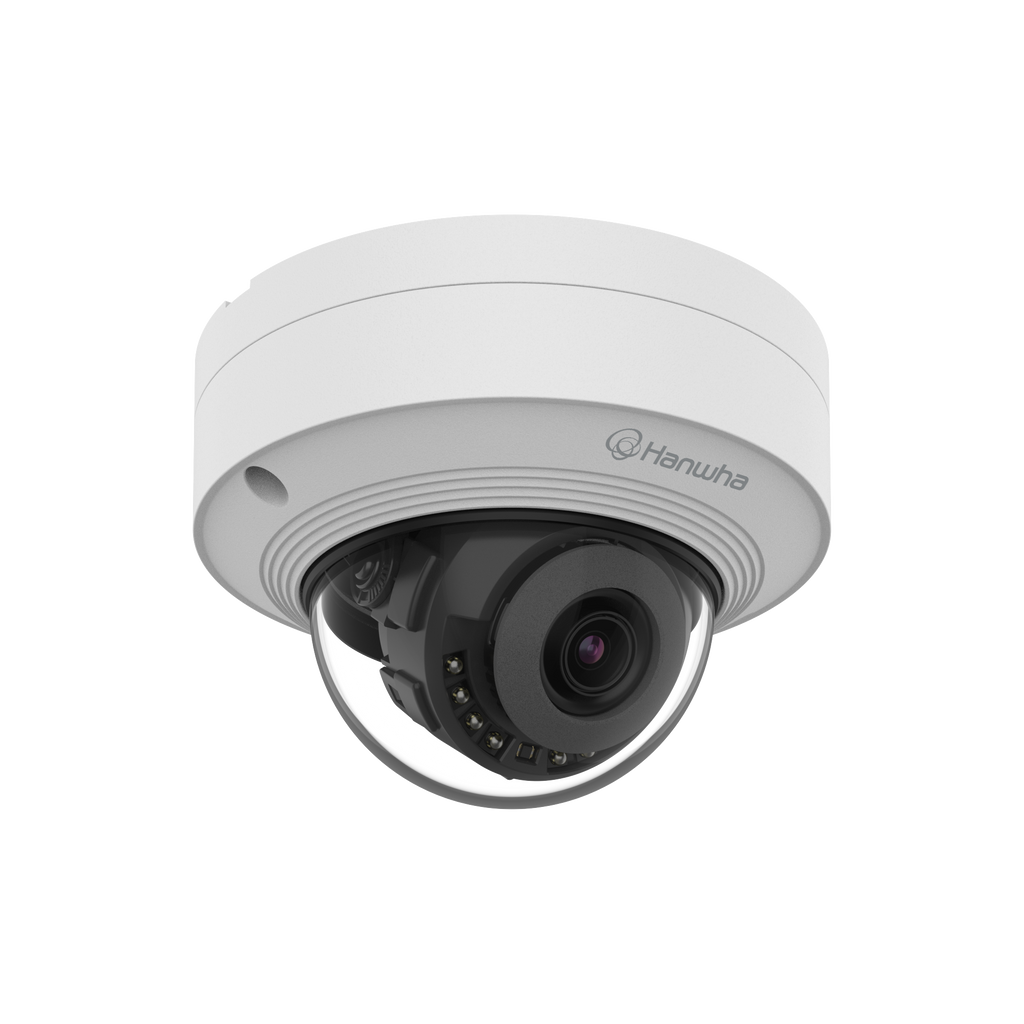

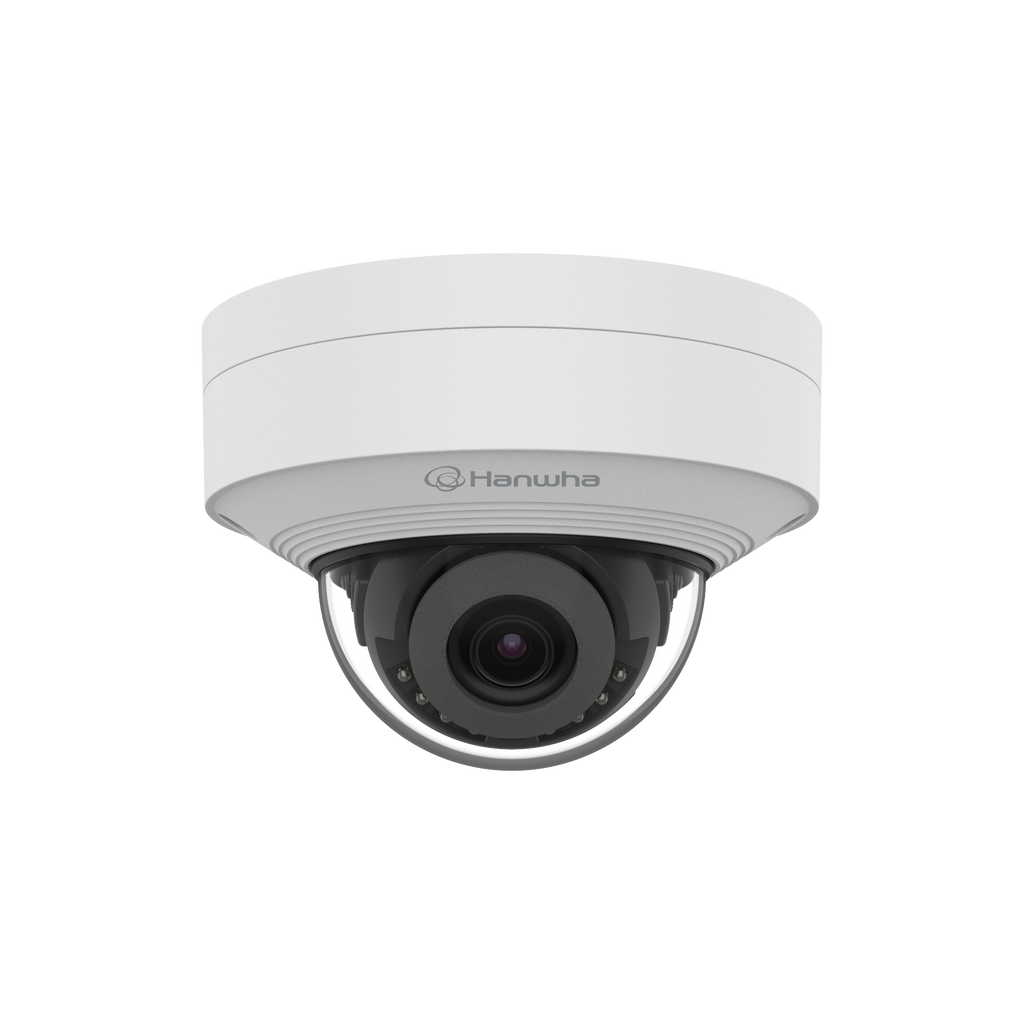

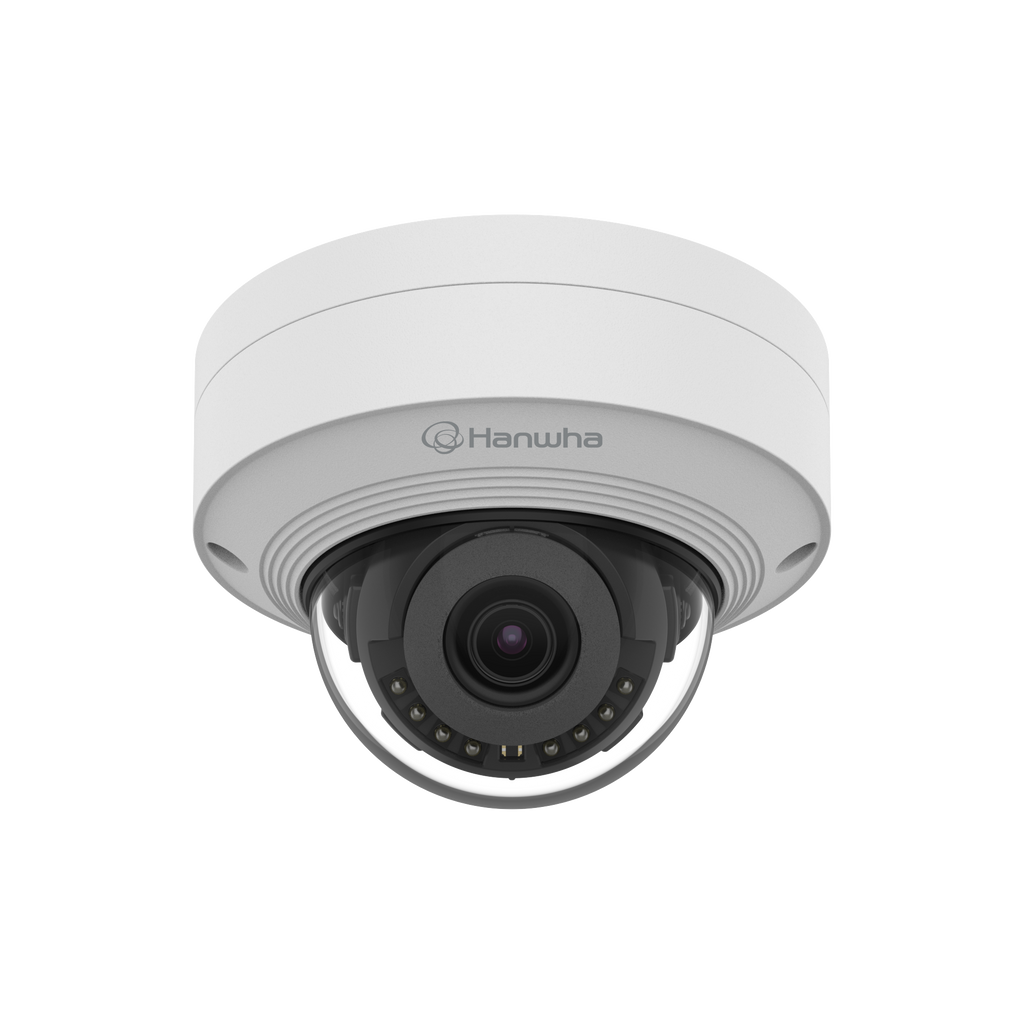

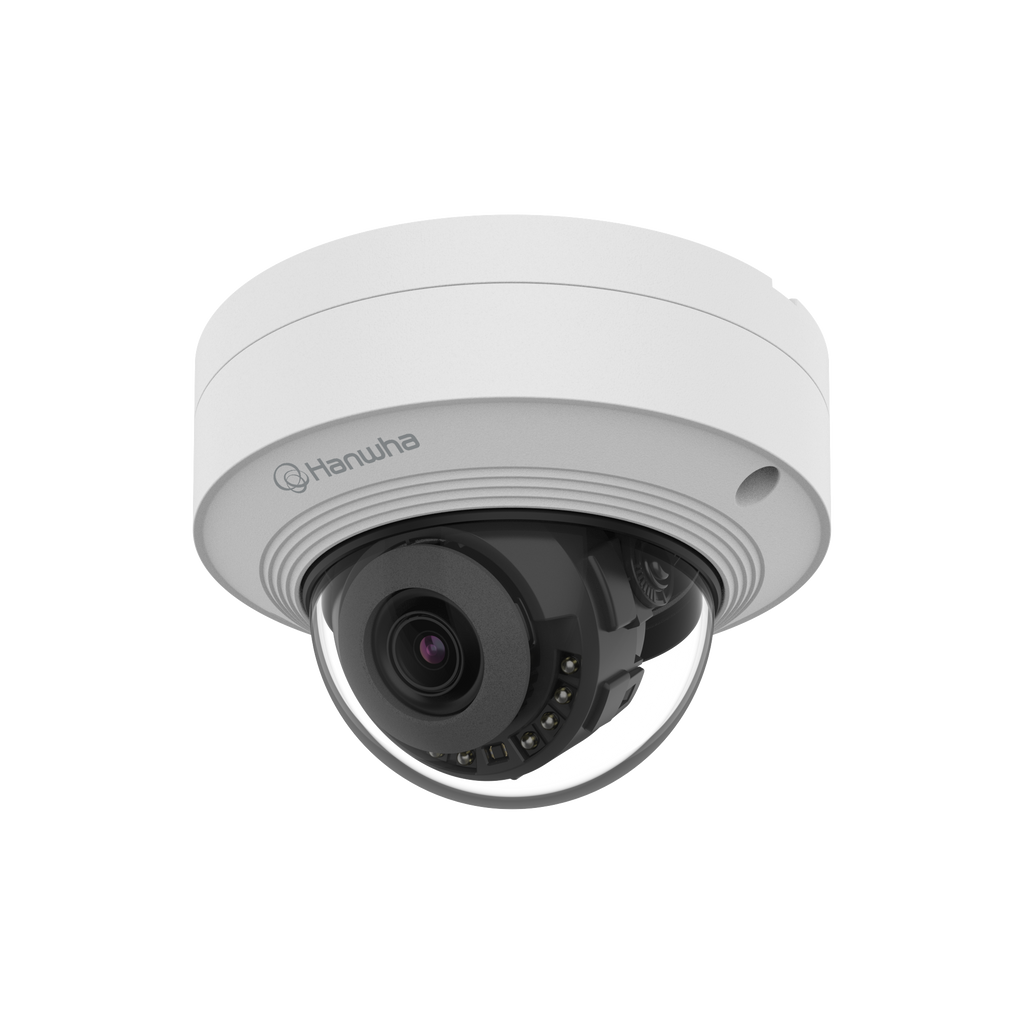

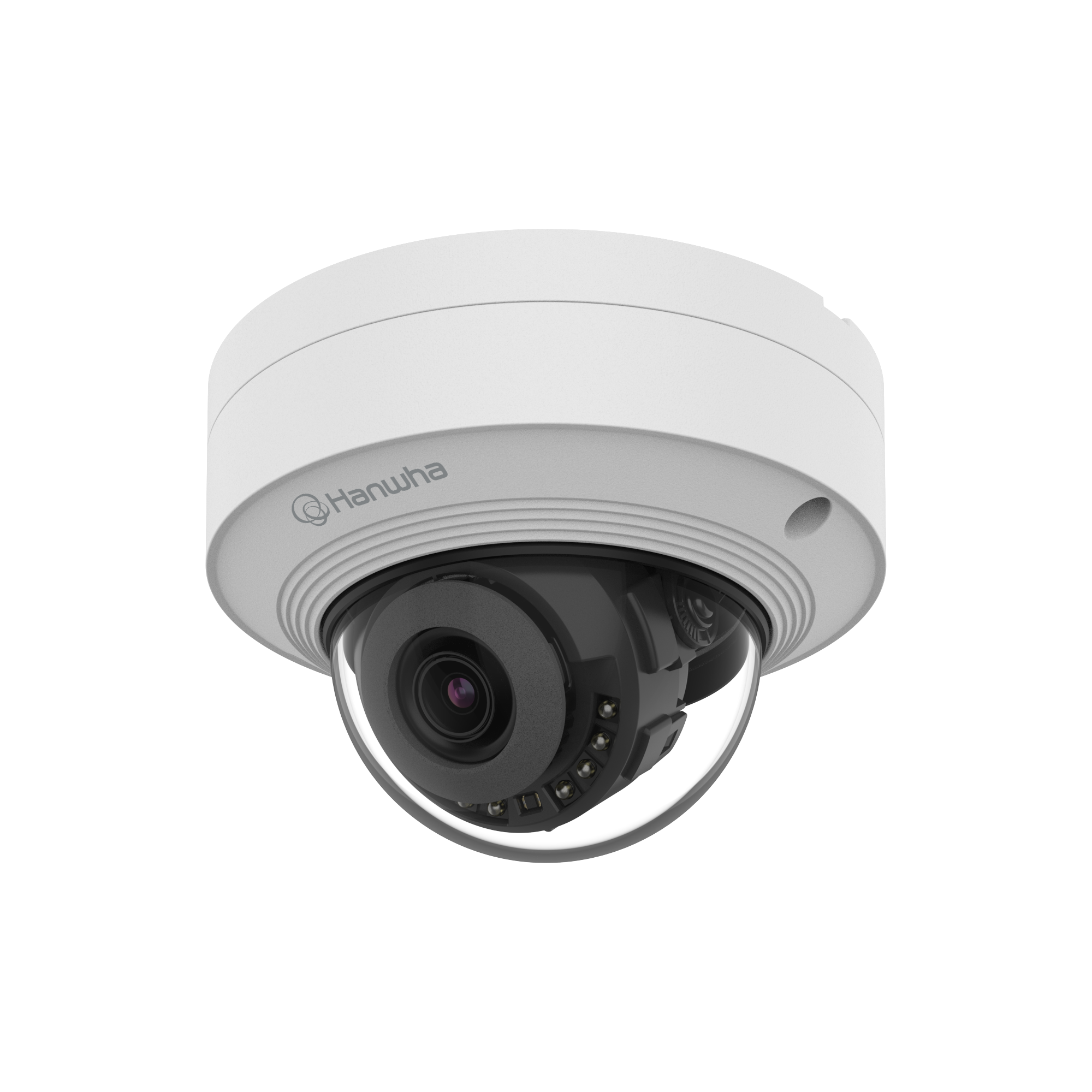

The Hanwha Vision QNV-C9011R is an advanced 8MP AI-powered vandal-resistant dome camera designed for critical surveillance in compact spaces. Built with a 3.0mm wide-angle fixed lens and leveraging AI-based object detection and video analytics, this micro dome camera ensures precise monitoring with edge-based intelligence for real-time response and operational efficiency.
Featuring IR night vision up to 20m, WiseStream III compression, and WDR (120dB), it delivers high-quality imaging in diverse lighting environments. Certified with IP66, IK10, and NEMA4X ratings, the QNV-C9011R is suited for both indoor and outdoor use in high-risk, harsh environments. Ideal for retail, public facilities, commercial premises, and smart city deployments, this compact solution delivers enterprise-grade performance in a small footprint.
What’s in the Box
1x Hanwha Vision QNV-C9011R Camera
Installation Guide
Mounting Screws
Drilling Template
Waterproof Connectors
Main Features
8MP (4K) Resolution with max. 30fps (H.265/H.264)
3.0mm fixed lens with 108° horizontal FoV
AI-powered analytics: Object, motion, line crossing, intrusion, loitering detection
IR LED Night Vision up to 20m
WDR (120dB), WiseNRⅡ, SSNRⅤ, Hallway View
Hard-coated vandal-resistant dome bubble
H.265, H.264, MJPEG + WiseStream III compression
IP66 / IK10 / NEMA4X ratings for robust environmental protection
Micro SD slot (up to 1TB) with secure encrypted storage
Power over Ethernet (PoE) – Max 8.5W
Detailed Specifications
Camera & Optics:
Image Sensor: 1/2.8" CMOS
Resolution: Up to 3840x2160
Lens: 3.0mm, F1.6 aperture
Field of View: H: 108°, V: 59°, D: 127°
Minimum Illumination: Color: 0.03Lux, B/W: 0.003Lux, 0Lux (IR On)
Full service and warranty support provided via certified Australian and New Zealand distributors
Brand Information
Hanwha Vision, formerly known as Hanwha Techwin, is a leader in video surveillance solutions with decades of experience in security technologies. Their AI-powered, NDAA-compliant solutions are trusted by global industries for reliability, cybersecurity, and scalability.
SKU: QNV-C9011R
Practical Use Scenarios
Retail Chains: Intelligent object detection and queue analytics for loss prevention and customer flow.
Smart Cities: Public space surveillance with weatherproof and impact-resistant design.
Transportation Hubs: Monitor terminals, lobbies, and entrances using wide-angle views and IR night vision.
Schools & Campuses: AI detection for perimeter intrusion and behavioral analytics.
Healthcare Facilities: Privacy zones and tamper detection for compliant patient monitoring.
Excellence for the Australian and New Zealand Market
The Hanwha QNV-C9011R is engineered to meet the performance, durability, and certification requirements of the Australian and New Zealand markets. With RCM (AS/NZS CISPR 32 Class A) compliance, certified IP66 & IK10 protection, and full PoE compatibility, it ensures trouble-free integration and deployment in both commercial and government sectors. Products are exclusively sourced through authorized regional distributors, and all support and warranty claims are handled locally in Australia and New Zealand, ensuring seamless service and peace of mind.
Frequently Asked Questions (FAQs) – QNV-C9011R
Q1: Does the QNV-C9011R support onboard AI analytics? (QNV-C9011R) Yes, the QNV-C9011R is equipped with an onboard AI engine for object classification, motion detection, virtual lines, intrusion detection, and more.
Q2: Can the QNV-C9011R be installed outdoors? (QNV-C9011R) Absolutely. It features IP66, IK10, and NEMA4X ratings, making it suitable for harsh outdoor environments.
Q3: What storage options are available for edge recording? (QNV-C9011R) It includes a Micro SD slot supporting up to 1TB with partition encryption, allowing local recording without a dedicated NVR.
Q4: How wide is the field of view of the QNV-C9011R? (QNV-C9011R) The camera has a 3.0mm lens offering a horizontal field of view of 108°, ideal for wide-area surveillance.
Q5: Is the QNV-C9011R compatible with third-party VMS? (QNV-C9011R) Yes, it supports ONVIF Profiles S/G/T/M and Hanwha SUNAPI, ensuring broad third-party VMS compatibility
FREE SHIPPING ON ALL ORDERS OVER $200 AUSTRALIA WIDE
All orders are delivered using the Australia Post shipping method and this is the most efficient method of delivery.
A flat rate of $12 applies to all orders under $200.
Delivery typically takes 3-5 business days all over Australia including Tasmania.
New Zealand: 10-15 business days.
Processing Times
We process orders from Monday to Friday, ensuring they are shipped within 24 hours of placement, excluding weekends and public holidays.
Tracking Your Order
Once your order is packed and dispatched from our warehouse, you will receive an email with a tracking number. This tracking number can be used to monitor your parcel's progress.
For your convenience, if you are not home at the time of delivery, the delivery driver will leave your parcel in a secure place if deemed safe. If it is not safe to leave the parcel, or if the parcel is too large, a card will be left with instructions on how to retrieve your parcel from the local depot.
Warranty period is given in the product description.
CCTV Importers’s Products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure of the Product and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Products repaired or replaced if the Products fail to be of acceptable quality and the failure does not amount to a major failure.
The Q series delivers sharp and clear image quality with H.265 compression, ideal in securing small to medium sized applications such as retail, banking and offices. Enhanced features include intelligent video analytics, Wide Dynamic Range, Built-in IR, Hallway View, & WiseStream II.
Wisenet Q series Network Cameras
High Quality Cameras Offering Cost Effective Solutions
Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices
Compact design with affordable price 5MP & 2MP resolution Maximum 30fps framerate WDR 120dB WiseStream II Intelligent video analytics IR viewable length up 30m Hallway view (Rotate 90° / 270°) Micro SD/SDHC/SDXC memory slot Video output CVBS, PoE
5MP and 2MP resolutions
The Wisenet Q series is available in two resolution options to give you the freedom to choose the cameras that best fits your security needs. 5MP Q series cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance providing crisp and vivid monitoring.
Various lens options
Fixed Lens The Wisenet Q series fixed-lens models are available with focal lengths of 2.8mm, 4.0mm and 6.0mm. The 2.8mm lens is available if you prefer a wide-angle view. If an area to monitor is located further away from the camera, the 6.0mm lens can be utilized
Varifocal Lens The 3.2 ~ 10mm (3.1x) varifocal lens, created by Hanwha echwin’s own advanced technology, offers greater flexibility in the field of view. The motorized varifocal option provides quick and easy focus using the simple focus feature
Enhanced video analytics
Wisenet Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility
Reduce bandwidth requirements by up to 99% usingWiseStream II
Using WiseStream II, Hanwha Techwin’s own video ompression technology, with H.265 compression allows Wisenet Q series cameras to reduce bandwidth usage by up to 99% when compared to H.264 technology. As a result, system costs, such as network infrastructure and data storage, are also greatly reduced.
Analog video output for easier installation
The Wisenet Q series cameras support analog video (CVBS) output for easier installation. During the installation, a monitor can be connected to the monitor port to adjust and configure the viewing angle and the focus.*
Hallway view for monitoring vertical shaped areas
Conventional horizontally oriented video streams waste bandwidth and storage along their edges in narrow areas such as store aisles or long hallways. Hallway view created a vertically oriented 3 : 4 or 9 : 16 ratio video stream to maximize usable image space in a narrow environment.
Business intelligence for smarter retail
People Counting People counting applications within a store allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and better understand buying patterns.
HDMI live video output for Public View Monitor
Public view monitors are a convenient way of promoting the safety of retail customers and staff for store management. Wisenet Q mini cameras support HDMI video output for easy connection with Public View Monitors.
