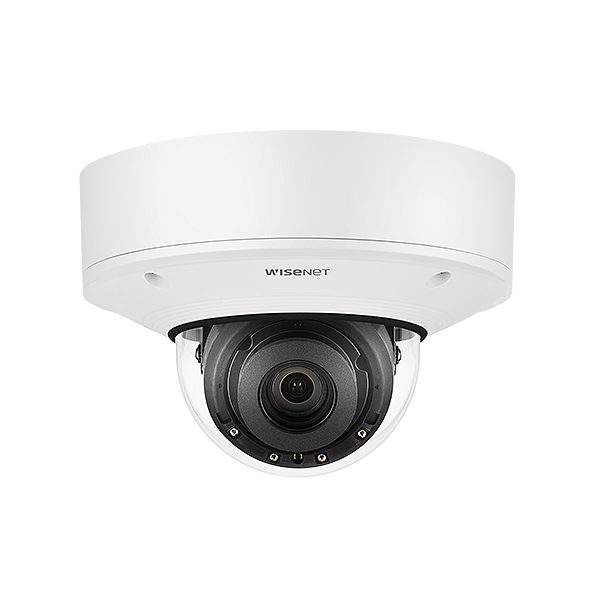

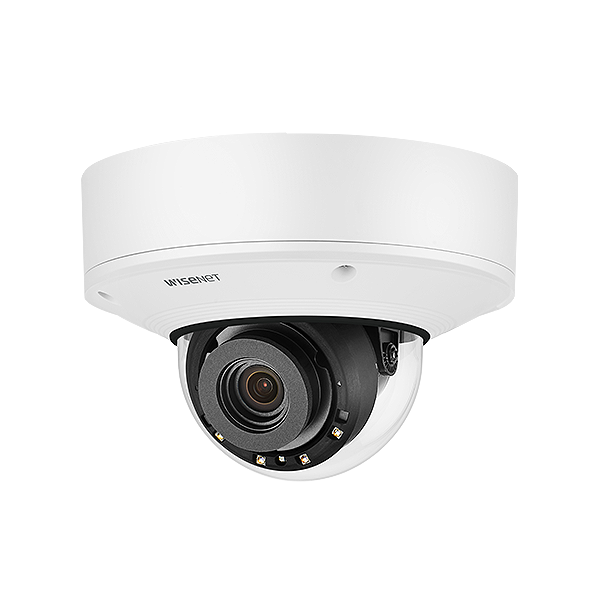

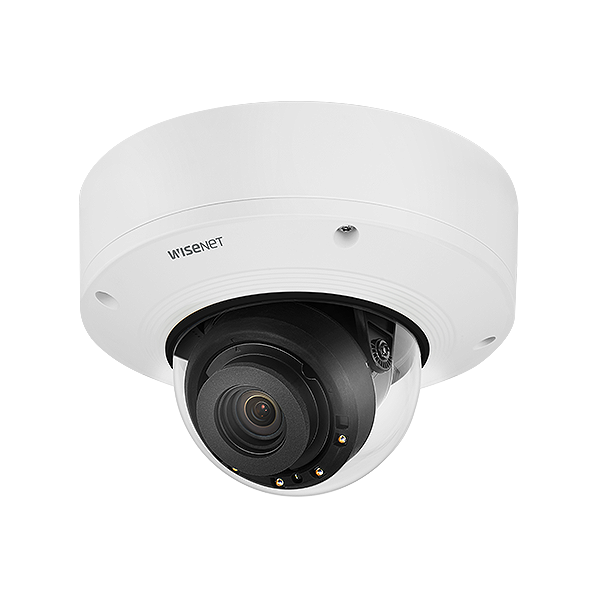

The Hanwha Vision HV-XNV-8081RE Wisenet X-Series 5MP External Vandal IR Dome Camera is a rugged, intelligent security solution engineered for demanding outdoor installations where performance and flexibility are paramount.
Powered by a 1/1.8” 6MP CMOS sensor, this camera delivers superb 5MP resolution (up to 2560×1920), ensuring crisp, clear images in diverse lighting conditions. It features a 3.9–9.4mm motorized varifocal lens for flexible field-of-view adjustments and 50m IR range for superior night surveillance.
A standout feature is the PoE extender function, which provides up to 12.95W of power over an 80-meter cable run to an additional device (such as another camera), reducing cabling complexity and installation costs.
Key benefits:
120dB WDR for clear images even in challenging lighting contrasts.
WiseStream II compression dramatically reduces bandwidth and storage demands without sacrificing quality.
Intelligent Video Analytics (IVA): virtual lines, loitering, intrusion detection
Business intelligence tools like people counting, queue management, and heatmaps for operational insights.
Its robust build includes IP66/IP67/IP6K9K weather protection, IK10+ impact resistance, and NEMA4X certification, ensuring durability in harsh environments. Ideal for applications like perimeter security, transportation hubs, public facilities, and critical infrastructure.
What’s Included in the Box
Hanwha Vision HV-XNV-8081RE Wisenet X-Series 5MP External Vandal IR Dome Camera
Installation hardware
Quick Installation Guide
Main Features
5MP CMOS Sensor for high-resolution imagery.
PoE Extender Capability—powers an extra device up to 80m away.
Motorized Varifocal Lens (3.9–9.4mm, F1.3) with autofocus for precise viewing angles.
IR Illumination up to 50 meters (164 ft) for excellent low-light performance.
Wide Dynamic Range (120dB) for optimal image quality in high-contrast scenes.
Digital Image Stabilization reduces blur caused by vibrations.
WiseStream II compression technology optimizes bandwidth.
Advanced analytics:
Motion, defocus, fog, audio detection
Virtual line, loitering, intrusion
Business intelligence like people counting, heatmaps, queue management
ONVIF Profile S/G/T compliance for integration into third-party systems.
Detailed Specifications
Category
Details
Image Sensor
1/1.8" 6MP CMOS
Effective Pixels
2616(H) × 1976(V)
Max. Resolution
2560 × 1920
Frame Rate
Max. 30fps (H.265/H.264)
Lens
Motorized Varifocal, 3.9–9.4mm, F1.3
Field of View
H: 92.1°–38.7°, V: 67.2°–29.0°, D: 119.9°–48.6°
Min. Illumination
Color: 0.07 Lux (F1.3), B/W: 0 Lux with IR
IR Range
50 meters (164 ft)
Video Compression
H.265, H.264, MJPEG
Audio Compression
G.711, G.726, AAC-LC
PoE Out
Max. 12.95W @ 80m
Edge Storage
Dual microSD/SDHC/SDXC (up to 512GB)
Analytics
IVA, defocus, audio, fog detection, business intelligence
Network Interface
RJ-45 (10/100BASE-T)
Protocols
IPv4/IPv6, HTTPS, ONVIF S/G/T, SNMP v1/v2c/v3, SRTP, etc.
Operating Temp.
-50°C ~ +60°C (-58°F ~ +140°F)
Certifications
IP66, IP67, IP6K9K, IK10+, NEMA4X
Power Supply
PoE+ (IEEE802.3at Class 4)
Power Consumption
Max. 25.5W (Main + Extension)
Dimensions/Weight
Ø180 × 125mm (7.09 × 4.92"), 1.75 kg (3.86 lb)
DORI Range (Detect)
Wide: 49.4m / Tele: 146m
Warranty Information
Hanwha Vision provides comprehensive warranty support for the HV-XNV-8081RE, including coverage tailored to the Australian and New Zealand markets via authorized partners.
Brand Description
Hanwha Vision, formerly Samsung Techwin, is a global leader in advanced video surveillance, offering innovative solutions that combine AI-driven analytics with durable hardware engineered for reliability and security in critical environments.
SKU
HV-XNV-8081RE
Practical Use Scenarios
✅ Perfect for perimeter security at transportation hubs or public facilities. ✅ Ideal for outdoor retail environments, delivering advanced business intelligence insights like people counting and heatmaps. ✅ Suitable for critical infrastructure protection with advanced analytics and rugged IP/IK ratings. ✅ Great for applications needing secondary devices powered via PoE extender, reducing cabling costs.
Excellence for the Australian and New Zealand Market
Hanwha Vision guarantees that the HV-XNV-8081RE meets rigorous compliance standards for Australia and New Zealand. Local warranty support and certified technical assistance ensure peace of mind for professional deployments across the region.
FAQs
Q1: What resolution does the Hanwha HV-XNV-8081RE (SKU: HV-XNV-8081RE) support? A1: It delivers high-definition video up to 5MP (2560 × 1920) for exceptional detail.
Q2: Can the Hanwha HV-XNV-8081RE (SKU: HV-XNV-8081RE) power another device? A2: Yes! It features a PoE extender output delivering up to 12.95W over 80 meters.
Q3: What’s the IR range of the Hanwha HV-XNV-8081RE (SKU: HV-XNV-8081RE)? A3: It provides night vision coverage up to 50 meters (164 ft).
Q4: Is the Hanwha HV-XNV-8081RE (SKU: HV-XNV-8081RE) suitable for extreme environments? A4: Absolutely—it’s rated IP66/IP67/IP6K9K and IK10+, handling harsh weather and impact.
Q5: What analytics does the Hanwha HV-XNV-8081RE (SKU: HV-XNV-8081RE) support? A5: It includes people counting, heatmaps, queue management, motion detection, and advanced AI-driven video analytics.
