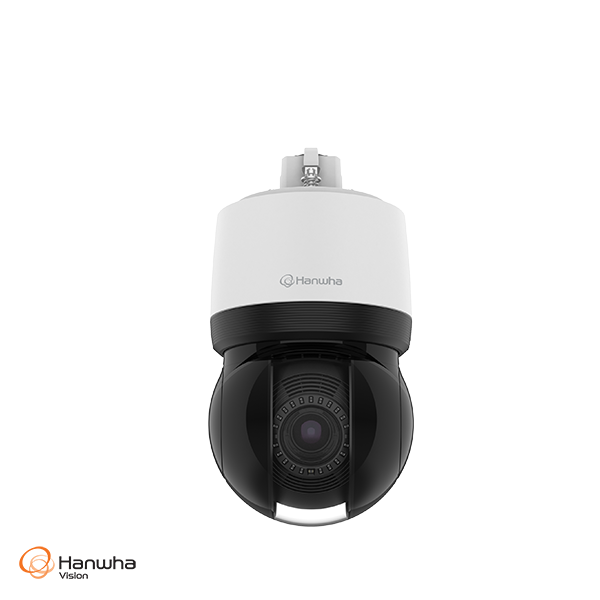

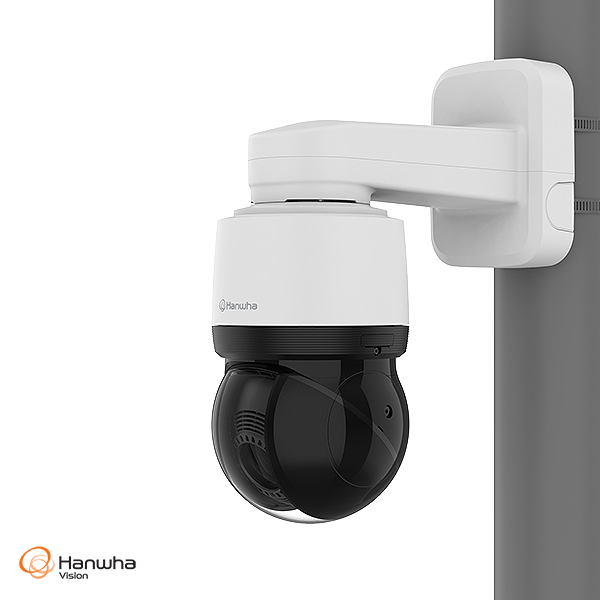

The Hanwha Vision XNP-C6403R delivers high-performance PTZ surveillance with 2MP resolution and a powerful 40x optical zoom. Built on the Wisenet7 platform, it offers AI-driven tracking, extreme 150dB WDR, and durable design suited for industrial and infrastructure security. With ultra-fast pan/tilt control and up to 1280x zoom (optical + digital), this camera provides reliable, detailed footage in even the most demanding outdoor conditions.
What's Included in the Box
Hanwha Vision XNP-C6403R Camera Unit
High PoE Injector (IEEE802.3bt, Class 6, Type 3)
Setup Cable (Micro USB)
Mounting Accessories
Quick Start Guide
Main Features
2MP Full HD (1920x1080): High clarity video with wide resolution options.
40x Optical Zoom (4.25~170mm): Up to 1280x total zoom with 32x digital.
Extreme WDR (150dB): Unmatched dynamic range in bright and shadowed scenes.
AI Auto-Tracking: Tracks vehicles or people in real-time, with target lock.
Stabilized Imaging: DIS with built-in gyro sensor for shake-free video.
Secure by Design: TPM 2.0 with FIPS 140-2 Level 2, signed firmware, HTTPS, SRTP, and 802.1X.
Compact PTZ PLUS Architecture: Lighter, simpler, and faster to install.
Detailed Specifications
Image Sensor: 1/2.8” CMOS
Min. Illumination: 0.05Lux (Color), 0Lux (IR mode)
Pan Range: 360° endless | Pan Speed: Up to 700°/sec
Tilt Range: -20° to +90° | Tilt Speed: Up to 500°/sec
Field of View: H 65.66°~1.88°, V 39.4°~1.09°
DORI Range:
Detect: Up to 2340.4m
Observe: Up to 936.2m
Recognize: Up to 468.1m
Identify: Up to 234.0m
Frame Rate: 60fps (H.265/H.264), 30fps (MJPEG)
Edge Storage: Dual SD slots, up to 1TB total
Power Input: HPoE (Max 40W)
Operating Temp: -40°C to +74°C (startup ≥ -30°C)
Certifications: IP66, IK10, NEMA 4X, NEMA TS-2
Dimensions / Weight: Ø158 x 293.3 mm / 3.2kg
Warranty Information
Includes a 3-year limited warranty with local support available through Hanwha Vision-authorized partners across Australia and New Zealand.
Brand Description
Hanwha Vision, a continuation of the Hanwha Techwin legacy, provides industry-leading AI-powered surveillance solutions. With Wisenet7 technology, Hanwha offers unparalleled imaging quality, security, and operational intelligence for demanding security needs.
SKU: HV-XNP-C6403R
Practical Use Scenarios
Transport Corridors: Capture vehicle detail across long distances.
Public Venues: Ensure safety in parks, plazas, or stadium perimeters.
Industrial Facilities: Monitor production yards and restricted zones.
Airports & Ports: Secure entry/exit zones and high-traffic areas.
Utilities & Remote Infrastructure: Long-range monitoring for substations and pipelines.
Excellence for the Australian and New Zealand Market
Certified to RCM and AS/NZS CISPR 32 EMC standards.
Built to endure Australia’s climate extremes and infrastructure demands (NEMA TS-2, IP66, IK10).
Distributed via Hanwha’s official ANZ supply chain with full warranty support.
Environmentally compliant (RoHS, REACH) and optimized for regional deployment.
Service and repair facilities located within Australia and New Zealand.
Frequently Asked Questions (FAQs)
Q1: How far can the HV-XNP-C6403R zoom? A1: The camera features a 40x optical and 32x digital zoom, reaching up to 1280x total zoom.
Q2: Is the HV-XNP-C6403R suited for outdoor industrial use? A2: Yes, it’s IP66, IK10, and NEMA 4X certified with operating temperatures from -40°C to +74°C.
Q3: What video compression options does the HV-XNP-C6403R support? A3: It supports H.265, H.264 (Main/Baseline/High), and MJPEG formats.
Q4: What cybersecurity protections are built into the HV-XNP-C6403R? A4: It includes TPM 2.0, signed firmware, secure boot, HTTPS, SRTP, and 802.1X for robust data security.
Q5: Does the HV-XNP-C6403R support local video storage? A5: Yes, it supports up to 1TB via dual SD card slots for edge recording.
