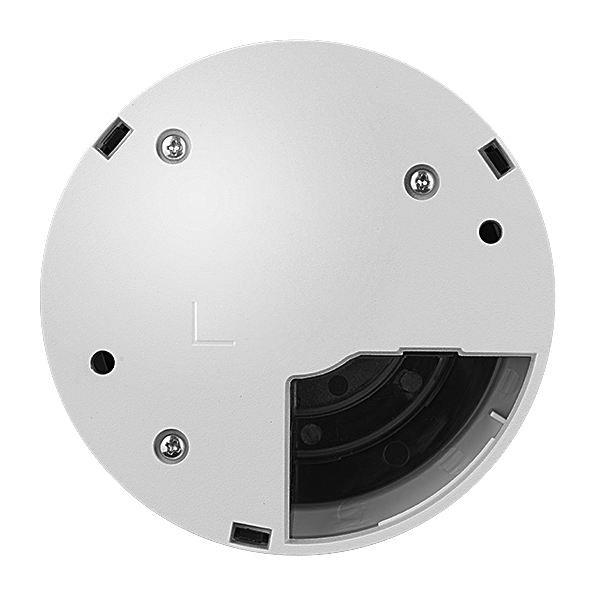

Hanwha Wisenet CT-QND-8080R 5MP Q Series by Samsung Network IR Dome Camera

Save $31.00
WISENETSKU: WISE-CT-QND-8080R

Price:
Sale price$579.00 Regular price$610.00

Description

The Hanwha Wisenet CT-QND-8080R is a 5MP Q Series network IR Dome Camera from Samsung. With a 3.2~10mm motorized varifocal lens and 0.15Lux color and 0Lux B/W, it is capable of recording with up to 30fps@5MP. Packed with features such as WDR (120dB), Tampering, Motion detection, Defocus detection, Hallway view and WiseStream II support, this camera is a reliable and comprehensive security solution. It also has a Micro SD / SDHC / SDXC memory slot that supports up to 128GB and a powerful IR Viewable length up to 20m. Power is provided by PoE.



CT-QND-8080R

Wisenet Q Series / 5 Megapixel Network IR Dome Camera


FEATURES

  • Max. 5 Megapixel (2592 x 1944) resolution
  • 3.2~10mm(3.1x) motorized varifocal lens
  • 0.15Lux (Color), 0Lux (B/W, IR LED on)
  • Max. 30fps@5MP (H.265 / H.264)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Day & Night, WDR (120dB)
  • Tampering, Motion detection, Defocus detection
  • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • IR Viewable length 20m, PoE

Data sheet



WISENET Q series

The Q series delivers sharp and clear image quality with H.265 compression, ideal in securing small to medium sized applications such as retail, banking and offices. Enhanced features include intelligent video analytics, Wide Dynamic Range, Built-in IR, Hallway View, & WiseStream II.

Wisenet Q series Network Cameras

High Quality Cameras Offering Cost Effective Solutions

Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices

Compact design with affordable price
5MP & 2MP resolution
Maximum 30fps framerate
WDR 120dB
WiseStream II
Intelligent video analytics
IR viewable length up 30m
Hallway view (Rotate 90° / 270°)
Micro SD/SDHC/SDXC memory slot
Video output CVBS, PoE

5MP and 2MP resolutions

The Wisenet Q series is available in two resolution options to give you the freedom to choose the cameras that best fits your security needs. 5MP Q series cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance providing crisp and vivid monitoring.

Various lens options

Fixed Lens
The Wisenet Q series fixed-lens models are available with focal lengths of 2.8mm, 4.0mm and 6.0mm. The 2.8mm lens is available if you prefer a wide-angle view. If an area to monitor is located further away from the camera, the 6.0mm lens can be utilized

Varifocal Lens
The 3.2 ~ 10mm (3.1x) varifocal lens, created by Hanwha echwin’s own advanced technology, offers greater flexibility in the field of view. The motorized varifocal option provides quick and easy focus using the simple focus feature

Enhanced video analytics

Wisenet Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility

Reduce bandwidth requirements by up to 99% usingWiseStream II

Using WiseStream II, Hanwha Techwin’s own video ompression technology, with H.265 compression allows Wisenet Q series cameras to reduce bandwidth usage by up to 99% when compared to H.264 technology. As a result, system costs, such as network infrastructure and data storage, are also greatly reduced.

Analog video output for easier installation

The Wisenet Q series cameras support analog video (CVBS)
output for easier installation. During the installation, a
monitor can be connected to the monitor port to adjust
and configure the viewing angle and the focus.*

Hallway view for monitoring vertical shaped areas

Conventional horizontally oriented video streams waste bandwidth and storage along their edges in narrow areas such as store aisles or long hallways. Hallway view created a vertically oriented 3 : 4 or 9 : 16 ratio video stream to maximize usable image space in a narrow environment.

Business intelligence for smarter retail

People Counting
People counting applications within a store allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and better understand buying patterns.

HDMI live video output for Public View Monitor

Public view monitors are a convenient way of promoting the safety of retail customers and staff for store management. Wisenet Q mini cameras support HDMI video output for easy connection with Public View Monitors.
