The Hanwha Wisenet CT-QNV-7082R Varifocal lens camera is NDAA approved and provides up to 4MP resolution with a 3.1x motorized varifocal lens, 30m infrared viewing distance and Hallway view. It also features advanced technologies such as H.265/H.264 encoding, WDR (120dB), and motion/tamper/defocus detection. Storage up to 128GB is available with a micro SD/SDHC/SDXC memory card slot. An IP66 and IK10 rating ensures this camera can perform in any conditions.
Wisenet Q Series / 4 Megapixel Varifocal lens camera (NDAA Approved)
- Max. 4MP resolution
- Colour : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3.2 ~ 10mm (3.1x) motorised varifocal
- Max. 30fps@4M resolutions
- H.265, H.264, MJPEG, Multiple streaming supported
- Day & Night (ICR), WDR (120dB)
- Motion detection, Tampering, Defocus detection
- Micro SD/SDHC/SDXC memory 1 slot (Max. 128GB)
- IR viewable length: 30m (98.42ft)
- Hallway view (90°/270°)
- LDC support (Lens Distortion Correction)
- IP66, IK10
WISENET Q series
The Q series delivers sharp and clear image quality with H.265 compression, ideal in securing small to medium sized applications such as retail, banking and offices. Enhanced features include intelligent video analytics, Wide Dynamic Range, Built-in IR, Hallway View, & WiseStream II.
Wisenet Q series Network Cameras
High Quality Cameras Offering Cost Effective Solutions
Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices
Compact design with affordable price
5MP & 2MP resolution
Maximum 30fps framerate
Intelligent video analytics
IR viewable length up 30m
Hallway view (Rotate 90° / 270°)
Micro SD/SDHC/SDXC memory slot
Video output CVBS, PoE

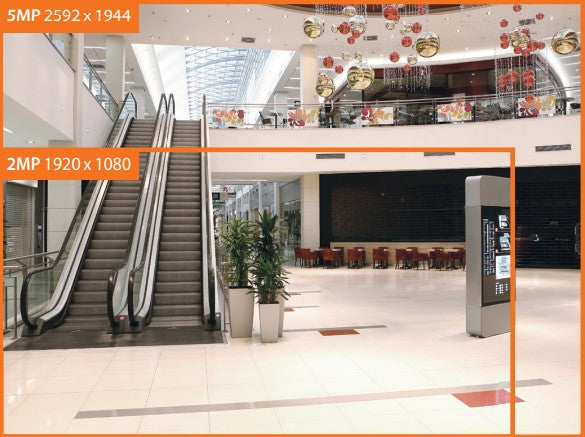

5MP and 2MP resolutions
The Wisenet Q series is available in two resolution options to give you the freedom to choose the cameras that best fits your security needs. 5MP Q series cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance providing crisp and vivid monitoring.

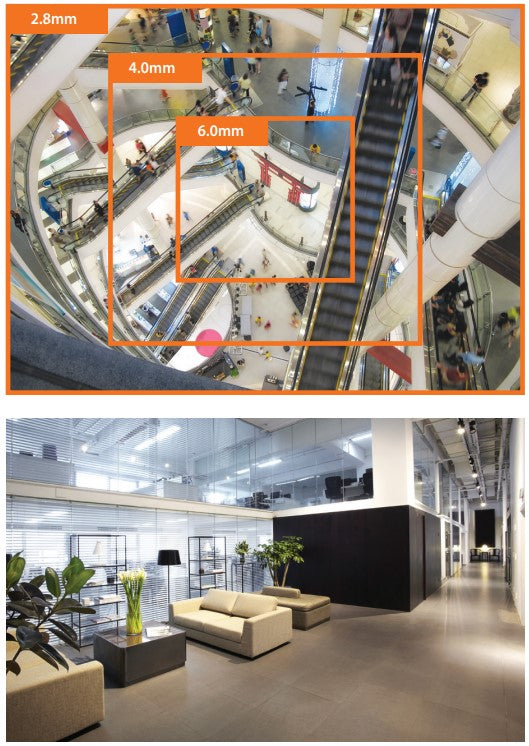

Various lens options
The Wisenet Q series fixed-lens models are available with focal lengths of 2.8mm, 4.0mm and 6.0mm. The 2.8mm lens is available if you prefer a wide-angle view. If an area to monitor is located further away from the camera, the 6.0mm lens can be utilized
The 3.2 ~ 10mm (3.1x) varifocal lens, created by Hanwha echwin’s own advanced technology, offers greater flexibility in the field of view. The motorized varifocal option provides quick and easy focus using the simple focus feature

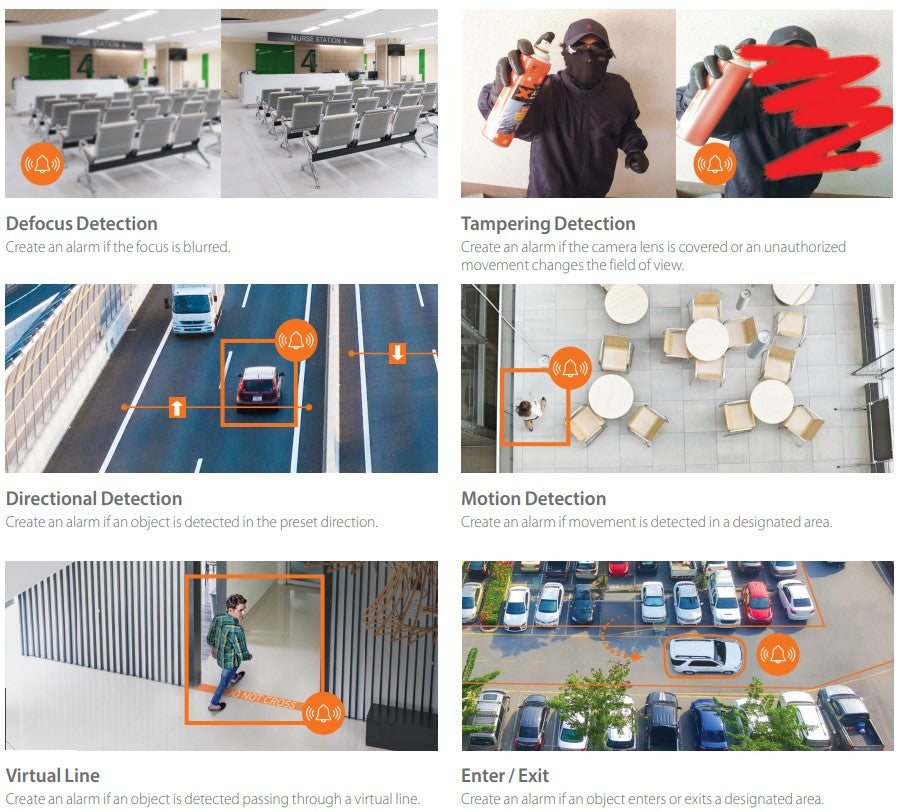

Enhanced video analytics
Wisenet Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility

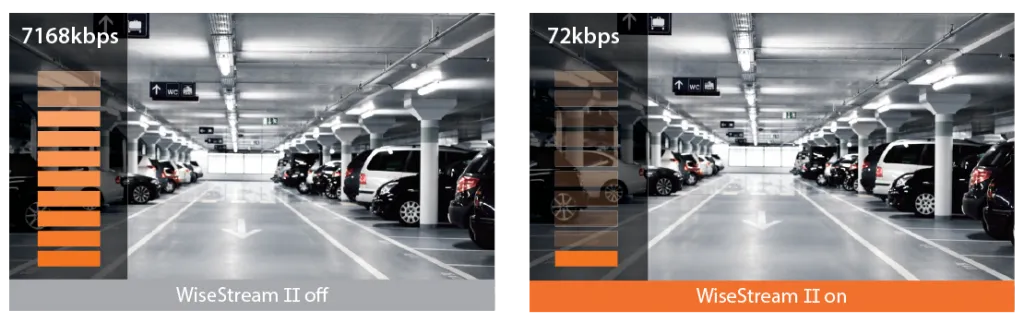

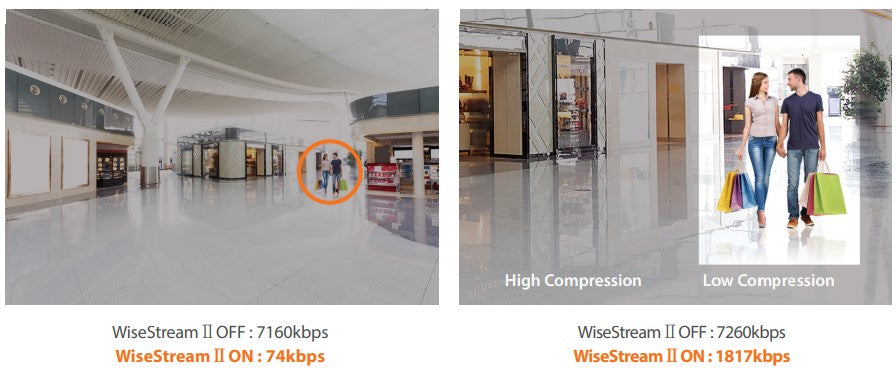

Reduce bandwidth requirements by up to 99% usingWiseStream II
Using WiseStream II, Hanwha Techwin’s own video ompression technology, with H.265 compression allows Wisenet Q series cameras to reduce bandwidth usage by up to 99% when compared to H.264 technology. As a result, system costs, such as network infrastructure and data storage, are also greatly reduced.
Analog video output for easier installation
The Wisenet Q series cameras support analog video (CVBS)
output for easier installation. During the installation, a
monitor can be connected to the monitor port to adjust
and configure the viewing angle and the focus.*

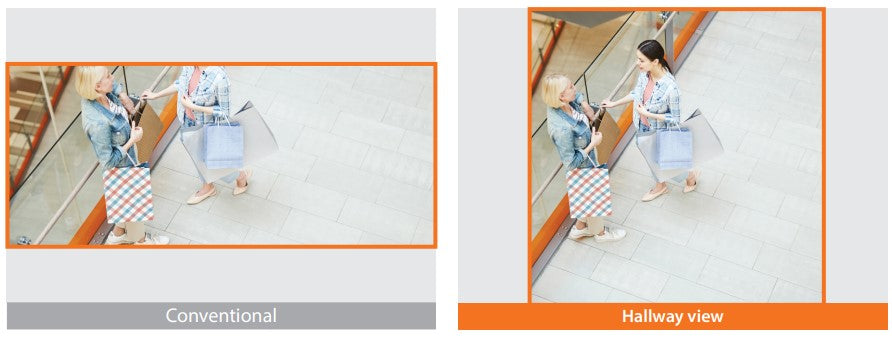

Hallway view for monitoring vertical shaped areas
Conventional horizontally oriented video streams waste bandwidth and storage along their edges in narrow areas such as store aisles or long hallways. Hallway view created a vertically oriented 3 : 4 or 9 : 16 ratio video stream to maximize usable image space in a narrow environment.

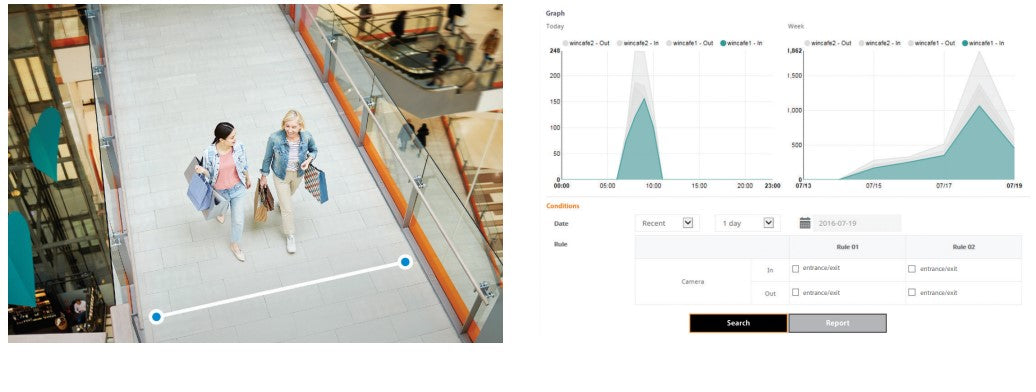

Business intelligence for smarter retail
People counting applications within a store allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and better understand buying patterns.

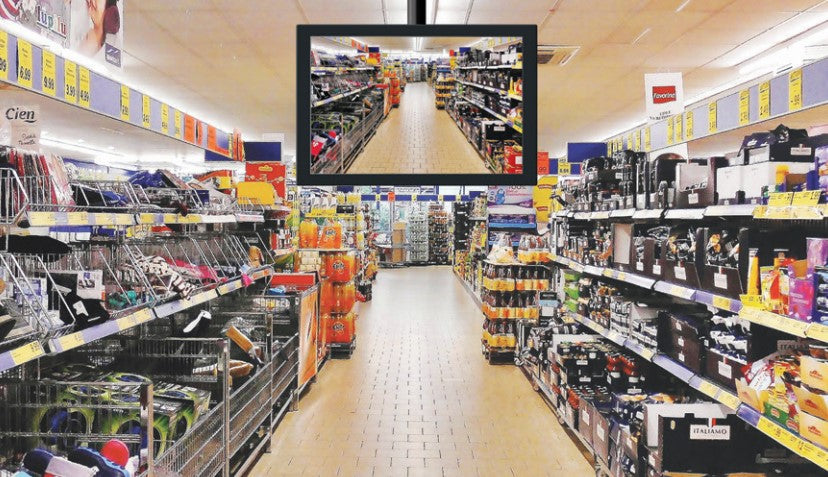

HDMI live video output for Public View Monitor
Public view monitors are a convenient way of promoting the safety of retail customers and staff for store management. Wisenet Q mini cameras support HDMI video output for easy connection with Public View Monitors.
