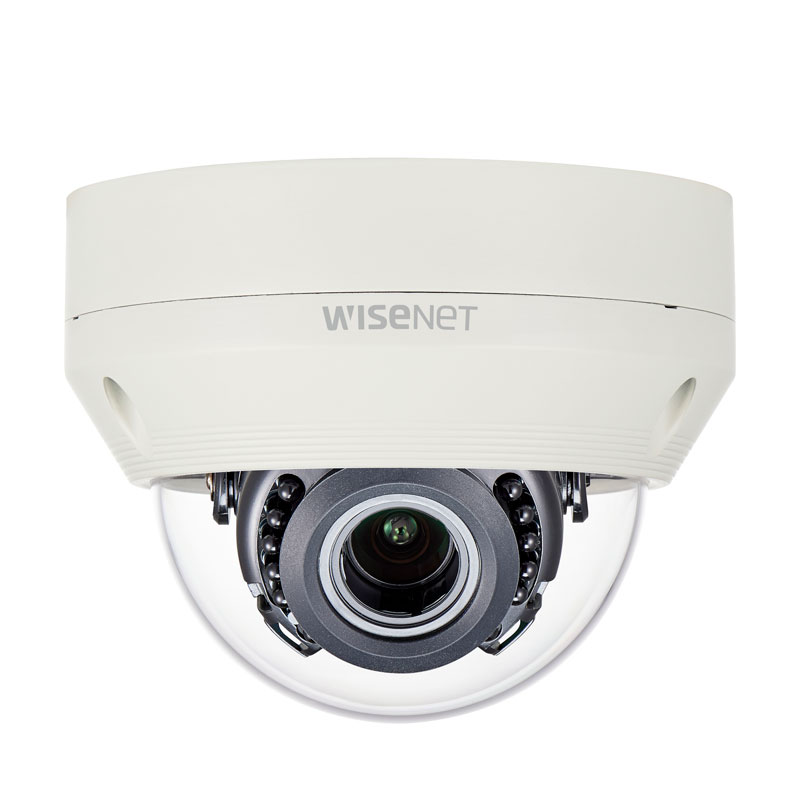

The Hanwha Wisenet HD+ 2MP AHD Outdoor Dome Camera is engineered to deliver high-definition surveillance with Full HD clarity and advanced WDR (120dB) for challenging lighting conditions. Perfect for outdoor applications such as retail, offices, industrial sites, and public areas, this camera combines robust protection, superior imaging, and flexible installation options.
Equipped with a 3.2–10mm motorised varifocal lens and DC auto iris, the camera allows for remote focus adjustment and precise monitoring of target areas. Its 30-meter infrared night vision ensures clear images in low-light conditions. Designed to endure harsh environments, the camera offers IP66 weatherproofing and IK10 vandal resistance, ensuring reliable performance outdoors.
Dual power options (24V AC and 12V DC) make installation flexible, and plug-and-play setup reduces setup time. The SSNRIV noise reduction and motion detection features further enhance surveillance efficiency.
What’s Included
-
Hanwha Wisenet HD+ 2MP AHD Outdoor Dome Camera
-
Mounting Hardware
-
User Manual / Installation Guide
Key Features
-
Full HD 2MP Resolution: Crystal-clear 1080p imaging.
-
Motorised Varifocal Lens: 3.2–10mm, 3.1x zoom for flexible field-of-view adjustment.
-
Advanced Night Vision: 30m IR range with auto day/night switching.
-
Wide Dynamic Range (WDR): 120dB for extreme lighting conditions.
-
Noise Reduction: SSNRIV technology ensures clear images in challenging environments.
-
Durable Outdoor Design: IP66 weatherproof and IK10 vandal-resistant.
-
Dual Power Support: 24V AC and 12V DC for flexible installation.
-
Motion Detection: Intelligent monitoring for event-based recording.
-
Plug-and-Play Installation: Quick setup without complex configuration.
Technical Specifications
Specification | Hanwha HD+ 2MP AHD Dome |
---|---|
Image Sensor | 1/2.8" 2MP CMOS Progressive Scan |
Lens | 3.2–10mm Motorised Varifocal, F1.6 |
Resolution | Full HD 1080p |
Frame Rate | Max. 30fps |
IR Night Vision | Up to 30 meters |
Day/Night | IR-cut filter with auto-switching |
Wide Dynamic Range (WDR) | 120 dB |
Noise Reduction | SSNRIV |
Pan/Tilt/Rotate Range | Pan: 0–350°, Tilt: 0–67°, Rotate: 0–355° |
Power Supply | 24V AC / 12V DC |
Power Consumption | Max. 5.8W |
Ingress Protection | IP66 |
Vandal Resistance | IK10 |
Housing Material | Aluminium, Ivory |
Dimensions | 137 × 106.1 mm |
Weight | 725 g |
Transmission Distance | Max. 500 m |
Practical Applications
-
Retail Stores & Offices: Monitor entrances, cash registers, and stock areas.
-
Industrial Sites: Reliable outdoor surveillance under harsh environmental conditions.
-
Public Facilities: Schools, parks, and government buildings requiring durable, high-resolution cameras.
-
Residential Estates: Villas, large apartments, and gated communities.
Warranty & Certification
-
Warranty: Manufacturer standard ( 3 years)
-
Certifications: CE, RoHS
SKU / Product Info
-
Brand: Hanwha Wisenet
-
Series: HD+ Outdoor Dome Cameras
Datasheet
For full technical specifications and installation guidelines, download the Hanwha HD+ 2MP AHD Dome Datasheet
