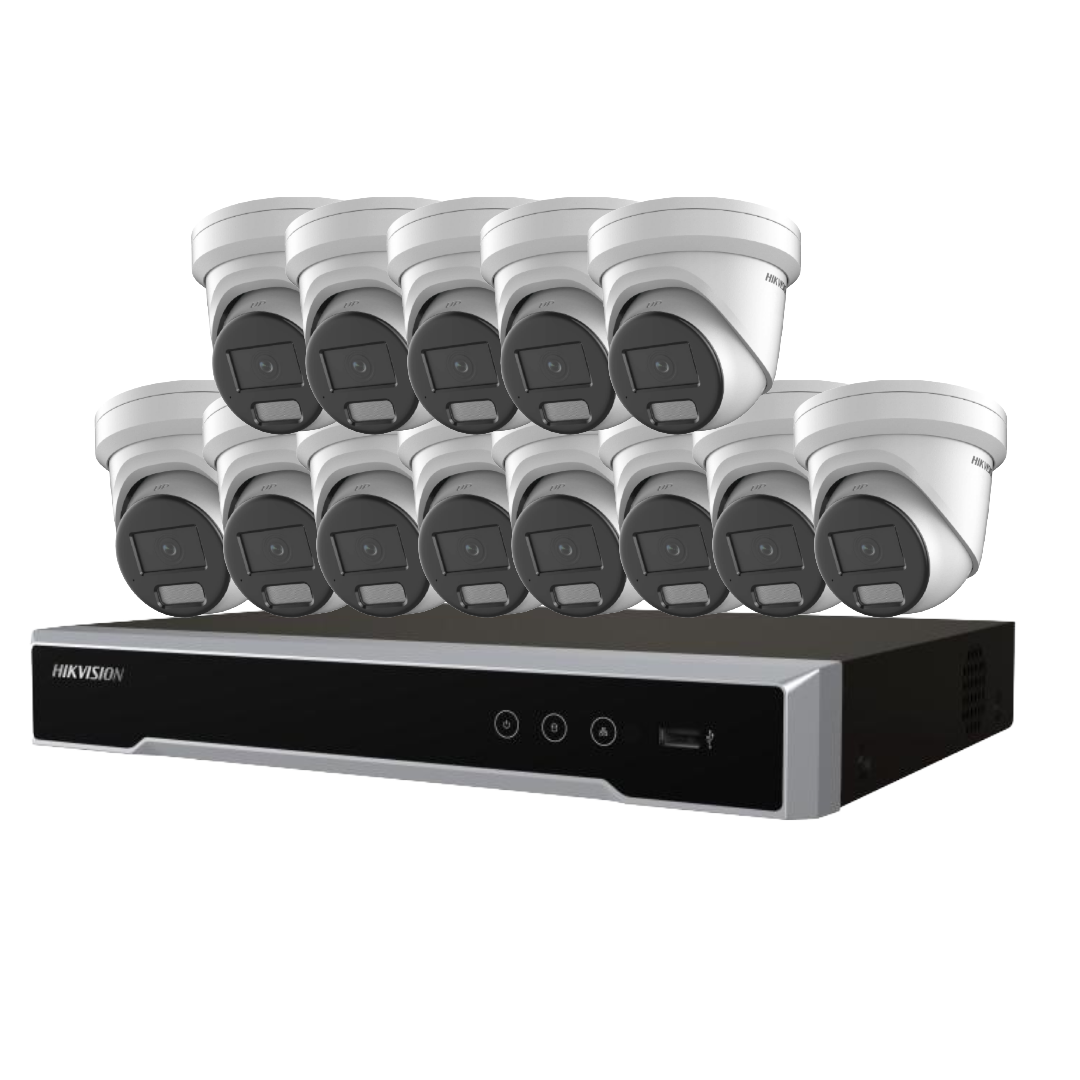

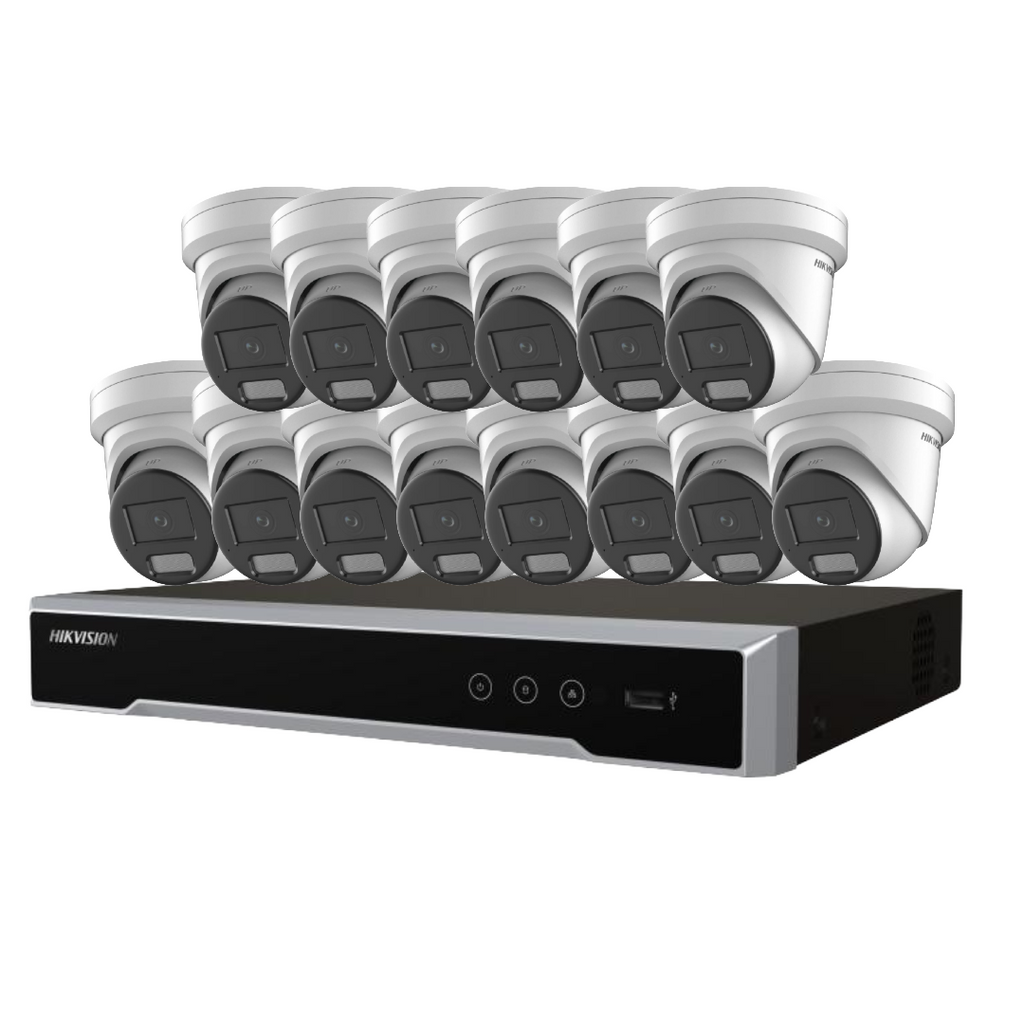

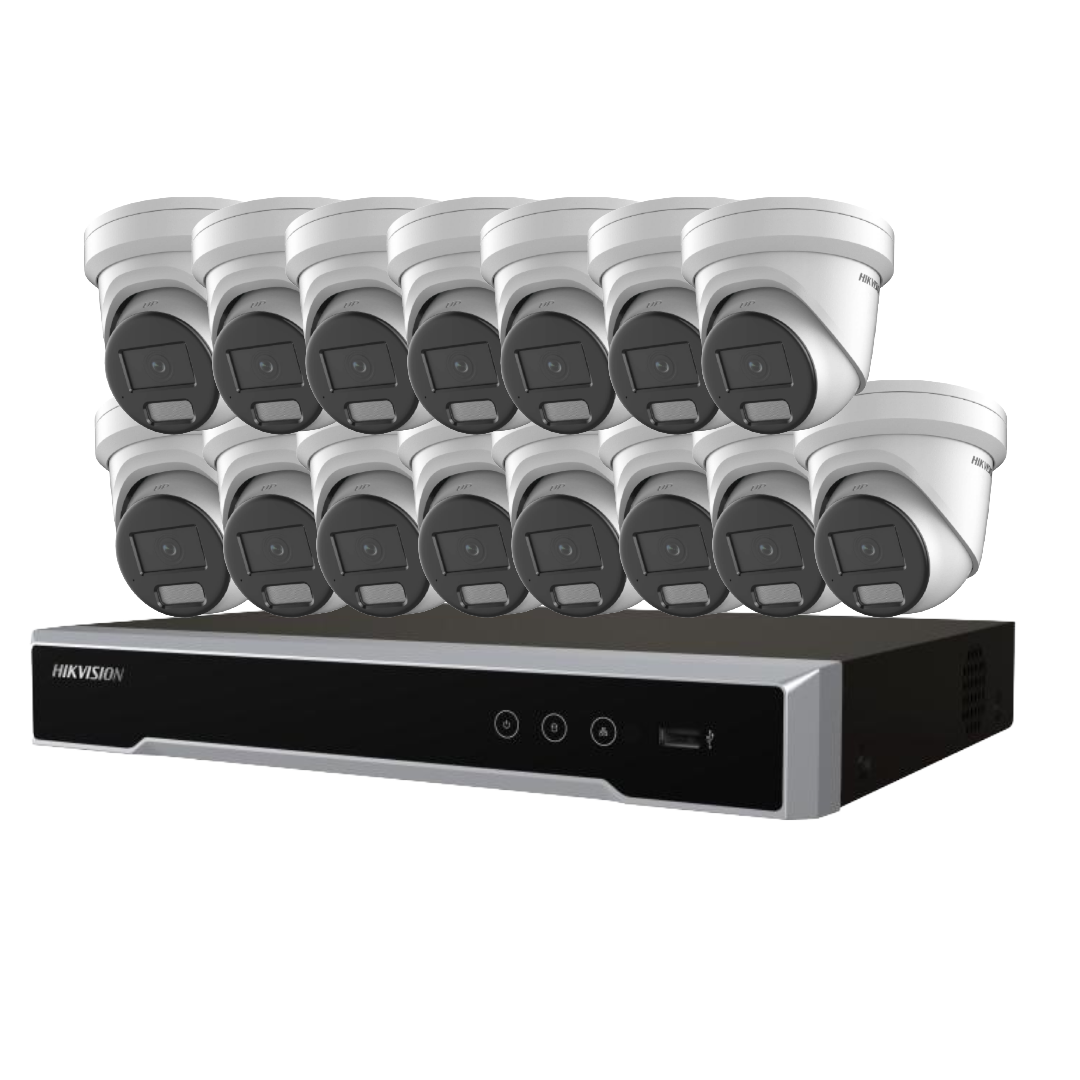

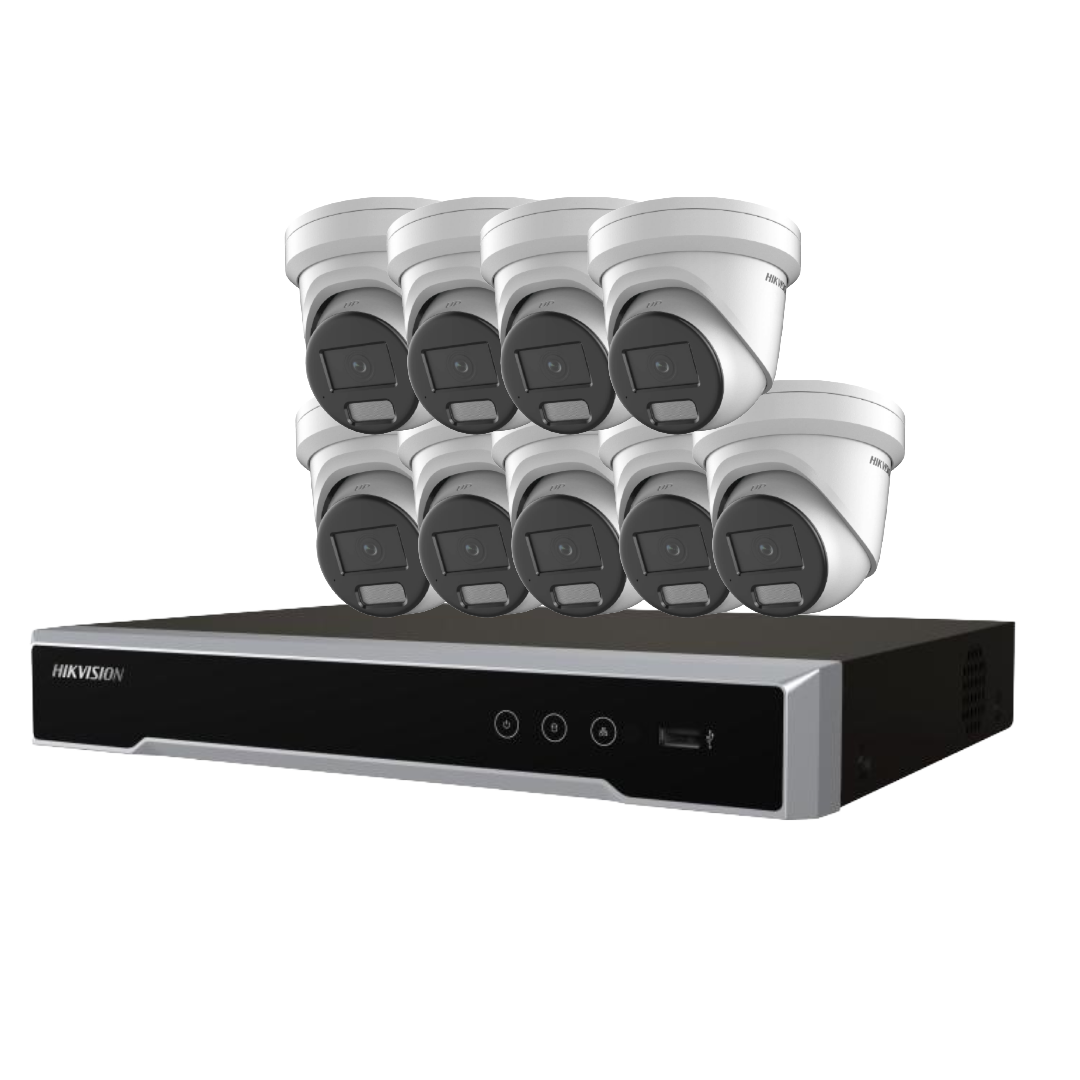

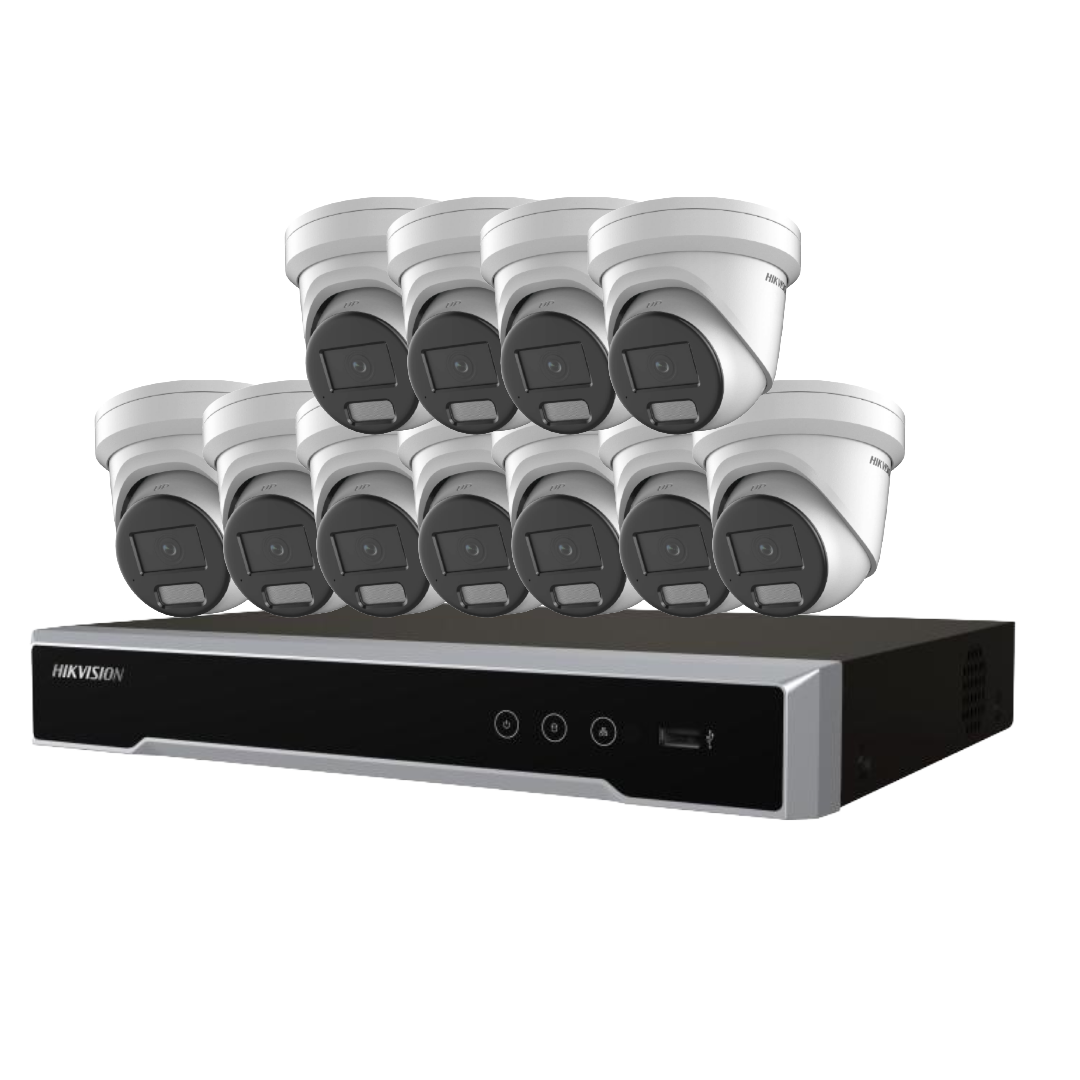

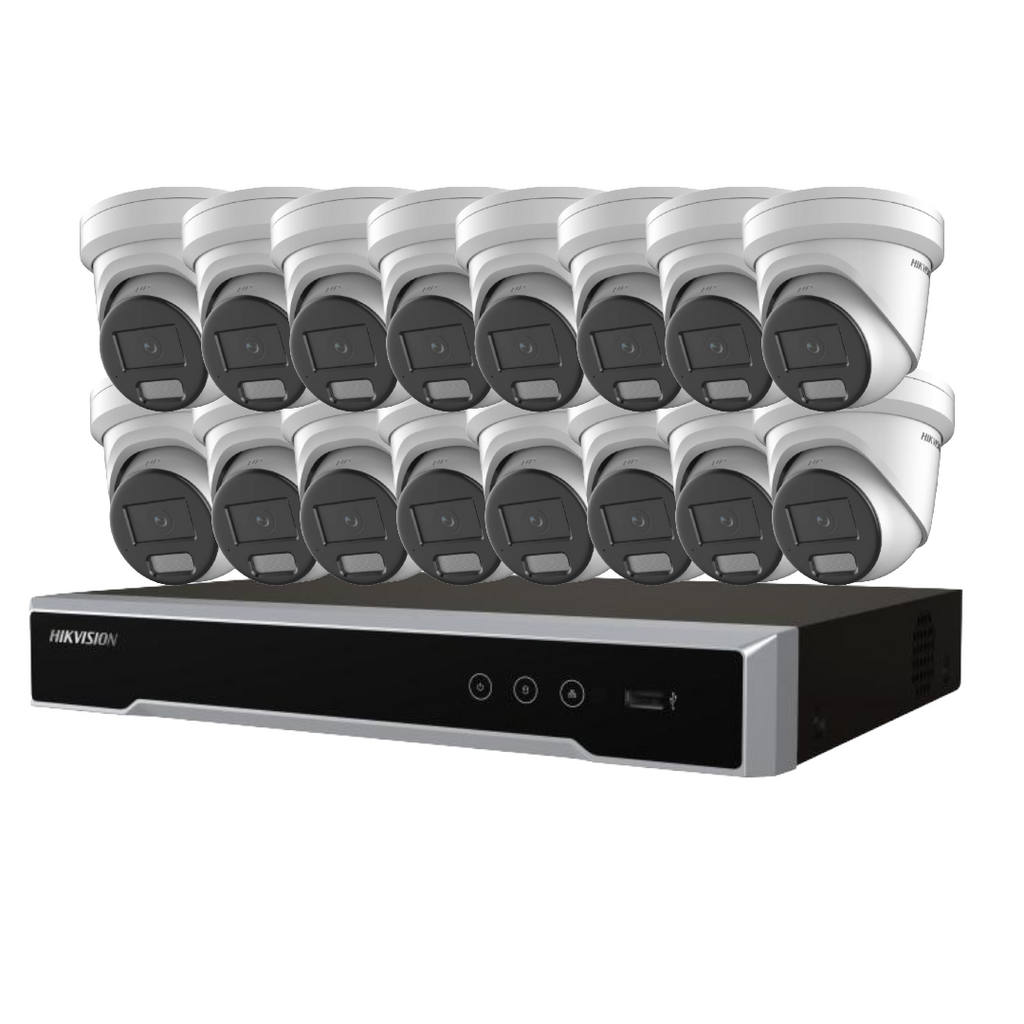

High-performance 6MP surveillance kit featuring 16 Darkfighter AcuSense turret cameras and a powerful 8K-ready 16-channel NVR — ideal for large-scale security in commercial, retail, industrial, and multi-site environments.

Product Description

Achieve enterprise-grade surveillance with the Hikvision DS-2CD2366G2H-I(U) x16 Darkfighter camera kit paired with the robust DS-7616NI-M2/16P 16-channel PoE NVR. This all-in-one video security solution combines advanced image clarity, AI-driven AcuSense human/vehicle detection, and true 6MP resolution with ultra-efficient H.265+ compression and expansive PoE connectivity. With real-time audio (via built-in mics), wide-angle viewing, and 8K HDMI support, this system is designed for high-demand monitoring setups requiring top-tier visibility and intelligent analytics.

What’s Included in the Box

• upto 16 × Hikvision DS‑2CD2366G2H‑I(U) 6MP AcuSense Turret Cameras

• 1 × Hikvision DS‑7616NI‑M2/16P 16-Channel 8K PoE Network Video Recorder


• Power Adapter & Mounting Hardware

• Quick Start Guide & Documentation

• Optional HDD

Main Features

DS‑2CD2366G2H‑I(U) 6MP Darkfighter Camera Highlights

• 6MP resolution (3200×1800) with excellent low-light performance

• Powered by Darkfighter for full-color detail in near-dark conditions

• Built-in microphone for real-time audio monitoring (‑U model)

• AcuSense AI technology with human/vehicle classification

• 120 dB True WDR for superior dynamic range handling

• Up to 30m IR range with Smart IR and IP67-rated outdoor protection

• Fixed 2.8mm lens

DS‑7616NI‑M2/16P 8K PoE NVR Highlights

• 16-channel IP input, up to 32MP resolution support

• 8K HDMI video output, plus VGA and CVBS outputs

• Supports H.265+/H.265/H.264+/H.264 compression for massive bandwidth savings

• Up to 256Mbps incoming bandwidth for high-throughput camera connections

• 16 PoE ports — plug and power your cameras directly

• 16-channel synchronous playback for instant multi-camera reviews

• Advanced VCA functions: motion, line crossing, intrusion detection, people counting, heat map

• POS integration for business intelligence overlays

Detailed Specifications

NVR – DS‑7616NI‑M2/16P

• Camera Input: 16-ch IP, up to 32MP resolution

• Decoding Performance: 16-ch@4MP or 10-ch@8MP

• HDMI Output: Up to 7680 × 4320 (8K)

• Storage: 2 × SATA up to 16TB each

• Audio I/O: 1-in / 1-out (RCA), 2-way audio

• Network: 16 × PoE interfaces, 1 × Gigabit LAN

• Smart Events: People counting, ANPR, VCA, and POS data overlay

• Certifications: FCC, CE, EN 55032/55035, AS/NZS CISPR 32:2015

Camera – DS‑2CD2366G2H‑I(U)

• Resolution: 6MP (3200 × 1800), 1/2.4” CMOS

• Lens: 2.8mm (114.8° HFOV) or 4mm (94° HFOV)

• WDR: 120 dB, 3D DNR, BLC/HLC

• IR Range: Up to 30m with smart IR

• Audio: Built-in mic (‑U variant)

• Compression: H.265+/H.265/H.264+/H.264

• Network: ONVIF, ISAPI, Hik-Connect supported

• Protection: IP67 weather-rated, supports microSD up to 512GB

Warranty Information

• Backed by official 3 year Hikvision manufacturer warranty

• Warranty service handled via authorised Australian distributors


Brand Overview

Hikvision is the global leader in video surveillance technology, offering innovation-driven camera systems trusted worldwide by governments, retail giants, commercial complexes, and residential estates. Their security solutions are known for AI intelligence, reliability, and crystal-clear imaging.

SKU

HIK‑16CAM‑6MP‑7616NVR

Practical Use Scenarios

• Business Complexes & Multi-site Enterprises: 16-camera support for complete facility coverage

• Retail & Shopping Centres: Integrates with POS systems for transaction-linked surveillance

• Warehouses & Manufacturing Plants: Monitor loading bays, entrances, and safety zones with clarity

• Schools & Institutions: Secure multiple access points with smart alerts and playback options

Datasheets / Resources

• Camera Datasheet – DS‑2CD2366G2H‑I(U)

• NVR Datasheet – DS‑7616NI‑M2/16P

Excellence for the Australian and New Zealand Market

This Hikvision surveillance kit is fully compliant with Australian and New Zealand standards, including RCM certification (AS/NZS CISPR 32:2015). The system is optimised for local infrastructure — with PoE camera connectivity, Hik-Connect remote access, and support for secure HTTPS/TLS encryption. All products are sourced from authorised AU/NZ distributors, ensuring full warranty coverage and fast, local support. Perfect for Australian conditions with IP67 protection, wide temperature tolerance, and durable metal housing.

FAQs

Q1: Can the Hikvision HIK‑16CAM‑6MP‑7616NVR kit record all 16 cameras at once?
A1: Yes, the DS‑7616NI‑M2/16P NVR supports 16-channel synchronous recording and playback, ensuring all cameras are recorded in real time.

Q2: Are the cameras in the HIK‑16CAM‑6MP‑7616NVR kit suitable for outdoor use?
A2: Absolutely — the DS‑2CD2366G2H‑I(U) cameras are IP67-rated, meaning they are fully weatherproof and ideal for both indoor and outdoor installation.

Q3: Does the HIK‑16CAM‑6MP‑7616NVR kit include audio recording?
A3: Yes — the "‑U" models of the DS‑2CD2366G2H cameras come with built-in microphones for real-time audio monitoring.

Q4: How much storage can be added to the HIK‑16CAM‑6MP‑7616NVR NVR?
A4: The DS‑7616NI‑M2/16P supports up to 2 SATA hard drives, each with a maximum capacity of 16TB, allowing for long-term video retention.

Q5: Is the HIK‑16CAM‑6MP‑7616NVR system compatible with mobile apps?
A5: Yes — Hikvision’s Hik-Connect app lets users view live streams and playback remotely from their smartphone or tablet, anywhere in Australia or NZ.
