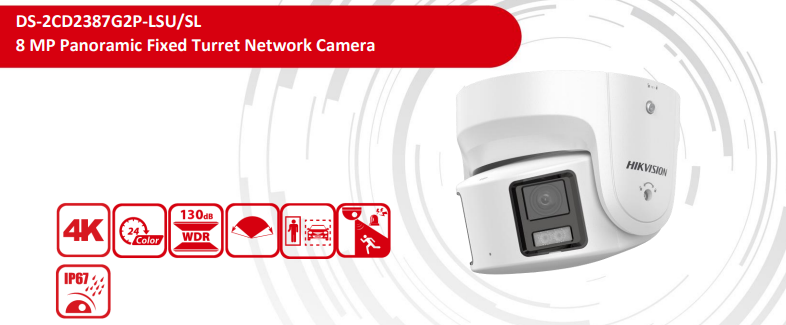

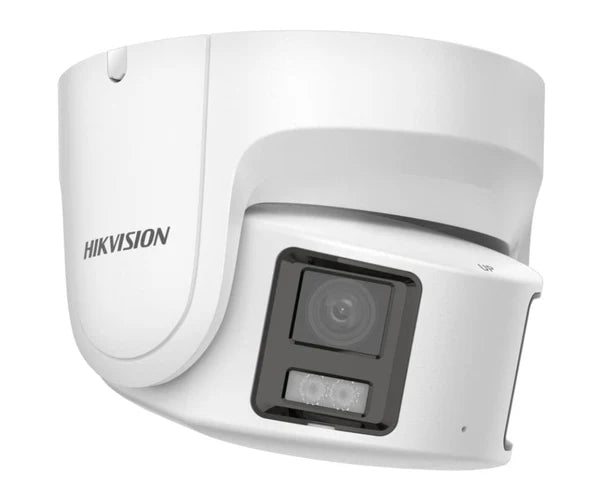

Experience 24/7 vivid color surveillance with the Hikvision DS-2CD2387G2P-LSU/SL, a cutting-edge 8MP panoramic fixed turret network camera powered by ColorVu technology. Equipped with dual 4 mm F1.0 super-aperture lenses and advanced 1/1.8" sensors, this camera delivers ultra-bright and detailed imaging—even in near-total darkness—using smart white light illumination up to 30 metres. Built for powerful scene coverage and smart analytics, it offers a wide 180° field of view, deep learning-based human and vehicle detection, and active deterrence with strobe light and audio alarms. With rugged IP67 weatherproofing and efficient H.265+ compression, this model is ideal for high-security outdoor environments where panoramic awareness and real-time response are critical.

What’s in the Box:

• Hikvision DS-2CD2387G2P-LSU/SL Camera Unit (4 mm dual lens)

• Mounting base plate

• Waterproof accessory kit

• Screws and installation hardware

• Quick Start Guide

• Warranty card

Main Features:

• 8 MP Panoramic Imaging – Dual 4 mm lenses deliver 5120 × 1440 resolution with full 180° coverage

• ColorVu Technology – Bright, full-color images 24/7, even in 0 lux environments with built-in white light

• Smart Detection – Deep learning-based detection for humans and vehicles, plus smart motion alerts

• Built-in Mic & Speaker – Real-time audio deterrence with up to 95 dB speaker output

• White Light & Audio Alarm – Active strobe and sound warnings to deter intruders

• 130 dB WDR – Exceptional image clarity in backlit or high-contrast conditions

• Durable IP67 Metal Housing – Weatherproof for outdoor use

• Up to 30 m Smart Illumination – Adaptively adjusts white light for optimal night visibility

• Efficient Video Compression – Supports H.265+/H.265/H.264+/H.264

• Wide Operating Range – Performs in extreme temperatures from -30°C to +60°C

Detailed Specifications:

Camera & Optics:

• Dual Sensors: 2 × 1/1.8" Progressive Scan CMOS

• Max. Resolution: 5120 × 1440

• Fixed Lens: 4 mm, F1.0 aperture, M16 mount

• Field of View: Horizontal 180° ± 10°, Vertical 44°

• DORI (Detect/Observe/Recognize/Identify): D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illumination:

• Type: White Light

• Range: Up to 30 m

• Smart Supplement Light: Yes

Video & Compression:

• Main Stream: Up to 20 fps (5120 × 1440)

• Sub Stream: 20 fps (1920 × 536 / 960 × 272)

• Compression: H.265+/H.265/H.264+/H.264/MJPEG

• Bit Rate: 32 Kbps to 16 Mbps

• ROI: 1 fixed region for main stream

Audio:

• Audio Input/Output: 1 in, 1 out (terminal block)

• Built-in Mic & Speaker

• Max Speaker Output: 1.2 W, 95 dB @ 10 cm

• Compression: G.711, G.722.1, G.726, MP2L2, MP3, AAC-LC

Network & Integration:

• Protocols: TCP/IP, HTTP, HTTPS, FTP, RTP, RTSP, NTP, SNMP, ONVIF (Profiles S, G, T), SDK

• Simultaneous Live View: Up to 6 channels

• Users: Up to 32 users

• Security: HTTPS encryption, IP filtering, 802.1X, TLS 1.2, password protection

Storage:

• Built-in microSD slot (up to 256 GB)

• Supports ANR (Automatic Network Replenishment), NAS

Event & Smart Analytics:

• Basic Events: Motion detection, tamper alarm, flashing light, audible alarm

• Smart Events: Line crossing, intrusion, region entrance/exit, scene change

• Deep Learning: Human/vehicle classification for perimeter protection

General:

• Power: 12V DC ±25% or PoE (802.3af, Class 3)

• Power Consumption: Max. 10.5 W

• Operating Temp: -30°C to +60°C

• Material: Metal body and base

• Dimensions: Ø155 mm × 155.3 mm

• Weight: 1.1 kg (net), 1.9 kg (with packaging)

• Ingress Protection: IP67

Warranty Information:
The DS-2CD2387G2P-LSU/SL comes with Hikvision’s standard manufacturer warranty, fully supported by official Australian and New Zealand distributors. All warranty services are handled directly by Hikvision-authorized partners to ensure peace of mind and genuine parts replacement.

Brand Information – About Hikvision:
Hikvision is the world’s leading provider of video surveillance products and solutions. Known for cutting-edge R&D and innovation, Hikvision delivers powerful and reliable IP cameras, NVRs, AI-powered analytics, and integrated security systems tailored to a wide range of industries and use cases.

SKU: DS-2CD2387G2P-LSU/SL

Practical Use Scenarios:

• Perimeter Security – Monitor wide-area perimeters with intelligent line crossing and intrusion detection

• Parking Lots – Achieve full-lot coverage with a single panoramic camera and receive vehicle classification alerts

• School Campuses – Detect and deter intruders at key entry/exit points with strobe and audio alarms

• Retail Entrances – Capture detailed footage day or night with full-color visibility

• Warehouses & Depots – Cover large loading zones with 180° panoramic visibility

Datasheets & Downloadable Resources:

• Hikvision DS-2CD2387G2P-LSU/SL Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The DS-2CD2387G2P-LSU/SL meets AS/NZS CISPR 32:2015 compliance for EMC and safety, ensuring reliability under the demanding conditions of the Australian and New Zealand climates. With a wide operating range of -30°C to +60°C and IP67 protection, it is purpose-built for outdoor security. Customers can be confident that this model is exclusively sourced from Hikvision’s authorized ANZ distributors, offering NDSS compliance, local warranty support, and full access to firmware updates and technical assistance.

FAQs – Hikvision DS-2CD2387G2P-LSU/SL

Q1: Does the Hikvision DS-2CD2387G2P-LSU/SL offer true full-color video at night?
Yes, the DS-2CD2387G2P-LSU/SL uses ColorVu technology with F1.0 lenses and white light LEDs to deliver full-color imaging even in complete darkness.

Q2: Can the DS-2CD2387G2P-LSU/SL detect human and vehicle motion separately?
Absolutely. This model features deep learning-based human and vehicle classification, making alerts more accurate and relevant.

Q3: What’s the panoramic viewing angle of the DS-2CD2387G2P-LSU/SL?
The dual 4 mm lenses provide a 180° ±10° horizontal field of view, enabling broad coverage with minimal blind spots.

Q4: Is the Hikvision DS-2CD2387G2P-LSU/SL suitable for outdoor use?
Yes. It features a metal body with IP67 weather resistance, allowing it to perform reliably in rain, dust, and harsh conditions.

Q5: What storage options are available on the DS-2CD2387G2P-LSU/SL?
The DS-2CD2387G2P-LSU/SL includes a built-in microSD card slot supporting up to 256 GB, and also supports NAS and ANR for flexible recording options.
