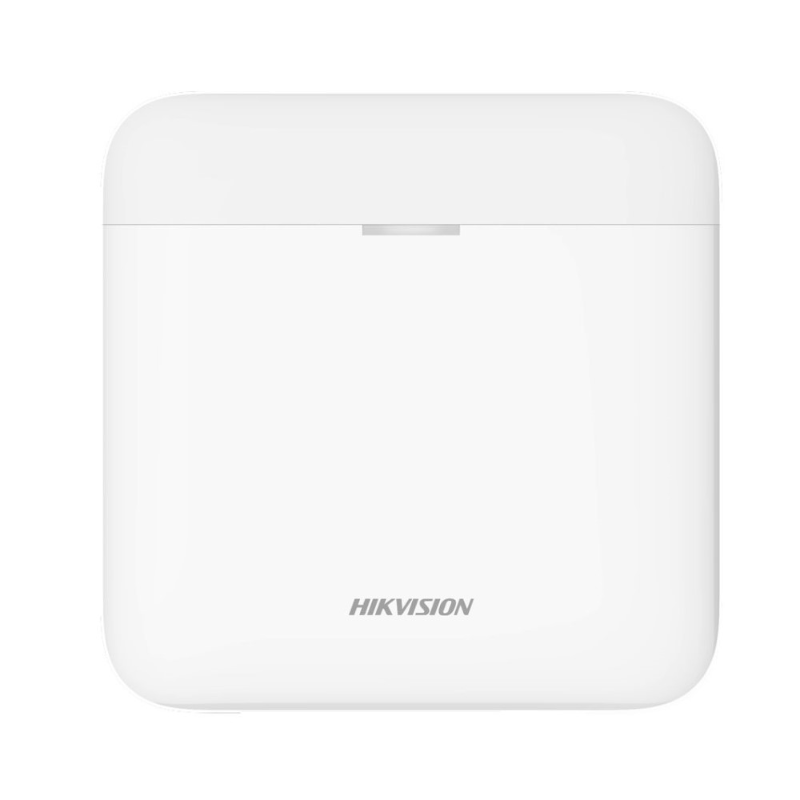

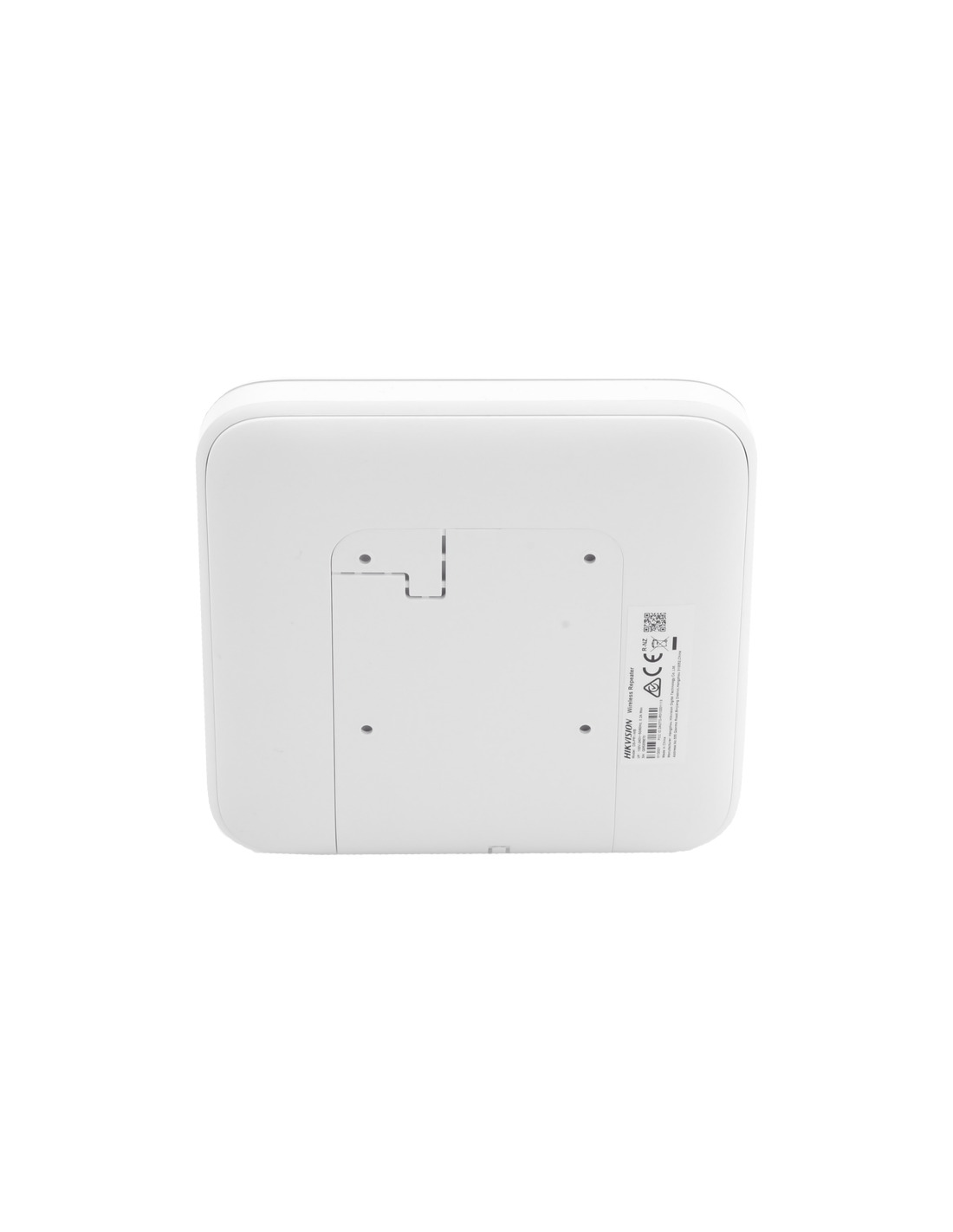

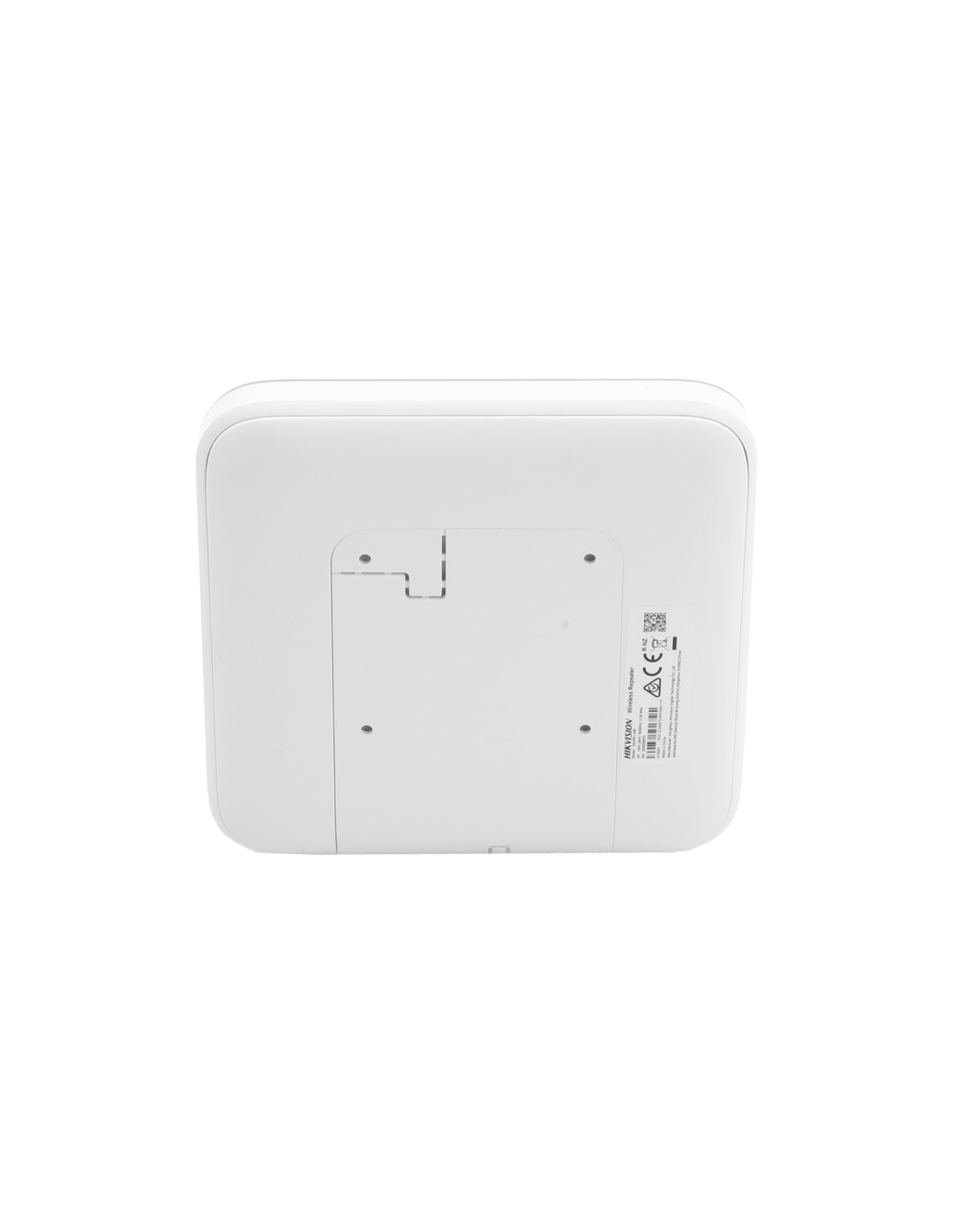

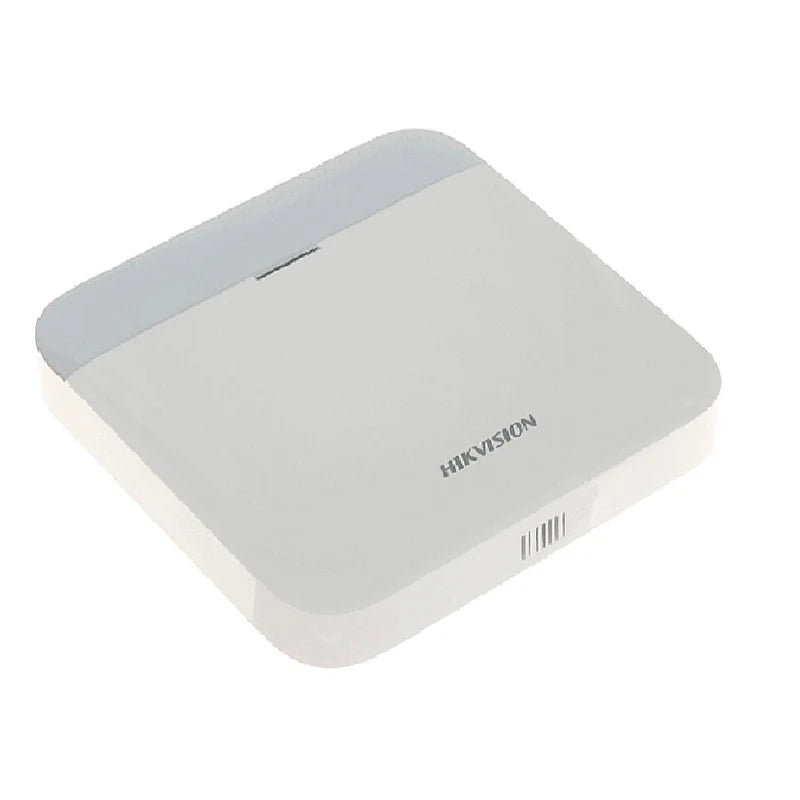

The Hikvision AX PRO DS-PR1-WB Wireless Repeater is a powerful 433MHz two-way RF signal extender designed to enhance and expand the communication range of AX PRO wireless alarm systems. Supporting advanced Tri-X and Cam-X wireless protocols, this repeater ensures stable, secure, and intelligent two-way communication between control panels and detectors. Featuring smart auto-pairing, LED status indicators, and up to 35 hours of battery backup, the DS-PR1-WB guarantees uninterrupted alarm system performance even during mains power loss. Ideal for residential, commercial, and industrial installations requiring extended RF coverage.

Engineered for seamless integration with the Hikvision AX PRO ecosystem, this repeater automatically detects and connects compatible wireless devices, simplifying installation and reducing configuration time. Its compact, wall-mount design and robust tamper protection provide both discreet installation and enhanced security integrity.

What’s Included in the Box

• 1 × Hikvision AX PRO DS-PR1-WB Wireless Repeater

• Built-in Lithium Backup Battery

• Mounting Accessories

• Installation Guide

Main Features

• 433MHz Two-Way Wireless Communication

• Supports Tri-X & Cam-X Wireless Protocols

• Secure and Stable Encrypted Signal Transmission

• Smart Auto-Pairing with Detectors & PIRCAM Devices

• Automatic Device Discovery & Connection

• Up to 35 Hours Battery Backup (after mains failure)

• Front & Rear Tamper Protection

• LED Status Indicators (Power, Signal/Register, Fault)

• Easy Wall-Mount Installation

• Compact and Modern Design

Detailed Specifications

Software Features

• Tamper Protection: Front & Back

• Auto Pairing: Supported

• PIRCAM Pairing: Supported

Hardware Features

• Serial Ports: 2 (Debug)

• Power Switch: 1

Electrical Characteristics

• Power Supply: 100VAC – 240VAC

• Battery Type: Built-in Lithium Battery

• Battery Backup: Up to 35 Hours

Display

• 3 × LED Indicators:

  • Register/Signal (Green/Red)

  • Power (Green)

  • Fault (Amber)

Environmental

• Operating Temperature: -10°C to +55°C

• Operating Humidity: 10% – 90%

Physical Characteristics

• Dimensions: 150 × 150 × 25 mm

• Weight: 372g

• Material: Plastic

• Colour: White

• Installation: Wall Mount

Practical Use Scenarios

• Extending wireless detector range in large residential properties

• Improving signal reliability in warehouses and commercial sites

• Eliminating RF dead zones in multi-storey buildings

• Enhancing PIRCAM and wireless sensor connectivity

• Supporting expanded alarm deployments without wiring upgrades

Warranty Information

This product is backed by a manufacturer’s warranty supported through authorised Hikvision distribution channels. Warranty handling is managed in accordance with Hikvision regional support policies.

Brand Overview

Hikvision is a globally recognised leader in video surveillance and security solutions, providing innovative alarm, CCTV, and access control technologies. The AX PRO wireless intrusion system delivers advanced security performance with encrypted communication and reliable RF technology.

SKU

DS-PR1-WB

Datasheets & Resources

• Product Datasheet

Excellence for the Australian and New Zealand Market

The Hikvision AX PRO DS-PR1-WB Wireless Repeater is fully suited for the Australian and New Zealand security market, operating within compliant 433MHz wireless standards.

• Designed for professional security installations

• Optimised for local residential and commercial applications

• Sourced exclusively from authorised Hikvision representatives

• Warranty support handled in direct coordination with Hikvision

• Reliable performance under Australian environmental conditions

Ideal for professional installers, integrators, and security providers seeking dependable RF expansion within compliant alarm systems.

Frequently Asked Questions (FAQs)

1. What is the purpose of the DS-PR1-WB Wireless Repeater?

The DS-PR1-WB is designed to extend the RF communication range between AX PRO control panels and wireless detectors, improving signal coverage in larger properties.

2. What wireless frequency does the DS-PR1-WB operate on?

The DS-PR1-WB operates on 433MHz wireless communication and supports Tri-X and Cam-X protocols.

3. Does the DS-PR1-WB support two-way communication?

Yes, the DS-PR1-WB features secure two-way wireless communication for stable signal transmission.

4. How long does the DS-PR1-WB battery backup last?

The DS-PR1-WB provides up to 35 hours of battery backup after mains power loss.

5. Is the DS-PR1-WB easy to install?

Yes, the DS-PR1-WB supports smart auto-pairing and features a wall-mount design for quick and easy installation.

6. Does the DS-PR1-WB have tamper protection?

Yes, the DS-PR1-WB includes both front and rear tamper protection for enhanced security.

7. Can the DS-PR1-WB automatically connect to detectors?

Yes, the DS-PR1-WB supports automatic detector discovery and smart auto-pairing.
