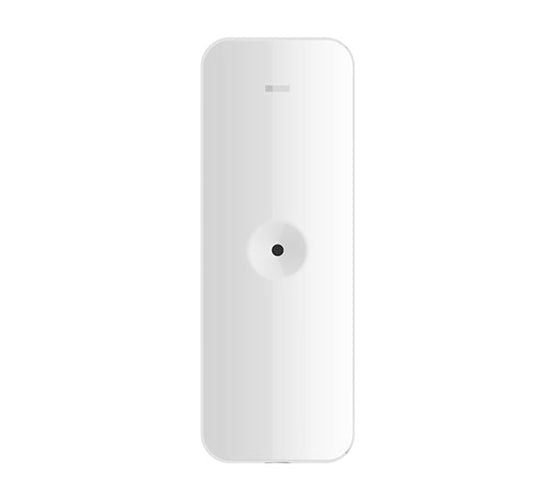

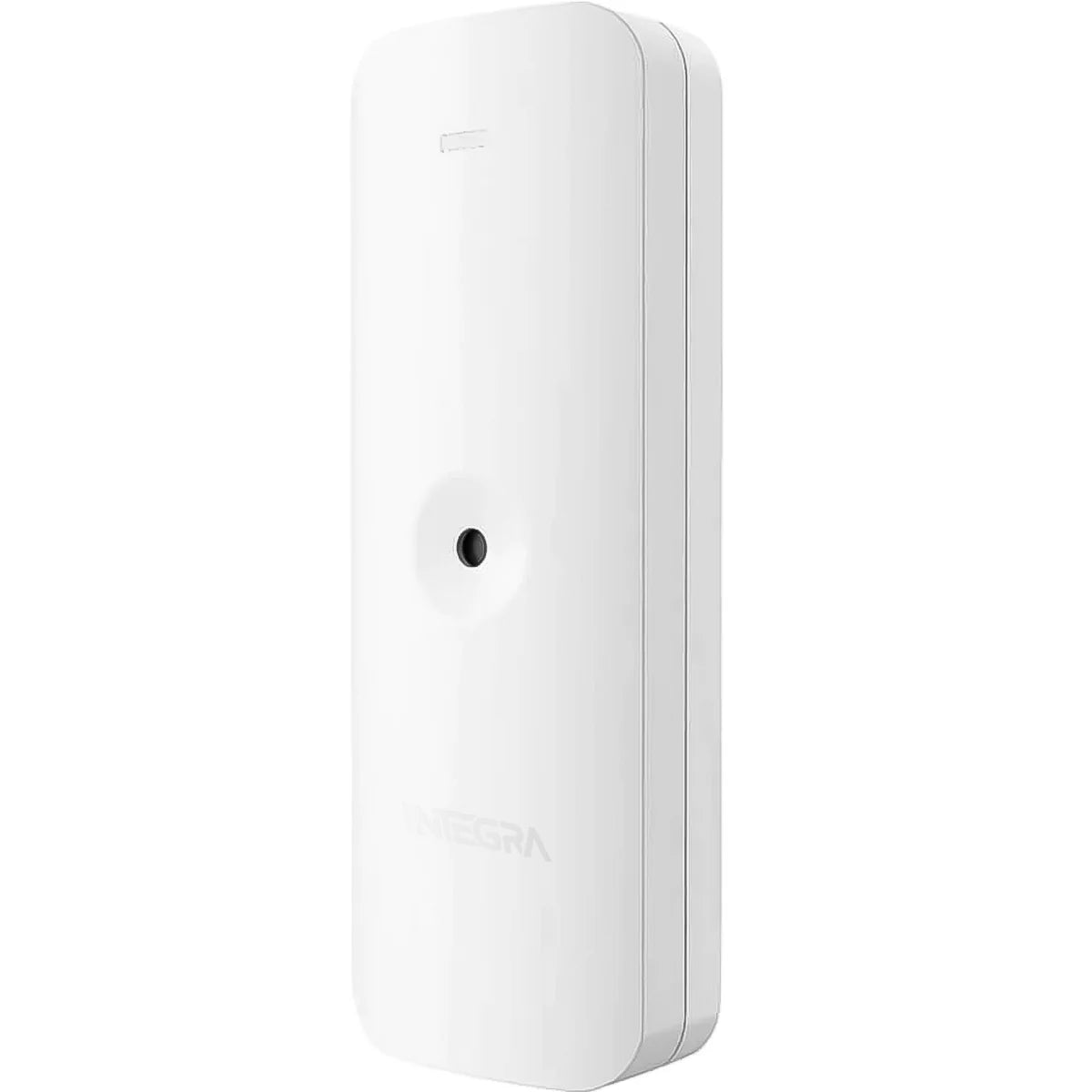

The DS-PDBG8-EG2-WB Wireless Glass Break Detector by Hikvision delivers high-performance, wireless intrusion detection tailored for modern residential and commercial environments. Equipped with a premium omni-directional microphone sensor and backed by digital signal processing, this device ensures fast and accurate glass break detection across a broad range of glass types, including float, plate, tempered, laminated, wired, and double glazing.

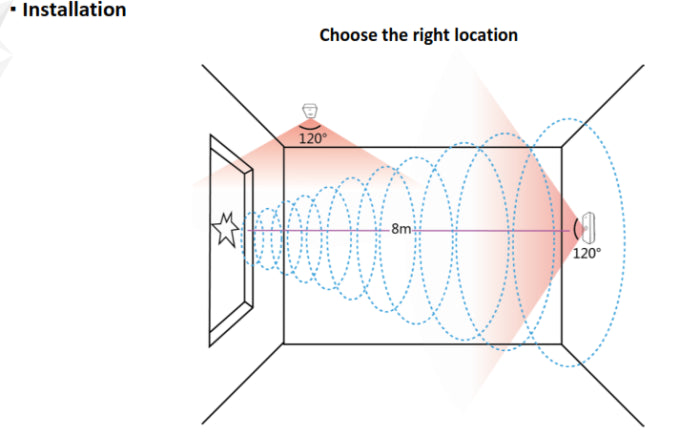

With an 8-meter detection range and 120° angle coverage, the DS-PDBG8-EG2-WB secures large spaces effectively. Tri-X wireless technology with AES-128 encryption and frequency hopping ensures robust, interference-resistant communication over distances up to 1 km. Designed for ease of installation and configuration via mobile app, this detector features remote management, multiple enrollment methods, and a compact, versatile form factor suitable for ceiling or wall mounting.

Built with tamper protection and energy efficiency in mind, it is powered by two CR123A batteries with a typical lifespan of up to 5 years.

What's Included in the Box

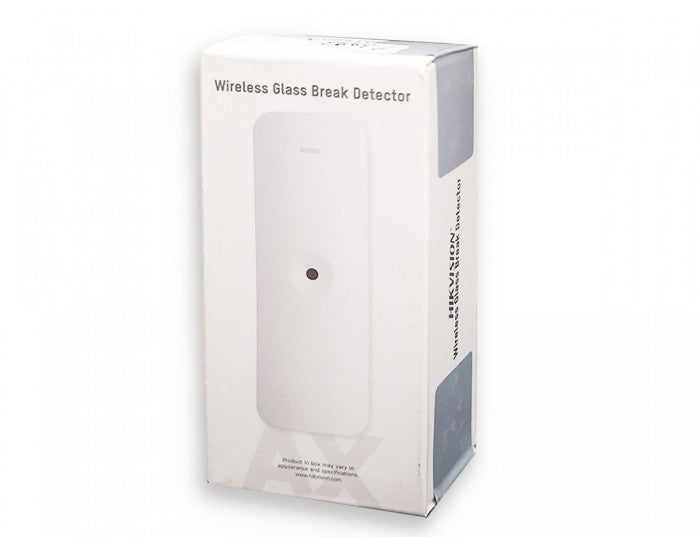

• 1 × DS-PDBG8-EG2-WB Wireless Glass Break Detector

• 2 × CR123A Batteries (Pre-installed)

• Mounting Accessories (Screws, Anchors)

• Quick Start Guide & User Manual

Main Features

• Omni-Directional Microphone Sensor: Provides 360° coverage for accurate glass break detection.

• Tri-X Wireless Protocol: Secure, two-way 433 MHz communication with frequency hopping and AES-128 encryption.

• App-Based Configuration: Fully remote setup and sensitivity adjustment via mobile app.

• Easy Battery Replacement: PCB-protected battery design with up to 5-year life.

• Tamper Protection: Front and rear tamper detection to prevent sabotage.

• LED Alarm Indicator: Blue LED alerts during detection.

• Multi-Glass Compatibility: Detects breakage in various glass types and sizes.

Detailed Specifications

Warranty Information

This device is backed by a 5-Year Manufacturer’s Warranty, offering peace of mind and dependable support through Hikvision's official service network and local partners.

Brand Description

Hikvision is the world’s leading provider of smart security solutions. Its intrusion detection and surveillance products combine cutting-edge hardware with intelligent features for enhanced safety in homes, businesses, and critical infrastructure. Hikvision solutions are trusted globally for quality, innovation, and reliability.

SKU

DS-PDBG8-EG2-WB

Practical Use Scenarios

• Home Security: Detects window break-ins across multiple glass types, ideal for living rooms and bedrooms.

• Retail Stores: Protect storefront windows and display glass.

• Office Spaces: Discreet monitoring in meeting rooms and common areas.

• Warehouses: Coverage for large indoor spaces with varied glass surfaces.

Datasheets or Downloadable Resources

• DS-PDBG8-EG2-WB Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The DS-PDBG8-EG2-WB is designed to comply with the specific security and performance standards of Australia and New Zealand:

• Conforms to local frequency and EMC standards

• Built for indoor environments common in regional properties

• Distributed and supported through authorized Hikvision ANZ representatives

• All warranty claims processed locally with streamlined service

• Fully compatible with Hikvision control panels available in ANZ

FAQs – DS-PDBG8-EG2-WB

Q1: What is the maximum detection range of the DS-PDBG8-EG2-WB?
A1: The detector can monitor glass break events up to 8 meters with 120° coverage. (Product Code: DS-PDBG8-EG2-WB)

Q2: What types of glass does the DS-PDBG8-EG2-WB support?
A2: It supports float, plate, tempered, wired, laminated, leaded, and double glazing types. (Product Code: DS-PDBG8-EG2-WB)

Q3: How is the DS-PDBG8-EG2-WB powered?
A3: The unit is battery-powered using two CR123A batteries with a 5-year expected life. (Product Code: DS-PDBG8-EG2-WB)

Q4: Can the DS-PDBG8-EG2-WB be configured remotely?
A4: Yes, it can be fully configured through the Hikvision mobile app. (Product Code: DS-PDBG8-EG2-WB)

Q5: Is this detector suitable for outdoor use?
A5: No, it is designed exclusively for indoor applications. (Product Code: DS-PDBG8-EG2-WB)
