The Hikvision DS-1LN6UZC0 Cat6 U/UTP Network Cable is a professional-grade 305-metre Category 6 Ethernet cable designed for reliable network connectivity, IP CCTV surveillance systems, Power over Ethernet (PoE) devices and structured data cabling installations. Featuring 99.95% solid bare copper conductors, 24AWG construction, a durable PVC jacket and 250MHz transmission performance, this Cat6 network cable delivers stable data transmission for residential and commercial networking projects across Australia and New Zealand.
Designed for demanding network installations, the Hikvision DS-1LN6UZC0 uses high-purity solid copper conductors to provide low electrical resistance and reliable signal transmission. Unlike copper-clad aluminium (CCA) cables, its solid copper construction offers improved electrical conductivity and is particularly useful for PoE-powered security equipment.
The cable supports reliable transmission performance, with manufacturer testing demonstrating successful operation in a 90-metre Fluke permanent link test at 50°C and a 100-metre Fluke channel test under a continuous 57V/1A DC PoE load.
Its robust PVC outer sheath provides high tensile and compressive strength, reducing the risk of damage during cable handling and installation. Internal HDPE insulation, a pair separator and an integrated rip cord further support consistent cable performance and convenient installation.

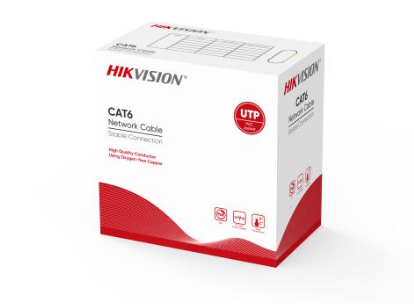

Supplied in a 305m cable box, the DS-1LN6UZC0 is suitable for structured cabling, IP cameras, network switches, wireless access points and other compatible Ethernet devices.
Main Features
-
305m Cat6 Network Cable: Supplied in a bulk-length box for professional structured cabling and networking installations.
-
99.95% Solid Bare Copper Conductors: Provides excellent conductivity, lower resistance and consistent transmission performance.
-
24AWG Cable Construction: Features 0.50 ± 0.01mm solid copper conductors.
-
Unshielded U/UTP Design: Suitable for standard Ethernet networking applications where shielded cabling is not required.
-
Up to 250MHz Frequency Performance: Designed to meet Category 6 electrical performance requirements.
-
PoE Compatible: Tested under continuous 57V/1A DC loading in a 100m channel configuration.
-
High-Performance Data Transmission: Meets the specified ANSI/TIA-568.2-D and ISO/IEC 11801 requirements.
-
Durable PVC Outer Jacket: Provides mechanical protection against tensile and compressive stresses during installation.
-
HDPE Conductor Insulation: Supports electrical performance and conductor protection.
-
Internal Pair Separator: Helps maintain pair positioning and transmission characteristics.
-
Integrated Rip Cord: Makes the outer sheath easier to remove during cable preparation.
-
High-Temperature Performance: Successfully tested in a Fluke 90m permanent link configuration at 50°C.
-
RoHS 2.0 Compliant: Meets the specified hazardous substance restriction requirements.
-
Professional CCTV and Networking Applications: Suitable for compatible IP cameras, network switches, PoE devices and structured cabling systems.
Technical Specifications
| Specification |
Details |
| Brand |
Hikvision |
| Product Code / SKU |
DS-1LN6UZC0 |
| Product Type |
Ethernet Network Cable |
| Cable Category |
Cat6 / Category 6 |
| Cable Structure |
U/UTP (Unshielded Twisted Pair) |
| Cable Length |
305 ± 1.5m |
| Conductor Material |
Solid Bare Copper (99.95%) |
| Conductor Gauge |
24AWG |
| Conductor Diameter |
0.50 ± 0.01mm |
| Insulation Material |
HDPE |
| Insulation Diameter |
0.88 ± 0.05mm |
| Outer Jacket Material |
PVC |
| Jacket Thickness |
0.50 ± 0.05mm |
| Overall Cable Diameter |
5.30 ± 0.50mm |
| Available Jacket Colours |
Grey, Orange |
| Rip Cord |
Yes |
| Internal Separator |
Yes |
| Frequency Range |
1–250MHz |
| Characteristic Impedance |
100 ± 15Ω |
| Delay Skew |
≤45ns/100m |
| DC Resistance |
≤9.38Ω/100m |
| DC Resistance Unbalance |
≤4.0% |
| Operating Voltage |
57V |
| Ambient Temperature |
-20°C to +70°C |
| Fire Resistance |
Not Fire Rated |
| Reference Standards |
ISO/IEC 11801, ANSI/TIA-568.2-D, IEC 61156 |
| Environmental Compliance |
RoHS 2.0 |
| Package Dimensions |
390 x 390 x 210mm |
| Package Weight |
9.9 ± 0.5kg |
| Warranty |
Subject to Manufacturer / Supplier Terms |
The supplied datasheet identifies grey and orange jacket options. Confirm the specific colour supplied before publishing an individual product variation.
Cable Construction and Electrical Performance
The Hikvision DS-1LN6UZC0 features a multi-layer construction designed to maintain reliable Ethernet transmission performance.
Solid Copper Conductors
Manufactured using 99.95% solid bare copper, the conductors provide low resistance and stable electrical characteristics for data and PoE transmission.
HDPE Insulation
Each conductor is protected by high-density polyethylene insulation, helping maintain consistent electrical separation and transmission characteristics.
Internal Pair Separator
An internal separator helps maintain the geometry of the twisted pairs, reducing interference between pairs and supporting Cat6 performance.
Durable PVC Sheath
The PVC outer jacket offers mechanical protection during cable pulling, handling and installation in suitable indoor environments.
Integrated Rip Cord
The built-in rip cord allows convenient jacket removal during cable preparation and termination.
Mechanical and Environmental Specifications
| Parameter |
Specification |
| Tensile Strength Before Aging |
≥13.5MPa |
| Elongation Before Aging |
≥150% |
| Aging Test Conditions |
100°C × 24 Hours × 10 Days |
| Tensile Strength After Aging |
≥12.5MPa |
| Elongation After Aging |
≥125% |
| Cold Bend Test |
-20 ± 2°C for 4 Hours |
| Cold Bend Radius Test |
8 × Cable Outer Diameter |
| Cold Bend Result |
No Visible Cracks |
| Ambient Temperature |
-20°C to +70°C |
These mechanical characteristics help the cable withstand handling and installation conditions within its specified operating environment.
Cat6 Network Transmission Performance
The DS-1LN6UZC0 is designed to support Category 6 network performance up to 250MHz.
Manufacturer Fluke 90m Permanent Link Test Data
| Frequency |
Insertion Loss |
NEXT |
Return Loss |
| 1MHz |
3.0dB |
65.0dB |
19.1dB |
| 10MHz |
5.5dB |
57.8dB |
21.0dB |
| 25MHz |
8.9dB |
51.5dB |
19.0dB |
| 62.5MHz |
14.4dB |
45.1dB |
16.0dB |
| 100MHz |
18.6dB |
41.8dB |
14.0dB |
| 200MHz |
27.4dB |
36.9dB |
11.0dB |
| 250MHz |
31.1dB |
35.3dB |
10.0dB |
The manufacturer's documentation reports successful testing in a 90m permanent link configuration at 50°C and a 100m channel configuration under 57V/1A DC PoE loading.
Actual network performance depends on correct installation, termination, connected equipment and total channel length.
What's Included in the Box?
RJ45 connectors, network outlets, patch panels and termination tools are not included.
Practical Applications
1. Hikvision IP CCTV Camera Installations
The Hikvision DS-1LN6UZC0 is ideal for connecting compatible IP security cameras to network switches, NVRs and surveillance network infrastructure.
2. Power over Ethernet (PoE) Systems
Its solid copper conductors and tested PoE transmission performance make it suitable for compatible PoE cameras, wireless access points and other low-voltage network devices.
3. Residential Network Cabling
Suitable for installing Ethernet connections between network outlets, routers, switches and home networking equipment.
4. Commercial Structured Cabling
The 305m bulk cable length provides a practical solution for office network installations, commercial building fit-outs and structured Ethernet cabling projects.
5. Security Alarm and Access Control Networks
Can be used for Ethernet connectivity in compatible IP-based security systems, access control controllers and network-enabled security equipment.
6. Wireless Access Point Installations
Suitable for connecting compatible ceiling-mounted or wall-mounted wireless access points to PoE network infrastructure.
7. Data and Communication Networks
Provides Cat6 cabling for compatible Gigabit Ethernet networks and other supported structured cabling applications.
8. Network Infrastructure Upgrades
An appropriate choice for replacing older network cable installations with a properly designed Cat6 cabling system.
Installation Considerations
For reliable data transmission and long-term cable performance, the Hikvision DS-1LN6UZC0 should be installed using appropriate structured cabling practices.
-
Maintain recommended Cat6 cable bending and handling requirements.
-
Avoid excessive cable pulling force or damage to the PVC jacket.
-
Use compatible Cat6 connectors, keystone jacks and patch panels.
-
Preserve twisted pair geometry during termination.
-
Keep data cables appropriately separated from electrical power cables.
-
Use suitable cable pathways and protection where required.
-
Ensure total network channel length remains within relevant Ethernet requirements.
-
Verify network and PoE performance after installation.
-
Use cable products with the required fire performance classification for the installation environment.
Important: The DS-1LN6UZC0 is not specified as a fire-rated cable. Suitability for installation within building cavities, ceiling spaces and regulated cable pathways must be assessed against applicable local cabling and building requirements.
Warranty Information
The Hikvision DS-1LN6UZC0 Cat6 U/UTP Network Cable is covered by applicable manufacturer and supplier warranty conditions.
About Hikvision
Hikvision is a global provider of video surveillance, security and networking solutions, offering IP cameras, network video recorders, access control products and supporting infrastructure.
Hikvision's networking accessories include structured cabling products designed to support compatible surveillance, communication and data networking installations.
Excellence for the Australian and New Zealand Market
The Hikvision DS-1LN6UZC0 Cat6 U/UTP Network Cable provides a practical networking solution for residential and commercial data infrastructure projects throughout Australia and New Zealand.
-
Australian and New Zealand Applications: Suitable for compatible IP surveillance and networking installations where the cable specifications meet project requirements.
-
Professional Network Performance: Designed around recognised international Cat6 cabling standards, including ANSI/TIA-568.2-D and ISO/IEC 11801.
-
High-Purity Solid Copper Construction: Uses 99.95% bare copper conductors for low resistance and reliable signal transmission.
-
PoE Networking Support: Manufacturer testing demonstrates performance under continuous 57V/1A DC loading.
-
RoHS 2.0 Compliance: Manufactured to comply with the stated restriction of hazardous substances requirements.
-
Australian and New Zealand Installation Standards: Cabling installations should comply with applicable requirements, including AS/CA S009 in Australia and relevant New Zealand regulations.
-
Fire Safety Considerations: The specified cable is not fire-rated, and suitability for particular installation locations must be verified.
-
Authorised Product Sourcing: Purchasing from authorised Hikvision representatives and distributors is recommended to support product authenticity and technical assistance.
-
Manufacturer Warranty Support: Warranty enquiries may be coordinated through the supplier and relevant Hikvision brand representatives, subject to warranty conditions.
Frequently Asked Questions (FAQs)
1. What is the Hikvision DS-1LN6UZC0 Cat6 Network Cable used for?
The Hikvision DS-1LN6UZC0 is designed for structured Ethernet networking, IP CCTV camera installations, PoE network devices and compatible residential and commercial data cabling systems.
2. How long is the Hikvision DS-1LN6UZC0 network cable?
The Hikvision DS-1LN6UZC0 is supplied in a 305m bulk cable box, with a specified length tolerance of ±1.5m.
3. Is the Hikvision DS-1LN6UZC0 made from solid copper or CCA?
The Hikvision DS-1LN6UZC0 uses 99.95% solid bare copper conductors rather than copper-clad aluminium (CCA), providing good electrical conductivity and low resistance.
4. Is the Hikvision DS-1LN6UZC0 suitable for PoE security cameras?
Yes. The Hikvision DS-1LN6UZC0 is suitable for compatible PoE network applications. The manufacturer reports successful testing of a 100m channel under continuous 57V/1A DC loading.
5. What cable category is the Hikvision DS-1LN6UZC0?
The Hikvision DS-1LN6UZC0 is a Category 6 (Cat6) network cable designed for Ethernet applications with specified electrical performance up to 250MHz.
6. Is the Hikvision DS-1LN6UZC0 shielded or unshielded?
The Hikvision DS-1LN6UZC0 features an unshielded twisted pair (U/UTP) design, suitable for installations where shielded network cable is not required.
7. What conductor gauge does the Hikvision DS-1LN6UZC0 use?
The Hikvision DS-1LN6UZC0 uses 24AWG solid copper conductors with a nominal diameter of 0.50mm.
8. Can the Hikvision DS-1LN6UZC0 be used with Hikvision IP CCTV cameras?
Yes. The Hikvision DS-1LN6UZC0 is suitable for compatible IP surveillance networks, including Ethernet connections between Hikvision IP cameras, network switches and NVRs.
9. Does the Hikvision DS-1LN6UZC0 support Gigabit Ethernet?
Yes. When correctly installed and terminated with compatible Cat6 components, the Hikvision DS-1LN6UZC0 can support standard Gigabit Ethernet applications.
10. What is the maximum Ethernet installation distance for the Hikvision DS-1LN6UZC0?
The Hikvision DS-1LN6UZC0 has been tested in 90m permanent link and 100m channel configurations. Standard copper Ethernet channel lengths are generally limited to 100m, subject to the applicable network standard and equipment requirements.
11. What material is the Hikvision DS-1LN6UZC0 outer jacket made from?
The Hikvision DS-1LN6UZC0 features a durable PVC outer jacket with a specified thickness of 0.50 ± 0.05mm.
12. Is the Hikvision DS-1LN6UZC0 fire-rated?
No. The supplied Hikvision DS-1LN6UZC0 datasheet lists fire resistance as unavailable. Installers should verify whether this cable is permitted for the intended installation location.
13. What colours are available for the Hikvision DS-1LN6UZC0?
The supplied Hikvision DS-1LN6UZC0 datasheet identifies grey and orange jacket options. Availability and exact colour should be confirmed for the supplied variant.
14. Can the Hikvision DS-1LN6UZC0 be used outdoors?
The Hikvision DS-1LN6UZC0 features a PVC jacket and is not specifically identified as UV-resistant or outdoor-rated. Outdoor use should only be considered where the installation environment and cable protection meet applicable requirements.
15. What is the operating temperature range of the Hikvision DS-1LN6UZC0?
The Hikvision DS-1LN6UZC0 is specified for an ambient temperature range of -20°C to +70°C.
16. Does the Hikvision DS-1LN6UZC0 include a rip cord?
Yes. The Hikvision DS-1LN6UZC0 includes an internal rip cord to assist with removing the outer PVC sheath during cable preparation.
17. Does the Hikvision DS-1LN6UZC0 have an internal pair separator?
Yes. The Hikvision DS-1LN6UZC0 includes an internal separator that helps maintain the positioning of the twisted pairs for consistent transmission performance.
18. Is the Hikvision DS-1LN6UZC0 compliant with international cabling standards?
The Hikvision DS-1LN6UZC0 is specified as compliant with ANSI/TIA-568.2-D, ISO/IEC 11801 and RoHS 2.0 requirements.
19. What is included with the Hikvision DS-1LN6UZC0 Cat6 cable?
The Hikvision DS-1LN6UZC0 is supplied as a 305m bulk Cat6 network cable in a cable dispensing or packaging box. Connectors and termination accessories are not specified as included.
20. Why choose the Hikvision DS-1LN6UZC0 Cat6 Ethernet Cable?
The Hikvision DS-1LN6UZC0 combines 305m bulk cable length, 99.95% solid copper conductors, 24AWG construction, Cat6 250MHz performance and verified PoE testing, making it a practical option for compatible CCTV, networking and structured cabling installations.
