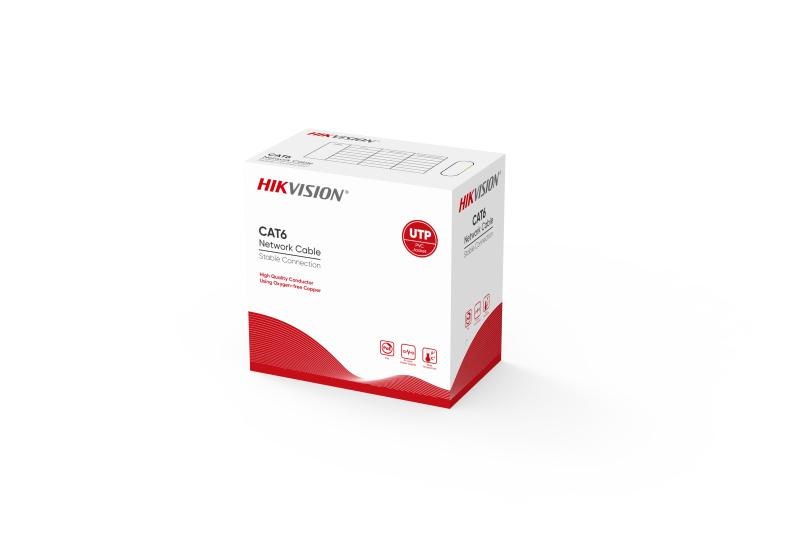

The Hikvision DS-1LN6UZC0-YELLOW CAT6 Network Cable is a 305-metre, 4-pair U/UTP solid copper data cable designed for reliable Ethernet, CCTV, IP camera, PoE and structured cabling installations. Featuring 0.5mm solid bare copper conductors, a durable Yellow sheath and CAT6 performance, the DS-1LN6UZC0-YELLOW is engineered for stable electrical performance and dependable network transmission across professional residential and commercial installations.
Designed in accordance with ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801, the cable provides a dependable foundation for structured network installations where consistent data transmission and installation durability are important.
The solid bare copper conductors provide lower resistance and improved electrical and transmission characteristics compared with alternative conductor constructions such as copper-clad aluminium.
A mechanically robust outer sheath provides strong tensile and compressive properties, helping reduce the potential for cable damage during installation and project deployment.
What's Included in the Box
Main Features
CAT6 Network Cable – Designed for professional Ethernet and structured network cabling applications.
305 Metre Length – Supplied as a 305m cable run for larger network, security and infrastructure projects.
4-Pair U/UTP Construction – CAT6 unshielded twisted-pair cable designed for compatible network applications.
0.5mm Solid Copper Conductors – Uses solid bare copper conductors for low resistance and dependable electrical and transmission performance.
PoE Performance – Demonstrates excellent performance during a 100m Fluke channel test while continuously loaded with 57V/1A DC power.
High-Temperature Performance – Demonstrates excellent performance during a 90m Fluke permanent link test while continuously operating at 50°C.
Strong Mechanical Properties – Durable sheath provides high tensile and compressive strength to help reduce cable damage during installation.
Yellow Cable Sheath – Provides clear visual identification within structured cabling and network installations.
International Cabling Standards – Compliant with ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801.
RoHS 2.0 Compliant – Manufactured to meet RoHS 2.0 requirements.
Detailed Specifications
| Specification |
Details |
| Brand |
Hikvision |
| Model / Product Code |
DS-1LN6UZC0-YELLOW |
| Cable Category |
CAT6 |
| Cable Construction |
U/UTP |
| Number of Pairs |
4 Pair |
| Conductor Type |
Solid Bare Copper |
| Conductor Diameter |
0.5mm |
| Cable Length |
305m |
| Colour |
Yellow |
| Shielding |
Unshielded |
| Permanent Link Test |
Excellent performance at 90m while continuously operating at 50°C |
| Channel Test |
Excellent performance at 100m while continuously loaded with 57V/1A DC power |
| PoE Application |
Supported as specified |
| ANSI/TIA Standard |
ANSI/TIA-568.2-D |
| IEC Standard |
IEC 61156 |
| ISO/IEC Standard |
ISO/IEC 11801 |
| RoHS Compliance |
RoHS 2.0 |
| Application |
Ethernet, IP CCTV, PoE & Structured Cabling |
Cable Construction & Performance
The DS-1LN6UZC0-YELLOW uses four twisted pairs of solid bare copper conductors with a specified conductor diameter of 0.5mm.
Solid copper construction provides lower conductor resistance and improved electrical properties and transmission performance, making the cable particularly suitable for permanent structured cabling installations.
The cable sheath has strong mechanical properties, including high tensile and compressive strength, helping protect the cable against damage that can occur during installation.
Network & PoE Performance
The Hikvision DS-1LN6UZC0-YELLOW is designed for network applications where both data and compatible Power over Ethernet services may be required.
The cable demonstrates excellent performance in a Fluke 90-metre permanent link test while continuously operating at a temperature of 50°C.
It also demonstrates excellent performance in a Fluke 100-metre channel test while continuously loaded with 57V/1A DC power, making it suitable for consideration in compatible PoE network installations.
Actual network and PoE performance depends on the complete cabling channel, termination quality, connected equipment, installation conditions and applicable networking standards.
Standards & Compliance
The DS-1LN6UZC0-YELLOW is specified as compliant with:
-
ANSI/TIA-568.2-D
-
IEC 61156
-
ISO/IEC 11801
-
RoHS 2.0
These specifications make the cable suitable for professional structured cabling applications where recognised network cabling standards are required.
SKU
DS-1LN6UZC0-YELLOW
Practical Use Scenarios
IP CCTV Installations: The DS-1LN6UZC0-YELLOW is well suited to network cabling between compatible IP cameras, network switches, NVRs and other Ethernet-based surveillance equipment.
PoE Camera Networks: Its specified performance under continuous 57V/1A DC loading makes the cable suitable for consideration in compatible PoE surveillance installations.
Commercial Structured Cabling: The 305m length is convenient for offices, warehouses, retail stores and other commercial network infrastructure projects.
Residential Data Networks: Suitable for permanent network cabling between compatible wall outlets, patch panels, network switches and other structured cabling equipment.
Colour-Coded Networks: The Yellow sheath can help installers visually distinguish specific services, networks, device types or cable runs from differently coloured network cabling.
Large Security Projects: A 305m cable supply is practical for projects involving multiple IP cameras and network devices distributed throughout a property.
Warranty Information
Warranty coverage for the Hikvision DS-1LN6UZC0-YELLOW is subject to the applicable Hikvision warranty terms at the time of purchase.
About Hikvision
Hikvision manufactures video surveillance, security and related technology solutions for residential, commercial and enterprise applications. Its portfolio includes IP cameras, network video recorders, access control, intercom systems and supporting network and installation accessories.
Hikvision network cabling provides connectivity options for compatible surveillance and data-network installations.
Datasheets & Downloadable Resources
Datasheet
Excellence for the Australian and New Zealand Market
The Hikvision DS-1LN6UZC0-YELLOW CAT6 Network Cable provides a professional cabling solution for Australian and New Zealand CCTV, networking and structured cabling projects requiring 305m of Yellow CAT6 U/UTP solid copper cable.
Its combination of 0.5mm solid bare copper conductors, strong mechanical properties, PoE performance and recognised international cabling standards makes it suitable for a broad range of professional network infrastructure applications.
For Australian and New Zealand projects, installation should be performed in accordance with applicable local cabling, electrical, building and telecommunications requirements. Project-specific compliance requirements should be verified before installation.
FAQs
What is the Hikvision DS-1LN6UZC0-YELLOW CAT6 cable?
The DS-1LN6UZC0-YELLOW is a 305m CAT6 U/UTP network cable featuring four pairs of 0.5mm solid bare copper conductors and a Yellow outer sheath.
How long is the Hikvision DS-1LN6UZC0-YELLOW network cable?
The DS-1LN6UZC0-YELLOW is supplied in a 305-metre length, making it suitable for larger CCTV and structured network cabling projects.
Is the Hikvision DS-1LN6UZC0-YELLOW made from solid copper?
Yes. The DS-1LN6UZC0-YELLOW uses 0.5mm solid bare copper conductors, providing low resistance and dependable electrical and transmission performance.
Is the Hikvision DS-1LN6UZC0-YELLOW a CAT6 cable?
Yes. The DS-1LN6UZC0-YELLOW is specified as a CAT6 U/UTP 4-pair network cable.
Can the Hikvision DS-1LN6UZC0-YELLOW be used for PoE installations?
Yes. The DS-1LN6UZC0-YELLOW demonstrates excellent performance in a 100m Fluke channel test while continuously loaded with 57V/1A DC power, making it suitable for compatible PoE applications.
Can the Hikvision DS-1LN6UZC0-YELLOW be used for IP CCTV cameras?
The DS-1LN6UZC0-YELLOW is suitable for compatible Ethernet-based CCTV networks and can be used as part of installations connecting IP cameras, network switches, NVRs and related network equipment.
What standards does the Hikvision DS-1LN6UZC0-YELLOW comply with?
The DS-1LN6UZC0-YELLOW is specified as compliant with ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801.
Is the Hikvision DS-1LN6UZC0-YELLOW RoHS compliant?
Yes. The DS-1LN6UZC0-YELLOW is specified as RoHS 2.0 compliant.
What colour is the Hikvision DS-1LN6UZC0-YELLOW cable?
The DS-1LN6UZC0-YELLOW features a Yellow outer sheath, making it easy to identify within structured cabling installations.
How does the Hikvision DS-1LN6UZC0-YELLOW perform at high temperatures?
The DS-1LN6UZC0-YELLOW demonstrates excellent performance in a 90m Fluke permanent link test while continuously operating at 50°C.
Is the Hikvision DS-1LN6UZC0-YELLOW suitable for commercial network installations?
Yes. The DS-1LN6UZC0-YELLOW is designed for CAT6 structured cabling applications and can be used in compatible commercial networks, CCTV systems, offices, warehouses and other network infrastructure projects.
