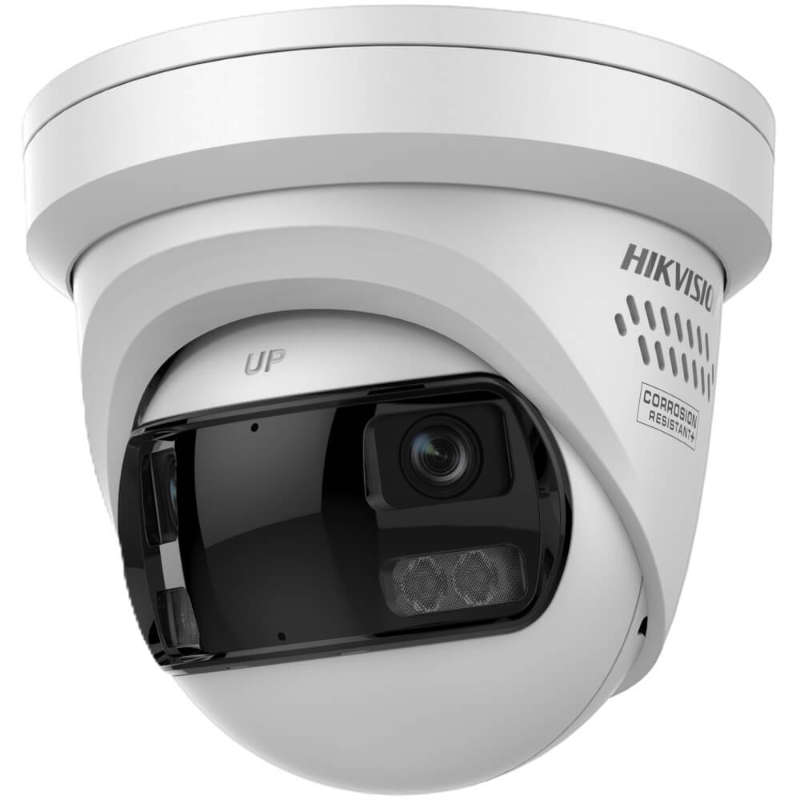

The Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) 8MP Panoramic ColorVu Fixed Turret Network Camera combines a 180° panoramic field of view, 24/7 ColorVu 3.0 colour imaging, HikAI-ISP processing, Smart Hybrid Light, deep-learning human and vehicle classification, 130 dB WDR and active deterrence in a robust IP67 and NEMA 4X metal housing. Designed for wide-area IP CCTV surveillance, its 4256 × 1888 maximum resolution and ultra-wide 2.8 mm F1.0 optics help monitor large areas while reducing blind spots and the number of cameras required.

At the heart of the camera is a 1/2.5" Progressive Scan CMOS imaging system with a minimum colour illumination of just 0.0005 Lux at F1.0 with AGC enabled. ColorVu 3.0 technology is designed to maintain useful colour information in extremely low-light environments, while integrated IR and white supplementary illumination provide coverage up to 30 metres.

The camera's HikAI-ISP image processing helps deliver effective noise reduction, while 130 dB Wide Dynamic Range (WDR) improves visibility where bright and dark areas occur within the same scene. Additional image enhancement functions include BLC, HLC, 3D DNR, distortion correction and defog.

For intelligent security monitoring, the DS-2CD2387G3P-LIS2UY/S(L)(RB) supports deep-learning-based human and vehicle classification, helping security systems distinguish relevant targets. Perimeter protection functions include line crossing, intrusion, region entrance and region exiting detection with triggering based on specified human and vehicle targets.

Main Features

• 8MP panoramic imaging with maximum resolution of 4256 × 1888

• 180° panoramic coverage with 182.6° horizontal field of view

• ColorVu 3.0 technology for 24/7 colour imaging

• HikAI-ISP for enhanced image processing and noise reduction

• Ultra-low 0.0005 Lux colour illumination at F1.0

• 2.8 mm fixed focal lens with large F1.0 aperture

• White light, IR and Smart Hybrid Light operating modes

• Supplementary illumination range of up to 30 m

• 850 nm infrared illumination

• Deep-learning human and vehicle classification

• Line crossing, intrusion, region entrance and region exiting detection

• Active flashing light and audible warning for deterrence

• Arrayed dual-microphone on -2U configuration

• Built-in speaker with up to 110 dB SPL at 10 cm

• 130 dB WDR for challenging backlit scenes

• BLC, HLC, 3D DNR, distortion correction and defog

• H.265+, H.265, H.264+, H.264 and MJPEG support

• Built-in microSD card slot supporting cards up to 512 GB

• ONVIF Profile S, G and T support

• Audio input/output and alarm input/output

• IP67 dust and water resistance

• NEMA 4X anti-corrosion protection

• Durable metal cover and main body

• 12 VDC or IEEE 802.3at Class 4 PoE

• Operating temperature range of -30°C to 60°C

Detailed Specifications

Camera

Lens & Field of View

DORI Distance

Supplementary Lighting

Video

Image Enhancement

• Saturation, brightness, contrast, sharpness, gain and white balance adjustment

• Day, Night, Auto and Schedule modes

• BLC

• HLC

• 3D DNR

• Distortion correction

• Defog

• Four programmable polygon privacy masks

• 130 dB WDR

Audio

The -2U configuration provides an arrayed dual-microphone system. Audio connectivity includes one line input and one line output.

Supported audio codecs include:

• G.711

• G.722.1

• G.726

• MP2L2

• PCM

• MP3

• AAC-LC

Supported sampling rates include 8 kHz, 16 kHz, 32 kHz and 48 kHz, with environmental noise filtering supported on applicable audio configuration.

Network & Integration

Supported network protocols include IPv4, IPv6, TCP/IP, UDP, RTP, RTCP, RTSP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, NTP, SMTP, SNMP, SSL/TLS, QoS, IGMP, PPPoE, UPnP, ICMP, 802.1X and WebSockets.

Cybersecurity Features

Security functionality includes TLS 1.2/1.3, IP address filtering, HTTP/HTTPS authentication, MAC host authentication, watermarking, RTP/RTSP over HTTPS, password protection, AES128/256, 802.1X authentication, HTTPS encryption, WSSE/digest authentication and security audit logging.

Intelligent Events

Basic Events

• Motion detection with specified human and vehicle target triggering

• Video tampering alarm

• Exception detection

• Alarm input/output

Smart Event

• Scene change detection

Perimeter Protection

• Line crossing

• Intrusion

• Region entrance

• Region exiting

• Human and vehicle target classification

Event Linkage

• Notify surveillance centre

• Trigger alarm output

• Trigger recording

• Trigger image capture

• Audible warning

• Email notification

Interfaces

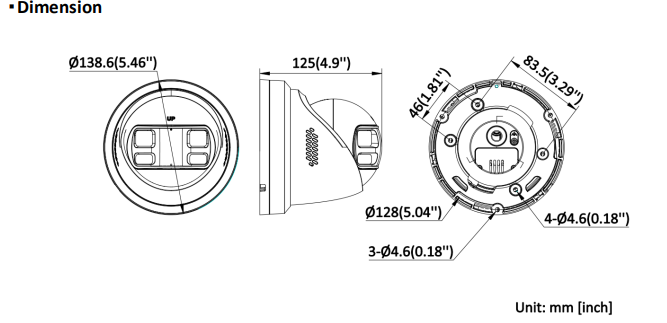

Power & Physical Specifications

Available Models

• DS-2CD2387G3P-LIS2UY/SL(180°) – White flashing light

What's Included in the Box

• 1 × Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) 8MP Panoramic Network Camera

• Standard installation/packaging components supplied by the manufacturer

Note: Mounting brackets, junction boxes, microSD cards, network cabling and power supplies should be treated as optional unless specifically included by the seller.

Compatible Optional Accessories

Manufacturer-listed mounting accessories include:

• DS-1273ZJ-140B wall mount

• DS-2200ZJ-WA-140 wall mount

• DS-1273ZJ-140 wall mount

• DS-2200ZJ-WAJ-140 mounting accessory

• DS-1275ZJ-SUS vertical pole mount

• DS-1271ZJ-140 pendant mount

• DS-2210ZJ-WA-140 pendant mount

• DS-1276ZJ-SUS corner mount

• DS-1280ZJ-PT6 junction box

Compatibility can depend on the selected installation method and combination of mounting accessories.

Practical Use Scenarios

The DS-2CD2387G3P-LIS2UY/S(L)(RB) is particularly suited to locations where a conventional narrow-view camera may leave significant blind spots.

Commercial Buildings & Warehouses: Monitor broad loading areas, entrances, storage areas and building perimeters from a single panoramic viewpoint.

Retail & Shopping Areas: Wide 180° coverage can help monitor storefronts, entrances, car parks and open customer areas.

Residential Security: Suitable for wide driveways, front yards, building approaches and other areas where broad coverage is desirable.

Car Parks: Human and vehicle classification makes the camera particularly useful where both pedestrian and vehicle activity needs to be monitored.

Schools & Campuses: Wide-angle coverage can be deployed across courtyards, entrances, pathways and external common areas.

Moderately Corrosive Environments: The NEMA 4X anti-corrosion design provides moderate corrosion protection. Hikvision identifies applications such as areas approximately 2 km from coastlines and locations affected by acid rain as examples for this protection level.

Warranty Information

3 year warrenty

About Hikvision

Hikvision develops video surveillance, security and AIoT technologies for residential, commercial and enterprise applications. Its security portfolio includes network cameras, NVRs, video management platforms, access control products and intelligent surveillance solutions.

SKU / Product Code

Product Code: DS-2CD2387G3P-LIS2UY/SL

Primary Variants: DS-2CD2387G3P-LIS2UY/SL and DS-2CD2387G3P-LIS2UY/SRB

Datasheets & Downloadable Resources

Manufacturer Datasheet

Excellence for the Australian and New Zealand Market

The Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) provides a strong feature set for professional Australian and New Zealand security installations, including wide 180° panoramic monitoring, ColorVu low-light imaging, AI-assisted human and vehicle classification, active deterrence and a weather-resistant metal enclosure.

Its IP67 rating makes it suitable for exposed outdoor installations within the manufacturer's environmental specifications, while its NEMA 4X anti-corrosion design provides additional protection for environments with moderate corrosion demands.

For Australian and New Zealand projects, installers should confirm that the specific supplied model, firmware, electrical equipment and installation method satisfy all locally applicable regulatory, electrical, cybersecurity and project requirements. No Australian-specific certification or NDSS approval is claimed here because it was not established in the supplied product documentation.

Where genuine manufacturer warranty coverage is required, sourcing through an authorised Hikvision sales channel is recommended. Warranty eligibility and handling should always be confirmed for the specific Australian or New Zealand supplier before purchase.

FAQs

What is the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) camera?

The Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) is an 8MP panoramic fixed turret IP network camera featuring ColorVu 3.0, a 180° panoramic view, Smart Hybrid Light, human and vehicle classification and active deterrence functions.

What resolution does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) support?

The DS-2CD2387G3P-LIS2UY/S(L)(RB) supports a maximum resolution of 4256 × 1888 pixels, with main-stream video at up to 20 fps at its listed maximum resolutions.

What field of view does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) provide?

The DS-2CD2387G3P-LIS2UY/S(L)(RB) uses a 2.8 mm fixed focal lens system providing a 182.6° horizontal and 74.6° vertical field of view, delivering approximately 180° panoramic coverage.

Does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) provide colour images at night?

Yes. The DS-2CD2387G3P-LIS2UY/S(L)(RB) incorporates ColorVu 3.0 technology and an F1.0 aperture for 24/7 colour imaging, with IR and white supplementary lighting available when required.

How far can the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) illuminate at night?

The integrated supplementary lighting on the DS-2CD2387G3P-LIS2UY/S(L)(RB) has a specified range of up to 30 metres.

Does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) detect people and vehicles?

Yes. The DS-2CD2387G3P-LIS2UY/S(L)(RB) uses deep-learning technology to support human and vehicle classification for compatible motion and perimeter protection events.

Does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) support active deterrence?

Yes. The DS-2CD2387G3P-LIS2UY/S(L)(RB) supports an active flashing light and audible warning. The /SL variant uses a white flashing light, while the /SRB variant uses red and blue lights.

Does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) have a built-in microphone and speaker?

The applicable -2U configuration of the DS-2CD2387G3P-LIS2UY/S(L)(RB) incorporates an arrayed dual-microphone, and the camera includes a built-in speaker plus audio input/output interfaces.

Does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) support microSD recording?

Yes. The DS-2CD2387G3P-LIS2UY/S(L)(RB) has an onboard memory-card slot supporting microSD, microSDHC and microSDXC cards with capacities of up to 512 GB.

Is the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) weather resistant?

Yes. The DS-2CD2387G3P-LIS2UY/S(L)(RB) carries an IP67 ingress-protection rating and a NEMA 4X anti-corrosion design.

Can the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) be powered by PoE?

Yes. The DS-2CD2387G3P-LIS2UY/S(L)(RB) supports IEEE 802.3at Class 4 PoE, with maximum specified PoE consumption of 24 W. It can alternatively operate from 12 VDC.

Does the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB) support ONVIF?

Yes. The DS-2CD2387G3P-LIS2UY/S(L)(RB) supports ONVIF Profiles S, G and T, as well as Hikvision ISAPI, SDK and ISUP interfaces.

What is the operating temperature of the Hikvision DS-2CD2387G3P-LIS2UY/S(L)(RB)?

The DS-2CD2387G3P-LIS2UY/S(L)(RB) is specified to operate between -30°C and 60°C, at humidity levels up to 95% non-condensing.

What is the difference between Hikvision DS-2CD2387G3P-LIS2UY/SL and DS-2CD2387G3P-LIS2UY/SRB?

Within the DS-2CD2387G3P-LIS2UY/S(L)(RB) family, the /SL variant uses a white flashing light, while the /SRB variant uses red and blue flashing lights. Both white and black housing versions are listed by the manufacturer.
