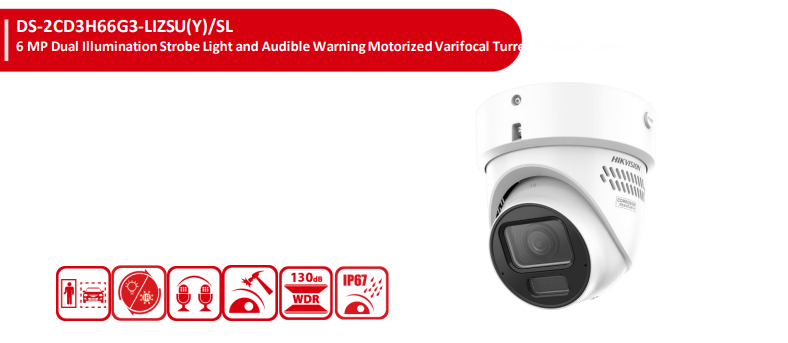

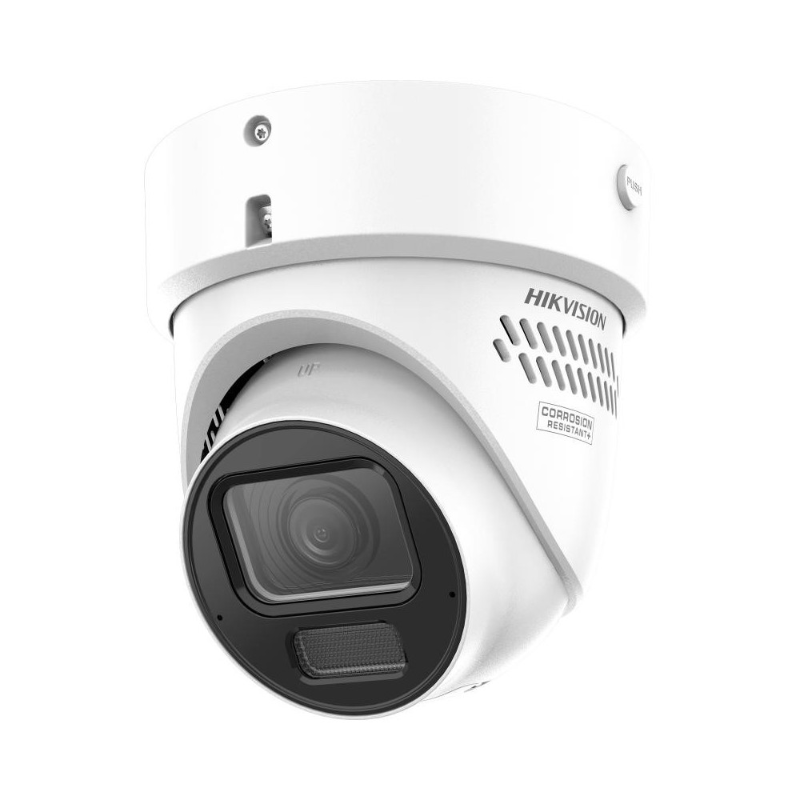

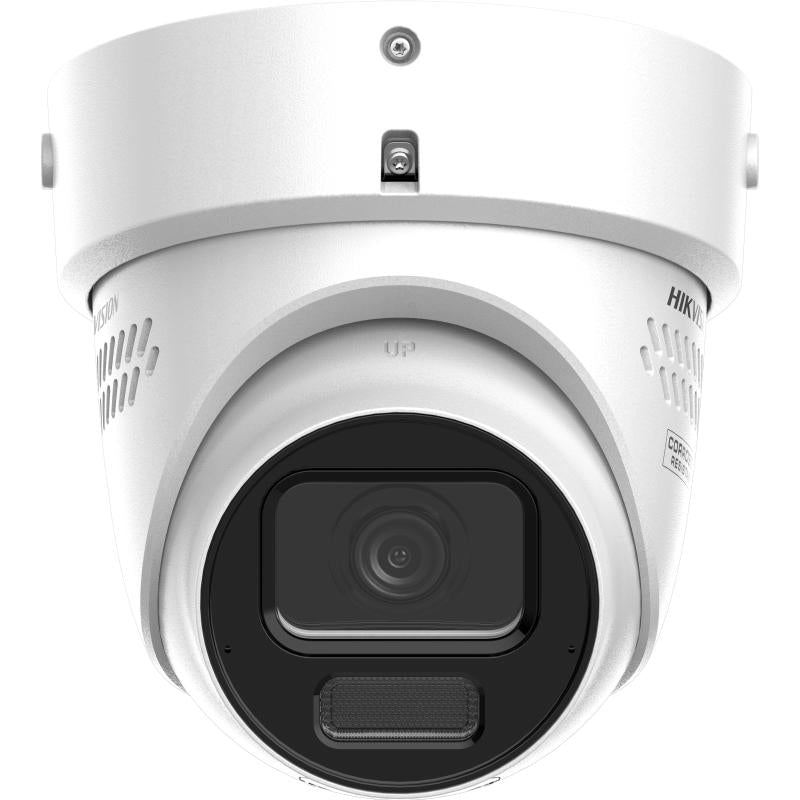

The Hikvision DS-2CD3H66G3-LIZSU(Y)/SL is a high-performance 6MP motorized varifocal turret IP camera designed for advanced outdoor security, combining Darkfighter 2.0 colour imaging, Smart Hybrid Light, AI person and vehicle classification, two-way audio, and an active strobe/audio warning system for reliable 24/7 surveillance.
Built with a 1/1.8" Progressive Scan CMOS sensor and a 2.7–13.5 mm motorized varifocal lens, this Hikvision turret camera delivers up to 3200 × 1800 resolution with a wide adjustable field of view. Its F1.2 aperture, HIK AI-ISP noise reduction, and 130 dB scene-adaptive WDR help produce clearer images in challenging light conditions.
For proactive security, the camera features built-in arrayed dual microphones, a built-in speaker, two-way audio, active white strobe light, and audible warning functions to help deter intruders in real time. Its Smart Hybrid Light system combines IR and white light with three supplemental lighting modes and illumination up to 40 m.
The -Y variant provides an anti-corrosion design with NEMA 4X moderate protection, making it suitable for demanding outdoor environments such as coastal areas approximately 2 km from coastlines or locations affected by acid rain. The housing is IP67 water and dust resistant and IK10 vandal resistant, supporting long-term reliability in commercial, industrial, and perimeter surveillance applications.
What’s Included in the Box
- 1 × Hikvision DS-2CD3H66G3-LIZSU(Y)/SL Network Camera
- Standard manufacturer packaging
Main Features
-
6MP high-resolution imaging up to 3200 × 1800
-
Darkfighter 2.0 technology for 24/7 vivid colour imaging
-
HIK AI-ISP for excellent noise reduction
-
2.7–13.5 mm motorized varifocal lens for flexible installation
-
Smart Hybrid Light with IR and white light, up to 40 m range
-
Active strobe light and audible alarm to deter intruders
-
Built-in dual microphones for high-quality real-time audio security
-
Built-in speaker and two-way audio for live communication
- Deep learning person and vehicle classification
-
130 dB WDR for scenes with strong backlight
- Line crossing, intrusion, region entrance, and region exiting detection
- Face capture and people counting support
- MicroSD card support up to 512 GB
- IP67 weather resistance and IK10 vandal resistance
- -Y anti-corrosion design with NEMA 4X protection
- PoE support via IEEE 802.3at, Class 4
Detailed Specifications
Camera
| Specification |
Details |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3200 × 1800 |
| Minimum Illumination |
Colour: 0.001 Lux @ F1.2, AGC ON; B/W: 0 Lux with IR |
| Shutter Speed |
1 s to 1/100,000 s |
| Day/Night |
IR cut filter |
| WDR |
130 dB |
| SNR |
≥ 52 dB |
| Image Stabilisation |
EIS |
| Image Enhancement |
BLC, HLC, 3D DNR, distortion correction, defog |
Lens
| Specification |
Details |
| Lens Type |
Motorized varifocal lens |
| Focal Length |
2.7 to 13.5 mm |
| Horizontal FOV |
112.3° to 41.2° |
| Vertical FOV |
58.1° to 23.1° |
| Diagonal FOV |
137.4° to 47.3° |
| Aperture |
Max. F1.2 |
| Iris Type |
Auto-iris |
| Depth of Field |
1 m to ∞ |
DORI Distance
| Mode |
Detect |
Observe |
Recognise |
Identify |
| Wide |
74.3 m |
29.5 m |
14.9 m |
7.4 m |
| Tele |
183.3 m |
72.8 m |
36.7 m |
18.3 m |
Video
| Specification |
Details |
| Main Stream |
Up to 25 fps at 50 Hz / 30 fps at 60 Hz |
| Main Stream Resolutions |
3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 |
| Compression |
H.265, H.264, H.264+, H.265+ |
| Bit Rate |
32 Kbps to 16 Mbps |
| Bit Rate Control |
CBR, VBR |
| ROI |
5 fixed regions for main stream and sub-stream |
| e-PTZ |
Patrol and Auto Tracking settings supported |
Audio
| Specification |
Details |
| Audio Type |
Mono |
| Built-in Microphone |
Arrayed dual-microphone |
| Built-in Speaker |
Max. 2 W, 97 dB at 10 cm |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Sampling Rate |
8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering |
Yes |
| Audio I/O |
1 input, 1 output |
Network & Storage
| Specification |
Details |
| Ethernet |
1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| API |
ONVIF Profile S, Profile T, Profile G, ISAPI, SDK, ISUP |
| Simultaneous Live View |
Up to 6 channels |
| Users |
Up to 32 users |
| Storage |
NAS, ANR, microSD/microSDHC/microSDXC up to 512 GB |
| Client Software |
iVMS-4200, Hik-Connect, Hik-Central |
| Browser Support |
Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ for plug-in free live view |
Events & AI Functions
| Specification |
Details |
| Basic Events |
Motion detection, video tampering alarm, exception |
| Smart Events |
Scene change, audio exception, defocus detection |
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting |
| Target Classification |
Human and vehicle |
| Face Capture |
Yes |
| People Counting |
Yes |
| Alarm I/O |
2 inputs, 2 outputs |
General
| Specification |
Details |
| Power |
12 VDC ±25%, max. 16.8 W |
| PoE |
IEEE 802.3at, Class 4, max. 20 W |
| Material |
Metal base and metal cover |

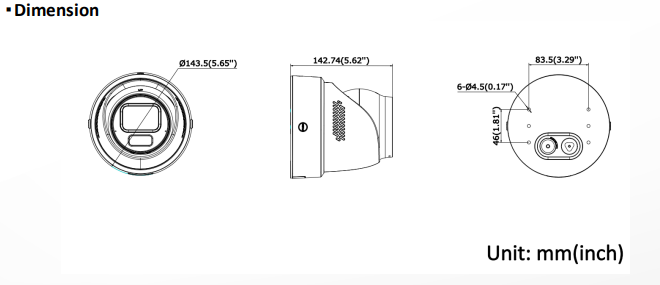

| Dimensions |
Ø143.5 mm × 142.7 mm |
| Weight |
Approx. 1265 g |
| Operating Temperature |
-30 °C to 60 °C |
| Operating Humidity |
95% or less, non-condensing |
| Protection |
IP67, IK10 |
| Anti-Corrosion |
-Y model: NEMA 4X, moderate protection |
| EMC Approval |
RCM: AS/NZS CISPR 32:2015 |
| Safety |
CB: IEC 62368-1:2014+A11 |
| Environment |
CE-RoHS: 2011/65/EU |
Warranty Information
3-year Warranty. For Australian and New Zealand customers, warranty support should be confirmed at the time of purchase and handled through the authorised Hikvision supply channel or direct brand representative where applicable.
Brand Description
Hikvision is a global video security and surveillance technology brand offering IP cameras, NVRs, video management solutions, and intelligent security products. Hikvision products are designed with a security-by-design approach, including device, data, application, network, and privacy protection measures.
SKU
DS-2CD3H66G3-LIZSU(Y)/SL
Practical Use Scenarios
- Commercial perimeter surveillance
- Warehouses and loading docks
- Retail premises and shopping centre entries
- Schools, campuses, and public access areas
- Apartment complexes and building entrances
- Coastal-area installations requiring moderate anti-corrosion protection
- Car parks, driveways, and vehicle entry points
- Sites requiring active deterrence with strobe light and audible warning
- Locations needing real-time two-way audio communication
- Smart surveillance applications requiring person and vehicle classification
Datasheets & Downloadable Resources
- Product datasheet
- Optional accessories and mounting references: DS-1475ZJ-SUS, DS-1476ZJ-SUS, DS-1271ZJ-140-Y, DS-1273ZJ-140B-Y, DS-1273ZJ-140-Y.
Excellence for the Australian and New Zealand Market
The Hikvision DS-2CD3H66G3-LIZSU(Y)/SL is well suited to Australian and New Zealand security projects requiring high-resolution outdoor surveillance, smart deterrence, reliable low-light performance, and rugged environmental protection.
This model lists RCM compliance to AS/NZS CISPR 32:2015, supporting suitability for the Australian and New Zealand market. It also includes IP67 weather resistance, IK10 vandal resistance, and NEMA 4X anti-corrosion protection for the -Y model.
NDSS approval is not applicable to this surveillance camera category. For best results, source this product through authorised Hikvision representatives to ensure genuine supply, correct regional support, and warranty handling through the appropriate brand channel.
FAQs
What is the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL used for?
The Hikvision DS-2CD3H66G3-LIZSU(Y)/SL is used for professional outdoor IP surveillance where high-resolution video, active deterrence, two-way audio, and AI-based person and vehicle detection are required.
Does the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL support colour imaging at night?
Yes, the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL supports 24/7 colourful imaging using Darkfighter 2.0 technology, supported by its F1.2 aperture and advanced sensor design.
What resolution does the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL provide?
The Hikvision DS-2CD3H66G3-LIZSU(Y)/SL provides up to 6MP resolution, with a maximum image resolution of 3200 × 1800.
Does the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL have two-way audio?
Yes, the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL includes built-in arrayed dual microphones and a built-in speaker, enabling real-time two-way audio communication.
Is the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL weather resistant?
Yes, the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL is rated IP67 for water and dust resistance, making it suitable for outdoor installations.
Is the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL vandal resistant?
Yes, the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL is rated IK10, providing vandal-resistant protection for exposed security installations.
Does the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL support AI detection?
Yes, the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL supports deep learning-based person and vehicle classification for smarter perimeter protection and event filtering.
What lens does the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL use?
The Hikvision DS-2CD3H66G3-LIZSU(Y)/SL uses a 2.7–13.5 mm motorized varifocal lens, allowing flexible adjustment during installation.
How far can the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL illuminate at night?
The Hikvision DS-2CD3H66G3-LIZSU(Y)/SL provides IR and white light illumination up to 40 m, depending on scene conditions and installation settings.
Does the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL support PoE?
Yes, the Hikvision DS-2CD3H66G3-LIZSU(Y)/SL supports PoE via IEEE 802.3at, Class 4, with a maximum PoE power consumption of 20 W.
