The Hikvision DS-2CD63C5G1-IVS 12MP DeepinView fisheye network camera delivers high-resolution 360-degree panoramic surveillance, intelligent heatmap analytics, multi-dewarping display modes, two-way audio, built-in IR illumination, and durable IP67/IK10 protection for professional indoor and outdoor security applications.
Designed for wide-area monitoring, the DS-2CD63C5G1-IVS captures a complete fisheye view of the scene using a 12 MP progressive scan CMOS sensor with a maximum resolution of 3504 × 3504. Its panoramic coverage makes it ideal for open spaces where a single camera can help reduce blind spots and provide comprehensive visual awareness.
The camera supports up to 20 live view display modes across wall, table, and ceiling mounting options, allowing operators to view footage in fisheye, panorama, PTZ, 4PTZ, fisheye + PTZ, hemisphere, cylinder, and other dewarped formats. This makes footage easier to interpret while preserving wide-area visibility.
With built-in deep learning heatmap analytics, the DS-2CD63C5G1-IVS can count people and present intuitive visual reports based on visits or dwell time. It also supports people counting, queue management, and intersection analysis, making it suitable for retail, public facilities, transport hubs, and commercial environments where visitor behaviour insights are valuable. Product details are based on the supplied Hikvision datasheet information.
What’s Included in the Box
- 1 × Hikvision DS-2CD63C5G1-IVS 12MP DeepinView IR Fisheye Network Camera
- Standard installation accessories
- Product documentation / quick start information
Main Features
-
12 MP high-resolution fisheye imaging for detailed panoramic surveillance
-
360-degree panoramic scene coverage from a single camera position
-
Deep learning heatmap analytics for people counting and dwell-time visualisation
-
Multi-dewarping display modes for intuitive viewing
-
Up to 20 live view display modes for wall, table, and ceiling mounting
-
Built-in IR illumination with up to 15 m IR range
-
Built-in microphone and speaker for two-way audio communication
-
Four built-in microphones for enhanced audio capture
-
High-quality dewarped image clarity, including 4-image PTZ mode
- Panomorph lens RPL: 89VVT
-
IP67 water and dust resistance for outdoor reliability
-
IK10 vandal resistance for enhanced physical protection
- People counting, queue management, heat map, and intersection analysis
- MicroSD card support up to 256 GB
- ONVIF Profile S, Profile G and Profile T support
- Compatible with iVMS-4200, iVMS-4500, iVMS-5200 and Hik-Connect
Detailed Specifications
| Specification |
Details |
| Product Code / SKU |
DS-2CD63C5G1-IVS |
| Camera Type |
12 MP DeepinView IR Network Fisheye Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Maximum Resolution |
3504 × 3504 |
| Minimum Illumination |
Colour: 0.03 Lux @ F2.2, AGC ON; B/W: 0.006 Lux @ F2.2, AGC ON; 0 Lux with IR |
| Lens Type |
Fixed focal lens |
| Focal Length |
1.29 mm |
| Field of View |
Horizontal 180°, Vertical 180° |
| Aperture |
F2.2 |
| Depth of Field |
0.2 m to infinity |
| DORI Distance |
Detect: 27.9 m; Observe: 11.1 m; Recognise: 5.6 m; Identify: 2.8 m |
| Supplement Light Type |
IR |
| IR Range |
Up to 15 m |
| Supplement Light Number |
3 |
| IR Wavelength |
850 nm |
| Main Stream Compression |
H.265+, H.265, H.264+, H.264 |
| Sub-Stream Compression |
H.265, H.264, MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Frame Rate |
50 Hz: up to 25 fps; 60 Hz: up to 30 fps |
| Display Modes |
Fisheye, panorama, 360 panorama, PTZ modes, 4PTZ, fisheye + PTZ, hemisphere, AR hemisphere, cylinder and more |
| Mount Types |
Wall, table and ceiling mounting |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Sampling Rate |
8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Built-in Microphone |
Yes, 4 built-in microphones |
| Built-in Speaker |
Yes, 1 built-in speaker |
| Audio Input / Output |
1 line input and 1 line output via 3.5 mm connector |
| Network Interface |
1 × RJ45 10/100/1000M self-adaptive Ethernet port |
| Simultaneous Live View |
Up to 20 channels |
| API Support |
ONVIF Profile S/G/T, ISAPI, SDK, ISUP |
| SIP Support |
Supports SIP integration with VoIP systems, peer-to-peer or SIP/PBX integration |
| On-board Storage |
microSD/microSDHC/microSDXC card support up to 256 GB |
| Alarm Interface |
2 inputs, 2 outputs |
| RS-485 |
1 × RS-485 half duplex |
| WDR |
Digital WDR |
| Image Enhancement |
BLC, HLC, 3D DNR, distortion correction, defog |
| Privacy Mask |
8 programmable polygon privacy masks |
| Deep Learning Functions |
People counting, queue management, heat map, intersection analysis |
| Smart Events |
Line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage, object removal |
| Power Supply |
12 VDC ±20% or PoE IEEE 802.3af Class 3 |
| Maximum Power Consumption |
11.5 W via 12 VDC; 12.5 W via PoE |
| Material |
Metal |

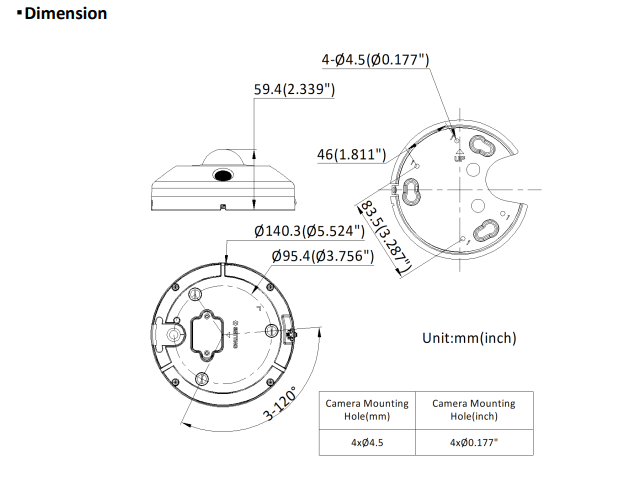

| Dimensions |
Ø140.3 mm × 59.4 mm |
| Weight |
Approx. 715 g |
| Operating Conditions |
-40 °C to 60 °C; humidity 95% or less, non-condensing |
| Protection Rating |
IP67, IK10 |
| Heater |
Yes |
| Cable Length |
0.31 m |
| Available Model |
DS-2CD63C5G1-IVS 1.29 mm |
Warranty Information
3-year Warranty. For Australian and New Zealand customers, warranty handling should be managed through authorised Hikvision supply channels or direct communication with the brand representative, where applicable.
Brand Description
Hikvision is a global provider of video security and surveillance solutions, offering a wide range of IP cameras, network video recorders, access control systems, intercom products, and intelligent analytics solutions. Hikvision cameras are widely used across residential, commercial, industrial, government, transport, retail, and public infrastructure environments.
SKU
DS-2CD63C5G1-IVS
Practical Use Scenarios
- Retail store heatmap and customer flow analysis
- Shopping centre and public venue monitoring
- Office reception areas and open-plan spaces
- Warehouses, logistics areas, and loading zones
- Schools, universities, and education facilities
- Transport hubs, station concourses, and waiting areas
- Car park lobbies and building entrances
- Commercial spaces requiring wide-angle 360-degree visibility
- Queue monitoring and service efficiency analysis
- Security installations requiring two-way audio communication
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Hikvision DS-2CD63C5G1-IVS is suitable for professional security projects across Australia and New Zealand, particularly where panoramic surveillance, intelligent visitor analytics, queue monitoring, and durable outdoor protection are required.
The supplied specifications list RCM: AS/NZS CISPR 32:2015, along with CE-EMC, UL, CB, CE-LVD, CE-RoHS, WEEE, REACH, IP67, and IK10 approvals or standards. Its IP67 water and dust resistance and IK10 vandal resistance make it suitable for demanding installations where environmental durability and impact protection are important.
This model is listed as having no specific anti-corrosion protection, so it should be selected carefully for coastal, corrosive, or chemically exposed environments. For best results, source the product through authorised Hikvision supply channels, with warranty and support handled through authorised suppliers or direct brand representative communication where applicable.
FAQs
What is the Hikvision DS-2CD63C5G1-IVS used for?
The Hikvision DS-2CD63C5G1-IVS is used for 12 MP fisheye surveillance, 360-degree panoramic monitoring, heatmap analytics, people counting, and wide-area security coverage.
Does the Hikvision DS-2CD63C5G1-IVS support 360-degree viewing?
Yes, the Hikvision DS-2CD63C5G1-IVS provides 360-degree panoramic imaging and supports multiple dewarping modes for easier viewing.
What resolution does the Hikvision DS-2CD63C5G1-IVS provide?
The Hikvision DS-2CD63C5G1-IVS provides up to 12 MP resolution with a maximum image size of 3504 × 3504.
Does the Hikvision DS-2CD63C5G1-IVS have heatmap analytics?
Yes, the Hikvision DS-2CD63C5G1-IVS supports heatmap analytics based on deep learning algorithms to help visualise people flow and dwell time.
Does the Hikvision DS-2CD63C5G1-IVS support two-way audio?
Yes, the Hikvision DS-2CD63C5G1-IVS includes built-in microphones and a built-in speaker for two-way audio communication.
What is the IR range of the Hikvision DS-2CD63C5G1-IVS?
The Hikvision DS-2CD63C5G1-IVS has built-in IR illumination with a range of up to 15 metres.
Is the Hikvision DS-2CD63C5G1-IVS suitable for outdoor installation?
Yes, the Hikvision DS-2CD63C5G1-IVS is IP67 rated for water and dust resistance, making it suitable for outdoor installation when installed correctly.
Is the Hikvision DS-2CD63C5G1-IVS vandal resistant?
Yes, the Hikvision DS-2CD63C5G1-IVS has an IK10 vandal-resistant rating for added physical protection.
What storage does the Hikvision DS-2CD63C5G1-IVS support?
The Hikvision DS-2CD63C5G1-IVS supports microSD, microSDHC, and microSDXC cards up to 256 GB.
Does the Hikvision DS-2CD63C5G1-IVS support queue management?
Yes, the Hikvision DS-2CD63C5G1-IVS supports queue management with regional people queuing and waiting-time detection features.
